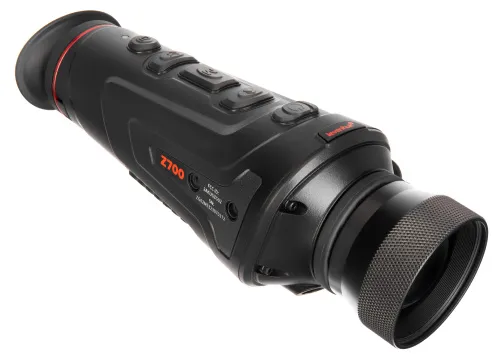

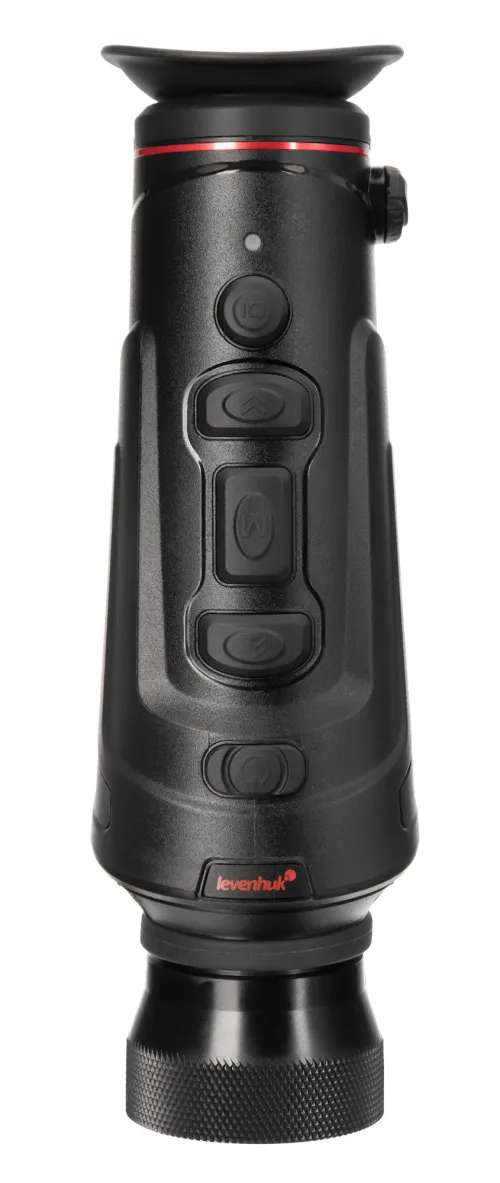

Levenhuk Fatum Z700 Thermo Vision Monocular
Waterproof. Optical magnification: 3.3x. Digital magnification: 1–4x. Maximum detection range: 3000m (9840ft). Built-in Wi-Fi and Bluetooth modules, recorder, and rangefinder
Product ID | 82083 |
Brand | Levenhuk, Inc., USA |
Warranty | 2 years |
EAN | 5905555001937 |
Package size (LxWxH) | 18x35x20 cm |
Shipping Weight | 1.85 kg |

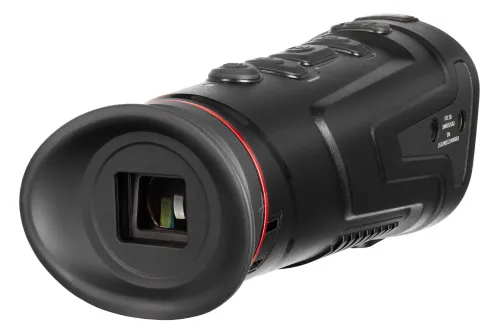

The Levenhuk Fatum Z700 is a thermo vision monocular capable of detecting a live target at distances up to 3000 meters (9840ft). You can use it for various purposes, such as search operations, security activities, hunting, or camping. It will help you track game, find a trespasser, and locate landmarks. The Levenhuk Fatum Z700 Thermo Vision Monocular is not hindered by about obstacles such as camouflage, fog, or smoke screens – it will find exactly what you are looking for by its heat trail. It applies not only to living targets but also to machinery and industrial facilities.
The optical magnification is 3.3x and you can also use the digital one which can be continuously adjusted from 1 to 4x. To increase contrast and clarity, you can select one of several digital palettes available in six different colors. It also features hot spot detection and picture-in-picture mode, which makes it easier to work in the field. If necessary, the remote object can be illuminated by a laser designator, which works at a distance of up to 200 meters (660ft).
Additional features include a recorder and rangefinder. The recorder can capture your observations in photo and video format – the data will be stored in its available 16 GB internal memory. The rangefinder allows you to calculate the distance to the target with no need for any additional tools. The device supports two types of communication protocols: Wi-Fi and Bluetooth. The first one can pair the thermo vision monocular with a smartphone to view images and access the gallery via the TargetIR app. The second one is required for remote control use. The device also has two ports – microHDMI, which is used to connect to an external display, and Type-C for data transfer and device charging. The device is powered by a pair of rechargeable batteries with a total capacity of 6000 mAh, which is enough for 5 hours of continuous operation.
The thermo vision device is compact, lightweight, waterproof, and easy to operate in any situation. There is a standard 1/4" thread to mount the device on a tripod.
Key features:
- For detecting thermal targets at distances up to 3000m (9840ft)
- 3.3x optical magnification, smooth digital variable magnification from 1x to 4x
- 400x300pix sensor, six digital palettes, a picture-in-picture feature, hot spot detection, laser designator with a range of up to 200m (660ft)
- Recorder and 16GB internal memory for storing photos and video, rangefinder for determining distance to the target
- Bluetooth and Wi-Fi support, TargetIR mobile app compatibility
- MicroHDMI port for video output and Type-C port for charging and data transfer
- A pair of rechargeable batteries with a total capacity of 6000 mAh – 5 hours of continuous operation without recharging
- Waterproof body, 1/4" tripod mount
- Lightweight – 500g

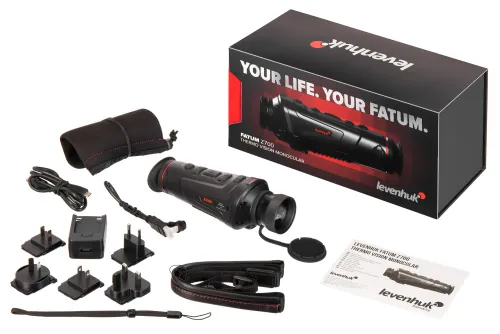

The kit includes:
- Thermo vision monocular
- HDMI cable
- Type-C cable
- Power adapter
- Power adapter plugs – 5 pcs (UK, US, EU, AU, CH)

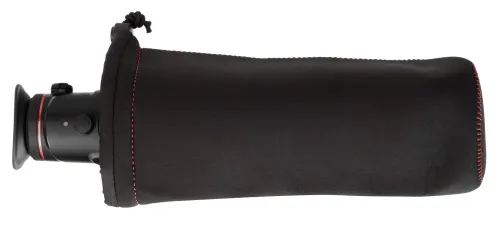

- Pouch
- Shoulder strap

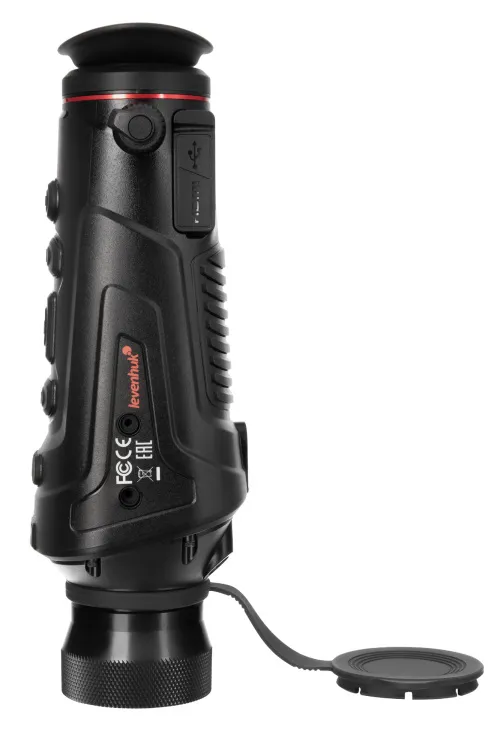

- Eyepiece protective cap
- User manual and warranty card
Product ID | 82083 |
Brand | Levenhuk, Inc., USA |
Warranty | 2 years |
EAN | 5905555001937 |
Package size (LxWxH) | 18x35x20 cm |
Shipping Weight | 1.85 kg |
Type of thermo vision device | monocular, tripod mountable |
Detection range, m | 3000 (vehicle, 2.3x2.3m), 1400 (person, 1.8x0.5m), 1180 (deer, 1.5x0.5m), 880 (wild boar, 0.9x0.7m) |
Recognition range, m | 1400 (vehicle, 2.3x2.3m), 700 (person, 1.8x0.5m), 590 (deer, 1.5x0.5m), 450 (wild boar, 0.9x0.7m) |
Microbolometer matrix | uncooled, vanadium oxide |
Resolution of microbolometer matrix, px | 400x300 |
Pixel size, μm | 17 |
Spectral range, μm | 8–14 |
Frame rate | 50Hz |
Temperature sensitivity (NETD), mK | ≤30 |
Calibration | automatic, shutter (shooter), manual |
Adjustable parameters | brightness (10 levels), contrast (10 levels) |
Color palettes | hot black, hot white, hot blue, hot green, customizable hot red, red iron |
Laser designator | + |

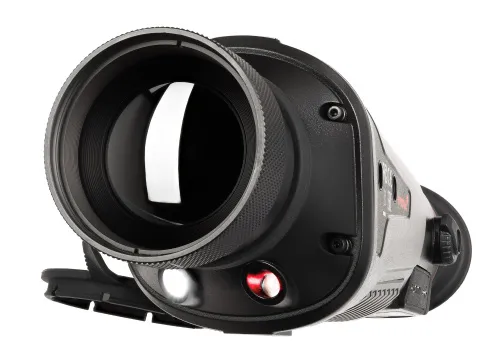

Objective | germanium |
Focal length, mm | 50 |
Aperture ratio | f/1.2 |
Optical magnification | 3.3x |
Digital magnification | 1–4x |
Field of view (horizontal)x(vertical), ° | 7.8х5.8 |
Focus | manual |
Eye relief, mm | 10 |
Eyepiece diopter adjustment, diopters | -4/+2 |
Display | 0.4", FLCOS, brightness adjustable (10 levels) |
Display resolution, px | 1280x960 |
Power supply | 18650 type non-removable battery, 3000mAh – 2 pcs. |
Battery life, h | 5 |

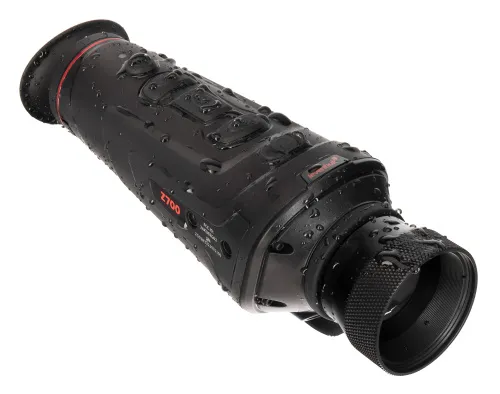

Moisture resistance | ✓ |
Start-up time, s | 2 |
Operating temperature range, °C | -10...+50 |
Operating humidity range, % | 10 — 95 |
Built-in rangefinder | ✓ |
Ability to connect additional equipment | iOS and Android mobile devices (TargetIR app), external screen |
Bluetooth | ✓ |
Wi-Fi | ✓ |
Wi-Fi settings | 2.4Hz, range – 15m (50ft) (in direct line of sight) |
Built-in recorder | ✓ |
Memory | 16 GB |

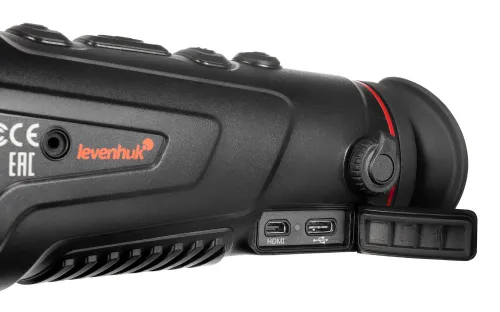

Interface connectors | Type-C (USB 2.0) for data transfer and charging; HDMI for video output |

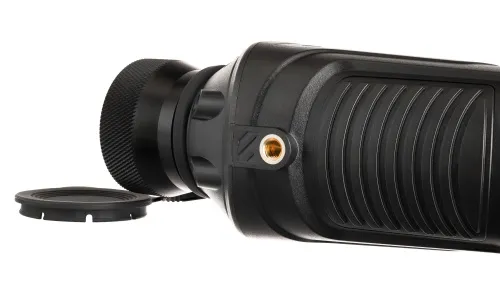

Adaptable to a tripod | standard 1/4" thread |
Mounting on a tripod | ✓ |
Pouch/case/bag in set | pouch |
Additional | auto-off function, hot spot detection, auto sleep mode, image enhancement function, picture-in-picture mode, shock-, vibration-, and drop proof (within 1m/3.3ft) |
