Waterproof. Optical magnification: 1.6x. Digital zoom: 2x/4x. Maximum detection range: 1700m (5570ft)

1700 (car, 2.3x2.3m), 700 (person, 1.8x0.5m)
The detection range is the maximum distance at which objects of interest can be observed
400x300
The microbolometer matrix resolution is the number of pixels horizontally and vertically
≤50
Thermal sensitivity (NETD) is an indicator for assessing the degree of clarity of the separation of a thermal object from the external background. The lower it is, the more effective the thermo vision device will be
Availability

Product ID 81914
Brand Levenhuk, Inc., USA
Warranty 2
EAN 5905555016696
Package size (LxWxH) 36x30x15
Shipping Weight 2.475
Description

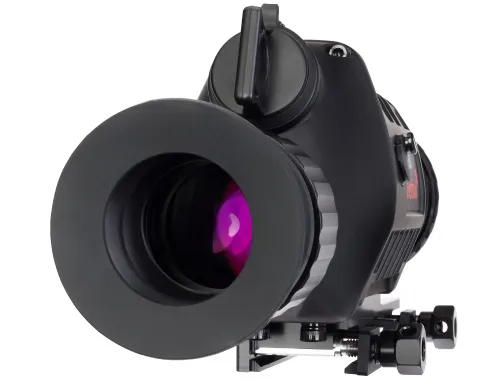

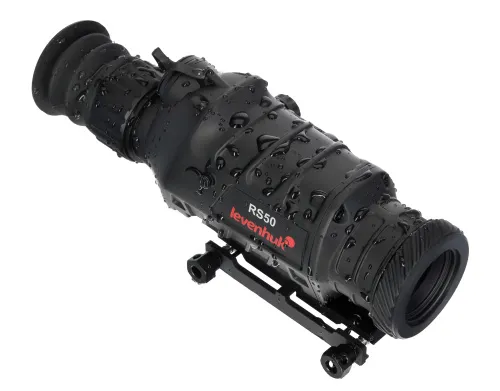

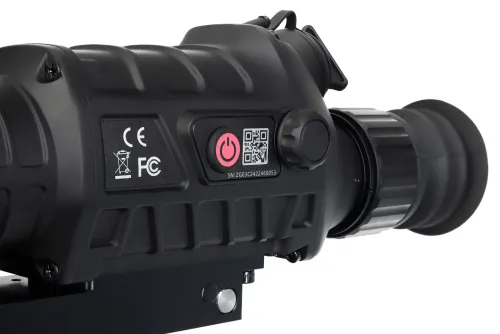

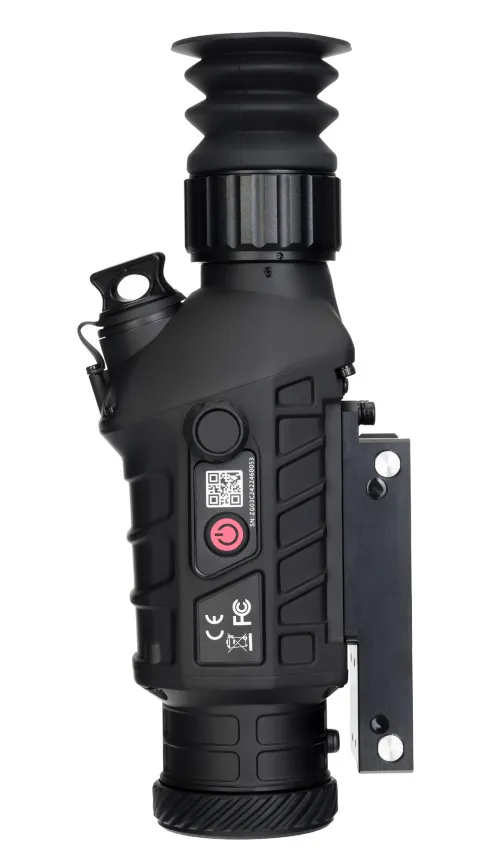

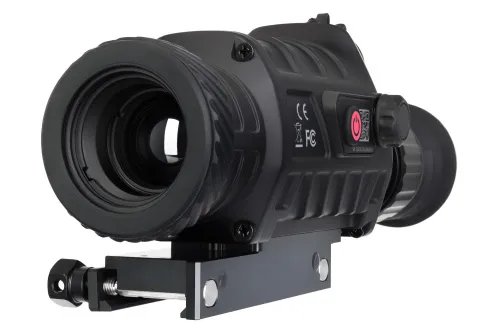

The Levenhuk Fatum RS50 Thermo Vision Riflescope is designed for weapons with a Picatinny rail. It can detect a target and shoot effectively at a distance of up to 1700 meters (5570ft). You can use it in all light conditions (day, night, dusk) and in challenging environments (fog, smoke screen, dense undergrowth, etc.). Thanks to its waterproof body, the device cannot be affected by bad weather conditions or accidental dropping into a river or lake. The riflescope is suitable for hunting and professional purposes, such as protecting territories, borders, and critical facilities.

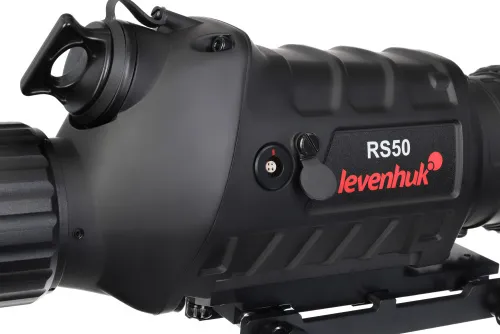

The riflescope provides an optical magnification of 1.6x, a digital zoom (2 or 4x) and, if necessary, a picture-in-picture mode, and hot spot detection. You can also choose the type and color of the reticle for your riflescope – there are ten styles available. It is very easy to adapt the riflescope to different situations – there are several color pallets and brightness and contrast levels available. Another useful feature – you can display the image from the riflescope on an external device via a LEMO connector.

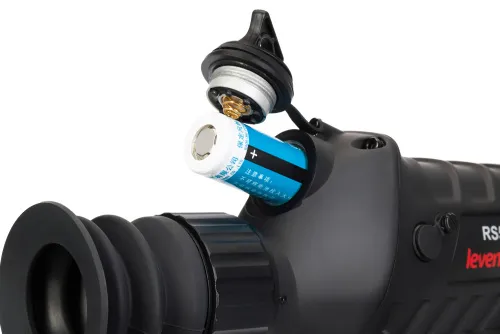

The riflescope is powered by a standard rechargeable battery providing about 3 hours of continuous operation.

Key features:

  • Optical and digital magnification, detection range up to 1700 meters (5570ft)
  • Ten types of the reticle with color selection
  • Image display on an external device via a LEMO connector
  • Powered by a rechargeable battery, 3 hours of continuous operation on a single charge

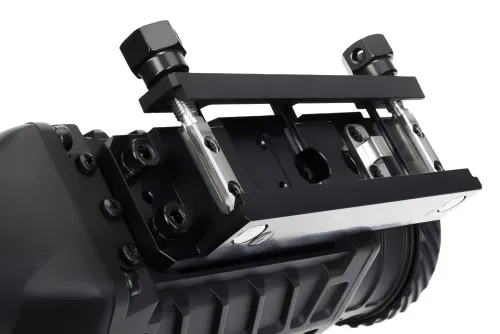

  • Picatinny rail
  • Waterproof design for any environment

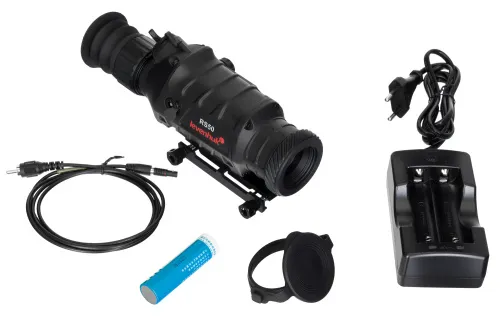

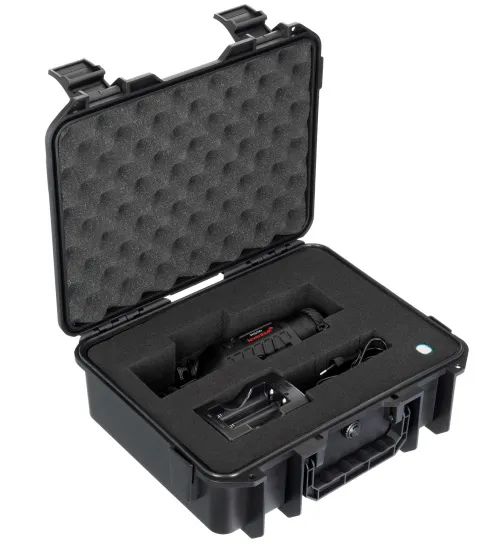

The kit includes:

  • Thermo vision riflescope
  • 18650 rechargeable battery
  • Battery charger
  • Video cable

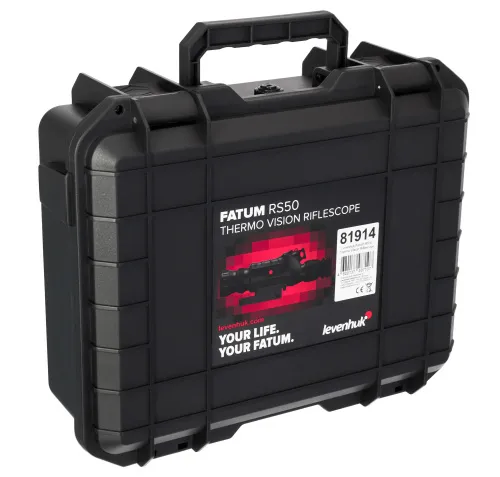

  • Case
  • User manual and warranty card
Specifications
Product ID 81914
Brand Levenhuk, Inc., USA
Warranty 2
EAN 5905555016696
Package size (LxWxH) 36x30x15
Shipping Weight 2.475
Type of thermo vision device riflescope
Detection range, m 1700 (car, 2.3x2.3m), 700 (person, 1.8x0.5m)
Recognition range, m 700 (car, 2.3x2.3m), 350 (person, 1.8x0.5m)
Microbolometer matrix uncooled, vanadium oxide
Resolution of microbolometer matrix, px 400x300
Pixel size, μm 17
Spectral range, μm 8–14
Frame rate 50Hz
Temperature sensitivity (NETD), mK ≤50
Calibration automatic, shutter (shooter), manual
Adjustable parameters brightness (10 levels), contrast (10 levels)
Color palettes hot black, hot white, hot blue, hot green, hot red 1, hot red 2, hot red 3
Objective lens diameter (aperture), mm 23
Focal length, mm 25
Focal length, mm 0 to 10
Aperture ratio f/1.1
Optical magnification 1.6x
Digital magnification 2x/4x
Field of view (horizontal)x(vertical), ° 14.9х11.2
Focus manual
Close focus, m 10
Eye relief, mm 48
Eyepiece diopter adjustment, diopters ±4
Display OLED, color, 0.39"
Display resolution, px 1024x768
Power supply 18650 lithium battery
Battery life, h 3
Body aluminum alloy
Moisture resistance
Degree of moisture/water protection IP67, complete protection against dust and temporary immersion in water
Operating temperature range,°C -40...+50
Operating humidity range, % 10 — 95
Built-in rangefinder
Ability to connect additional equipment external screen (video output cable included)
Interface connectors LEMO video connector (PAL, 50Hz)
Mount Picatinny
Pouch/case/bag in set case
Additional hot spot detection, picture-in-picture mode, ten types of the reticle with color selection (black/white)
