Measuring distance, angles, and speed. Measuring range: 5–700 meters (16–2300ft). Magnification: 6x

±1m
The rangefinder error depends on its accuracy
5 — 700
Rangefinder measuring distance is the maximum distance it can be used at
Hunting
Rangefinder’s purpose
Availability

Product ID 81416
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555016146
Package size (LxWxH) 7x13x11 cm
Shipping Weight 0.34 kg
Description

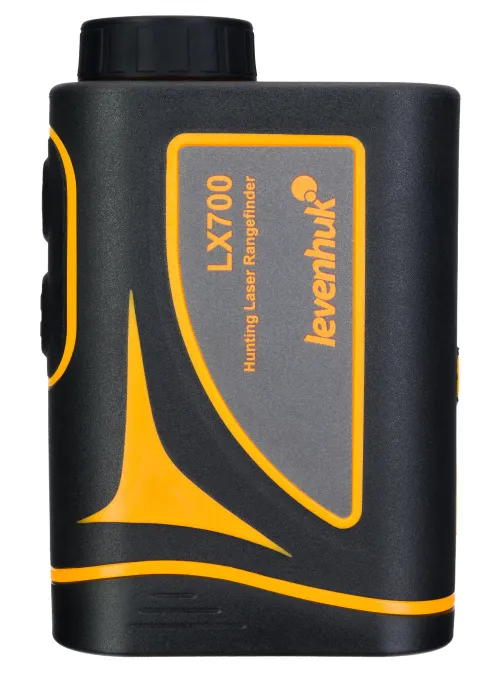

The Levenhuk LX700 laser rangefinder is a compact and lightweight device that measures distance and angles as well as calculates the speed of moving targets. It is characterized by fast performance, low power consumption, and high accuracy of measurements. It can target both large (e.g., buildings or trees) and relatively small (e.g., flagpoles or small wild game) targets of different sizes. The device can measure distances of up to 700 meters (2300ft).

The optics provide 6x magnification and, therefore, the device can also be used as a classic monocular for observation. The rangefinder has two operation modes: a single distance measurement mode and a scan mode. In the scan mode, measurements can be taken continuously, which is useful if you want to measure the distance to a moving object, for example. There is also a flagpole lock mode, which is used to measure the distance to a small single object in the field. The device quickly finds a target and vibrates when it is locked in place. There is also a slope mode. In the slope mode, all of the measurements appear in real time.

The device is powered by a built-in rechargeable battery that can be recharged via the included USB cable (the AC adapter is not included). There is an auto-off function that saves battery power. Although it is designed for handheld use, there is a 1/4" mount thread that can be used to mount the rangefinder on a standard tripod to stabilize the device.

Please note: IR illumination (infrared radiation) can be detected by photo and video cameras as well as other similar electronic devices during operation.

Key features:

  • Measuring angles and distance between two points vertically and horizontally
  • Calculating speed for moving objects
  • Single measurement mode and scan mode
  • Slope compensation – the calculation of the correct distance of a shot based on the slope of the surface
  • Flagpole lock mode – measuring the distance to small single targets, vibrating when the target is locked in place
  • Compact and lightweight design – perfect for long hikes and hunting
  • Powered by a built-in rechargeable battery that is charged from an AC power supply via the included USB cable
  • Tripod mountable

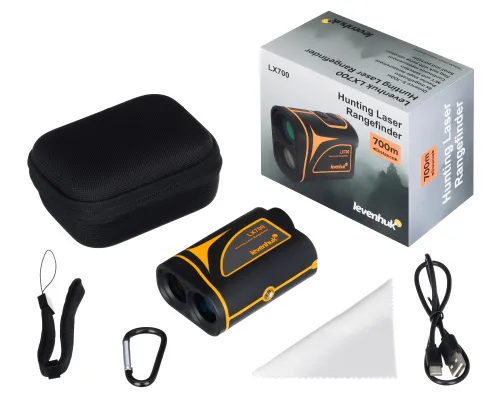

The kit includes:

  • Laser rangefinder
  • USB (Type-C) charging cable

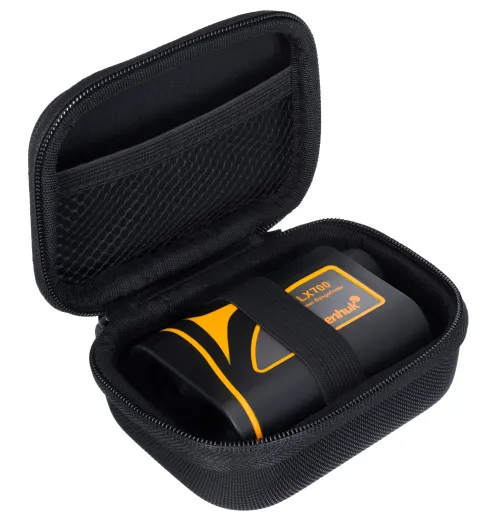

  • Pouch
  • Hand strap
  • Cleaning wipe
  • User manual and warranty card
Specifications
Product ID 81416
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555016146
Package size (LxWxH) 7x13x11 cm
Shipping Weight 0.34 kg
Magnification, x 6
Objective lens diameter (aperture), mm 25
Error ±1m
Measuring range, m 5 — 700
Units of measurement meters/yards
Measurement accuracy distance: ±1m (3.3ft) / ±0.5%; angles: ±1°
Laser designator 905nm, <1mW, class 1
Power supply built-in 750mAh lithium-ion battery
Additional auto-off function, 1/4" standard thread, speed calculation, scan mode
Application hunting
User level beginners, experienced users
Assembly and installation difficulty level easy
Pouch/case/bag in set pouch
