MAGUS FM2 Focus Mount

see all

The price is valid only for the online store and may differ from the prices in retail stores.

For stereomicroscopes

Availability

Product ID	83507
Brand	MAGUS
Warranty	2 years
EAN	5905555019727
Package size (LxWxH)	29x17x20 cm
Shipping Weight	1.3 kg

Description

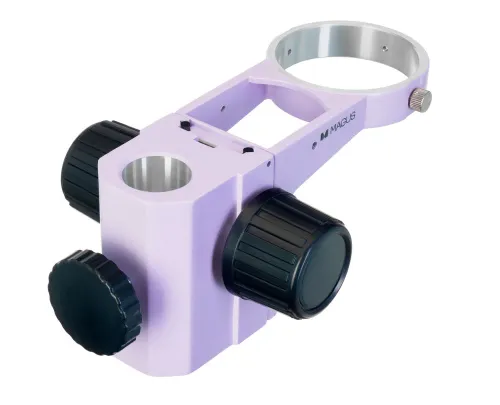

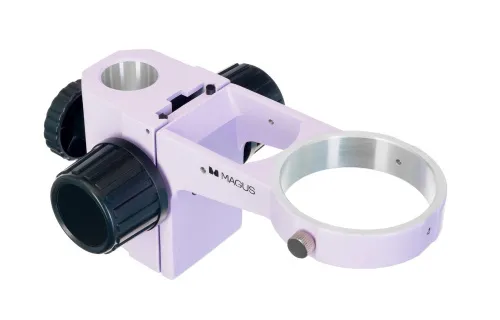

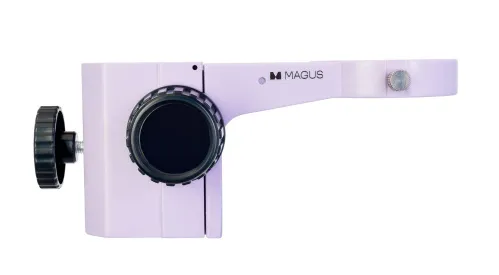

A focus mount is a structural element of a stereomicroscope that fixes the microscope head on the stand. By turning the coaxial knobs, the microscope head is focused on the object of study.

The MAGUS FM2 Focus Mount implements coarse focusing.
It is used to install MAGUS Stereo 7BH, Stereo 7TH, Stereo 8BH, and Stereo 8TH microscope heads on the MAGUS UT2 and UT3 stands. For the MAGUS UT3 stand, an additional MAGUS P32 mounting pin is required.

Specifications
Mounting pin diameter, mm	32
Microscope head diameter, mm	76
Focusing travel, mm	50

Specifications

Product ID	83507
Brand	MAGUS
Warranty	2 years
EAN	5905555019727
Package size (LxWxH)	29x17x20 cm
Shipping Weight	1.3 kg

References
and downloads

MAGUS: information leaflet (pdf)

(PDF, 551.73 Kb)

MAGUS: information booklet (pdf)

(PDF, 18.12 Mb)

High-resolution images (zip)

(ZIP, 18.69 Mb)
