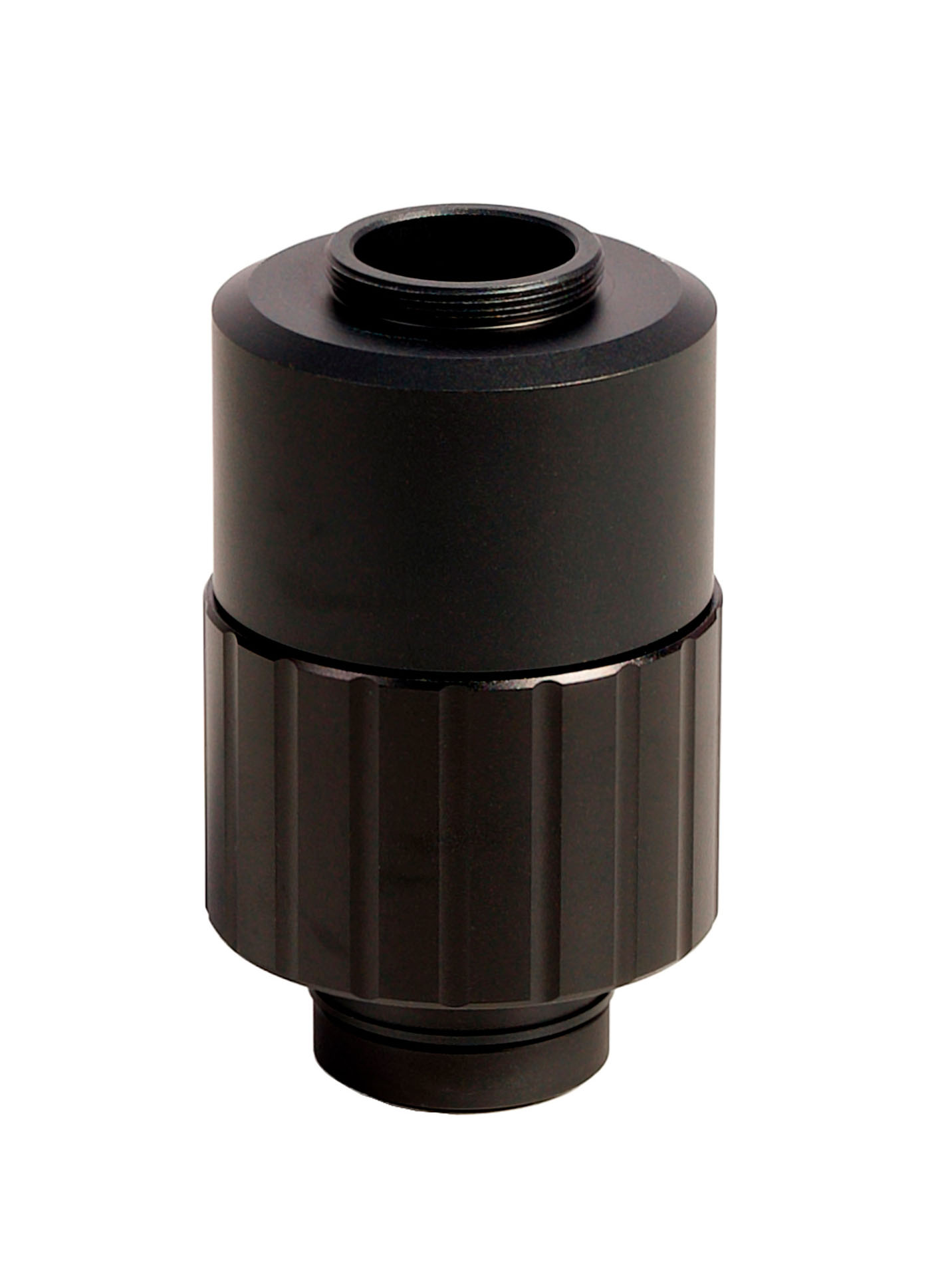

MAGUS CMA100.260 C-mount Adapter

image MAGUS CMA100.260 C-mount Adapter, 3

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 1.82х

Availability

Product ID	85080
Brand	MAGUS
Warranty	2 years
EAN	5905555025346
Package size (LxWxH)	6x2x3 cm
Suitable for sensors	1" and larger

Description

The C-mount adapter is designed for mounting the digital camera in the vertical tube of the trinocular microscope. The adapter magnification is 1.82x. It is used with the MAGUS models that have a built‑in 0.55x magnification in the vertical tube, resulting in a final magnification of 1x at the camera. When selecting a camera and calculating the resolution and sensor size, ensure to use the final magnification factor of 1x.

The maximum field of view without vignetting can be obtained on 1" and larger sensors.

Recommended for cameras:

MAGUS CBF70 Digital Сamera
MAGUS CDF70 Digital Сamera
MAGUS CLM50 Digital Сamera
MAGUS CLM70 Digital Сamera
MAGUS CLM90 Digital Сamera

Compatibility:

MAGUS Bio 260T Biological Microscope
MAGUS Bio 270T Biological Microscope
MAGUS Lum 450L Fluorescence Microscope
MAGUS Lum 460L Fluorescence Microscope
MAGUS Lum 470L Fluorescence Microscope
