Attachable scale to control slide movements along – X and Y axes. Features coordinate and nonius scales

Colour Base color
Margin:
Discount:
Retail price:
The price is valid only for the online store and may differ from the prices in retail stores.
Availability
Specifications
All specifications
Accessories

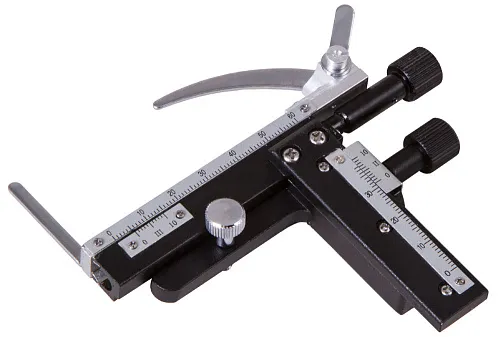

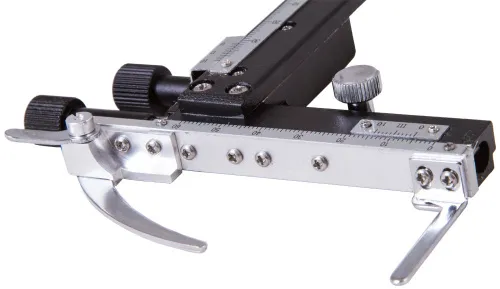

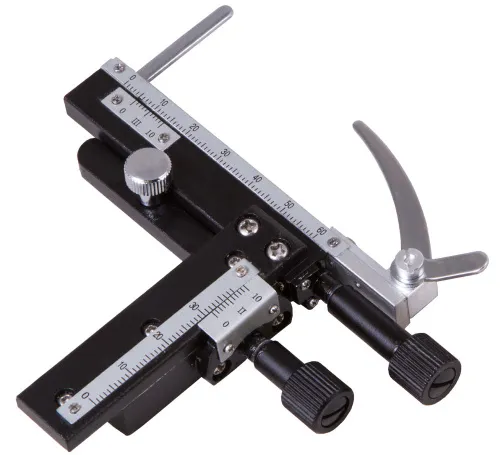

The Levenhuk MS3 Mechanical Scale is a removable accessory useful with a biological microscope for detailed examination of microscope slides. It is installed on the stage instead of the slide holders and is fixed with a stage screw.

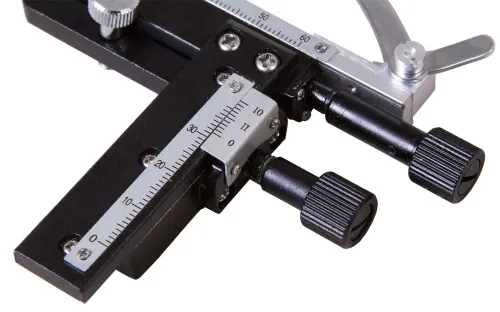

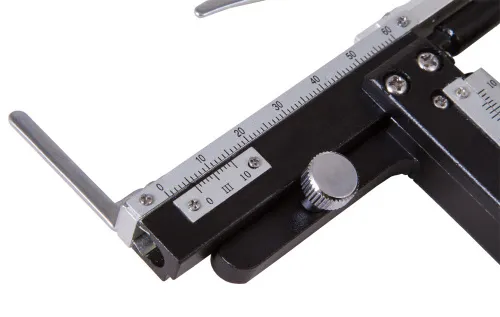

With the Levenhuk MS3 Mechanical Scale, you can move the microscope slides along X axis (left-right) and Y axis (forwards-backwards), and also determine their coordinates. The accessory is supplied with coordinate and nonius scales – the auxiliary scales to make measurements more precise.

The scale is compatible with the following microscopes:

The installation is not recommended for microscopes that have plastic bodies as damage to the microscope may occur.

Specifications
Movement range along X axis, mm0–57
Movement range along Y axis, mm0–30
Measuring scale division value, mm1
Distance between the dowel pins, mm35±0.1
Distance between the dowel pins and the stage screw, mm17.5±0.1
Dowel pin diameter, mm3
Stage screw thread sizeM4
Scale materialmetal
Handle materialplastic
