Monocular. Magnification: 200x. Illumination: mirror

Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
200
How much the size of a sample increases when you observe it through a microscope
Elementary, school/educational
Application and use of the microscope
Availability

Product ID 25648
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004266
Package size (LxWxH) 14x19x32 cm
Shipping Weight 1.25 kg
Description

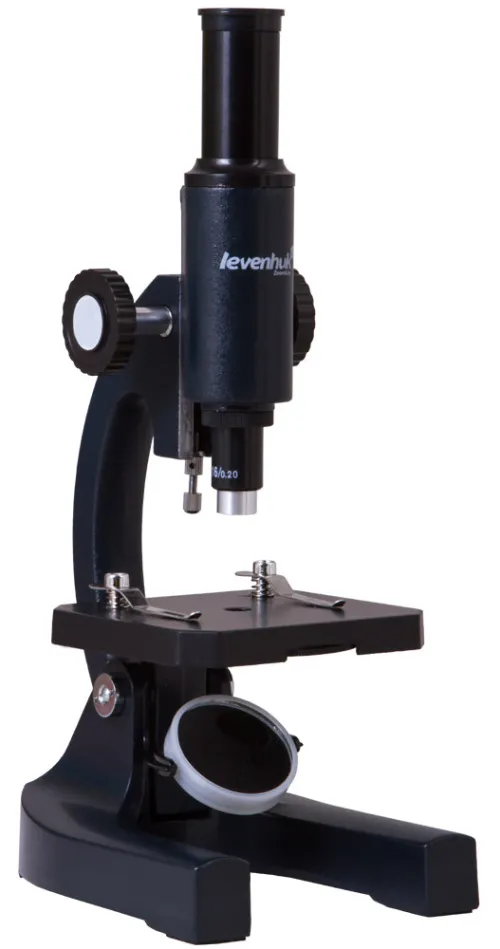

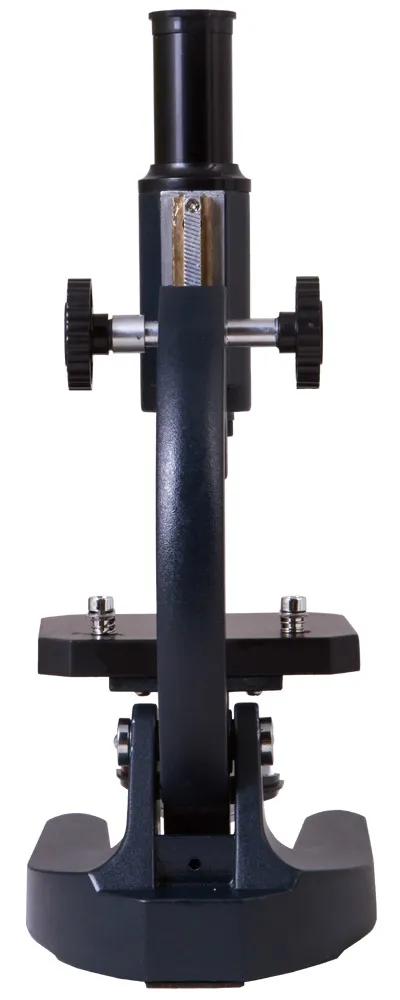

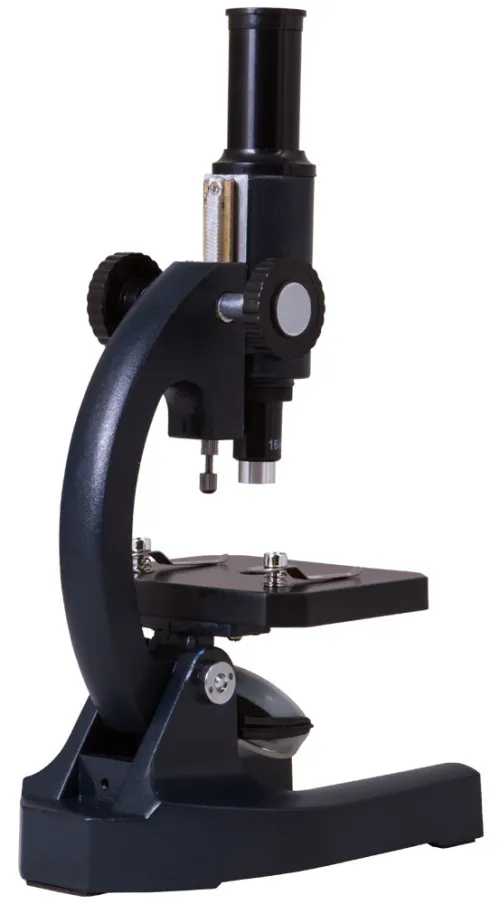

Levenhuk 2S NG Microscope is an attractively priced basic microscope for beginners, children and students. The microscope works in bright field mode allowing you to observe transparent specimens, and has a very good price/quality ratio. Featuring 200x magnification Levenhuk 2S NG Microscope will show amateur observers everything they need to start their scientific investigations.

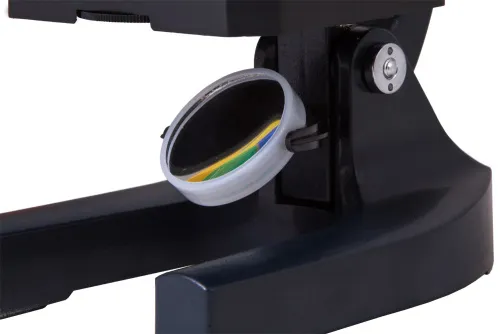

1.6-inch plano-concave mirror used as the illumination source in the Levenhuk 2S NG Microscope provides the light required for observations and has several advantages that make it safe for children to use. Plano-concave mirror is known as the safest illumination method; it doesn't require a separate power supply and can be easily controlled by adjusting the disc diaphragm.

Levenhuk 2S NG Microscope has a 16x eyepiece that provides quality views without aberrations, and coarse focusing system with 0.8-inch focusing intervals that makes the images sharper.

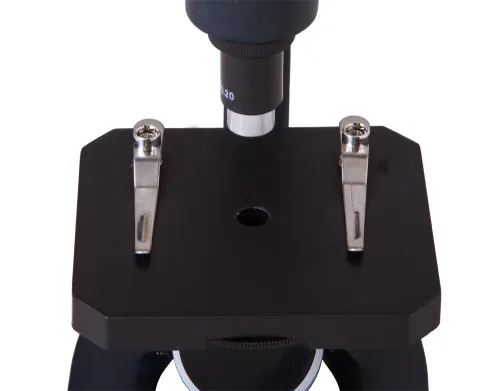

This model features inclined head and stage, so you can comfortably adjust the microscope to your desired position during observations. The stage also has stage clips to keep samples (one or two since stage dimensions allow that) in place. Reliable metal construction ensures the microscope's stability.

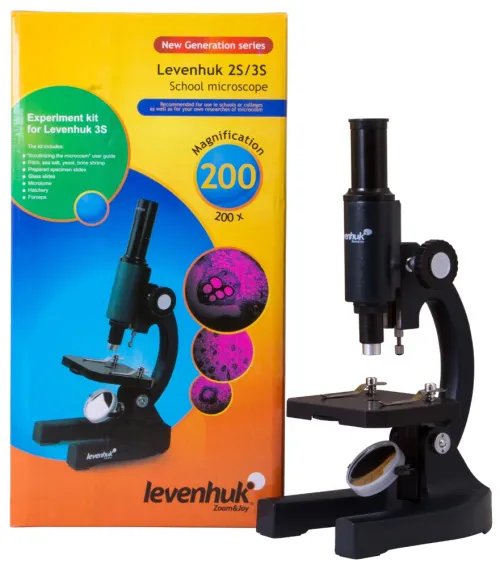

Levenhuk 2S NG Microscope kit includes:

  • Microscope

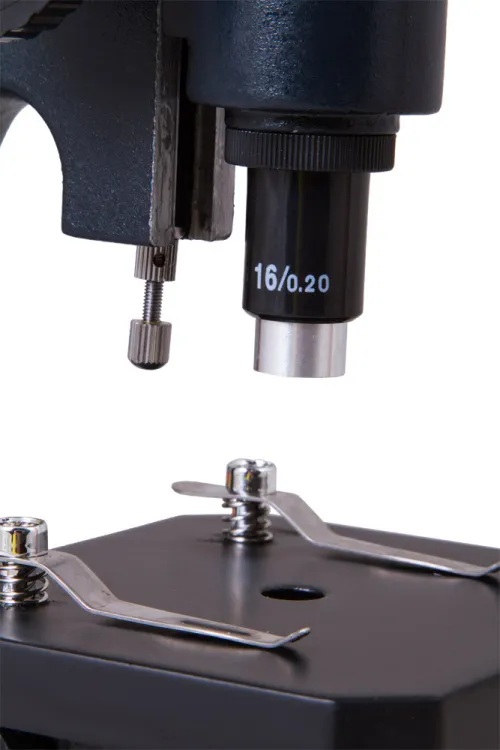

  • 1 objective: 16x
  • 1 eyepiece: H12.5 x
  • Diaphragm disk
  • Stage with clips
  • Plano-concave mirror
  • User manual and lifetime warranty

Some things you can see under a microscope:

Levenhuk 2S NG Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

Specifications
Product ID 25648
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004266
Package size (LxWxH) 14x19x32 cm
Shipping Weight 1.25 kg
Type biological, light/optical
Head monocular
Optics material optical glass
Nozzle fixed (non-rotatable)
Head inclination angle not angled
Magnification, x 200
Eyepiece tube diameter, mm 23.2
Eyepieces 12.5x
Objectives 16x (achromatic)
Stage, mm 100x90
Stage moving range, mm fixed
Stage features with clips
Diaphragm diaphragm disc (6 apertures)
Focus coarse (20mm)
Body metal
Illumination mirror
User level beginners, elementary
Assembly and installation difficulty level extremely simple
Application elementary, school/educational
Illumination location lower
Research method bright field
