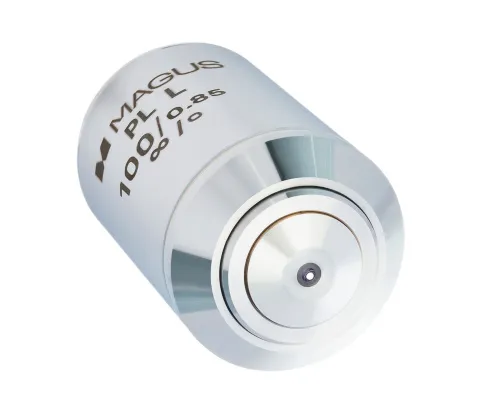

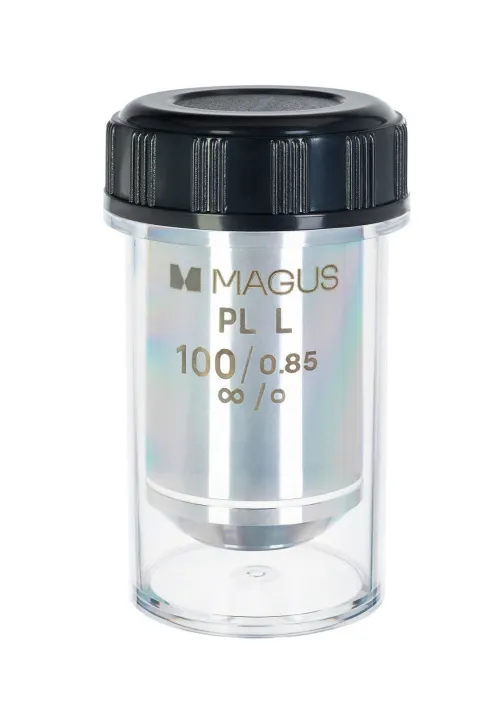

Infinity-corrected plan achromatic objective. Magnification: 100x. Aperture: 0.85

Availability

Product ID 83456
Brand MAGUS
Warranty 2 years
EAN 5905555021034
Package size (LxWxH) 7x4x4 cm
Shipping Weight 0.135 kg
Description

The polarizing objective is equipped with special strain-free lenses. They do not interfere with the passage of light and do not affect the results of the study. The objective is suitable for working in reflected and transmitted polarized light.

A 100x objective coupled with a 5x to 10x eyepiece creates a useful microscope magnification of 425x to 850x. Eyepieces of lower magnification will not allow you to examine the sample in detail; eyepiece magnification of more than 10x will not provide new information about the sample.

The plan achromatic objective corrects geometric aberration on 90% of the field of view diameter. The image is equally clear and focused both in the middle and at the edges. These conditions are well suited for connecting a digital camera or creating an optical system with a wide-field eyepiece. A 10x/22mm eyepiece will provide a field of view of 0.22mm. Chromatic distortion is corrected for red and blue colors; spherical distortion is corrected for green.

The objective is designed to be mounted on microscopes with an infinity-corrected optical system. The parfocal distance is 45mm. The resolution limit is 0.33µm.

Compatibility:

  • MAGUS Pol 850 Polarizing Microscope
Specifications
Lens material optical glass
Objective class by aberration correction degree plan achromatic
Tube length infinity-corrected (∞)
Contrast technique polarized light
Magnification, x 100
Aperture 0.85
Working distance, mm 0.4
Parfocal distance, mm 45
Cover glass thickness, mm without a cover glass
Spring-loaded frame +
Immersion
Body material copper
