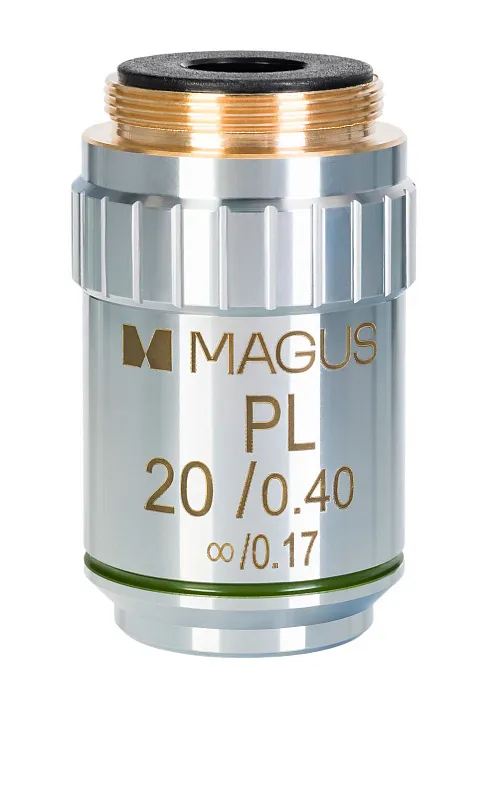

MAGUS MP20 20х/0.40 ∞/0.17 Infinity Plan Achromatic Objective

MAGUS MP20 20х/0.40 ∞/0.17 Infinity Plan Achromatic Objective

picture MAGUS MP20 20х/0.40 ∞/0.17 Infinity Plan Achromatic Objective
picture MAGUS MP20 20х/0.40 ∞/0.17 Infinity Plan Achromatic Objective
picture MAGUS MP20 20х/0.40 ∞/0.17 Infinity Plan Achromatic Objective
picture MAGUS MP20 20х/0.40 ∞/0.17 Infinity Plan Achromatic Objective
The price is valid only for the online store and may differ from the prices in retail stores.

Infinity-corrected. Magnification: 20x. Aperture: 0.40

Availability
Product ID 82913
Brand MAGUS
Warranty 2 years
EAN 5905555018973
Package size (LxWxH) 4x7x4 cm
Shipping Weight 0.1 kg
description
specifications
downloads
Description

The infinity plan achromatic objective, 20x magnification and maximum resolution of 0.69µm. This objective is used for studying samples from 1µm over a wide field of view, e.g., in urine or blood tests (determination of leukocytes, erythrocytes, cylinders, and other constituents). Due to its minimal distortions, the plan aromatic objective can also be used for digital photography and together with wide-field eyepieces (22mm field of view).

The MAGUS MA20 20x/0.40 objective has chromatic correction for blue and red, and corrected spherical aberration for green. The field curvature is corrected for 90% of the field of view diameter. It is recommended to use 10x to 20x magnification eyepieces with the objective. The thickness of the cover glass for observing with this objective is 0.17mm.

Compatibility:

  • MAGUS Bio 230B Biological Microscope
  • MAGUS Bio 230BL Biological Microscope
  • MAGUS Bio 230T Biological Microscope
  • MAGUS Bio 230TL Biological Microscope
  • MAGUS Bio 250B Biological Microscope
  • MAGUS Bio 250BL Biological Microscope
  • MAGUS Bio 250T Biological Microscope
  • MAGUS Bio 250TL Biological Microscope
  • MAGUS Lum 400 Fluorescence Microscope
  • MAGUS Lum 400L Fluorescence Microscope
Specifications
Product ID 82913
Brand MAGUS
Warranty 2 years
EAN 5905555018973
Package size (LxWxH) 4x7x4 cm
Shipping Weight 0.1 kg
Lens material optical glass
Body material copper
Objective class by aberration correction degree plan achromatic
Magnification, x 20
Aperture 0.4
Working distance, mm 8.8
Parfocal distance, mm 45
Cover glass thickness, mm 0.17
Compatible tube length, mm infinity
Thread type WJ 4/5"*1/36"
Spring-loaded frame no
Immersion no
