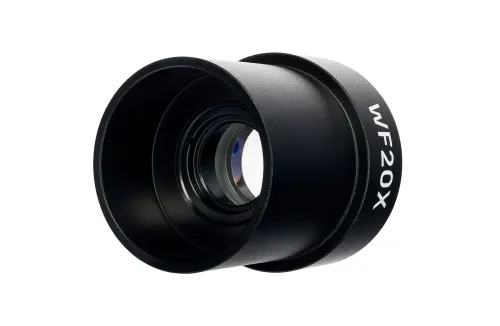

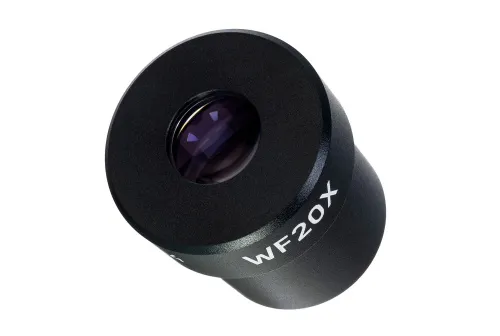

MAGUS SE20 20х/12mm Eyepiece (D 30mm)
Magnification: 20x. Field of view: 12mm
Availability
Product ID | 83444 |
Brand | MAGUS |
Warranty | 2 years |
EAN | 5905555020914 |
Package size (LxWxH) | 7x4x4 cm |
Shipping Weight | 0.13 kg |
Description
An eyepiece in combination with an objective and various additional attachments make up the optical system of a microscope. The features of these elements must be compatible with each other.
The SE20 objective has a magnification of 20x and is designed for a microscope with an eyepiece tube diameter of 30mm. The device does not adjust to the user’s vision, and so if diopter adjustment is necessary, carry it out directly on the microscope by using the diopter adjustment ring (if equipped) on the eyepiece tube.
Compatibility:
- MAGUS Stereo 9T Stereoscopic Microscope
Specifications
Product ID | 83444 |
Brand | MAGUS |
Warranty | 2 years |
EAN | 5905555020914 |
Package size (LxWxH) | 7x4x4 cm |
Shipping Weight | 0.13 kg |
Barrel diameter, mm | 30 |
Lens material | optical glass |
Magnification, x | 20 |
Field of view, mm | 12 |
Eye relief, mm | 10 |
Eyepiece diopter adjustment, diopters | no |
Scale value, mm | 0.1 |
Body | copper |
