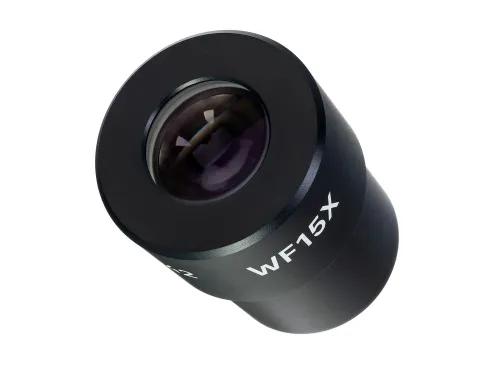

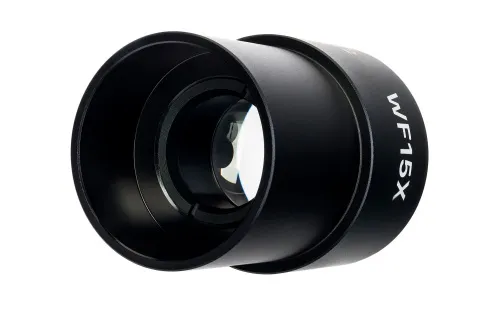

MAGUS SE15 15х/15mm Eyepiece (D 30mm)

photograph MAGUS SE15 15х/15mm Eyepiece (D 30mm), 3

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 15x. Field of view: 15mm

Availability

Product ID	83442
Brand	MAGUS
Warranty	2 years
EAN	5905555020891
Package size (LxWxH)	7x4x4 cm
Shipping Weight	0.13 kg

Description

The eyepiece influences the magnification of the microscope. The SE15 model has 15x magnification. It is mounted in a 30mm tube. The eyepiece does not have a diopter adjustment system. On a microscope with a diopter adjustment ring, diopter adjustments are made on the microscope itself.

Compatibility:

MAGUS Stereo 9T Stereoscopic Microscope

Specifications

Product ID	83442
Brand	MAGUS
Warranty	2 years
EAN	5905555020891
Package size (LxWxH)	7x4x4 cm
Shipping Weight	0.13 kg
Lens material	optical glass
Magnification, x	15
Field of view, mm	15
Eye relief, mm	10
Eyepiece diopter adjustment, diopters	no
Barrel diameter, mm	30
Body	copper
