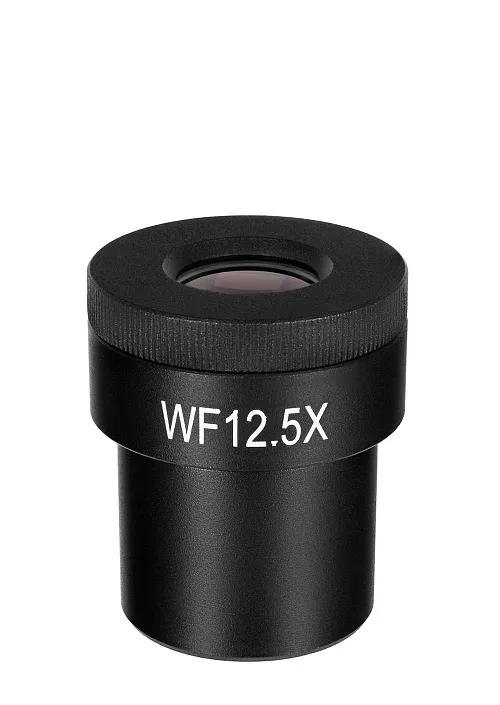

MAGUS ME12 12.5х/14mm Eyepiece (D 30mm)

MAGUS ME12 12.5х/14mm Eyepiece (D 30mm)

picture MAGUS ME12 12.5х/14mm Eyepiece (D 30mm), 1
picture MAGUS ME12 12.5х/14mm Eyepiece (D 30mm), 2
picture MAGUS ME12 12.5х/14mm Eyepiece (D 30mm), 3
The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 12.5x. Field of view: 14mm

Availability
Product ID 82916
Brand MAGUS
Warranty 2 years
EAN 5905555019000
Package size (LxWxH) 4x8x4 cm
Shipping Weight 0.07 kg
description
specifications
downloads
Description

The 12.5x eyepiece is designed for 4x, 10x, 20x, 40x, 60x, and 100x objectives. It is compatible with a 30mm eyepiece tube. The eyepiece has no diopter adjustment mechanism to match the observer’s eyesight. You can adjust the focus on the microscope, which is equipped with a diopter adjustment ring (located on the eyepiece tube). The eyepiece has a 10mm eye relief, which makes it convenient to observe with glasses.

Compatibility:

  • MAGUS Bio 250B Biological Microscope
  • MAGUS Bio 250BL Biological Microscope
  • MAGUS Bio 250T Biological Microscope
  • MAGUS Bio 250TL Biological Microscope
  • MAGUS Bio V300 Biological Inverted Microscope
  • MAGUS Bio V350 Biological Inverted Microscope
  • MAGUS Metal 600 Metallurgical Microscope
  • MAGUS Metal 600 BD Metallurgical Microscope
  • MAGUS Metal 630 Metallurgical Microscope
  • MAGUS Metal 630 BD Metallurgical Microscope
  • MAGUS Metal 650 Metallurgical Microscope
  • MAGUS Metal 650 BD Metallurgical Microscope
  • MAGUS Metal V700 Metallurgical Inverted Microscope
  • MAGUS Metal V700 BD Metallurgical Inverted Microscope
  • MAGUS Lum 400 Fluorescence Microscope
  • MAGUS Lum 400L Fluorescence Microscope
  • MAGUS Lum V500 Fluorescence Inverted Microscope
  • MAGUS Lum V500L Fluorescence Inverted Microscope
  • MAGUS Pol 800 Polarizing Microscope
Specifications
Product ID 82916
Brand MAGUS
Warranty 2 years
EAN 5905555019000
Package size (LxWxH) 4x8x4 cm
Shipping Weight 0.07 kg
Lens material optical glass
Magnification, x 12.5
Field of view, mm 14
Eye relief, mm 10
Eyepiece diopter adjustment, diopters no
Barrel diameter, mm 30
Body copper
References
and downloads
MAGUS: information leaflet (pdf)
(PDF, 551.73 Kb)
MAGUS: information booklet (pdf)
(PDF, 18.12 Mb)
High-resolution images (zip)
(ZIP, 5.37 Mb)
