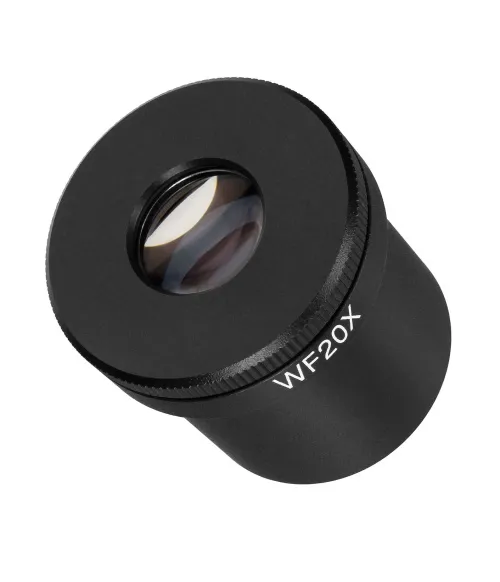

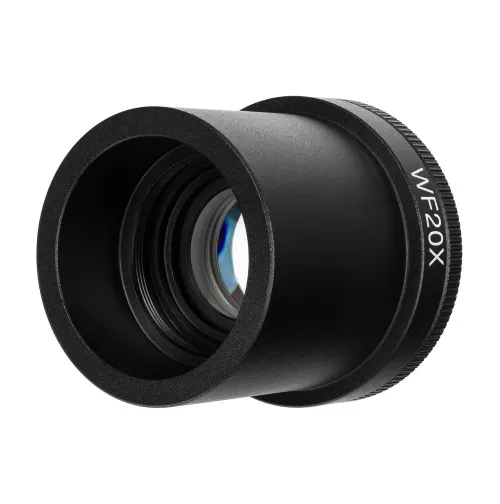

MAGUS MD20 20х/12mm Eyepiece with diopter adjustment (D 30mm)

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 20x. Field of view: 12mm

Availability

Product ID	82920
Brand	MAGUS
Warranty	2 years
EAN	5905555019062
Package size (LxWxH)	4x7x4 cm
Shipping Weight	0.055 kg

Description

This eyepiece is for MAGUS microscopes. It provides 20x magnification and can be used with 4x, 10x, and 20x objectives. The special feature of this eyepiece is the diopter adjustment ring, which can adjust the focus to compensate for the user’s vision. If the eyepiece is used with a microscope with diopter adjustment, the focus can be adjusted in two ways. The MAGUS MD20 20x/12mm eyepiece is mounted into an eyepiece tube 30mm in diameter. A 10mm eye relief is designed for comfortable observation when wearing glasses.

Compatibility:

MAGUS Bio 250B Biological Microscope
MAGUS Bio 250BL Biological Microscope
MAGUS Bio 250T Biological Microscope
MAGUS Bio 250TL Biological Microscope
MAGUS Bio V300 Biological Inverted Microscope
MAGUS Bio V350 Biological Inverted Microscope
MAGUS Metal 600 Metallurgical Microscope
MAGUS Metal 600 BD Metallurgical Microscope
MAGUS Metal 630 Metallurgical Microscope
MAGUS Metal 630 BD Metallurgical Microscope
MAGUS Metal 650 Metallurgical Microscope
MAGUS Metal 650 BD Metallurgical Microscope
MAGUS Metal V700 Metallurgical Inverted Microscope
MAGUS Metal V700 BD Metallurgical Inverted Microscope
MAGUS Lum 400 Fluorescence Microscope
MAGUS Lum 400L Fluorescence Microscope
MAGUS Lum V500 Fluorescence Inverted Microscope
MAGUS Lum V500L Fluorescence Inverted Microscope
MAGUS Pol 800 Polarizing Microscope
MAGUS Stereo 9T Stereomicroscope

Specifications

Product ID	82920
Brand	MAGUS
Warranty	2 years
EAN	5905555019062
Package size (LxWxH)	4x7x4 cm
Shipping Weight	0.055 kg
Barrel diameter, mm	30
Lens material	optical glass
Magnification, x	20
Field of view, mm	12
Eye relief, mm	10
Eyepiece diopter adjustment, diopters	±5
Body	copper
