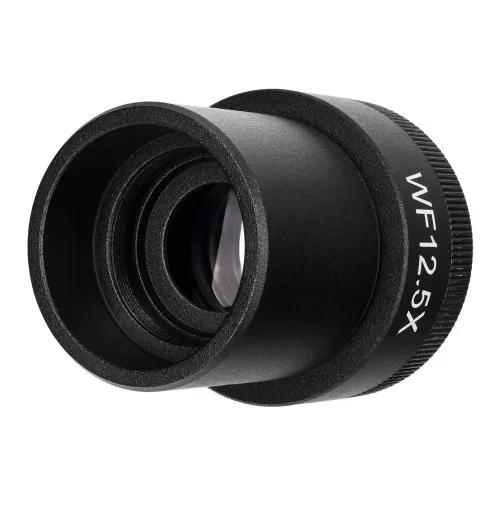

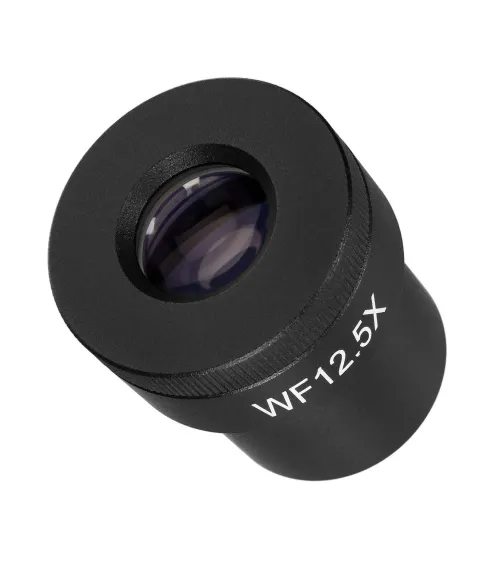

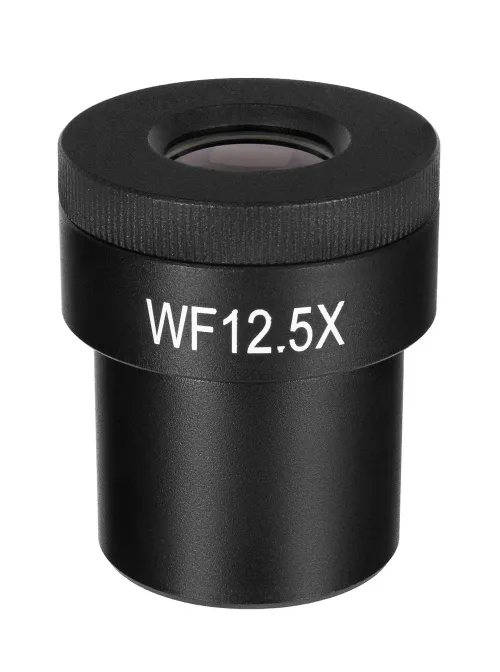

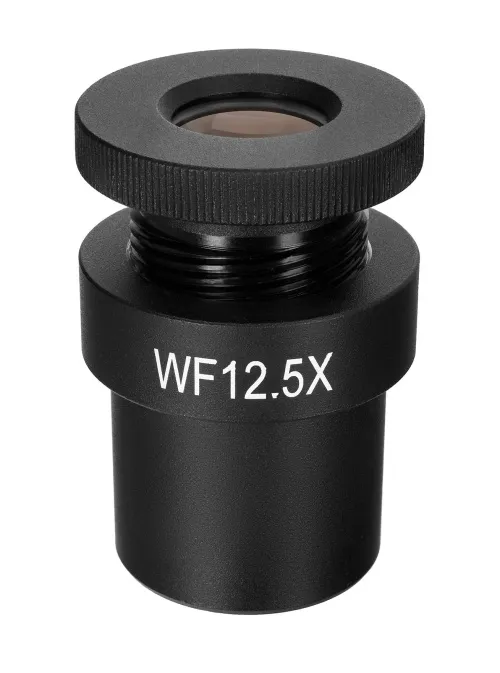

MAGUS MD12 12.5х/14mm Eyepiece with diopter adjustment (D 30mm)

The 12.5x magnification eyepiece is used for 4x, 10x, 20x, 40x, 60x, and 100x objectives. The eyepiece is mounted in a 30 mm diameter tube. This model has a diopter adjustment ring to compensate for the user’s vision. This means that the eyepiece can be used with microscopes that do not have an adjustment ring on the eyepiece tube. If the microscope has such a mechanism, the focus can be adjusted either on the eyepiece or on the microscope. The 10mm eye relief makes it comfortable to observe while wearing glasses.

Compatibility:

• MAGUS Bio 250B Biological Microscope
• MAGUS Bio 250BL Biological Microscope
• MAGUS Bio 250T Biological Microscope
• MAGUS Bio 250TL Biological Microscope
• MAGUS Bio V300 Biological Inverted Microscope
• MAGUS Bio V350 Biological Inverted Microscope
• MAGUS Metal 600 Metallurgical Microscope
• MAGUS Metal 600 BD Metallurgical Microscope
• MAGUS Metal 630 Metallurgical Microscope
• MAGUS Metal 630 BD Metallurgical Microscope
• MAGUS Metal 650 Metallurgical Microscope
• MAGUS Metal 650 BD Metallurgical Microscope
• MAGUS Metal V700 Metallurgical Inverted Microscope
• MAGUS Metal V700 BD Metallurgical Inverted Microscope
• MAGUS Lum 400 Fluorescence Microscope
• MAGUS Lum 400L Fluorescence Microscope
• MAGUS Lum V500 Fluorescence Inverted Microscope
• MAGUS Lum V500L Fluorescence Inverted Microscope
• MAGUS Pol 800 Polarizing Microscope
