Purchase MAGUS E20 20х/11mm Eyepiece (D 23.2mm)

photo MAGUS E20 20х/11mm Eyepiece (D 23.2mm), 1

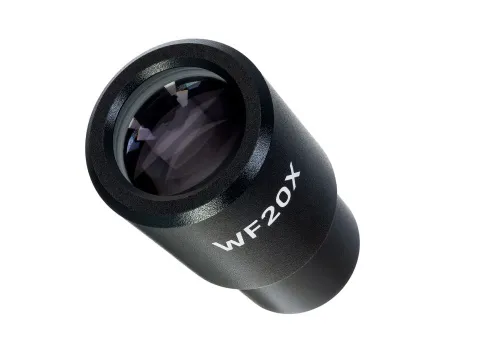

photo MAGUS E20 20х/11mm Eyepiece (D 23.2mm), 2

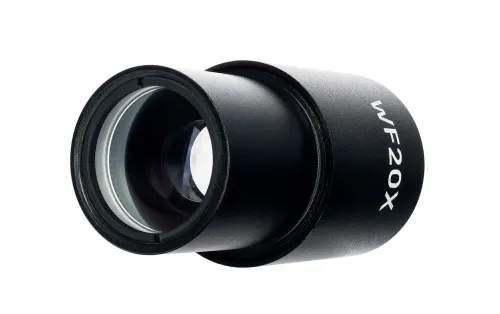

photo MAGUS E20 20х/11mm Eyepiece (D 23.2mm), 3

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 20x. Field of view: 11mm

Availability

Product ID	83458
Brand	MAGUS
Warranty	2 years
EAN	5905555021058
Package size (LxWxH)	7x4x4 cm
Shipping Weight	0.05 kg

Description

An eyepiece is a component of the optical system of a microscope that influences magnification. The E20 20x eyepiece performs best with 4x, 10x, and 20x objectives. It is installed in a tube that is 23.2mm in diameter. The device does not have a diopter adjustment mechanism. If necessary, adjustment can be made using the diopter adjustment ring on the microscope eyepiece tube (if equipped).

Compatibility:

MAGUS Bio 230B Biological Microscope
MAGUS Bio 230BL Biological Microscope
MAGUS Bio 230T Biological Microscope
MAGUS Bio 230TL Biological Microscope
MAGUS Pol 850 Polarizing Microscope

Specifications

Product ID	83458
Brand	MAGUS
Warranty	2 years
EAN	5905555021058
Package size (LxWxH)	7x4x4 cm
Shipping Weight	0.05 kg
Lens material	optical glass
Magnification, x	20
Field of view, mm	11
Eye relief, mm	10
Eyepiece diopter adjustment, diopters	no
Barrel diameter, mm	23.2
Body	copper
