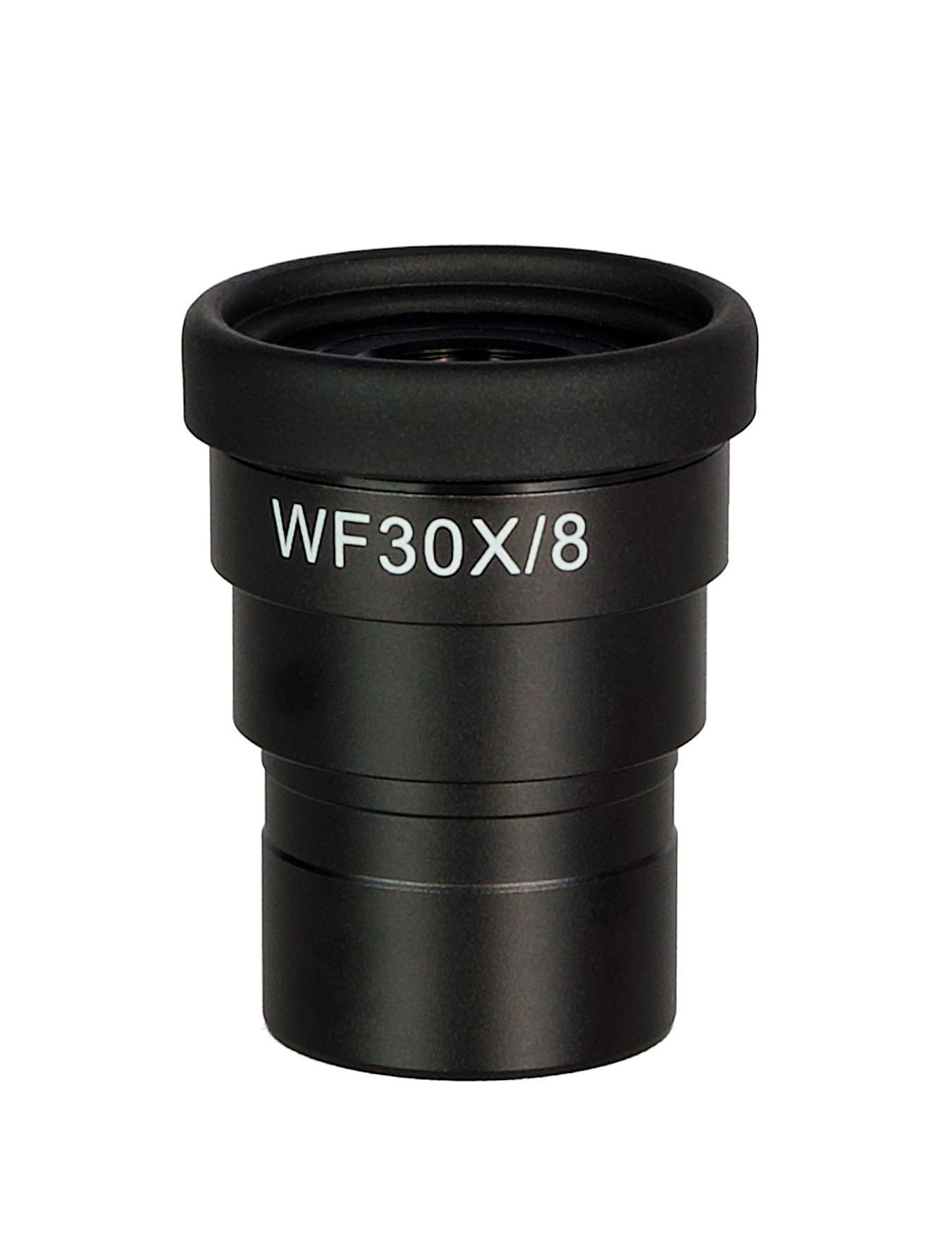

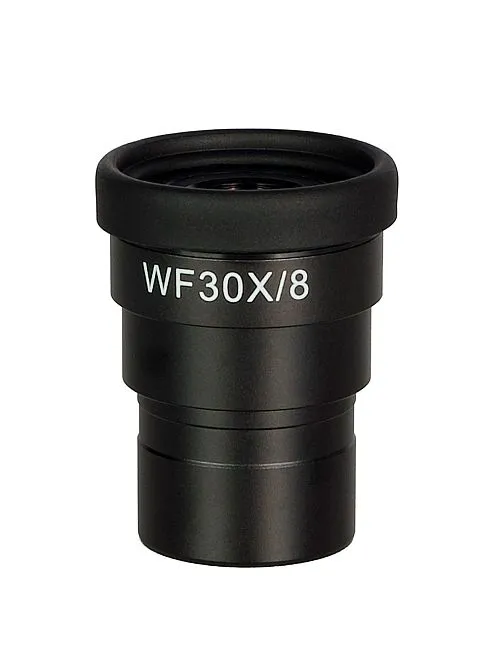

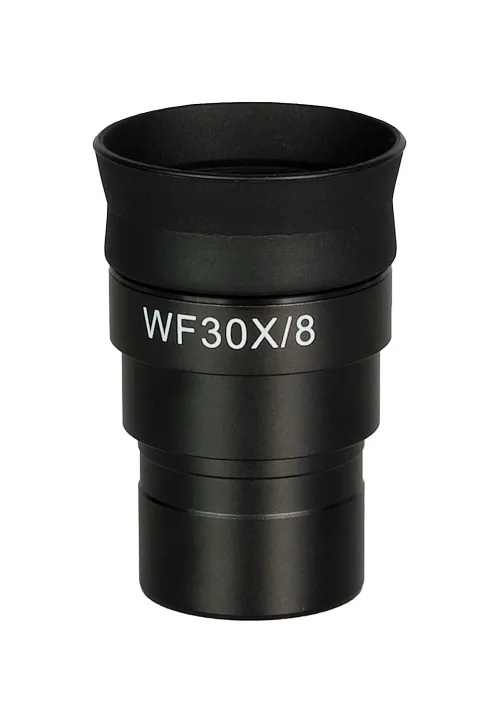

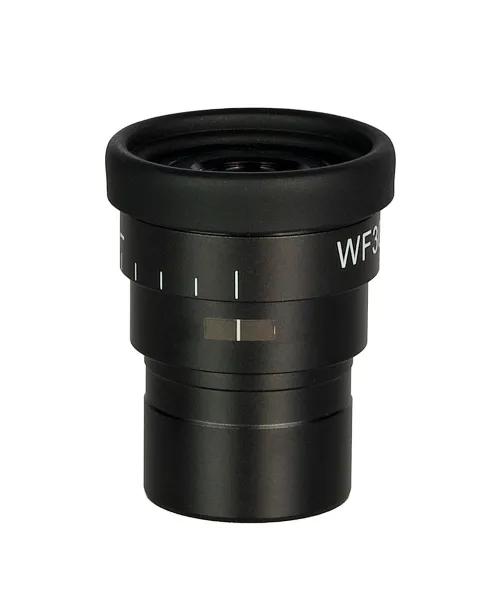

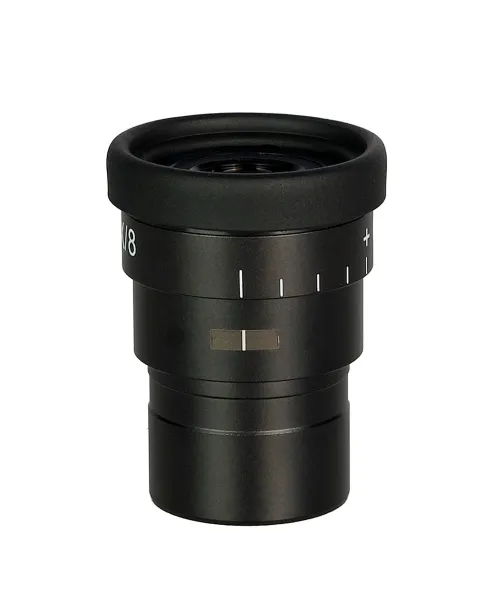

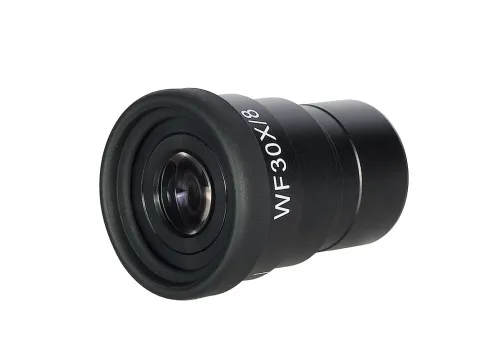

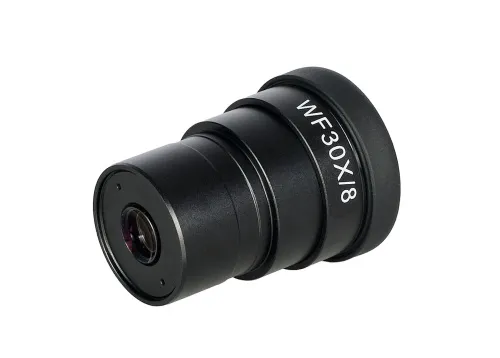

MAGUS AD30 30х/8mm Eyepiece (D 30mm)

see all

The price is valid only for the online store and may differ from the prices in retail stores.

With diopter adjustment. Magnification: 30x. Field of view: 8mm

Availability

Product ID	85132
Brand	MAGUS
Warranty	2 years
EAN	5905555025865
Package size (LxWxH)	4x7x4 cm
Lens material	optical glass

Description

Eyepieces extend the magnification range of the microscope.

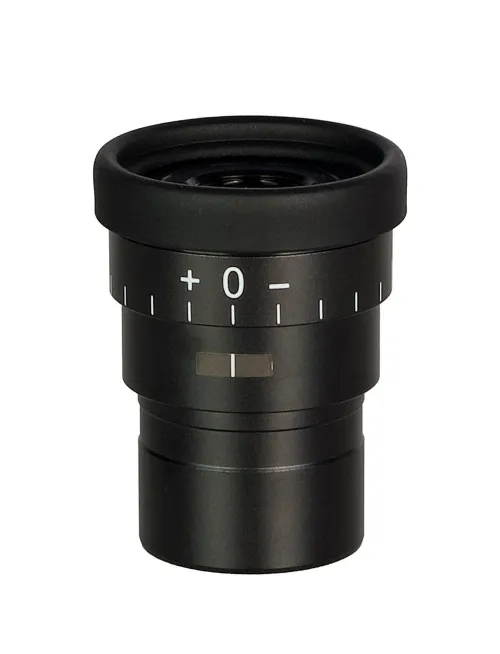

This eyepiece with diopter adjustment is the best choice for microscopes that do not have a diopter adjustment ring on the eyepiece tube. If the user’s vision is imperfect, the eyepiece makes it easier to bring the specimen into sharp focus. If there is diopter adjustment on the eyepiece tube, it does not prevent the use of this eyepiece, and adjustment can be done either on the eyepiece or on the eyepiece tube.
Eyepiece diameter: 30mm.

Compatibility:

MAGUS Stereo A6 Stereomicroscope
MAGUS Stereo A8 Stereomicroscope
MAGUS Stereo A10 Stereomicroscope

Specifications

Product ID	85132
Brand	MAGUS
Warranty	2 years
EAN	5905555025865
Package size (LxWxH)	4x7x4 cm
Lens material	optical glass
Magnification, x	30
Field of view, mm	8
Eye relief, mm	20
Eyepiece diopter adjustment, diopters	±5D
Barrel diameter, mm	30
