HU MAGUS MCD40 LCD Monitor
13.3", IPS, 3840x2160 pixels (4K), HDMI
| Product ID | 83211 |
| Brand | MAGUS |
| Warranty | 5 years |
| EAN | 5905555019338 |
| Package size (LxWxH) | 35x24x6 cm |
| Shipping Weight | 1.25 kg |
MAGUS MCD monitors are designed to work with MAGUS CHD cameras. Together, they form a complete imaging system for MAGUS microscopes.
The MCD40 model works with 4K resolution images. In the MAGUS camera line, such images are produced by the following cameras:
- CHD40
- CHD50

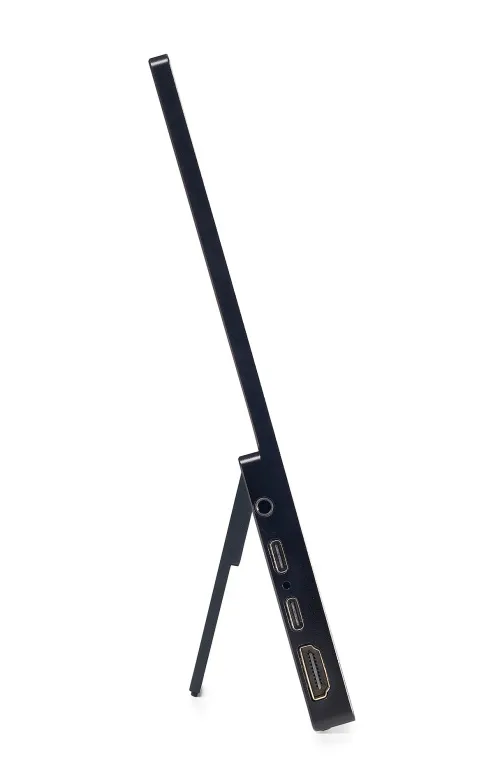

The monitor has an HDMI interface for connecting to the camera. With the monitor, you can observe what is happening under the objective in real time. The screen is based on an IPS type liquid crystal matrix. This type of display has a wide viewing angle, high brightness, and good contrast. The image will maintain its quality even at a large viewing angle. The screen size is 13.3''.

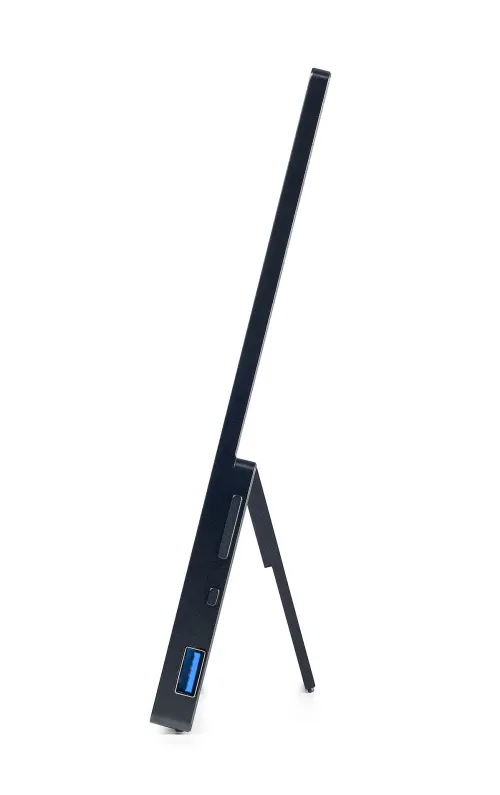

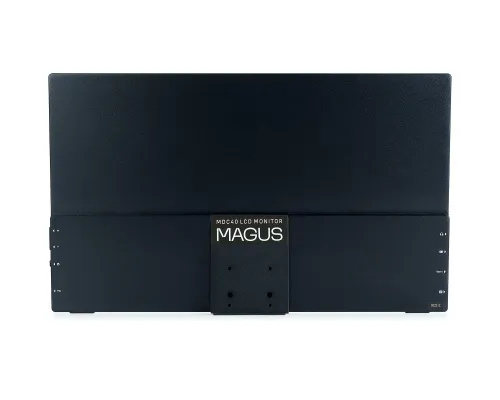

The monitor can be set up on a horizontal surface using a folding stand or mounted directly on a camera or microscope stand.
| Product ID | 83211 |
| Brand | MAGUS |
| Warranty | 5 years |
| EAN | 5905555019338 |
| Package size (LxWxH) | 35x24x6 cm |
| Shipping Weight | 1.25 kg |
| Type of matrix | IPS |
| Display diagonal, inch | 13.3 |
| Display resolution, px | 3840x2160 (4K) |
| Aspect ratio | 16:9 |
| Brightness, cd/m² | 400 |
| Number of displayed colors | 16.7 m |
| Contrast | 1000:1 |
| Horizontal/vertical viewing angle, ° | 178/178 |
| Size of the visible screen area (WxH), mm | 295x165 |
| Pixel pitch (WxH), mm | 0.154x0.154 |
| Frequency of optical source, Hz | 60 |
| Type of matrix backlight | LED |
| LED backlight lifetime, h | 50000 |
| Interface | HDMI |
| Operating temperature range, °C | -15...+55 |
| Operating humidity range, % | 10 — 90 |
| Power supply | AC 110–220V, DC 5–12V/1A (Type-C) |
| Power consumption, W | 12 (max.) |
