USB3.0, 2.1MP, 1/1.2'', color

2.1
Matrix resolution – the number of megapixels that it consists of; influences the detail of the image
5.8x5.8
The pixel size is directly proportional to the sensor’s sensitivity
0.014ms–15s
Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor
Availability

Product ID 83198
Brand MAGUS
Warranty 5 years
EAN 5905555019208
Package size (LxWxH) 15x15x10 cm
Shipping Weight 0.6 kg
Description

Full color camera with SONY Exmor 2.1MP digital CMOS sensor. The sensor is manufactured using back-illumination technology to reduce light scattering and increase the matrix sensitivity (8935mV at 1/30s). The camera produces bright and clear images even in low light. Designed to work in darkfield and brightfield using objectives with a magnification of 40x, 60x, and 100x.

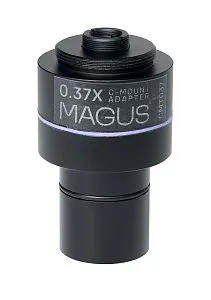

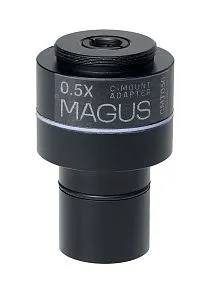

The camera can be mounted on a microscope in two ways: into the trinocular tube via a C-mount adapter or in place of the eyepiece in the tube using an adapter and adapter rings. It is recommended to use an adapter with a magnification from 0.6x to 0.9x with the camera, which will give the widest possible field of view without distortion. After installation, the camera connects to a computer via a USB3.0 port with a data transfer speed of 5Gbps.

MAGUS View software is used to display images on the monitor, capture photos and videos, and for carrying out other actions. The package includes a disk with software and drivers. Please note: Before starting, the software must be calibrated for each objective you use. For this, you will need a special calibration slide (not included).

The image is displayed on the monitor in Full HD 1920x1080px format with a frame rate of 96fps. The frames transition is smooth, without delays, and so the camera can be used to observe moving objects, including demonstrations during lectures or scientific presentations.

Key features:

  • 2.1'' backlit CMOS sensor, high matrix sensitivity
  • Suitable for darkfield or brightfield studies with 40x, 60x, and 100x objectives
  • Installed into the trinocular tube or in the eyepiece tube of a microscope
  • Full HD resolution 1920x1080px with a frame rate of 96fps, perfect for studying moving objects
  • Connection to PC via USB3.0 port, data transfer speed 5Gbps
  • Software and drivers included

The kit includes:

  • Digital camera
  • USB cable
  • Installation CD with drivers and software
  • User manual and warranty card
Specifications
Product ID 83198
Brand MAGUS
Warranty 5 years
EAN 5905555019208
Package size (LxWxH) 15x15x10 cm
Shipping Weight 0.6 kg
Sensor SONY Exmor CMOS
Color/monochrome color
Megapixels 2.1
Maximum resolution, pix 1920x1080
Sensor size 1/1.2'' (11.14x6.26mm)
Pixel size, μm 5.8x5.8
Light sensitivity 8935mV with 1/30s
Signal/noise ratio 0.6mV with 1/30s
Exposure time 0.014ms–15s
Video recording
Frame rate, fps at resolution 96@1920x1080
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Software MAGUS View
Mount type C-mount
Body CNC aluminum alloy
Power supply DC current, 5V, from the USB port of the PC
Operating temperature range, °C -10...+50
Operating humidity range, % 30 — 80
