USB 3.0, 21MP, 4/3'', color

21
Matrix resolution – the number of megapixels that it consists of; influences the detail of the image
3.3x3.3
The pixel size is directly proportional to the sensor’s sensitivity
0.1ms–15s
Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor
Availability

Product ID 83201
Brand MAGUS
Warranty 5 years
EAN 5905555019239
Package size (LxWxH) 15x15x10 cm
Shipping Weight 0.6 kg
Description

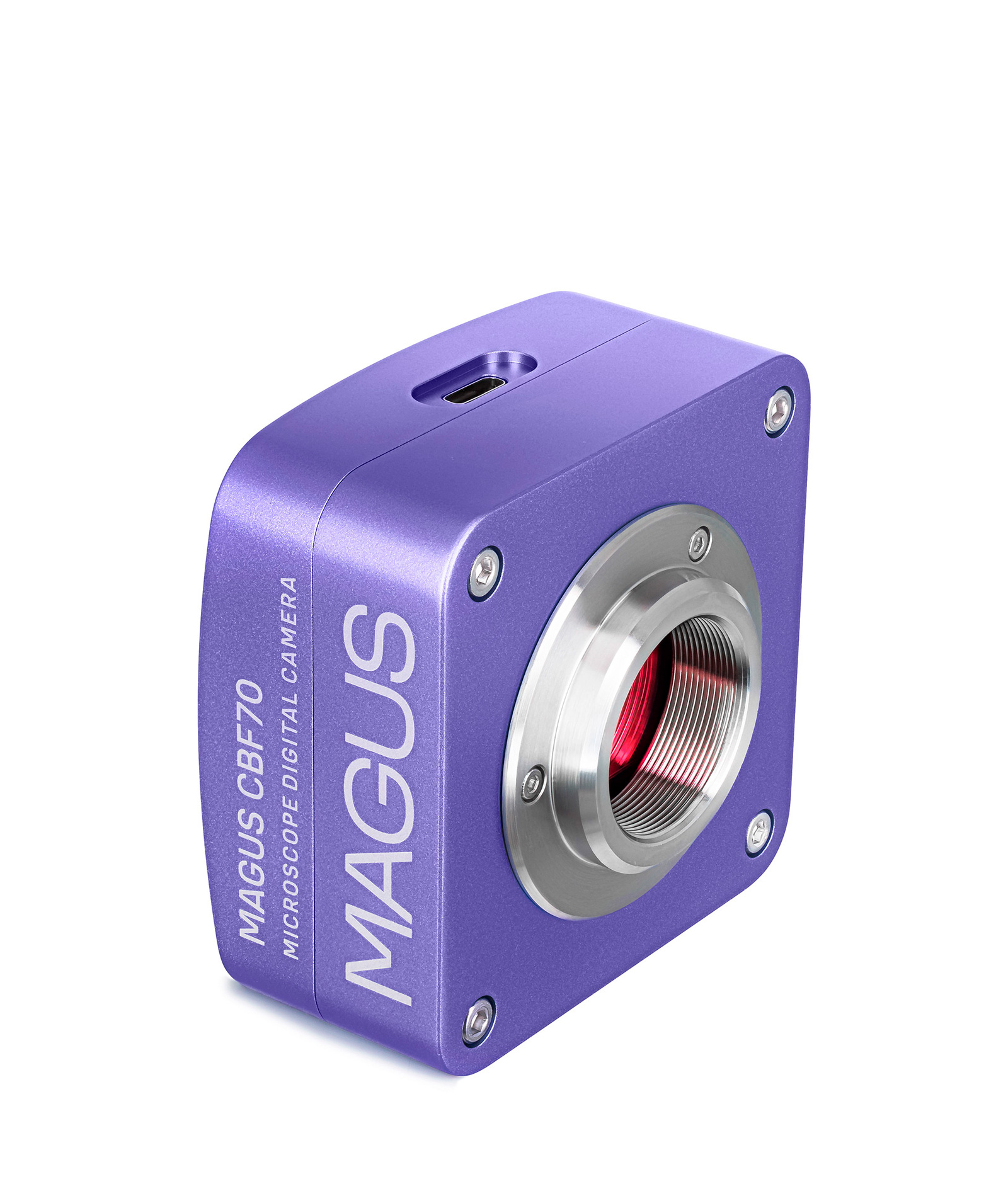

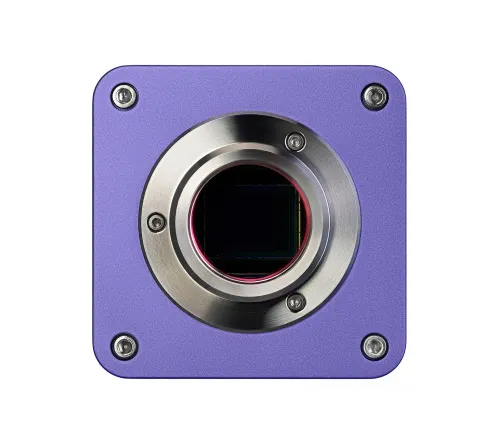

The professional scientific camera MAGUS CBF70 is designed for use with a microscope as well as 4x, 10x, 20x, and 40x objectives. The device enables you to take photographs, shoot videos, organize demonstrations, display images on an external screen, and make angular and linear measurements of objects under study (for this function to work correctly, you must calibrate the software). The camera is recommended for working in the brightfield method.

Graphics features

The MAGUS CBF70 camera has five image resolution and frame rate modes, and so you can easily find among them the one that best suits your needs: 5280x3954px (17fps), 3952x3952px (17fps), 2640x1976px (56fps), 1760x1316px (67fps), and 584x438px (192fps).
High-resolution modes are ideal for photography, enabling you to create clear, vibrant, and highly detailed images. Modes with an increased frame rate will help when recording smooth and informative videos, without jumps and delays, recording the slightest movements of the object or features of observed fast-flowing processes.
To obtain the best image quality without distortions, it is recommended to use an adapter with 1x magnification.

Sensor

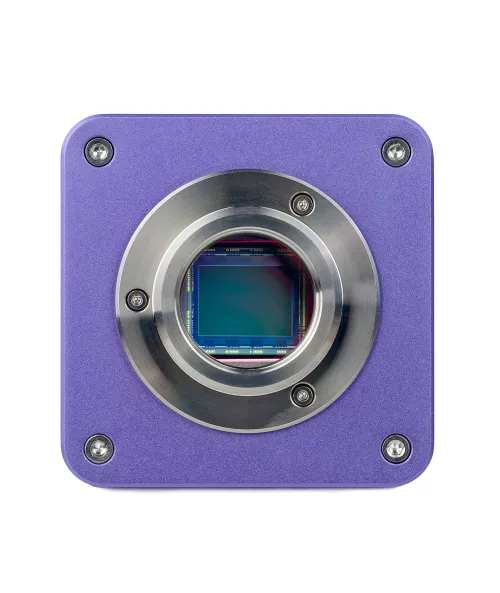

The camera design uses a SONY Exmor 4/3'' color backlit CMOS sensor. It makes the image bright even in low ambient light. The larger physical size of the sensor helps the colors displayed appear deeper and the picture clearer.

Additional features

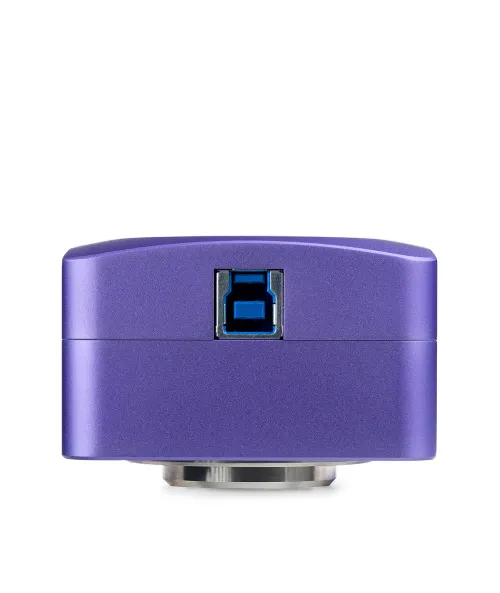

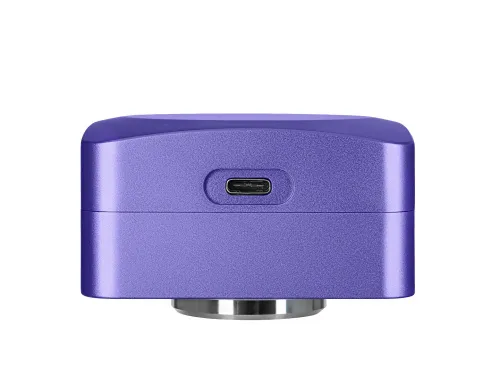

The camera is equipped with a USB3.0 interface for fast data transfer.
The device comes with the software necessary to utilize the camera’s functions: It enables you to take photos, record videos, edit, view, and save footage, and display the images on an external screen (for your own convenience or for demonstration to viewers in the audience).

Camera installation

The camera is installed in the trinocular tube of the microscope (using a C-mount adapter) or in the eyepiece tube (using an adapter and an adapter ring corresponding to the diameter of the eyepiece tube).

Key features:

  • Five graphics and fps settings: Among them, you can easily find the most suitable mode for you
  • Fast data transfer thanks to the USB3.0 interface
  • Large SONY Exmor color sensor for bright, clear images even in low light conditions
  • “Quick start”: Install the included software and then the camera is ready to use
  • Simplify your observations or demonstrate to an audience by displaying your camera image on an external screen

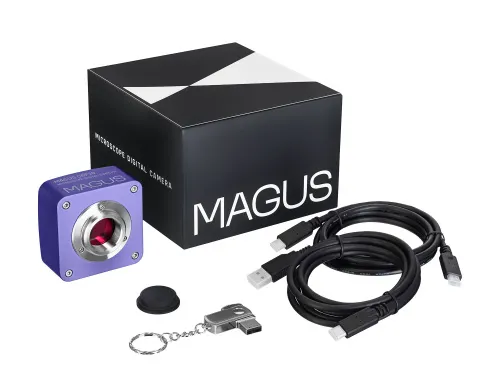

The kit includes:

  • Digital camera
  • USB cable
  • Installation CD with drivers and software
  • User manual and warranty card
Specifications
Product ID 83201
Brand MAGUS
Warranty 5 years
EAN 5905555019239
Package size (LxWxH) 15x15x10 cm
Shipping Weight 0.6 kg
Sensor SONY Exmor CMOS
Color/monochrome color
Megapixels 21
Maximum resolution, pix 5280x3954
Sensor size 4/3" (17.4x13.0mm)
Pixel size, μm 3.3x3.3
Light sensitivity 399mV at 1/30s
Signal/noise ratio 0.1mV at 1/30s
Exposure time 0.1ms–15s
Video recording
Frame rate, fps at resolution 17@5280x3954, 192@584x438, 67@1760x1316, 56@2640x1976, 17@3952x3952
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Software MAGUS View

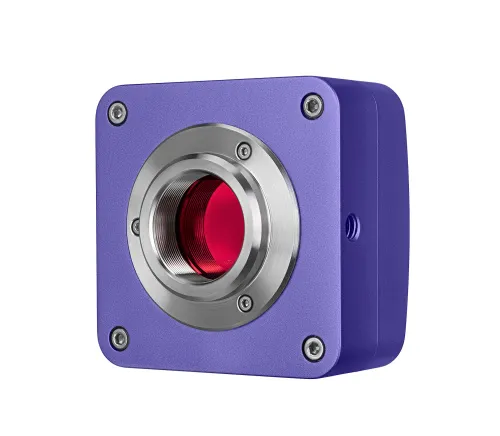

Mount type C-mount
Body solid aluminum
Power supply DC current, 5V, from the USB port of the PC
Operating temperature range, °C -10...+50
Operating humidity range, % 30 — 80
