HU MAGUS CBF10 Digital Camera
USB 3.0, 18MP, 1/2.3'', color
| Product ID | 83203 |
| Brand | MAGUS |
| Warranty | 5 years |
| EAN | 5905555019253 |
| Package size (LxWxH) | 15x15x10 cm |
| Shipping Weight | 0.6 kg |
The MAGUS CBF10 Digital Camera is designed to work together with a microscope: photographing, video recording, and displaying images on an external screen. Its characteristics are best suited for brightfield work on 4x and 10x flat-field microscope objectives and stereomicroscopes.
Sensor

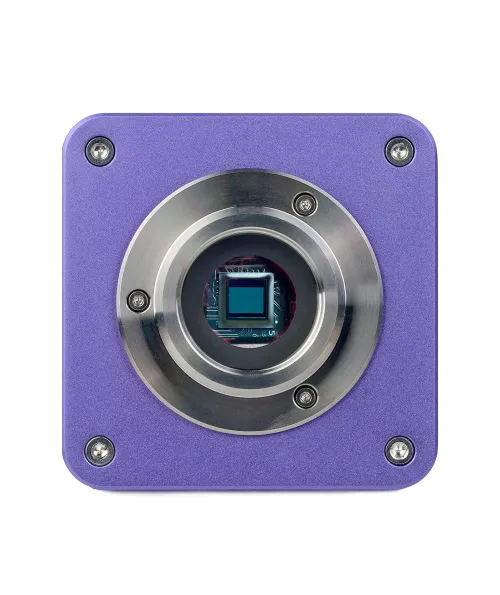

The MAGUS CBF10 camera is equipped with an Aptina CMOS sensor with a light sensitivity of 0.62mV/lux/s. You can get the maximum field of view without distortion using an adapter with magnification from 0.4x to 0.6x.
Photo and video recording
The 18MP sensor enables you to achieve a realistic and highly detailed picture with a resolution of 4912x3684px. In this mode, video is captured at 13.1fps. You can increase the frame rate and, as a result, improve the smoothness of the video by reducing the resolution. Available options: 2456x1842px (34.3fps) and 1228x922px (54.4fps). In any of the selected modes, adjusting the focus of the microscope is convenient. The modes with increased frame rates are suitable for studying moving objects and fast-flowing processes as well as for presentations and demonstrations.
Interface

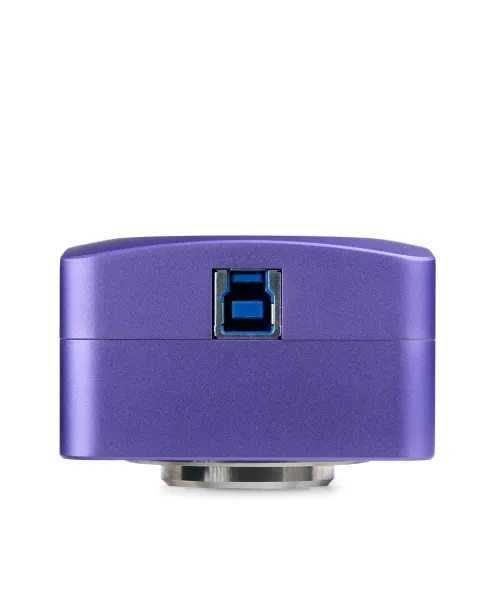

A USB3.0 interface is used to connect to a computer. The data transfer is 10 times faster than the previous generation’s interface. The camera’s fast performance makes it an excellent choice for professional laboratories, research, and university training.
Software features
The MAGUS CBF10 camera comes with a software CD. It is used for photography, video shooting, displaying images, and editing them. After software calibration, linear and angular measurements can be made.
Installation
The camera can be installed either in the eyepiece tube (instead of an eyepiece) or in a trinocular tube. C-mount adapters and adapter rings for the required mounting diameter are purchased separately.
Key features:
- Aptina CMOS sensor with high light sensitivity
- 18MP sensor resolution: highly detailed images on low magnification objectives
- Frame rate sufficient for focus adjustment: 13.1fps with a resolution of 4912x3684px
- Classroom demonstrations and observing moving objects made simple, all thanks to increasing the frame rate while decreasing the resolution; movement of the sample is visible without jerking
- USB3.0 provides 10 times faster data transfer speeds than USB2.0
- Software for creating photos and videos as well as displaying and editing in real time
- Linear and angular measurements

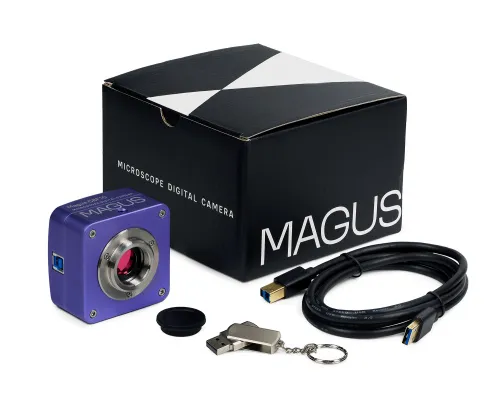

The kit includes:
- Digital camera
- USB cable
- Installation CD with drivers and software
- User manual and warranty card
| Product ID | 83203 |
| Brand | MAGUS |
| Warranty | 5 years |
| EAN | 5905555019253 |
| Package size (LxWxH) | 15x15x10 cm |
| Shipping Weight | 0.6 kg |
| Sensor | Aptina CMOS |
| Color/monochrome | color |
| Megapixels | 18 |
| Maximum resolution, pix | 4912x3684 |
| Sensor size | 1/2.3" (6.14x4.61mm) |
| Pixel size, μm | 1.25x1.25 |
| Light sensitivity | 0.62mV/lux/s |
| Signal/noise ratio | 36.3dB |
| Exposure time | 0.1ms–2s |
| Video recording | ✓ |
| Frame rate, fps at resolution | 54.4@1228x922, 34.3@2456x1842, 13.1@4912x3684 |
| Active range, dB | 65.8 |
| Place of installation | trinocular tube, eyepiece tube instead of an eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (built-in IR filter) |
| Shutter type | ERS (electronic rolling shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure time |
| Output | USB 3.0, 5Gb/s |
| System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display |
| Software | MAGUS View |
| Mount type | C-mount |
| Body | solid aluminum |
| Power supply | DC current, 5V, from the USB port of the PC |
| Operating temperature range, °C | -10...+50 |
| Operating humidity range, % | 30 — 80 |
