Description

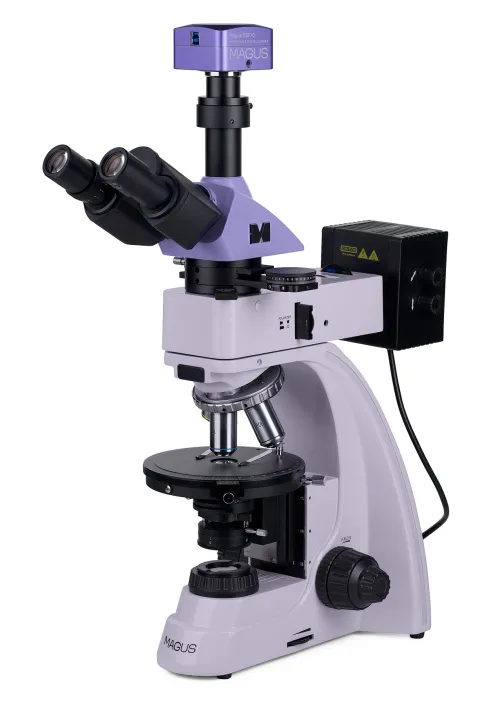

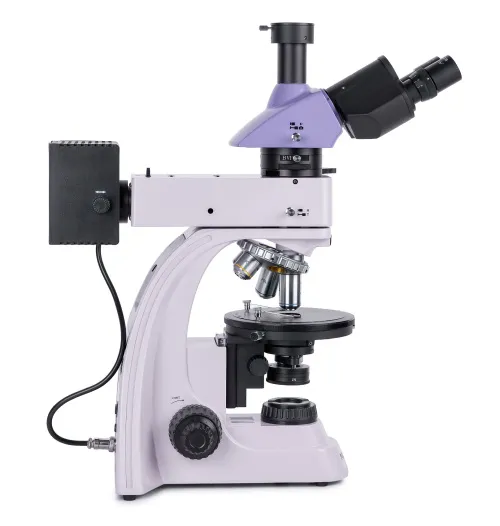

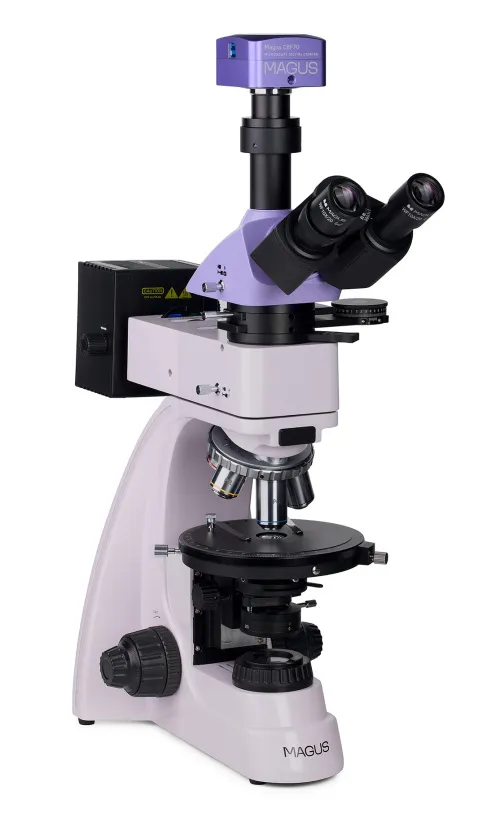

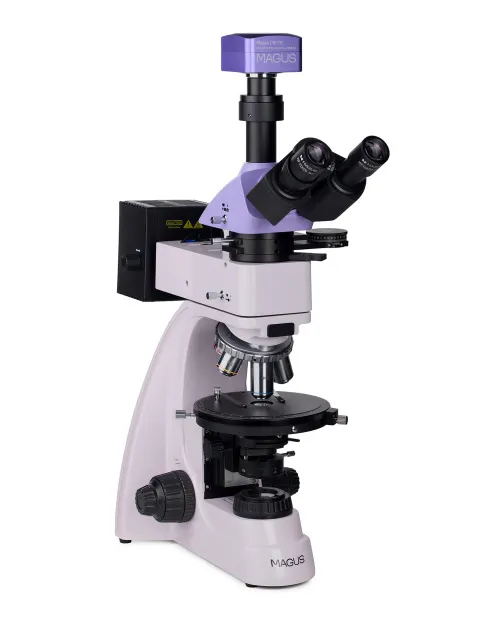

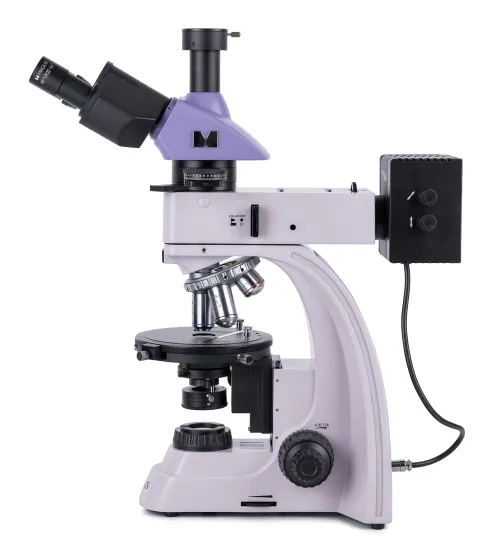

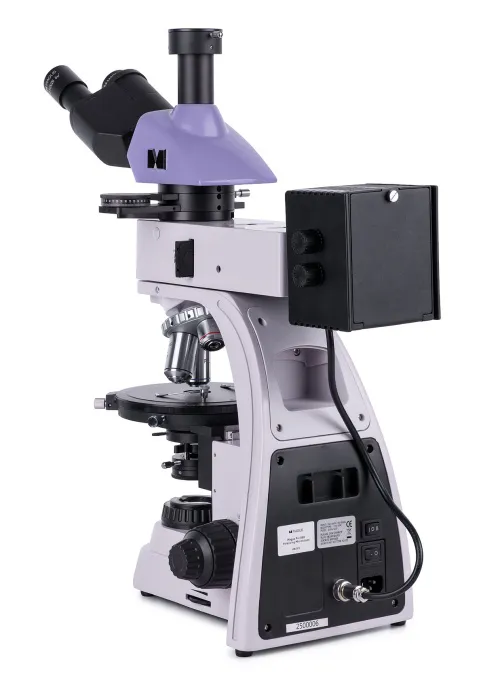

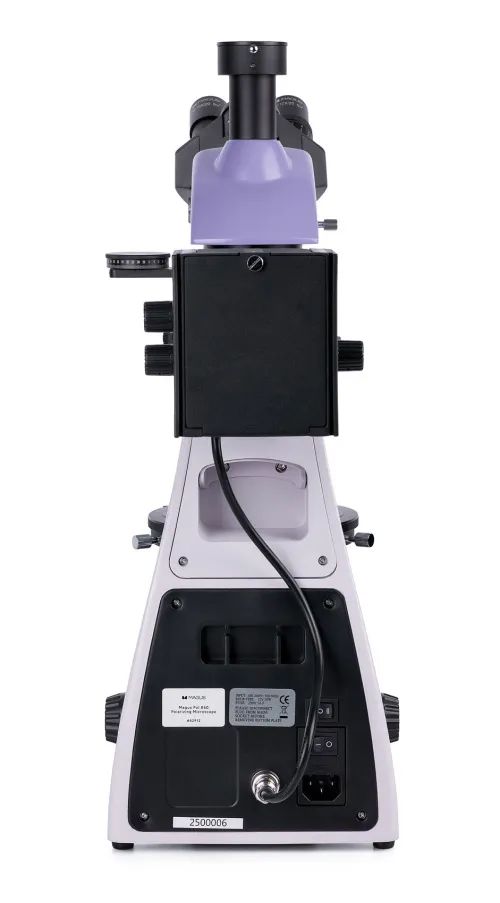

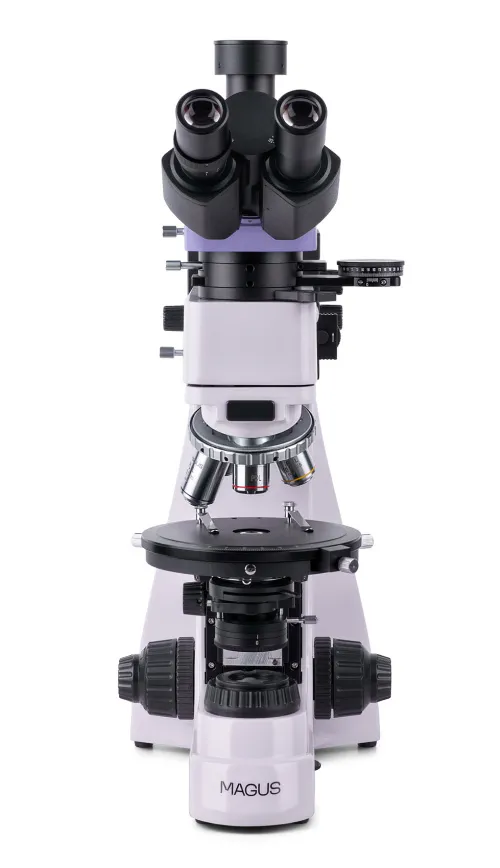

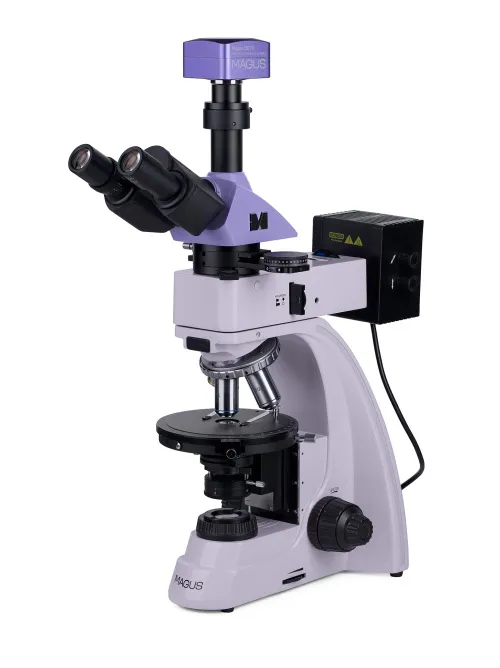

The MAGUS Pol 850 Polarizing Microscope is designed to work in transmitted and reflected light. Available research methods: polarization and brightfield. The microscope is used to study anisotropic biological, geological, and polymer objects as well as opaque polished sections up to 15mm thick with one polished side. The microscope is perfect for a wide range of tasks of professionals in the field of medicine, forensics, mineralogy, crystallography, or petrography.

Digital camera

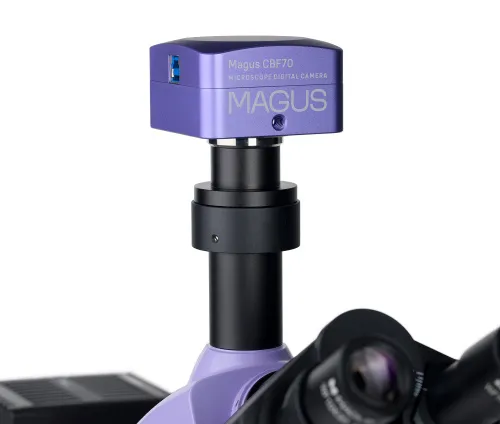

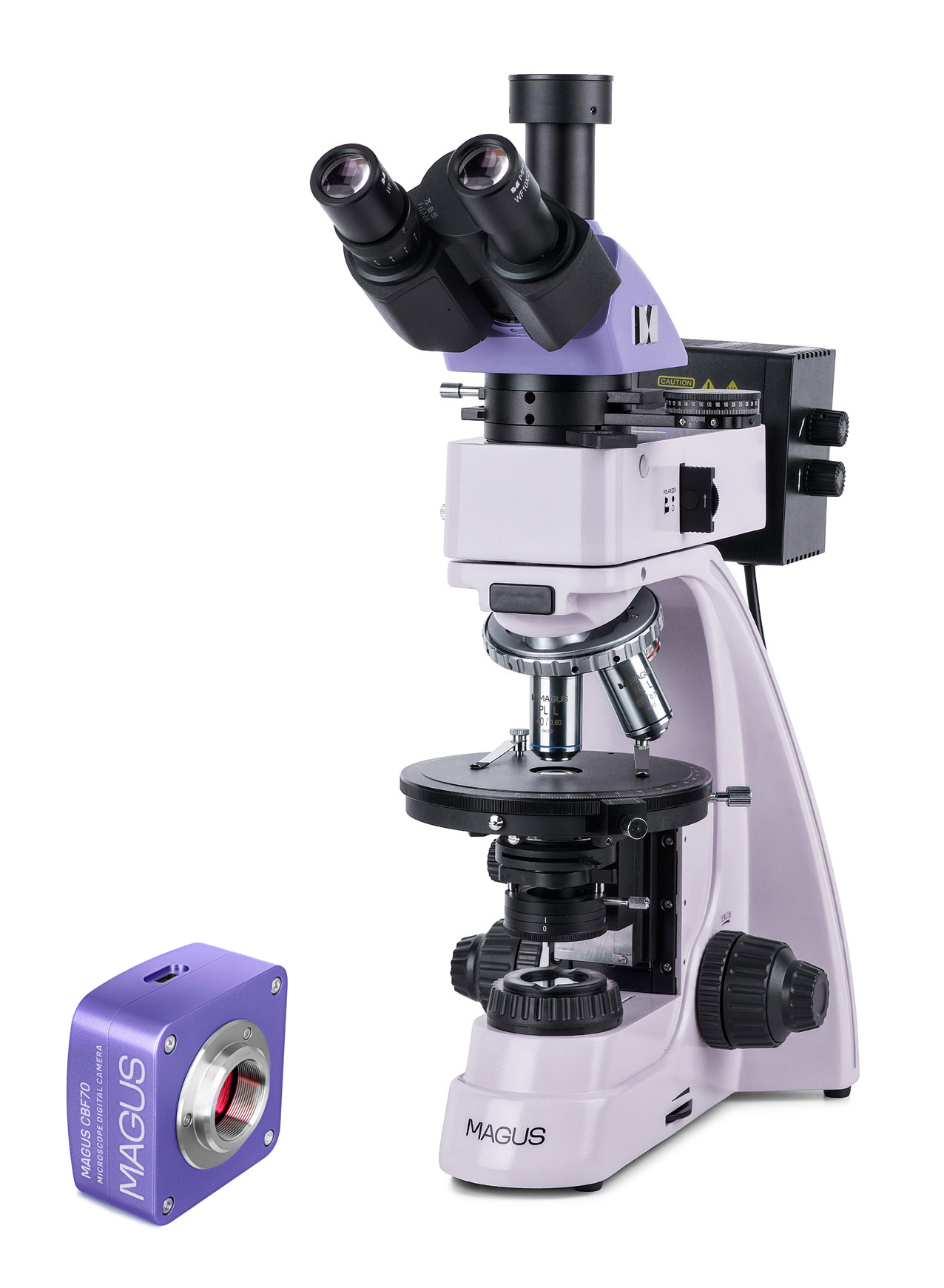

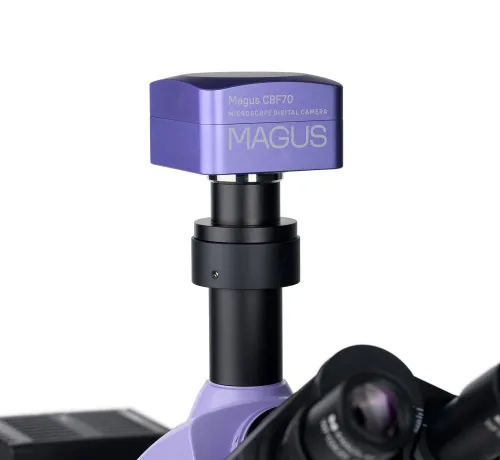

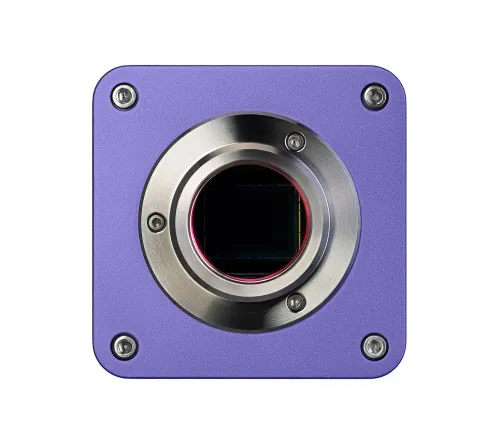

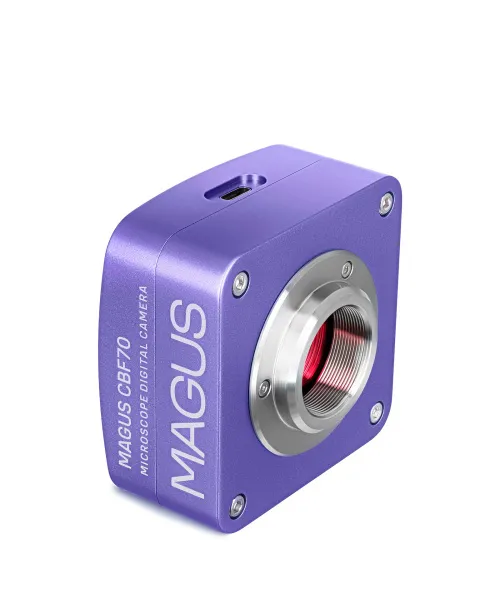

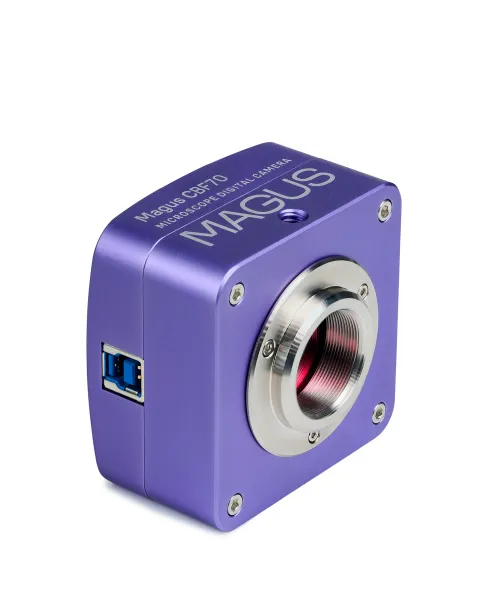

The professional scientific camera MAGUS CBF70 is designed for use with a microscope as well as 4x, 10x, 20x, and 40x objectives. The device enables you to take photographs, shoot videos, organize demonstrations, display images on an external screen, and make angular and linear measurements of objects under study (for this function to work correctly, you must calibrate the software). The camera is recommended for working in the brightfield method.

The MAGUS CBF70 camera has five image resolution and frame rate modes, and so you can easily find among them the one that best suits your needs: 5280x3954px (17fps), 3952x3952px (17fps), 2640x1976px (56fps), 1760x1316px (67fps), and 584x438px (192fps).
High-resolution modes are ideal for photography, enabling you to create clear, vibrant, and highly detailed images. Modes with an increased frame rate will help when recording smooth and informative videos, without jumps and delays, recording the slightest movements of the object or features of observed fast-flowing processes.
To obtain the best image quality without distortions, it is recommended to use an adapter with 1x magnification.

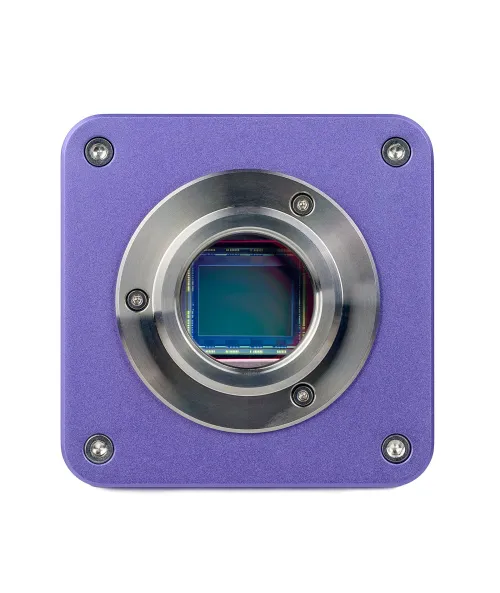

The camera design uses a SONY Exmor 4/3'' color backlit CMOS sensor. It makes the image bright even in low ambient light. The larger physical size of the sensor helps the colors displayed appear deeper and the picture clearer.

Optics

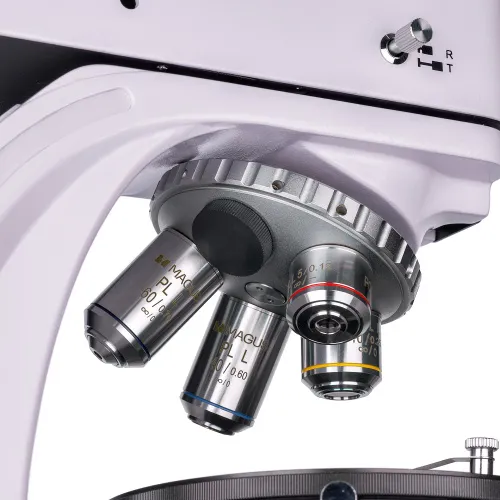

The optics of the microscope are infinity corrected and are free from internal strains. The image formed by the lenses is authentic, free of spurious reflections, high contrast, and detailed. The lenses are installed in a revolving nosepiece with slots centered to the optical axis. There are five slots, with four objectives included in the kit; one additional objective can be installed to obtain further magnification within the magnification range of the microscope. Objectives are designed to work with samples without cover slips.

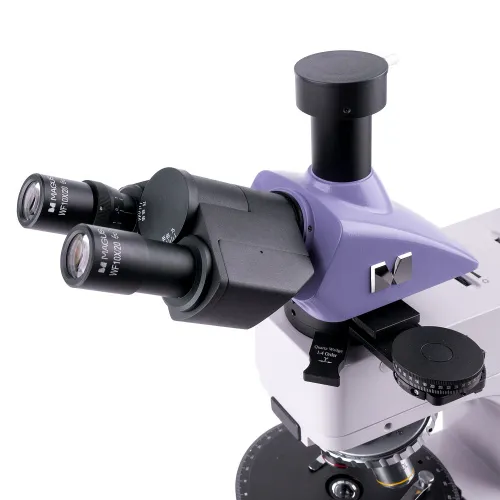

The trinocular head enables you to install a digital camera in the trinocular tube. The beam splitting is 100:0 or 0:100, i.e., all of the light goes either to the camera or to the eyepiece tubes. The left eyepiece tube has a diopter adjustment ring: It is rotated to compensate for the difference in vision between the eyes and to obtain the clearest possible image of the sample.

Illumination

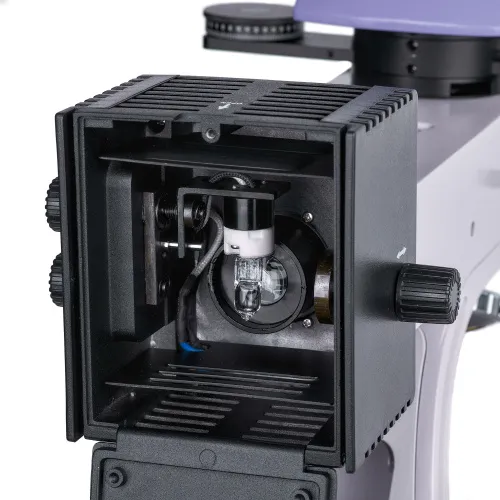

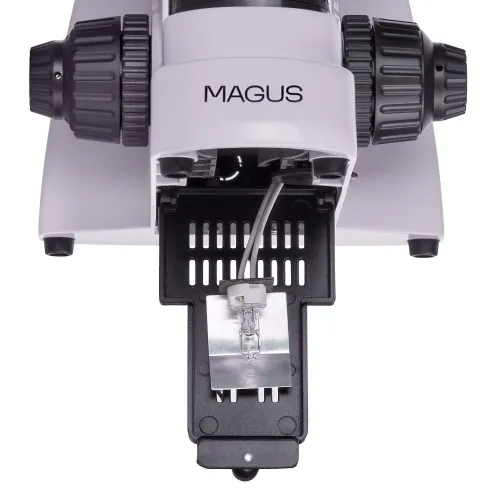

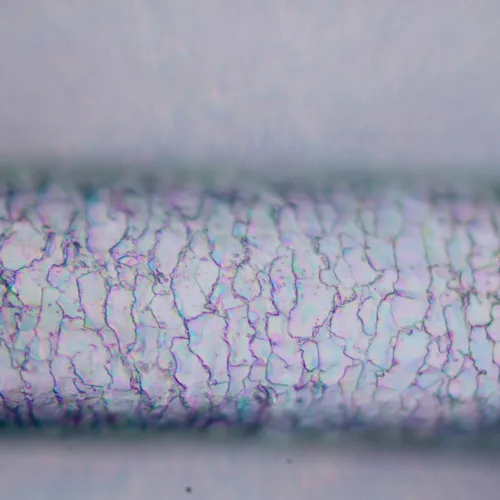

30W halogen bulbs are used for transmitted and reflected light. Their brightness is sufficient to obtain a clearly readable image on each objective, and the “warm” emission spectrum is comfortable during long-term use. Köhler illumination setup will provide increased resolution, and it will remove artifacts in the field of view and darkening at the edges. Light filters are used to accurately adjust color reproduction when working in reflected light.

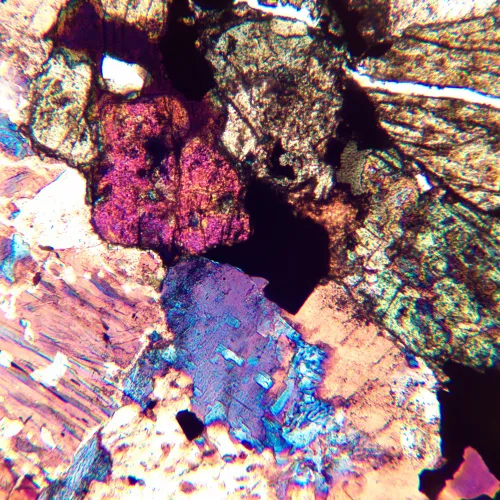

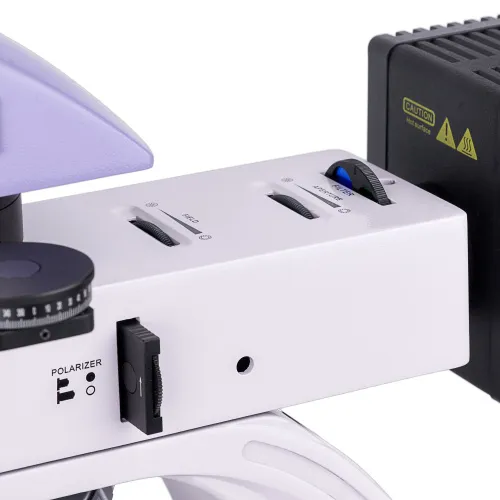

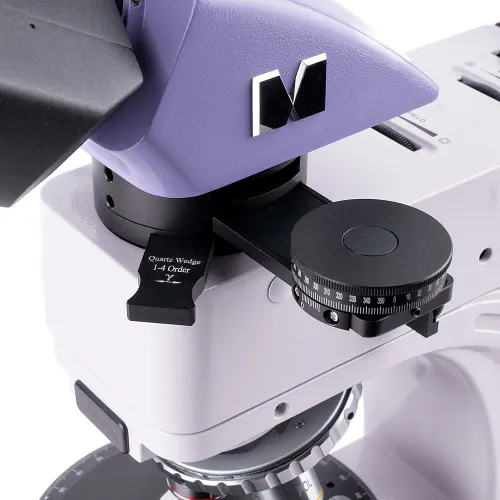

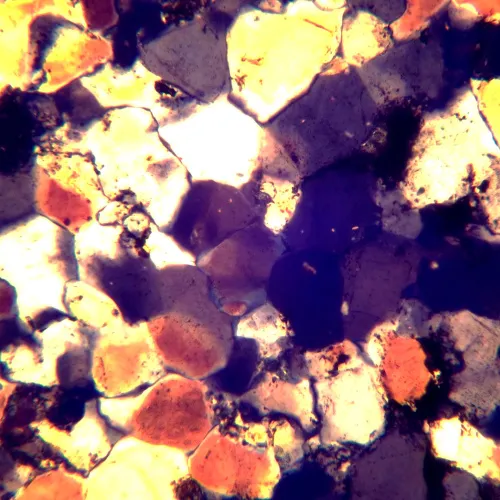

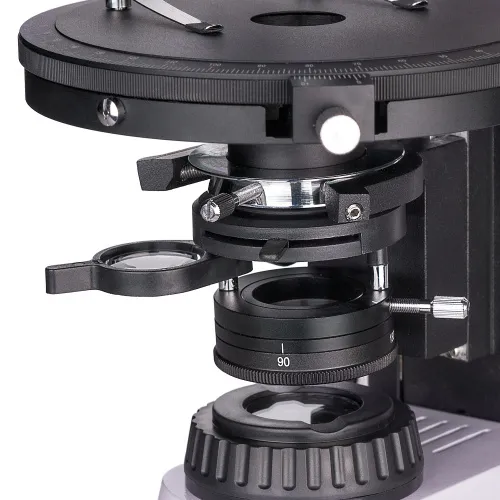

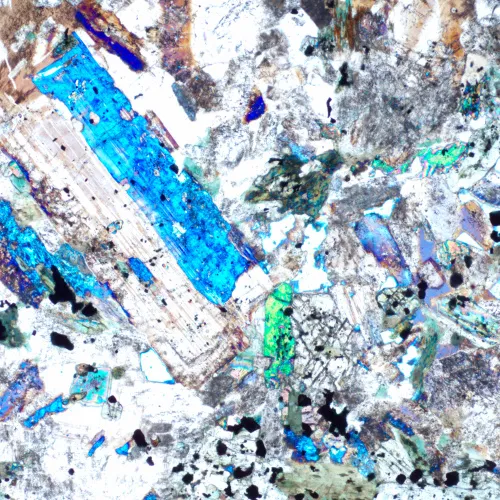

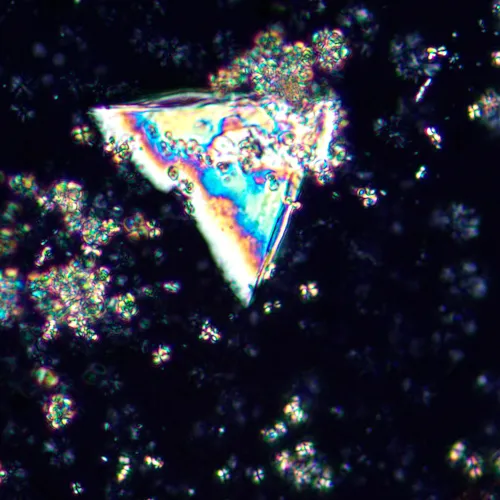

Polarization is available for both transmitted and reflected light. To begin observations in polarized light, an analyzer is introduced into the optical path. Next, the relative position of the analyzer and polarizer is changed by rotating them, which also changes the polarization angle. The contrast of objects is increased with the help of compensators, which are installed in a special slot in the intermediate attachment. The same attachment also contains a Bertrand lens that is used for conoscopic examinations.

Stage and focusing mechanism

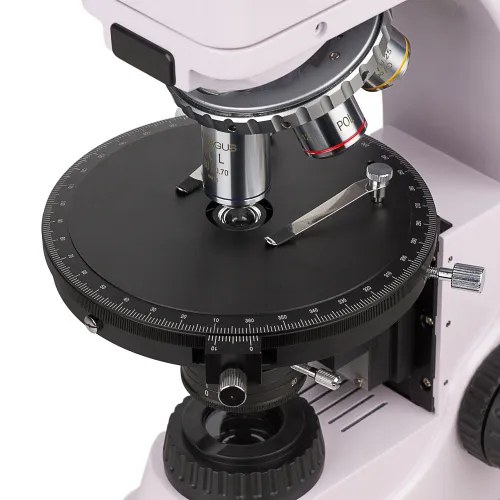

The microscope has a rotatable stage: Turning it changes the way the sample refracts light in polarized light. The stage has a scale on which you can determine the angle of rotation with an accuracy of up to 0.1°. To obtain the brightest and clearest image, the stage can be centered relative to the optical axis of the microscope.

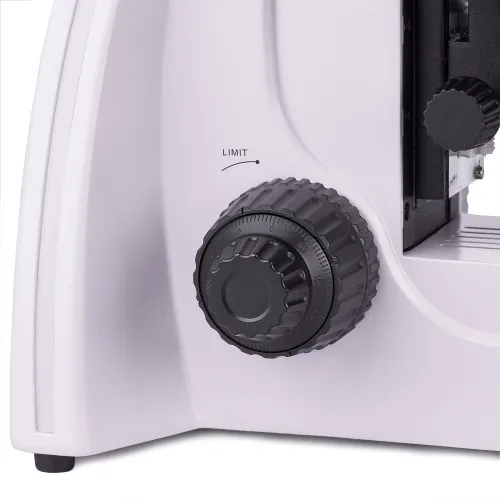

The coarse and fine focusing knobs are located at the bottom of the stand, and so the user may take a relaxed pose with their hands on the table. The coarse tension can be adjusted, and there is also a coarse focusing lock. The fine focusing provides for the smooth movement of the sample.

Accessories

To get the most out of your microscope, use accessories from the MAGUS line: eyepieces, objectives, calibration slides, digital cameras, etc.

Key features of the microscope:

  • For work in transmitted and reflected polarized and natural light
  • Trinocular head with a tube for a digital camera; 100:0 or 0:100 beam splitting
  • Strain-free plan achromatic objectives for clear images free of artifacts and false internal reflections
  • Halogen illumination of the work area, a color spectrum that is comfortable for the eyes; 30W bulb power
  • Rotating stage, polarizer, and analyzer with rotation angle marks, Bertrand lens, and compensators
  • The revolver slots and stage are centered relative to the optical axis of the microscope
  • Compatible with additional accessories

Key features of the camera:

  • Five graphics and fps settings: Among them, you can easily find the most suitable mode for you
  • Fast data transfer thanks to the USB3.0 interface
  • Large SONY Exmor color sensor for bright, clear images even in low light conditions
  • “Quick start”: Install the included software and then the camera is ready to use
  • Simplify your observations or demonstrate to an audience by displaying your camera image on an external screen

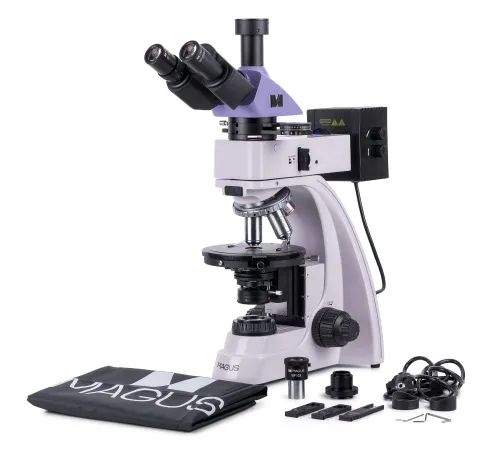

The kit includes:

  • MAGUS CBF70 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with a power input, transmitted light source and condenser, focusing mechanism, stage, and revolving nosepiece
  • Reflected light illuminator with a lamphouse
  • Trinocular head
  • Intermediate tube with Bertrand lens, an analyzer and compensator slot

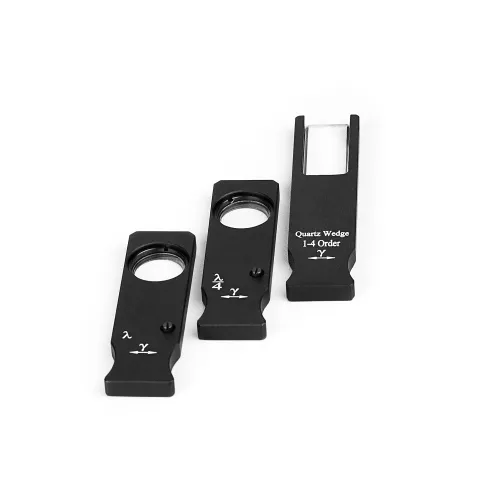

  • Compensators: λ compensator, λ/4 compensator, quartz wedge
  • Infinity plan achromatic objective: PL 5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL 10x/0.25 WD 5.0mm
  • Infinity plan achromatic objective: PL 40x/0.6 (spring-loaded) WD 3.98mm
  • Infinity plan achromatic objective: PL 60x/0.7 (spring-loaded) WD 2.03mm
  • Eyepiece 10x/20 mm (2 pcs.)
  • 10x/20mm eyepiece with a scale. Scale value: 0.1mm
  • C-mount adapter 1x
  • Hex key wrench
  • Power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 16x/11mm eyepiece (2 pcs.)
  • 20x/11mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL 2.5x/0.07 WD 11mm
  • Infinity plan achromatic objective: PL 50x/0.7 (spring-loaded) WD 3.67mm
  • Infinity plan achromatic objective: PL 80x/0.8 (spring-loaded) WD 1.25mm
  • Infinity plan achromatic objective: PL 100x/0.85 (spring-loaded) WD 0.4mm
  • Mechanical stage attachment
  • Calibration slide
Specifications
Product ID 83042
Brand MAGUS
Warranty 5 years
EAN 5905555018546
Package size (LxWxH) 44x42x67 cm
Shipping Weight 12.1 kg
Microscope specifications
Type biological, light/optical, digital
Head trinocular
Nozzle Siedentopf
Head inclination angle 30 °
Magnification, x 50 — 600
Magnification, x (optional) 25–1000/1600/2000
Eyepiece tube diameter, mm 23.2
Eyepieces 10х/20; 10x/20 with a scale (*optional: 16x/11; 20х/11)
Objectives infinity plan achromatic, strain-free: PL 5x/0.12; PL 10x/0.25; PL 40x/0.6; PL 60x/0.7 (*optional: PL 2.5x/0.07; PL 50x/0.7; PL 80x/0.8; PL 100x/0.85); parfocal height 45mm, designed for studying specimens without cover slips
Revolving nosepiece for 5 objectives, centering
Working distance, mm 26.1 (5x); 5.0 (10x); 3.98 (40x); 2.03 (60x); 11 (2.5x); 3.67 (50x); 1.25 (80x); 0.4 (100x)
Stage, mm Ø150
Stage features 360 ° rotatable, centering, 1° graduation of the rotation angle; a vernier scale for measuring angles with an accuracy of 0.1°
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Condenser Abbe condenser NA 1.25 with an adjustable aperture diaphragm and a swivel lens
Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm
Focus coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type reflected and transmitted light: 12V/30W
Light filters reflected light: matt, yellow, green, blue
Operating temperature range, °C 5...+35
User level experienced users, professionals
Assembly and installation difficulty level complicated
Polarizer transmitted light: with 0°, 90°, 180°, 270° marks on the scale; 360° rotatable; reflected light: removable
Intermediate tube built-in analyzer with rotation 0–360°; a vernier scale for measuring angles with an accuracy of 0.1°; Bertrand lens; slot for installing compensators
Compensator λ compensator; λ/4 compensator; quartz wedge
Application laboratory/medical
Illumination location dual
Research method bright field, polarization
Pouch/case/bag in set dust cover
Camera specifications
Sensor SONY Exmor CMOS
Color/monochrome color
Maximum resolution, pix 5280x3954
Sensor size 4/3" (17.4x13.0mm)
Pixel size, μm 3.3x3.3
Light sensitivity 399mV at 1/30s
Signal/noise ratio 0.1mV at 1/30s
Exposure time 0.1ms–15s
Video recording
Video recording yes
Frame rate, fps at resolution 17@5280x3954, 192@584x438, 67@1760x1316, 56@2640x1976, 17@3952x3952
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Software MAGUS View
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Mount type C-mount
Body solid aluminum
Camera power supply DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element
Camera operating temperature range, °С -10...+50
Operating humidity range, % 30 — 80
