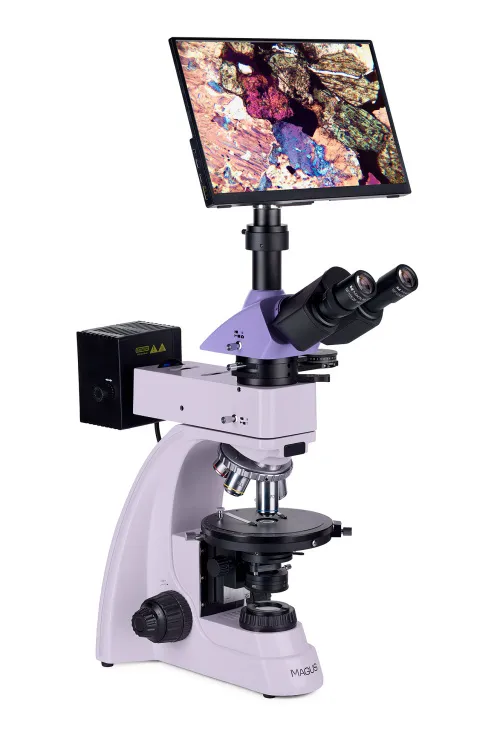

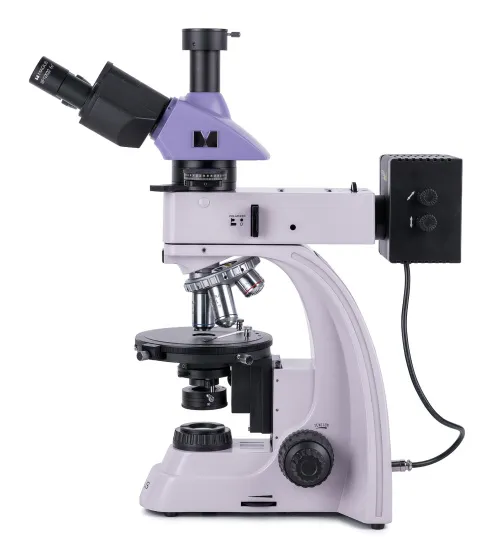

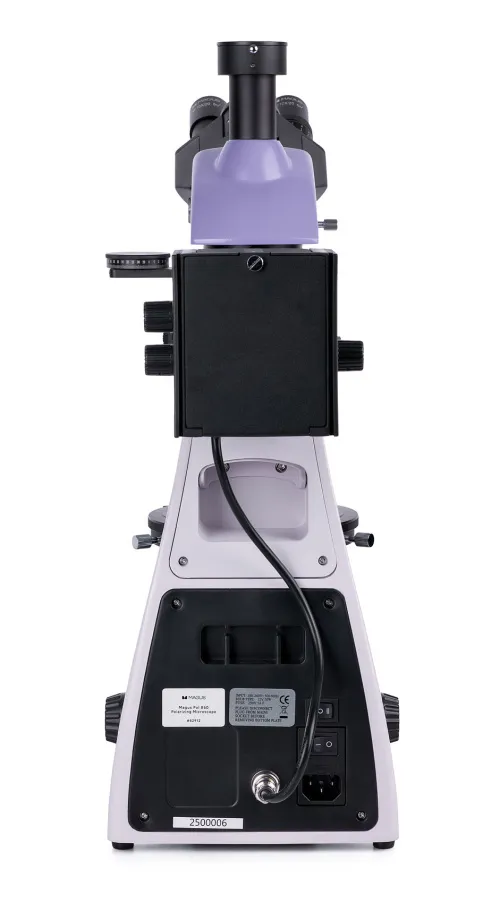

MAGUS Pol D850 LCD Polarizing Digital Microscope

The MAGUS Pol 850 Polarizing Microscope is designed to work in transmitted and reflected light. Available research methods: polarization and brightfield. The microscope is used to study anisotropic biological, geological, and polymer objects as well as opaque polished sections up to 15mm thick with one polished side. The microscope is perfect for a wide range of tasks of professionals in the field of medicine, forensics, mineralogy, crystallography, or petrography.

Digital Camera

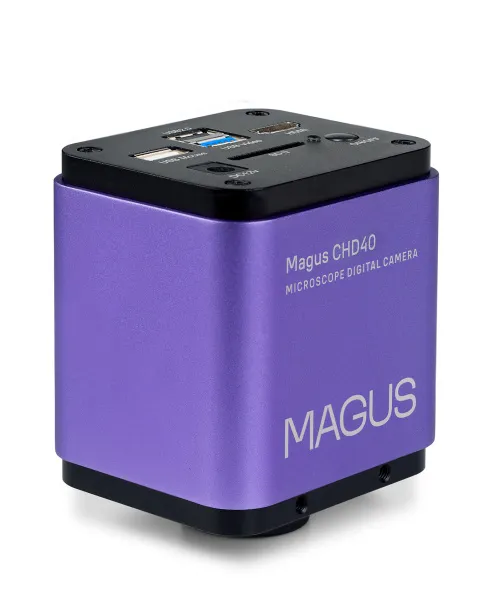

MAGUS CHD40 is a digital HDMI camera with three video interfaces and automatic switching between 4K and Full HD depending on the monitor resolution. The camera is equipped with an 8MP sensor and produces realistic images in 4K resolution (3840x2160px) when connected via HDMI or USB3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080px). The camera uses an HDMI interface to connect to a TV, monitor, or projector directly. In this mode, the camera operates autonomously without a connection to a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB3.0. Video is recorded at 30fps. The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid, with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

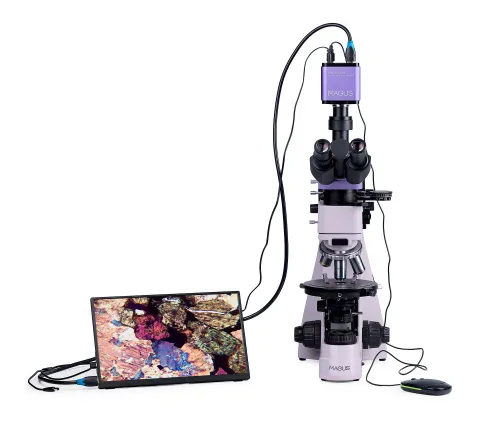

Monitor

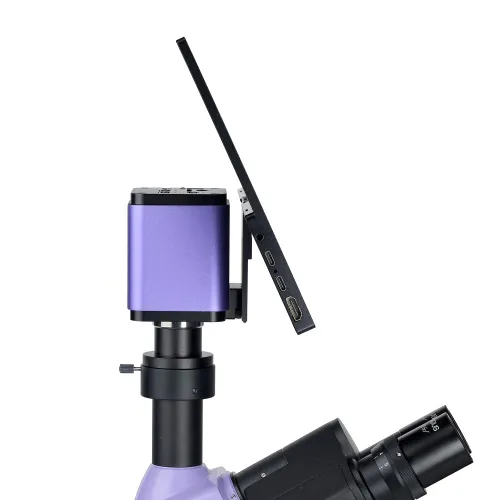

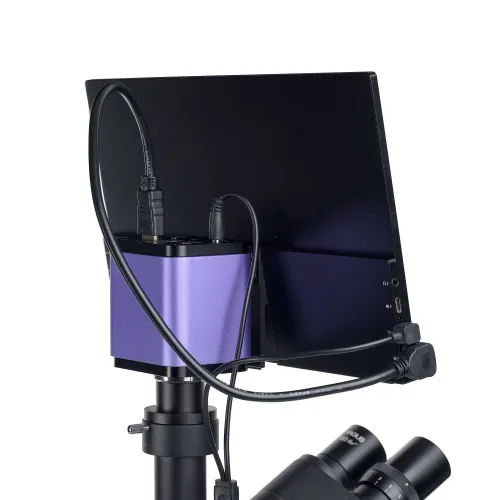

The MAGUS MCD40 Monitor is designed to use a visualization system of the MAGUS microscope. It is connected to a camera mounted on the microscope to display real-time images. It supports MAGUS 4K HDMI cameras. The screen diagonal is 13.3 inches. The IPS matrix provides bright images with large viewing angles. If you look at the display at an angle, the color reproduction is not distorted. The display can be placed on a folding stand on a table or shelf or mounted directly to the camera or microscope stand.

Optics

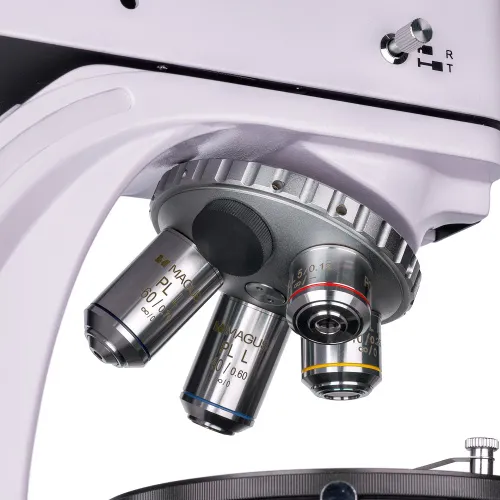

The optics of the microscope are infinity corrected and are free from internal strains. The image formed by the lenses is authentic, free of spurious reflections, high contrast, and detailed. The lenses are installed in a revolving nosepiece with slots centered to the optical axis. There are five slots, with four objectives included in the kit; one additional objective can be installed to obtain further magnification within the magnification range of the microscope. Objectives are designed to work with samples without cover slips.

The trinocular head enables you to install a digital camera in the trinocular tube. The beam splitting is 100:0 or 0:100, i.e., all of the light goes either to the camera or to the eyepiece tubes. The left eyepiece tube has a diopter adjustment ring: It is rotated to compensate for the difference in vision between the eyes and to obtain the clearest possible image of the sample.

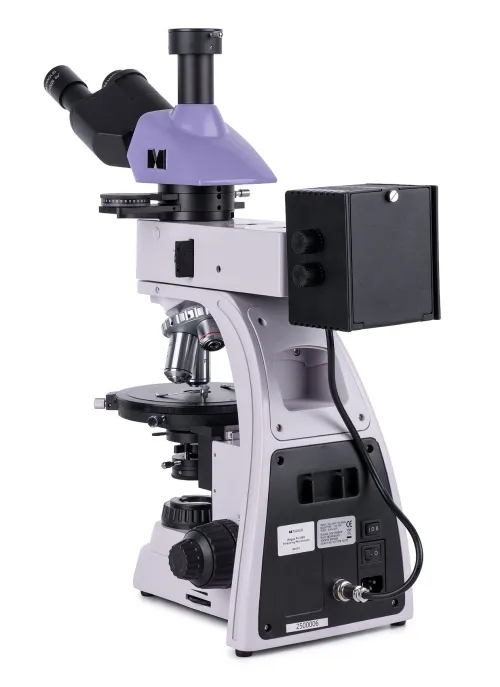

Illumination

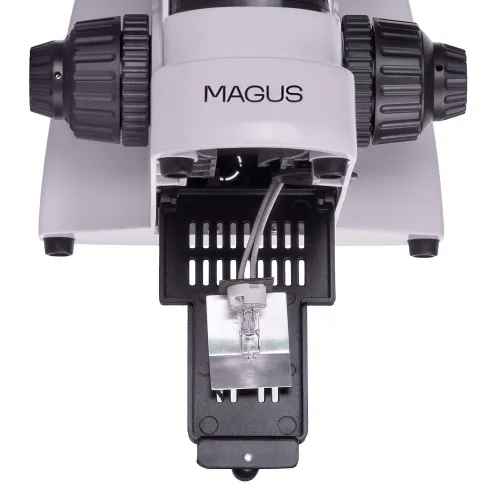

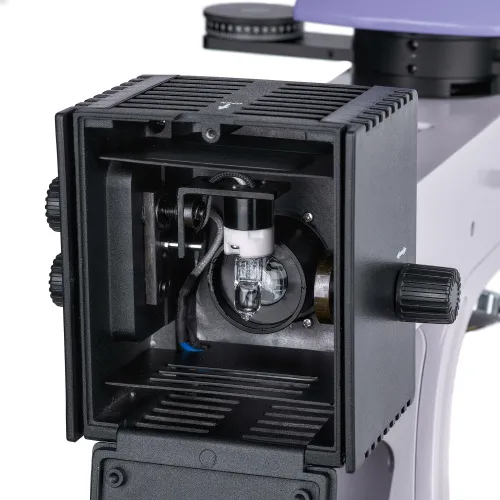

30W halogen bulbs are used for transmitted and reflected light. Their brightness is sufficient to obtain a clearly readable image on each objective, and the “warm” emission spectrum is comfortable during long-term use. Köhler illumination setup will provide increased resolution, and it will remove artifacts in the field of view and darkening at the edges. Light filters are used to accurately adjust color reproduction when working in reflected light.

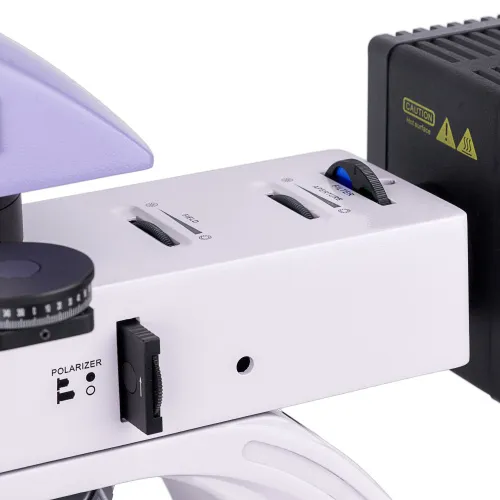

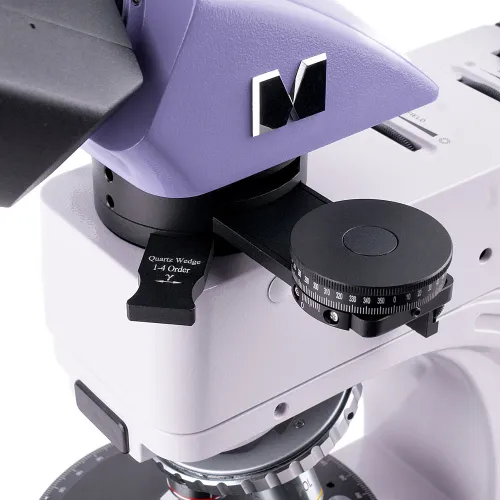

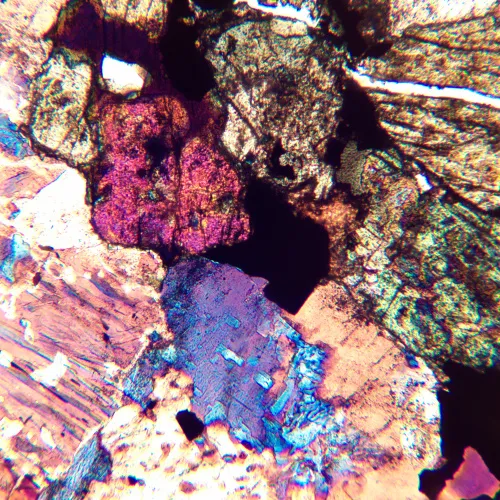

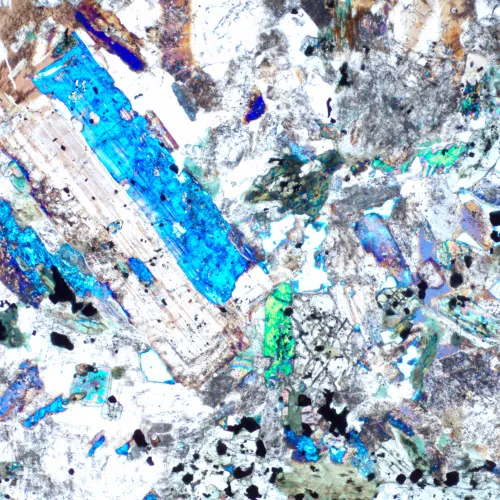

Polarization is available for both transmitted and reflected light. To begin observations in polarized light, an analyzer is introduced into the optical path. Next, the relative position of the analyzer and polarizer is changed by rotating them, which also changes the polarization angle. The contrast of objects is increased with the help of compensators, which are installed in a special slot in the intermediate attachment. The same attachment also contains a Bertrand lens that is used for conoscopic examinations.

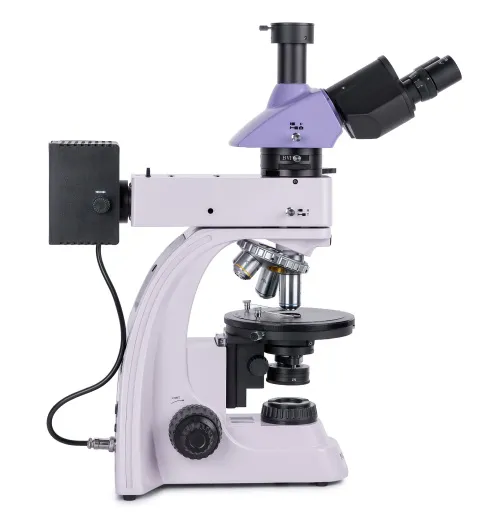

Stage and focusing mechanism

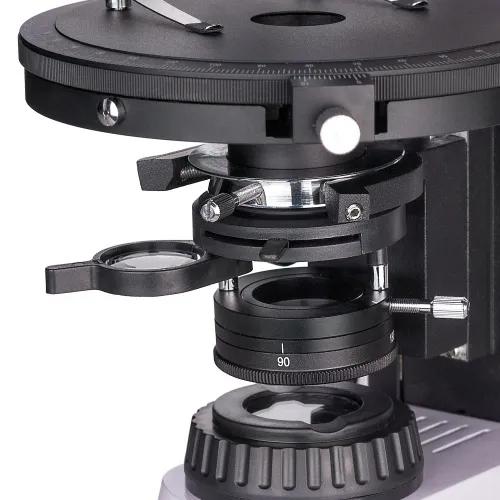

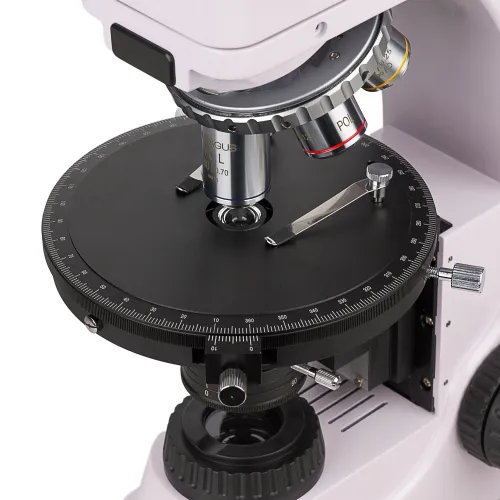

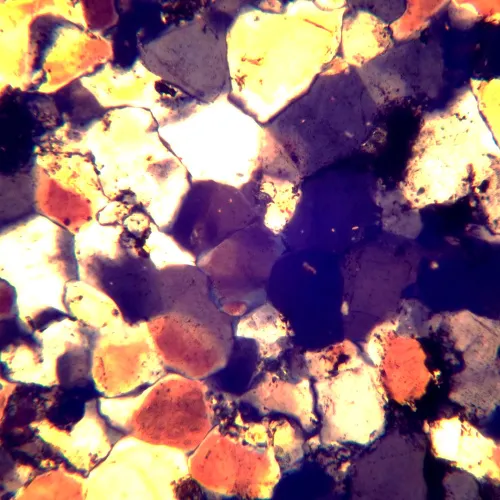

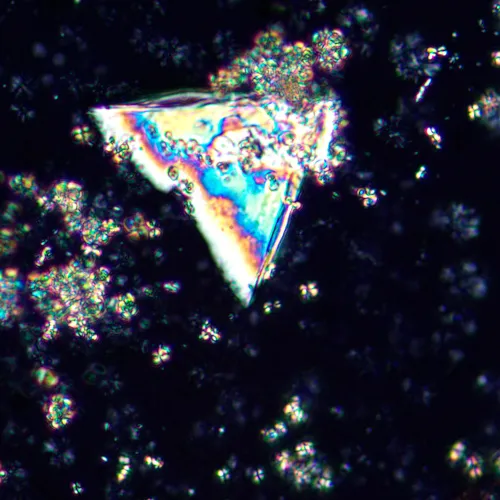

The microscope has a rotatable stage: Turning it changes the way the sample refracts light in polarized light. The stage has a scale on which you can determine the angle of rotation with an accuracy of up to 0.1°. To obtain the brightest and clearest image, the stage can be centered relative to the optical axis of the microscope.

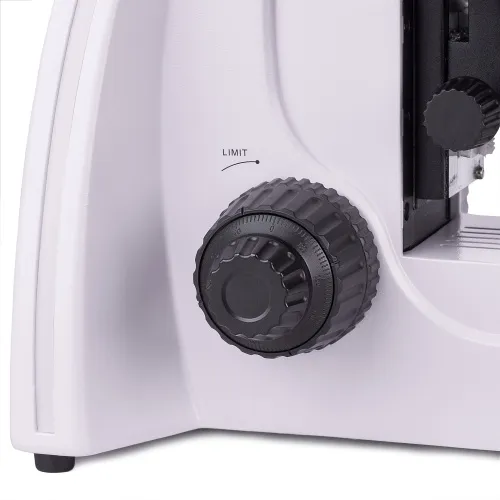

The coarse and fine focusing knobs are located at the bottom of the stand, and so the user may take a relaxed pose with their hands on the table. The coarse tension can be adjusted, and there is also a coarse focusing lock. The fine focusing provides for the smooth movement of the sample.

Accessories

To get the most out of your microscope, use accessories from the MAGUS line: eyepieces, objectives, calibration slides, digital cameras, etc.

Key features of the microscope:

• For work in transmitted and reflected polarized and natural light
• Trinocular head with a tube for a digital camera; 100:0 or 0:100 beam splitting
• Strain-free plan achromatic objectives for clear images free of artifacts and false internal reflections
• Halogen illumination of the work area, a color spectrum that is comfortable for the eyes; 30W bulb power
• Rotating stage, polarizer, and analyzer with rotation angle marks, Bertrand lens, and compensators
• The revolver slots and stage are centered relative to the optical axis of the microscope
• Compatible with additional accessories

Key features of the camera:

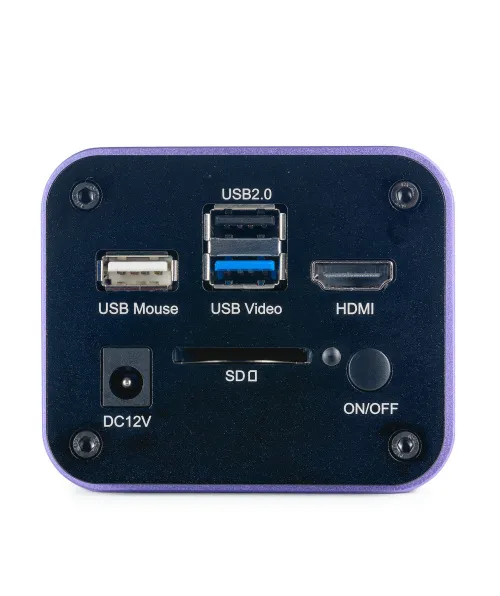

• The camera operates autonomously without a connection to a PC and via HDMI interface. Can be connected to a PC via Wi-Fi and a USB3.0 interface
• Auto switching between 4K and Full HD depending on monitor resolution
• 30fps for observing moving objects, recording video, and moving the sample without jerkiness or delays
• SONY Exmor/Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
• Software with photo, video recording, editing, external display functions, linear and angular measurements

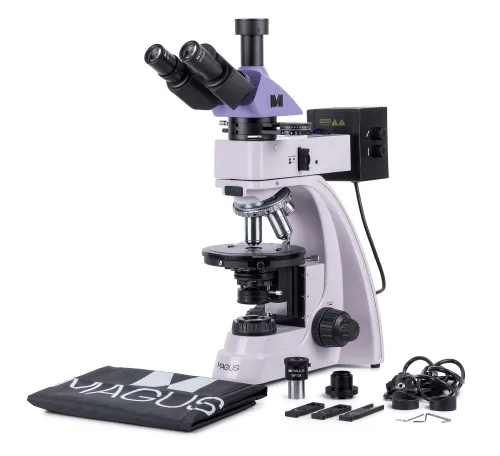

The kit includes:

• MAGUS CHD40 Digital Camera (digital camera, HDMI cable (1.5m), USB3.0 cable (1.5m), USB mouse, 32GB SD memory card, USB Wi-Fi adapter (2pcs.), AC power adapter 12V/1A (Euro), installation CD with drivers and software, user manual and warranty card)
• MAGUS MCD40 LCD Monitor
• Base with a power input, transmitted light source and condenser, focusing mechanism, stage, and revolving nosepiece
• Reflected light illuminator with a lamphouse
• Trinocular head
• Intermediate tube with Bertrand lens, an analyzer and compensator slot

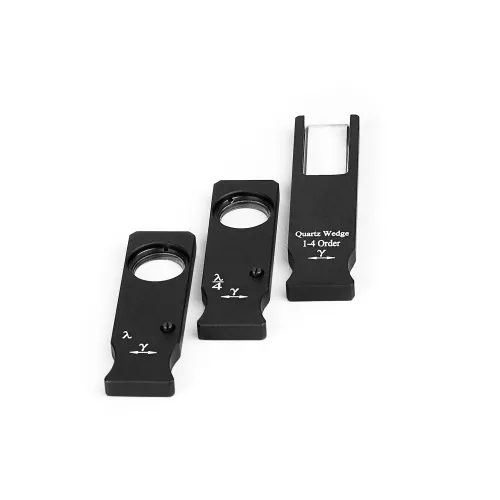

• Compensators: λ compensator, λ/4 compensator, quartz wedge
• Infinity plan achromatic objective: PL 5x/0.12 WD 26.1mm
• Infinity plan achromatic objective: PL 10x/0.25 WD 5.0mm
• Infinity plan achromatic objective: PL 40x/0.6 (spring-loaded) WD 3.98mm
• Infinity plan achromatic objective: PL 60x/0.7 (spring-loaded) WD 2.03mm
• Eyepiece 10x/20 mm (2 pcs.)
• 10x/20mm eyepiece with a scale. Scale value: 0.1mm
• C-mount adapter 1x
• Hex key wrench
• Power cord
• Dust cover
• User manual and warranty card

Available on request:

• 16x/11mm eyepiece (2 pcs.)
• 20x/11mm eyepiece (2 pcs.)
• Infinity plan achromatic objective: PL 2.5x/0.07 WD 11mm
• Infinity plan achromatic objective: PL 50x/0.7 (spring-loaded) WD 3.67mm
• Infinity plan achromatic objective: PL 80x/0.8 (spring-loaded) WD 1.25mm
• Infinity plan achromatic objective: PL 100x/0.85 (spring-loaded) WD 0.4mm
• Mechanical stage attachment
• Calibration slide
