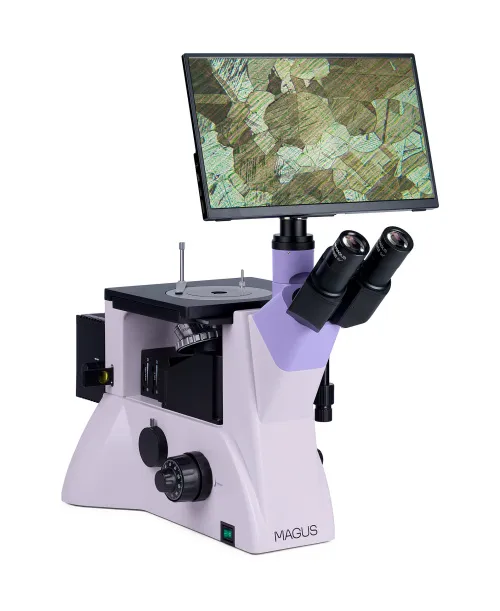

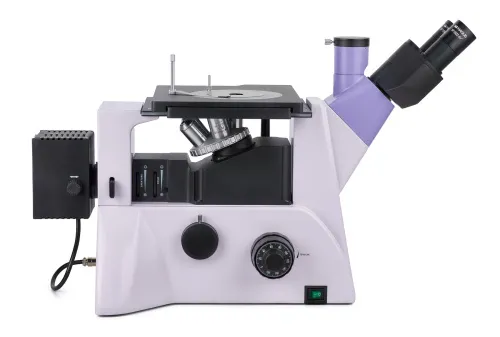

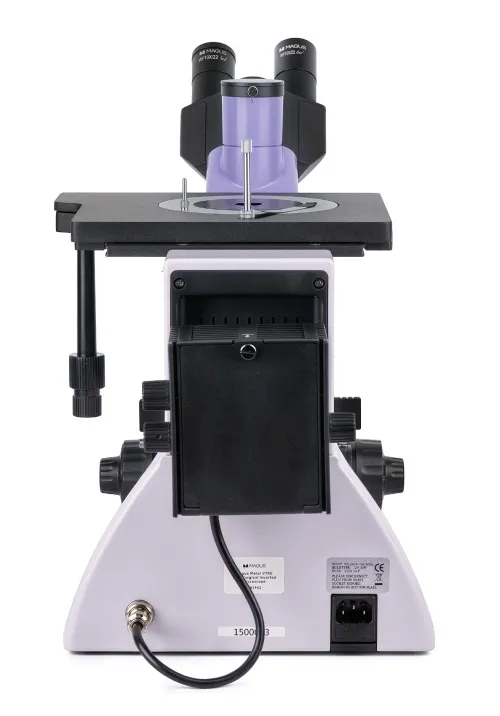

MAGUS Metal VD700 LCD Metallurgical Inverted Digital Microscope
With a camera and monitor. Magnification: 50–1000х. Trinocular head, infinity plan achromatic objectives, 30W halogen reflected light illuminator
Product ID | 83037 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018461 |
Package size (LxWxH) | 49x34x68 cm |
Shipping Weight | 19.25 kg |

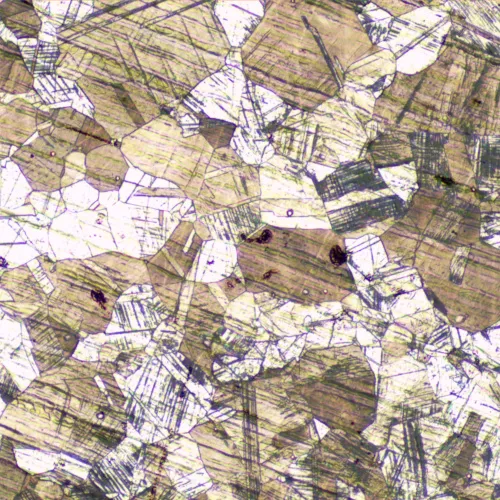

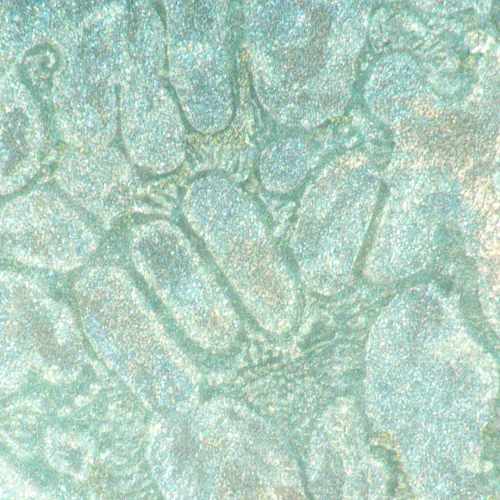

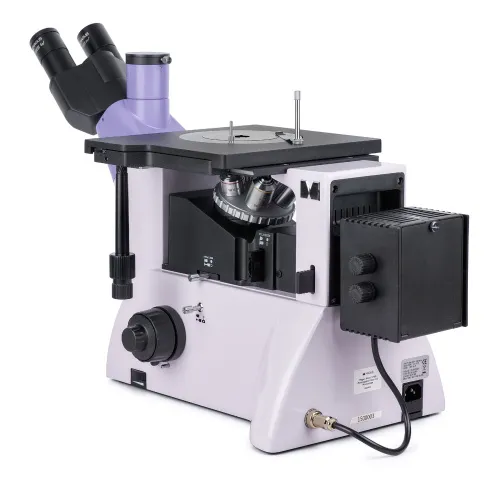

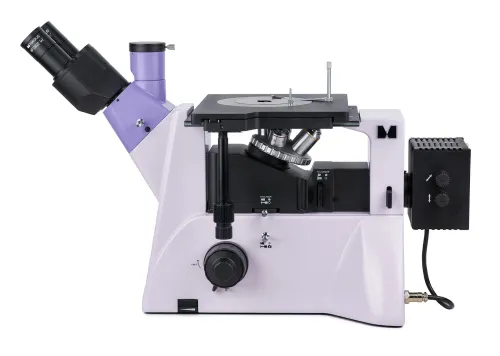

The MAGUS Metal VD700 LCD Metallurgical Inverted Microscope is suitable for studying the microstructure of metals, alloys, and semiconductors in reflected light. The stage can hold samples up to 2kg (only the bottom surface of the sample must be flat). The other parts of the sample do not require processing and can be of any shape. The microscope is designed for brightfield and polarized light observations, has a side camera port and a trinocular tube, and it is suitable for a wide range of laboratory and production applications.
Digital camera

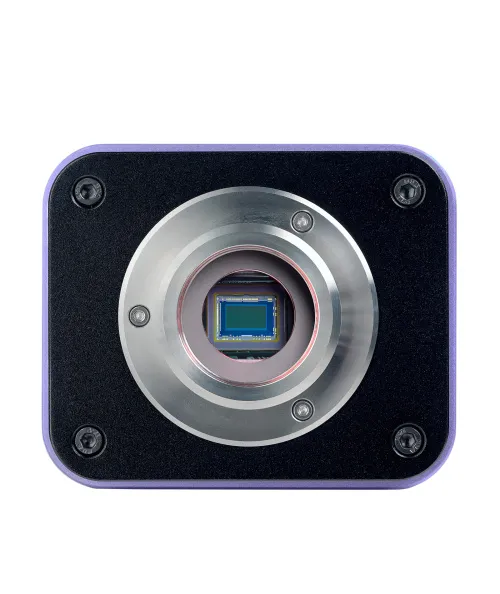

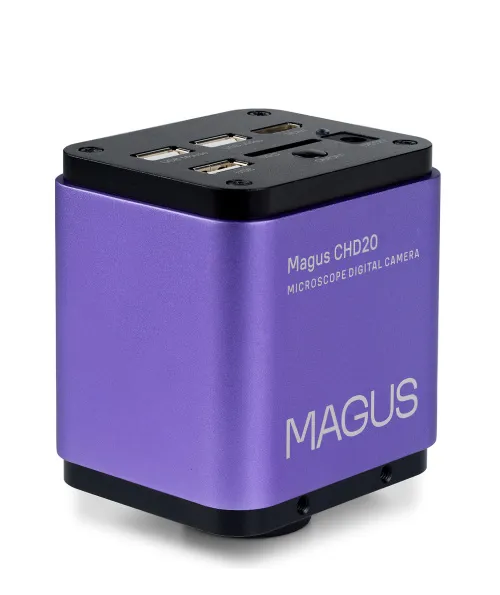

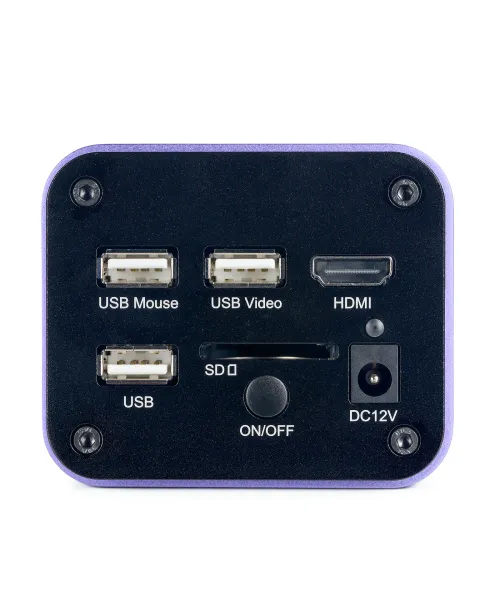

The MAGUS CHD20 Digital Camera is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. The camera features high light sensitivity that is suitable for working in fluorescent light. Through the use of R, G, B primary color mosaic filters, low dark current and clear image are achieved. The camera uses an HDMI interface to connect directly to a TV, monitor, or projector. In this mode, the camera operates autonomously without a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. An additional USB2.0 interface is provided for connecting the camera to a PC. Video is recorded at 60fps or 50fps depending on the video output interface. The camera combines high FPS and high bandwidth HDMI and, therefore, videos are vivid with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.
Monitor

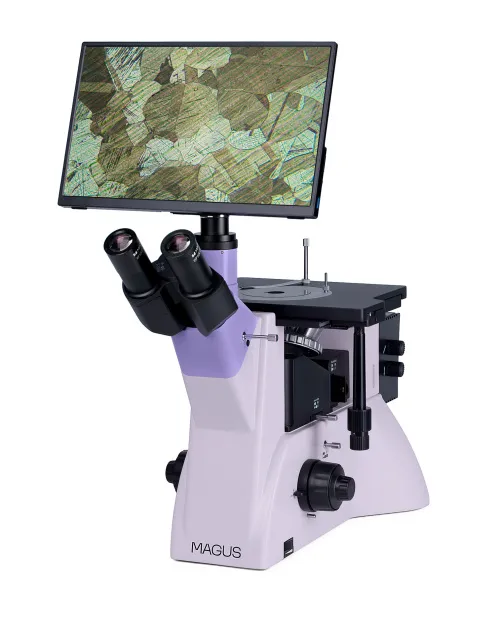

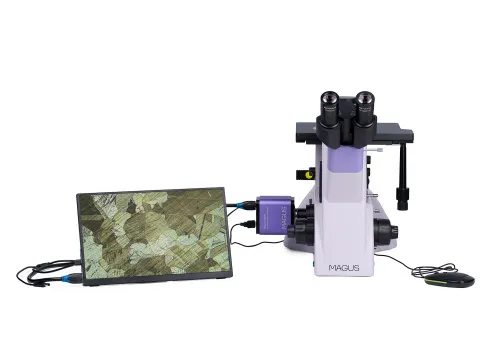

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

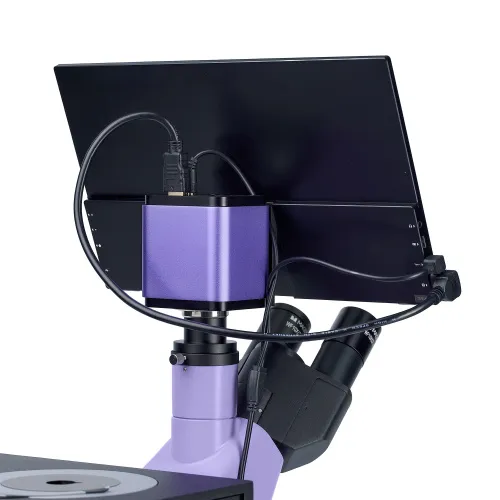

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.
Optics

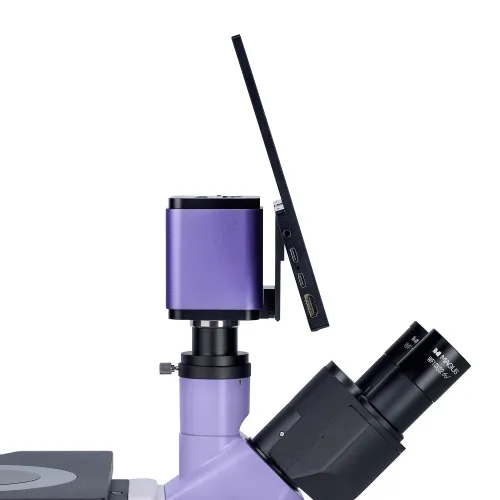

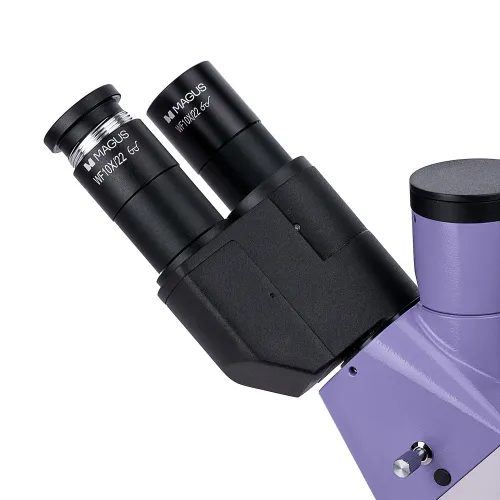

The microscope is equipped with a trinocular head of special design – the position of the eyepieces can be adjusted; 180° rotation is available. The digital camera is mounted in the side camera port on the microscope body and the monitor is mounted in the trinocular tube on the microscope head. Beam splitting on the body – 100:0/0:100, on the trinocular head is 50:50 and 100:0.

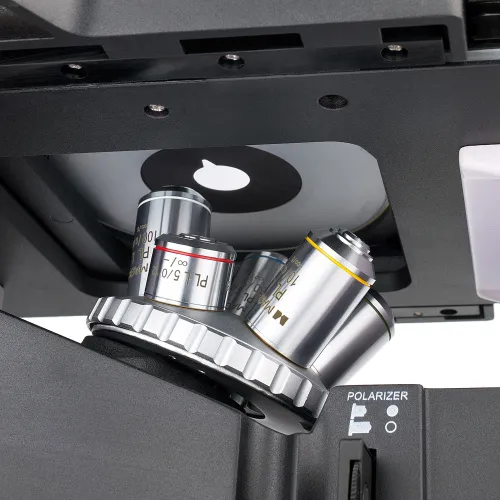

The revolving nosepiece is located under the examined sample and has 5 objective slots (all of them are included in the basic configuration). All objectives are infinity plan achromatic ones with long working distances. An additional objective can be mounted instead of any of the supplied objectives. In the basic configuration, the microscope magnification ranges from 50x to 1000x.
Illumination

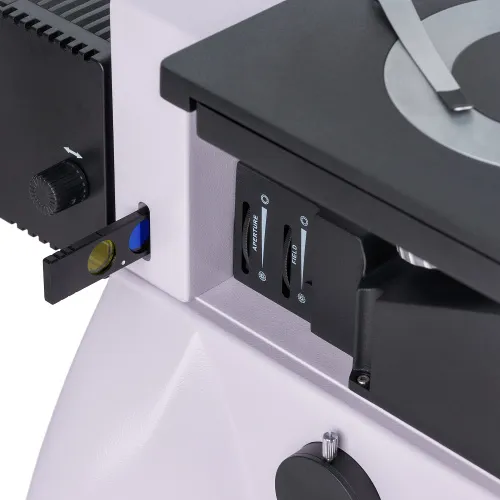

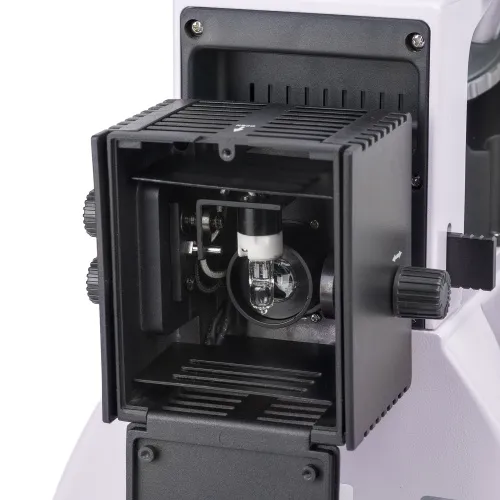

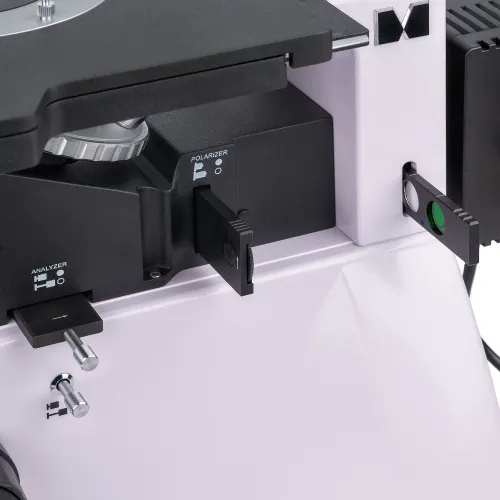

The reflected light illuminator has a 30W halogen bulb with adjustable brightness. The lamphouse is powered by an AC power supply. It is bright enough for making observations with all the included objectives using brightfield or polarization microscopy techniques. There is an option to set up the Köhler illumination, and the light source can be centered along three axes. Color filters can be used to change color rendition in microscopic photography. There are polarization devices – an analyzer and a polarizer – that are both removable.
Stage and focusing mechanism

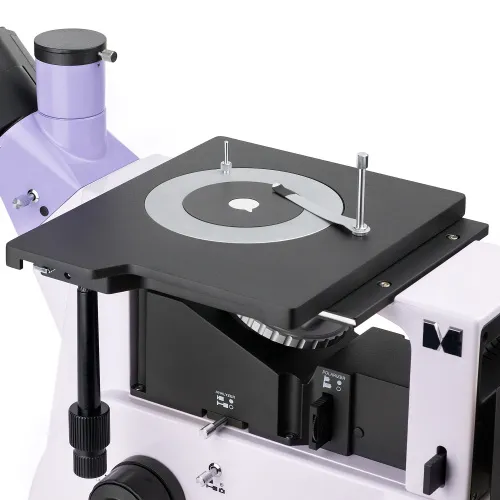

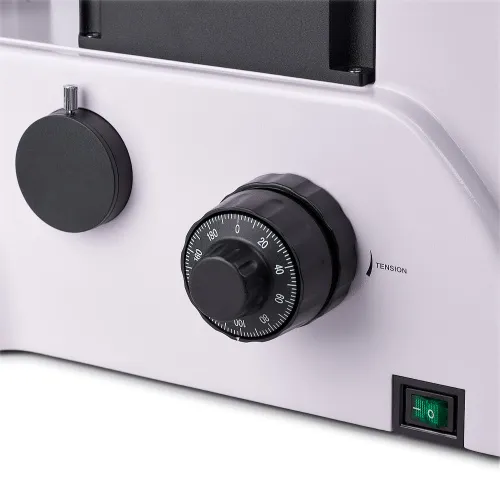

A round stage plate with a 10mm, 20mm, or 30mm hole that is inserted in the stage, and the specimen is fixed with a specimen holder. The stage is quite large (242x200mm) and it moves with the attached specimen along two axes. You can adjust the sharpness of the image using the coarse and fine focusing knobs. You can adjust the stiffness of the coarse knob tension, and there is a lock knob.
Accessories
Additional accessories make it possible to get the most out of the MAGUS Metal VD700 LCD microscope. Eyepieces, long working distance plan achromatic objectives, calibration slides, and digital cameras are available.
Key features of the microscope:
- Study of large and heavy samples using brightfield and polarization microscopy techniques; only one side of the sample should be processed
- Large stage, round rotating stage plates with 10mm, 20mm, and 30mm holes
- The trinocular head can be rotated 180° during installation

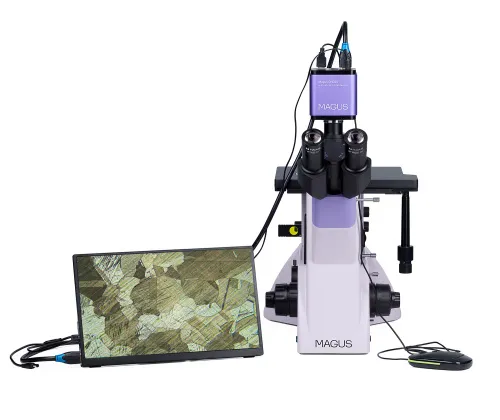

- Two options for mounting a digital camera and monitor: on the trinocular head with 50:50 and 100:0 beam splitting or on the microscope body with 100:0 or 0:100 beam splitting
- Reflected light observations, light source – 30W halogen bulb with adjustable brightness
- Köhler illumination setup, removable analyzer and polarizer, and a light source that can be centered
- Large selection of compatible accessories to expand the capabilities of the microscope
Key features of the camera:
- The camera operates autonomously without a connection to a PC via HDMI interface. Can be connected to a PC via USB2.0 interface
- The camera resolution is 1920x1080px – an ideal choice for displaying images on a Full HD monitor
- 60fps or 50fps depending on the video output interface for observing moving objects, recording video, and moving the preparation without jerkiness or lags
- SONY Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images.
- Software with photo, video recording, editing, external display functions, linear and angular measurements

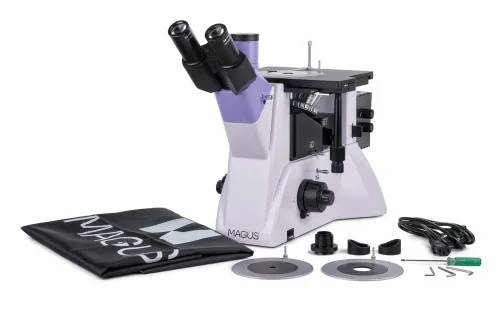

The kit includes:
- MAGUS CHD20 Digital Camera (digital camera, HDMI cable (1.5m), USB 2.0 cable (2m), USB mouse, 32GB SD memory card, AC power adapter 12V/1A (Euro), installation CD with drivers and software, user manual and warranty card)
- MAGUS MCD20 LCD Monitor
- Base with a power input, focusing mechanism, stage, and revolving nosepiece
- Reflected light illuminator with a lamphouse
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
- Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
- Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
- Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
- Eyepiece 10x/22mm with long eye relief (2 pcs.)
- C-mount adapter 1x
- Hex key wrench
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22mm eyepiece with a scale
- 12.5x/14mm eyepiece (2 pcs.)
- 15x/15mm eyepiece (2 pcs.)
- 20x/12mm eyepiece (2 pcs.)
- 25x/9mm eyepiece (2 pcs.)
- Infinity plan achromatic objective: PL L40х/0.60 WD 3.98mm
- Infinity plan achromatic objective: PL L60x/0.70 WD 2.08mm
- Infinity plan achromatic objective: PL L80x/0.80 WD 1.25mm
- Calibration slide
Product ID | 83037 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018461 |
Package size (LxWxH) | 49x34x68 cm |
Shipping Weight | 19.25 kg |
Type | light/optical, digital, metallurgical |
Head | trinocular, digital screen/PC monitor |
Nozzle | Siedentopf, rotatable 180° |
Head inclination angle | 45 ° |
Magnification, x | 50 — 1000 |
Magnification, x (optional) | 50–1250/1500/2000/2500 |
Eyepiece tube diameter, mm | 30 |
Eyepieces | 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
Objectives | infinity plan achromatic: PL L5x/0.12, PL L10x/0.25, PL L20x/0.40, PL L50x/0.70, PL L100x/0.85 (dry); parfocal distance 45mm (*option: PL L40x/0.60, PL L60x/0.70, PL L80x/0.80) |
Revolving nosepiece | for 5 objectives |
Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
Interpupillary distance, mm | 48 — 75 |
Stage, mm | 242x200 |
Stage moving range, mm | 30/30 |
Stage features | two-axis mechanical, round rotating stage plate Ø130mm with holes Ø10mm, Ø20mm and Ø30mm |
Diaphragm | built-in aperture and field |
Focus | coaxial, coarse (with coarse focusing tension adjustment and a lock knob), and fine (0.002mm) |
Illumination | halogen |
Brightness adjustment | ✓ |
Power supply | 220±22V, 50Hz, AC network |
Light source type | 12V/30W |
Light filters | green, blue, yellow, matt |
Operating temperature range, °C | 5...+35 |
Additional | removable analyzer and polarizer |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | metallurgical |
Illumination location | lower |
Research method | bright field, polarization |
Pouch/case/bag in set | dust cover |
Camera specifications | |
Sensor | Sony Exmor/Starvis CMOS |
Color/monochrome | color |
Megapixels | 2 |
Maximum resolution, pix | 1920x1080 |
Sensor size | 1/2" (7.2x4.05mm) |
Pixel size, μm | 3.75x3.75 |
Interface connectors | USB 2.0, HDMI 1.4 |
Memory card | SD up to 32GB |
Ability to connect additional equipment | USB mouse, flash stick (USB) |
Light sensitivity | 1175mV with 1/30s |
Signal/noise ratio | 0.15mV at 1/30s |
Exposure time | 0.04ms–1000ms |
Video recording | ✓ |
Frame rate, fps at resolution | 60@1920x1080 (HDMI), 50@1920x1080 (USB) |
Place of installation | trinocular tube, eyepiece tube instead of an eyepiece |
Image format | *.jpg, *.tif |
Video format | *.h264/*.h265, *.mp4 |
Spectral range, nm | 380–650 (built-in IR filter) |
Shutter type | ERS (electronic rolling shutter) |
Software | HDMI: built-in; USB: MAGUS View |
System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 4GB RAM, USB2.0 port, RJ45, CD-ROM, 19" or larger display |
Mount type | C-mount |
Body | CNC aluminum alloy |
Camera power supply | DC adapter 12V, 1A |
Camera operating temperature range, °С | -10...+50 |
Operating humidity range, % | 30 — 80 |
Monitor specifications | |
Type of matrix | IPS |
Display diagonal, inch | 13.3 |
Display resolution, px | 1920x1080 (Full HD) |
Aspect ratio | 16:9 |
Brightness, cd/m² | 400 |
Number of displayed colors | 16.7 m |
Contrast | 1000:1 |
Horizontal/vertical viewing angle, ° | 178/178 |
Size of the visible screen area (WxH), mm | 295x165 |
Pixel pitch (WxH), mm | 0.154x0.154 |
Frequency of optical source, Hz | 60 |
Type of matrix backlight | LED |
LED backlight lifetime, h | 50000 |
Interface | HDMI |
Operating temperature range, °C | -15...+55 |
Operating humidity range, % | 10 — 90 |
Power supply | AC 110–220V, DC 5–12V/1A (Type-C) |
Power consumption, W | 12 (max.) |
