MAGUS Metal V700 BD Metallurgical Inverted Microscope

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 50–500х. Trinocular head, plan achromatic objectives for darkfield and brightfield microscopy, 50W halogen reflected light illuminator

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
50 — 500
How much the size of a sample increases when you observe it through a microscope
Metallurgical
Application and use of the microscope
Availability

Product ID 82903
Brand MAGUS
Warranty 5 years
EAN 5905555018478
Package size (LxWxH) 49x34x68 cm
Shipping Weight 16.5 kg
Description

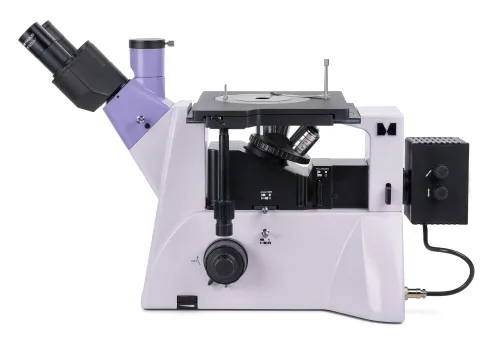

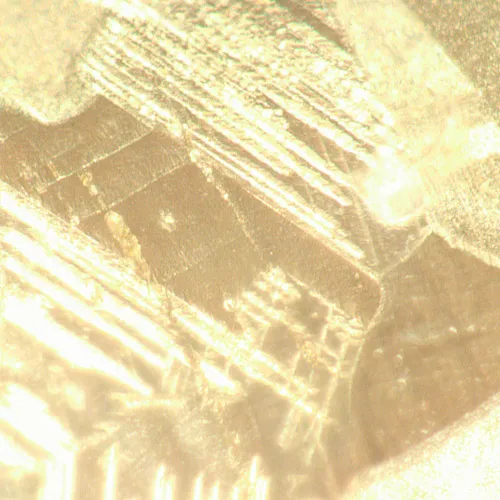

MAGUS Metal V700 BD is an inverted metallurgical microscope – the revolving nosepiece is located under the specimen and it uses reflected light for observations. Microscopy techniques available: brightfield, darkfield, and polarized light. The microscope is used for studying metals, alloys, semiconductors, and other opaque specimens of large sizes up to 2kg. It is widely used in industrial facilities, factories, and quality control laboratories as well as in universities and research centers.

Optics

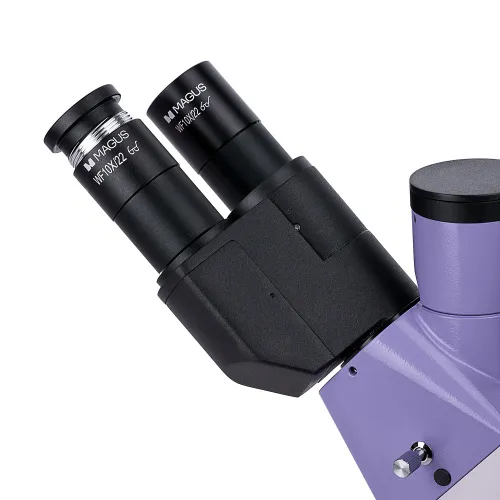

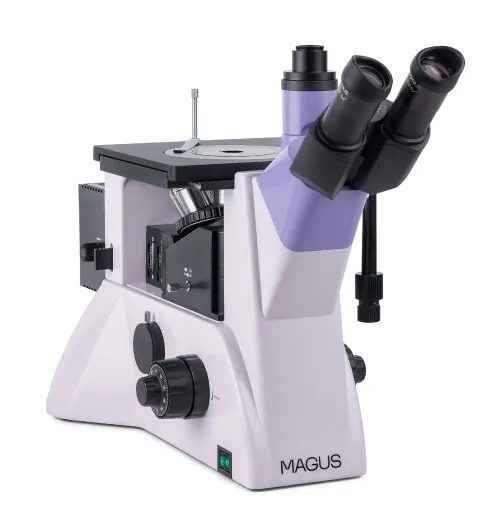

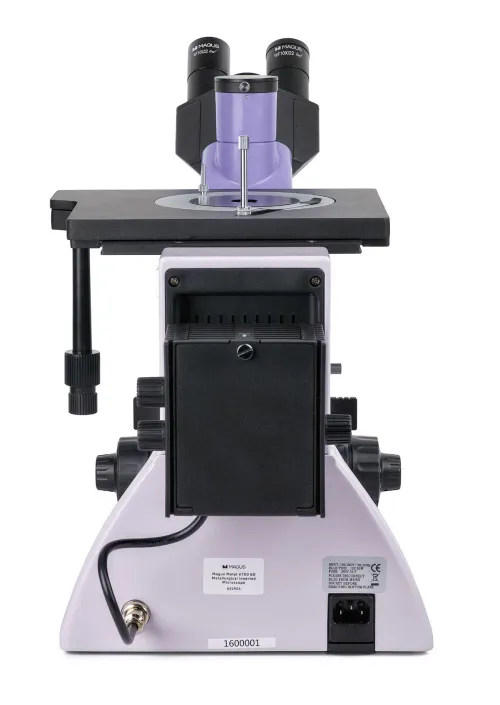

You can install the microscope head in a standard way or rotate it 180° as provided by the design. There is an option to install a digital camera and monitor: A trinocular tube is located in the microscope head, a side camera port one – on the body. The beam splitting is available for both: 50:50 and 100:0 for the microscope head as well as 100:0 and 0:100 for the body.

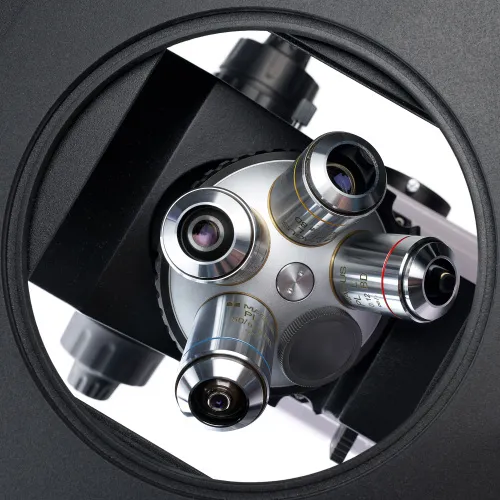

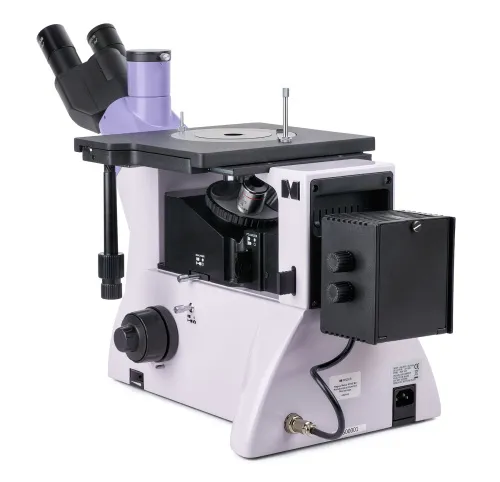

A revolving nosepiece for 5 objectives is located under the examined specimen. There are 4 slots for installing the included objectives and one more slot for installing an additional one. All objectives for this microscope are labeled BD, i.e., they are specially designed for brightfield and darkfield microscopy and have a long working distance.

Illumination

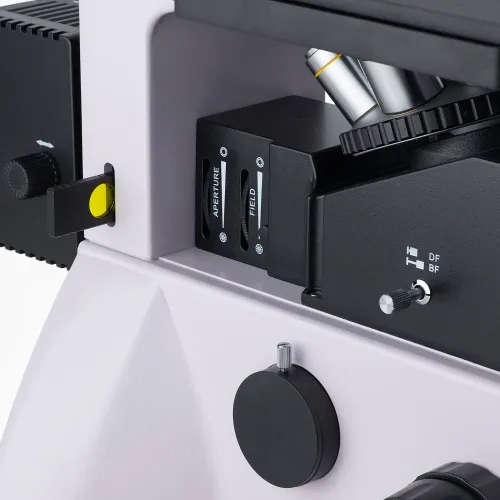

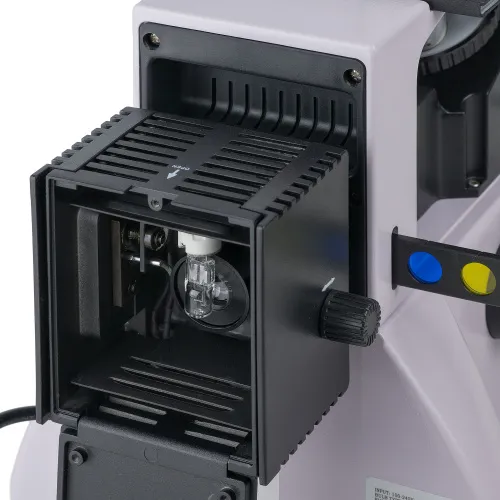

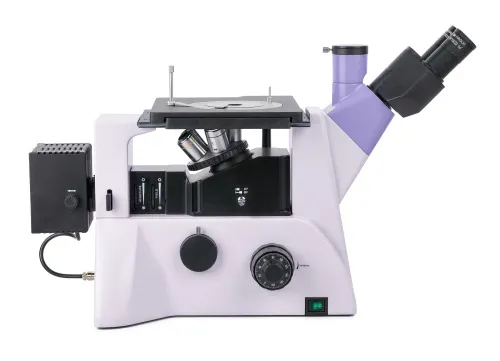

Light source: 50W halogen bulb. The warm lighting reduces eye strain and is ideal for long hours of working with the microscope. Thanks to the powerful illumination, you will get a well-detailed sharp image using any microscopy techniques and any objective. The light source can be centered along three axes, and the Köhler illumination can be adjusted by aperture and field diaphragms. The reflected light illumination system also includes a polarization device and a darkfield device.

Stage and focusing mechanism

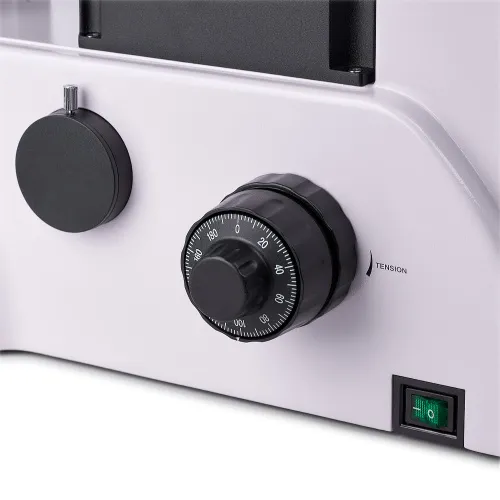

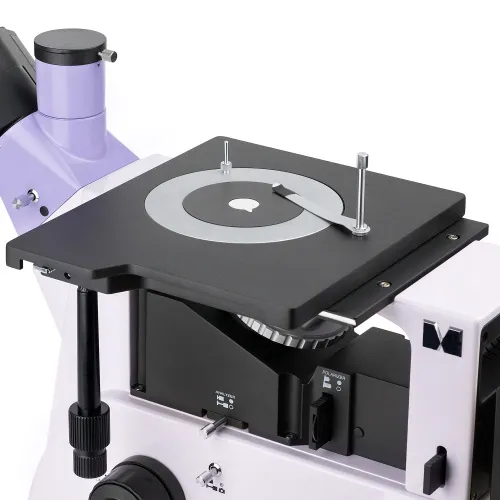

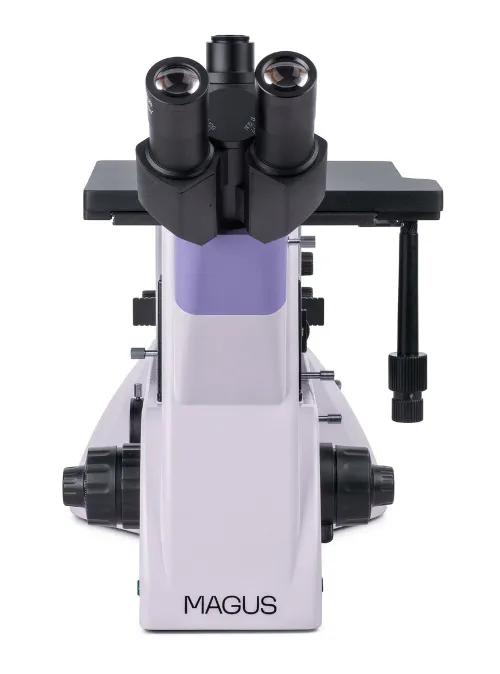

Stage with a round rotating stage plate in the center. Depending on the intended use, different plates can be used: They differ in the diameter of the hole – 10mm, 20mm, or 30mm. After placing the specimen on the stage, it is secured with a holder. The specimen moves along with the stage in two directions: X-axis or Y-axis. Coarse (has a lock knob and tension adjustment) focusing and fine focusing are used for focus adjustment. Coaxial coarse and fine focusing knobs are located on both sides in such a way that you can place your hands on the table when using a microscope rather than keeping them in the air.

Accessories

When you add additional accessories to the MAGUS Metal V700 BD microscope, its capabilities expand. The accessories include eyepieces, darkfield and brightfield objectives with long working distance, digital cameras, and calibration slides.

Key features:

  • Stage with a round stage plates with 10mm, 20mm, and 30mm holes; suitable for studying heavy and large samples

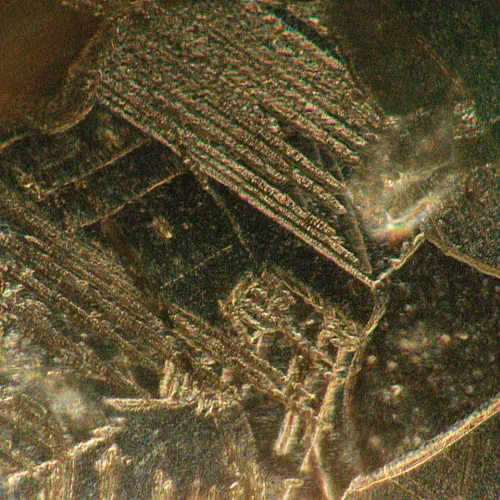

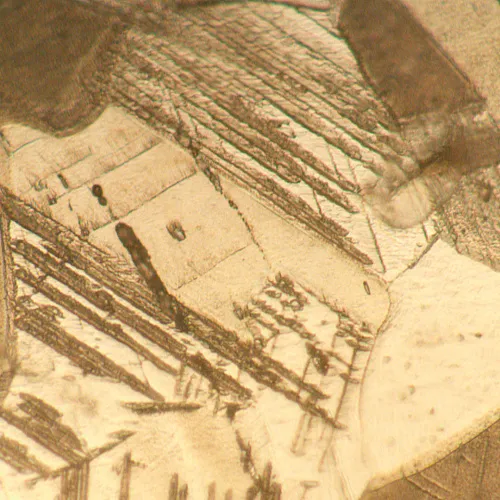

  • Brightfield, darkfield, and polarized light microscopy techniques
  • Option to rotate the microscope head 180° during installation
  • Two options for mounting the monitor and digital camera: trinocular tube and a side camera port; beam splitting: 100:0 and 0:100 on the body and 50:50 and 100:0 on the trinocular head
  • Powerful halogen illuminator (50W) for comfortable observations using darkfield technique, brightness control, Köhler illumination setup, color filters, and a light source can be centered along three axes
  • Optional accessories to improve the microscope’s performance

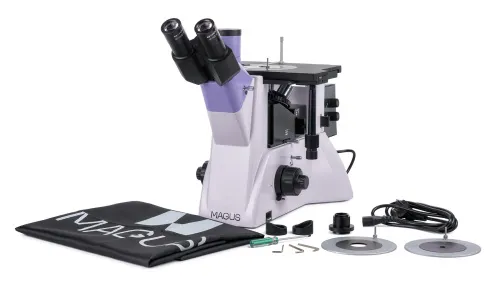

The kit includes:

  • Base with a power input, focusing mechanism, stage, and revolving nosepiece
  • Reflected light illuminator with a lamphouse
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7mm
  • Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3mm
  • Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2mm
  • Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0mm
  • Infinity plan achromatic objective: PL L60x/0.70 BD WD 1.9mm
  • Infinity plan achromatic objective: PL L80x/0.80 BD WD 0.8 mm
  • Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4mm
  • Digital camera
  • Calibration slide
Specifications
Product ID 82903
Brand MAGUS
Warranty 5 years
EAN 5905555018478
Package size (LxWxH) 49x34x68 cm
Shipping Weight 16.5 kg
Type light/optical, metallurgical
Head trinocular
Nozzle Siedentopf, rotatable 180°
Head inclination angle 45 °
Magnification, x 50 — 500
Magnification, x (optional) 50–1000/1250/1500/2000/2500
Eyepiece tube diameter, mm 30
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/0.40 BD, PL L50x/0.70 BD; parfocal height 45mm (*optional: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry))
Revolving nosepiece for 5 objectives
Working distance, mm 9.7 (5x); 9.3 (10x); 7.2 (20x); 3.0 (40x); 2.5 (50x); 1.9 (60x); 0.80 (80x); 0.40 (100x)
Interpupillary distance, mm 48 — 75
Stage, mm 242x200
Stage moving range, mm 30/30
Stage features two-axis mechanical, round rotating stage plate Ø130mm with holes Ø10mm, Ø20mm and Ø30mm
Diaphragm built-in aperture and field
Focus coaxial, coarse (with coarse focusing tension adjustment and a lock knob), and fine (0.002mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/50W
Light filters green, blue, yellow, matt
Operating temperature range, °C 5...+35

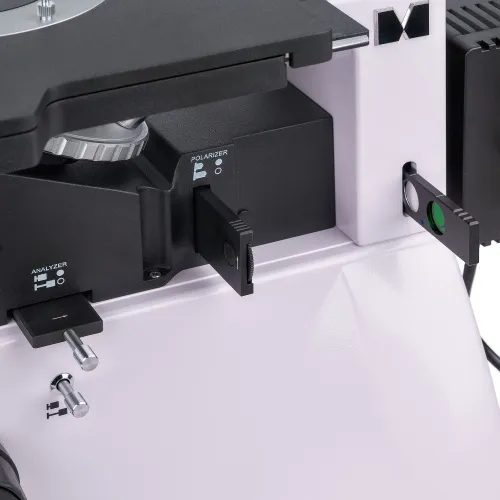

Additional removable analyzer and polarizer, darkfield device
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application metallurgical
Illumination location lower
Research method bright field, dark field, polarization
Pouch/case/bag in set dust cover
