With a camera. Magnification: 50–800х. Trinocular head, plan achromatic objectives, 30W halogen reflected light illuminator, fine focusing scale value 0.7µm, large stage

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
50 — 800
How much the size of a sample increases when you observe it through a microscope
Metallurgical
Application and use of the microscope
Availability

Product ID 83032
Brand MAGUS
Warranty 5 years
EAN 5905555018393
Package size (LxWxH) 58x49x60 cm
Shipping Weight 21.6 kg
Description

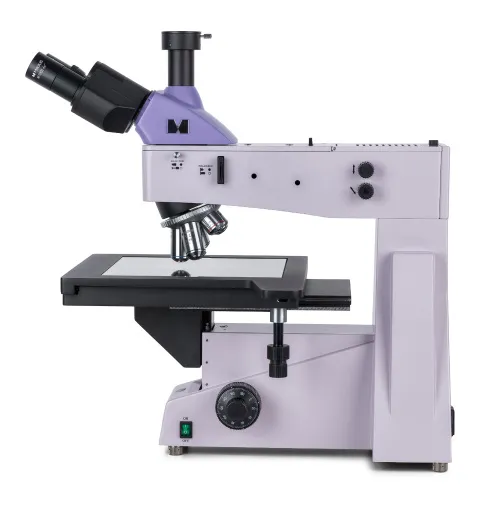

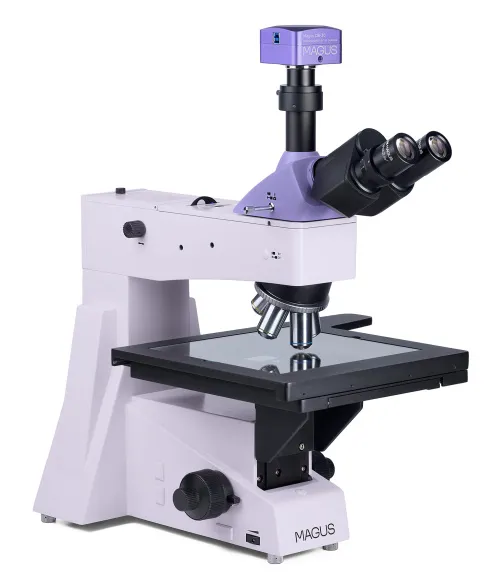

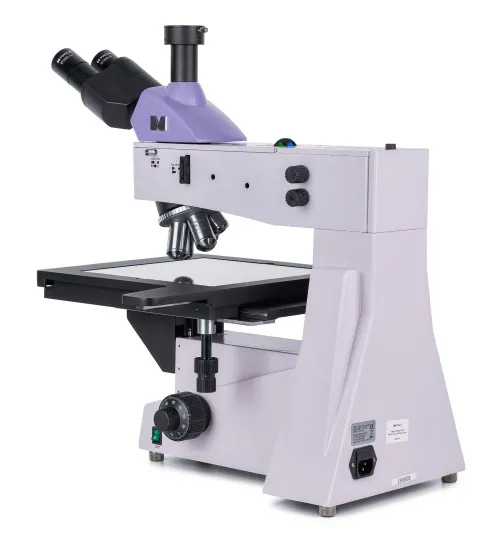

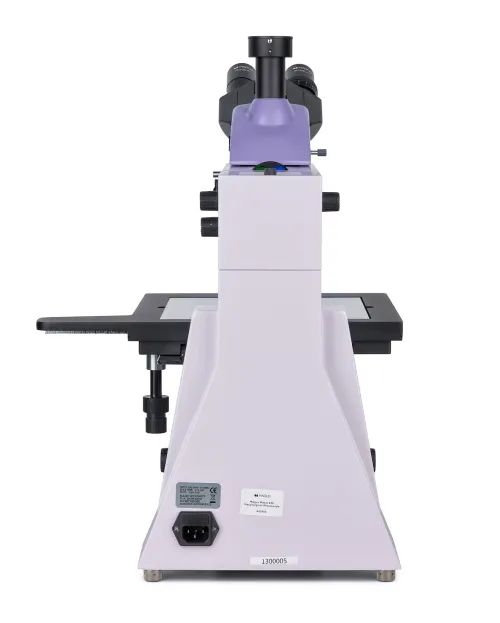

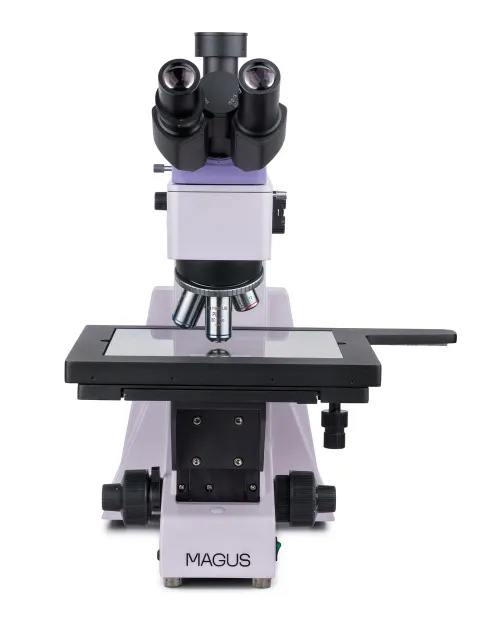

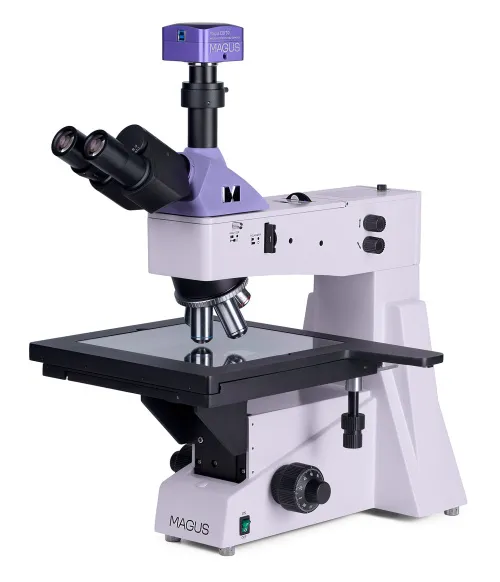

The MAGUS Metal 650 Metallurgical Microscope has a large stage where you can place photomasks, printed circuit boards, integrated circuits, and other long and wide specimens to be examined in reflected light. Brightfield and polarized light observations are possible. The microscope provides high precision focusing. The fine focusing scale value of 0.7µm makes it easy to work at high magnifications. It is used for conducting research in industrial plants and teaching engineering students.

Digital Camera

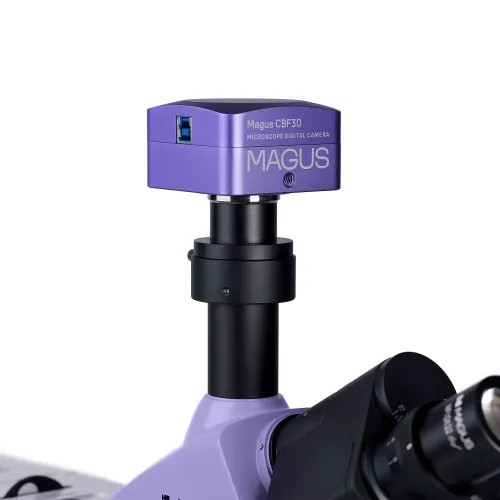

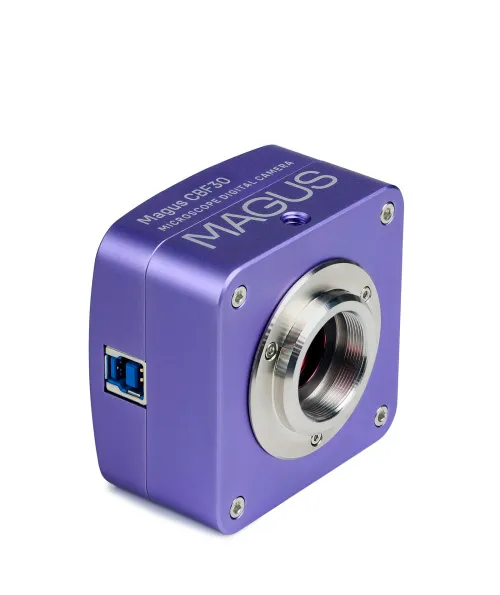

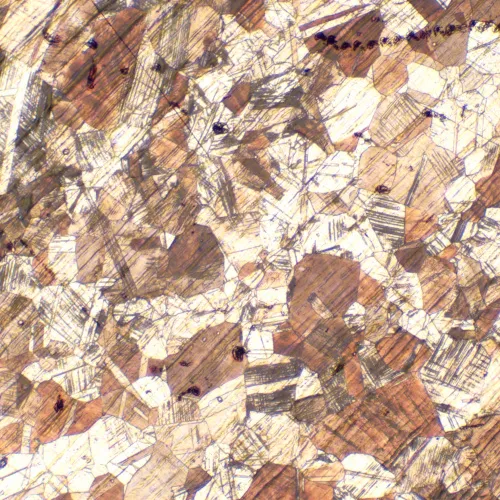

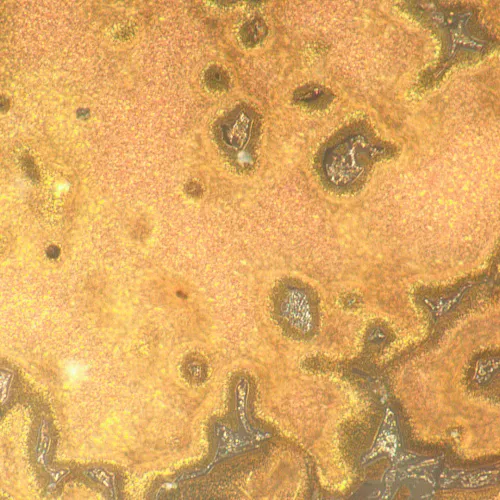

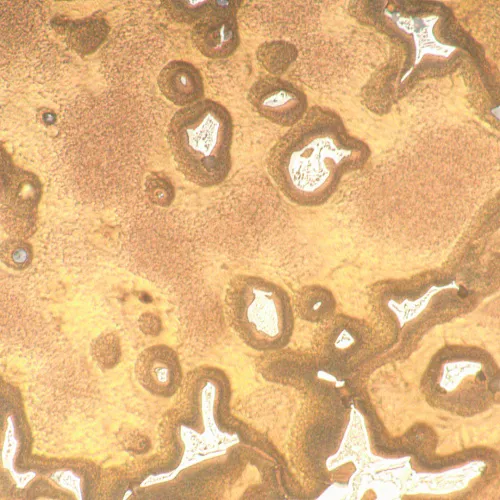

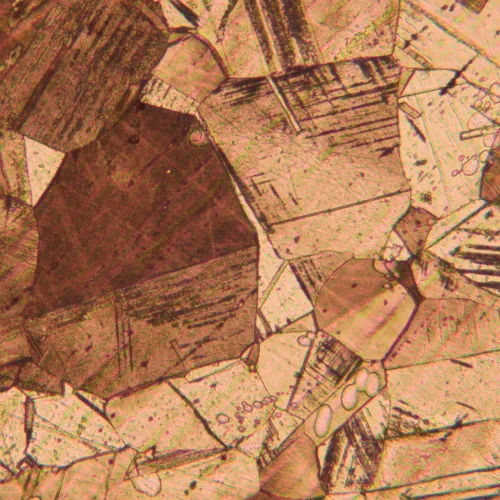

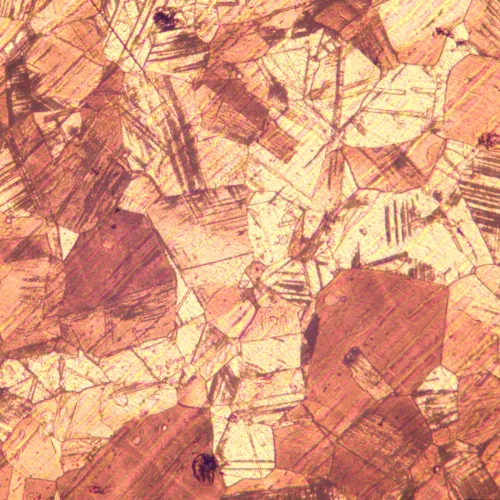

The MAGUS CBF30 Digital Camera enables you to take photographs and shoot video through a microscope, edit the resulting files, organize presentations, and make linear and angular measurements of objects (after correct calibration).
The device is designed to work on microscopes using the brightfield method and 4x, 10x, 20x, and 40x objectives.

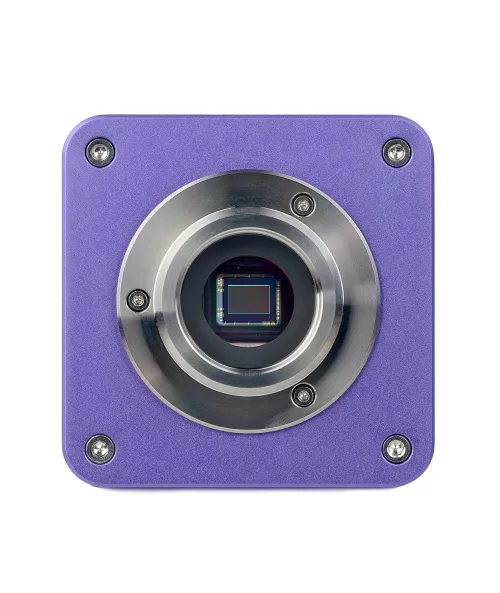

The 6.3MP sensor enables you to shoot bright and detailed photos and videos at a maximum resolution of 3072x2048px. If necessary, the resolution can be lowered to 1536x1024px. However, this will not affect the frame rate, which will remain at 59fps, thereby ensuring smooth frame transitions without jerkiness or delays.

The SONY Exmor backlit color CMOS sensor enables you to use the camera even in low-light conditions. The image will remain readable and bright. Using an adapter with a magnification from 0.5x to 0.75x will provide the clearest possible image without distortion.

Optics

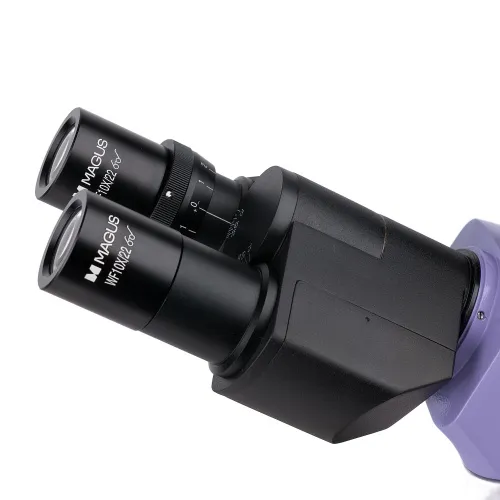

Infinity plan achromatic optics deliver sharp well-detailed images. The microscope head is trinocular, 30° inclined, and a trinocular tube for mounting a digital camera. The camera (not included) captures the photos and videos of the study and outputs the microscope image to an external screen. There is a two-position-beamsplitter: 100:0 and 0:100. The light beam is directed into the eyepieces or to the camera. There is a diopter adjustment ring on the left tube.

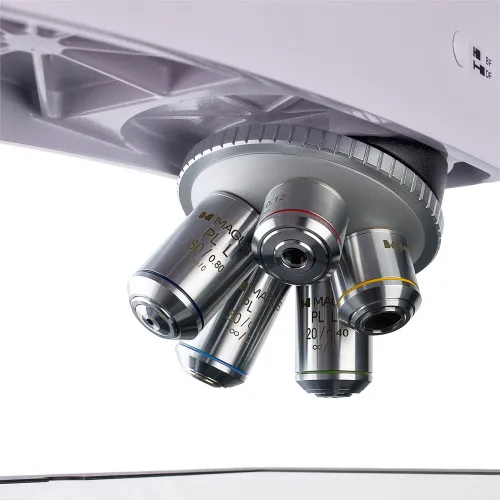

You can install 5 objectives in the revolving nosepiece – all of them are included in the package. To achieve higher magnification, you can install optional objectives instead of the basic ones. In the basic configuration, the microscope provides magnification in a range of 50 to 800x. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path.

Illumination

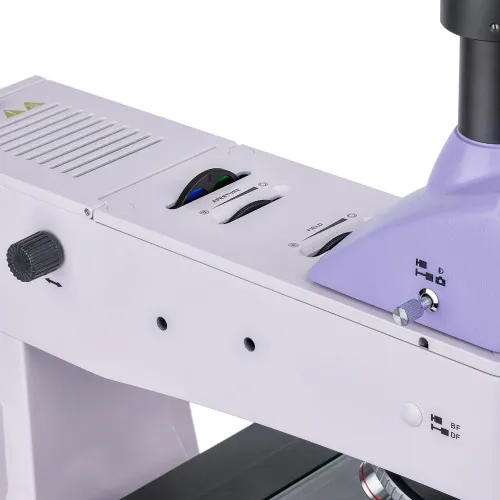

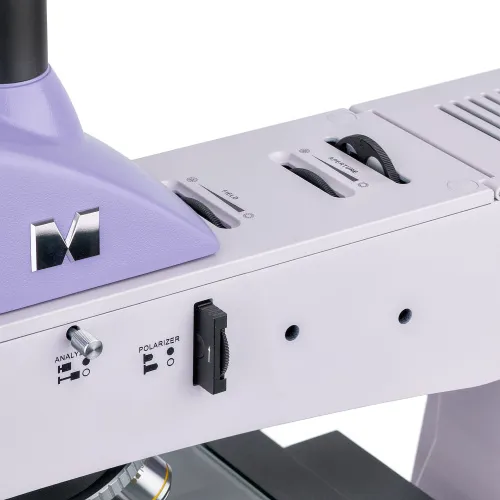

The reflected light illumination system combines three centering elements: light source, aperture, and field diaphragm. The 30W halogen illuminator emits warm light, and so working with the microscope for long periods of time does not make your eyes fatigue. The brightness of the illumination is adjustable, it is possible to set the Köhler illumination. The reflected light illumination system also comes with a polarization device: a built-in analyzer and a detachable rotating polarizer. There is a set of color filters.

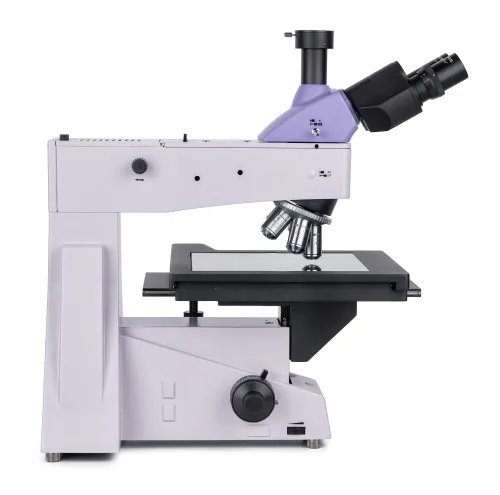

Stage and focusing mechanism

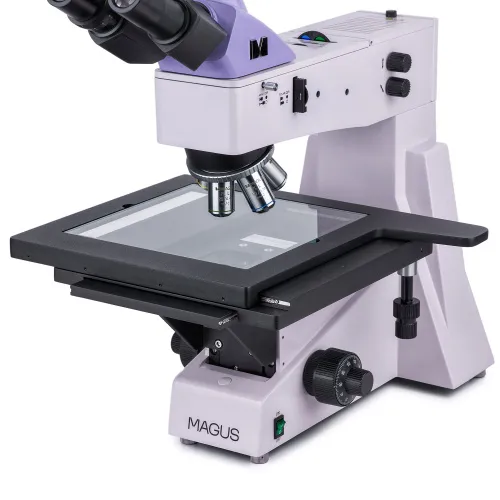

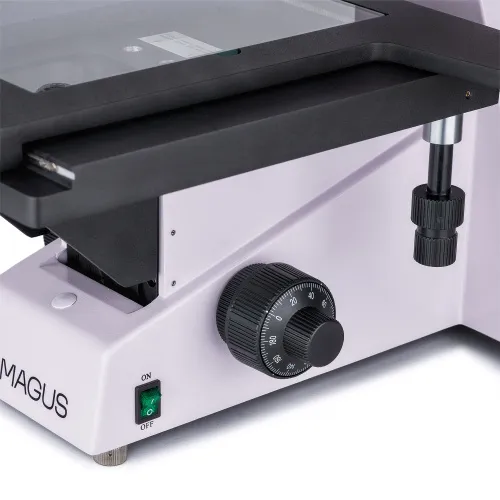

The most interesting part of the microscope design is the 280x270 mm stage, which can be moved along two axes within 204mm. Therefore, you can observe large-sized samples and examine their surface easily. The coarse and fine focusing knobs are coaxial located on both sides of the microscope, with a lock knob and coarse tension adjustment knob. The handles are located close to the microscope base, you can place your hands freely on the table and take a comfortable position while observing.

Accessories

The MAGUS Metal 650 line of microscope-compatible accessories includes eyepieces, long working distance objectives, digital cameras, and calibration slides. The accessories can be used to expand the capabilities of the microscope.

Key features of the microscope:

  • Large stage with a wide movement range for working with long and wide samples
  • Fine focusing scale value 0.7µm for easy focusing at high magnifications; coarse focusing with a lock knob and tension adjustment
  • Trinocular head with a trinocular tube and a beam splitter
  • Reflected light illuminator: powerful 30W halogen bulb with brightness adjustment, and powered by AC power supply
  • Polarization device, elements of the reflected light illuminator that can be centered, Köhler illumination, color filters
  • Wide range of compatible optional accessories

Key features of the camera:

  • Recommended for use with low magnification objectives
  • Color light-sensitive sensor for clear images even in low light conditions
  • Frame rate of 59fps, which is enough for the observation of moving objects or fast-moving processes
  • The kit includes software that fully ensures the functionality of all the camera features and, consequently, a “quick start”
  • Reliable USB3.0 interface for high data transfer speeds
  • Resolution adjustment so that you can choose the option that suits you the best at any given moment

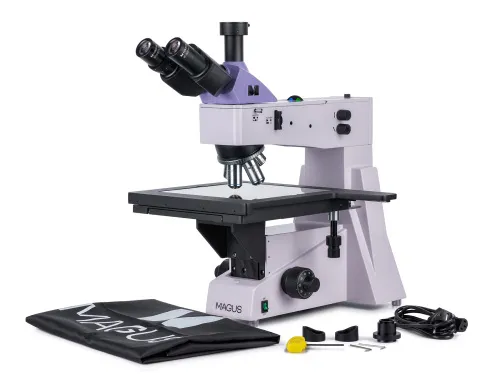

The kit includes:

  • MAGUS CBF30 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with a power input, reflected light source, focusing mechanism, stage, and revolving nosepiece
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
  • Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
  • Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
  • Infinity plan achromatic objective: PL L80x/0.80 WD 1.25mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L40х/0.60 WD 3.98mm
  • Infinity plan achromatic objective: PL L60x/0.70 WD 2.08mm
  • Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
  • Calibration slide
Specifications
Product ID 83032
Brand MAGUS
Warranty 5 years
EAN 5905555018393
Package size (LxWxH) 58x49x60 cm
Shipping Weight 21.6 kg
Microscope specifications
Type light/optical, digital, metallurgical
Head trinocular
Nozzle Siedentopf
Head inclination angle 30 °
Magnification, x 50 — 800
Magnification, x (optional) 50–1000/1250/1500/2000/2500
Eyepiece tube diameter, mm 30
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: PL L5x/0.12, PL L10x/0.25, PL L20x/0.40, PL L50x/0.70, PL L80x/0.80; parfocal distance 45mm (*option: PL L40x/0.60, PL L60x/0.70, PL L100x/0.85 (dry))
Revolving nosepiece for 5 objectives
Working distance, mm 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x)
Interpupillary distance, mm 48 — 75
Stage, mm 280x270
Stage moving range, mm 204/204
Stage features two-axis mechanical
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Diaphragm built-in aperture and field
Focus coaxial, coarse focusing (30mm, 13.1mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.0007mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/30W
Light filters green, blue, yellow, matt
Operating temperature range, °C 5...+35
Additional built-in analyzer and removable polarizer
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application metallurgical
Illumination location upper
Research method bright field, polarization
Pouch/case/bag in set dust cover
Camera specifications
Sensor SONY Exmor CMOS
Color/monochrome color
Megapixels 6.3
Maximum resolution, pix 3072x2048
Sensor size 1/1.8" (7.37x4.92mm)
Pixel size, μm 2.4x2.4
Light sensitivity 425mV at 1/30s
Signal/noise ratio 0.15mV at 1/30s
Exposure time 0.02ms–15s
Video recording
Video recording yes
Frame rate, fps at resolution 59@3072x2048, 59@1536x1024
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Software MAGUS View
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Mount type C-mount
Body solid aluminum
Camera power supply DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element
Camera operating temperature range, °С -10...+50
Operating humidity range, % 30 — 80
