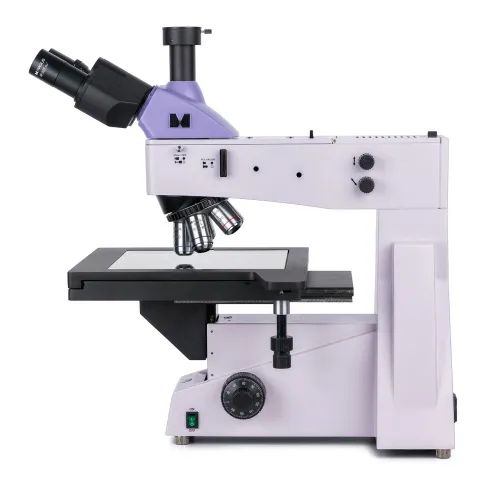

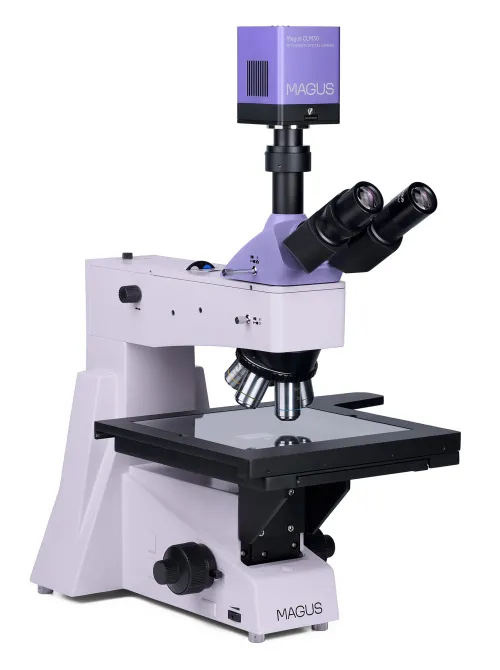

MAGUS Metal D650 BD Metallurgical Digital Microscope

The price is valid only for the online store and may differ from the prices in retail stores.

With a camera. Magnification: 50–800х. Trinocular head, plan achromatic objectives for brightfield and darkfield observations, 50W halogen reflected light illuminator, fine focusing in 0.7µm, large stage

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
50 — 800
How much the size of a sample increases when you observe it through a microscope
Metallurgical
Application and use of the microscope
Availability

Product ID 83034
Brand MAGUS
Warranty 5 years
EAN 5905555018423
Package size (LxWxH) 58x49x60 cm
Shipping Weight 23.8 kg
Description

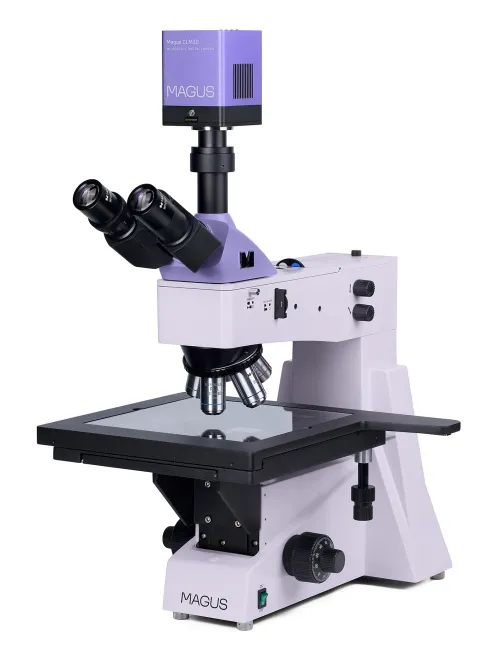

The MAGUS Metal D650 BD Metallurgical Digital Microscope is suitable for observing the surfaces of photomasks, integrated circuits, printed circuit boards, and other long and wide objects. It is equipped with a large stage that can easily hold large samples, and fine focusing with a scale value 0.7µm for high-precision observations at high magnification. Brightfield, darkfield, and polarized light microscopy techniques. The microscope is suitable for quality control laboratories, research centers, and university departments.

Digital Camera

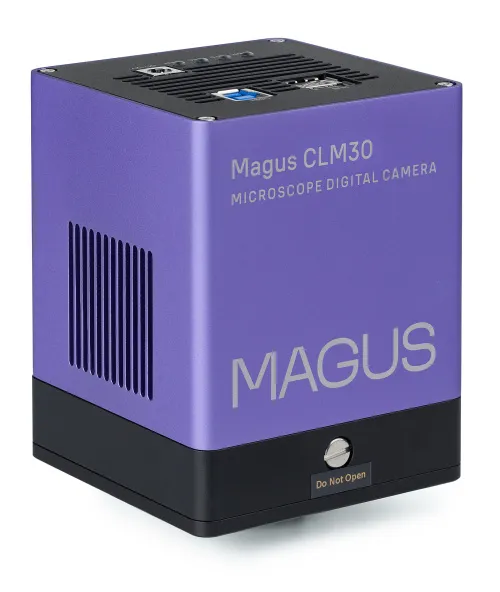

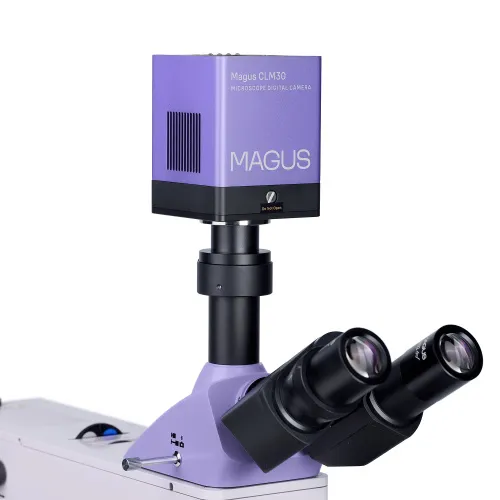

The MAGUS CLM30 digital camera is designed for use in fluorescence and darkfield microscopy techniques.

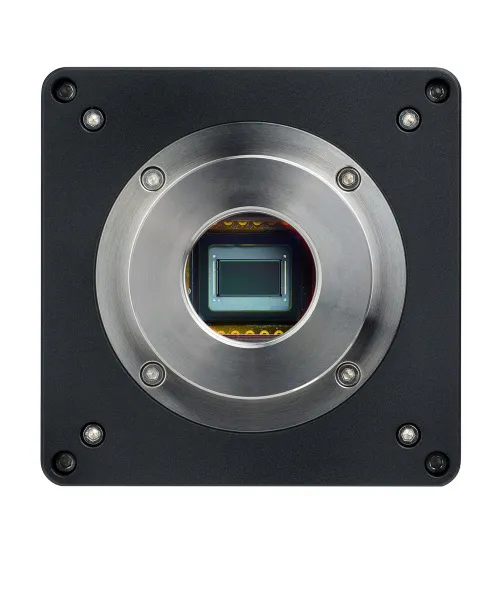

The camera is equipped with an 8.3MP sensor and produces realistic images at a resolution of 3840x2160px. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will allow you to see finer details.
Video is recorded at 45fps or 70fps depending on its resolution: They are smooth with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with objects that are moving and is suitable for classroom demonstrations.

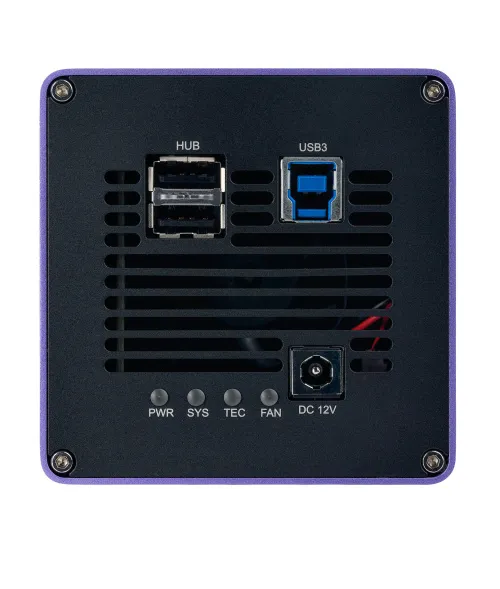

The camera is equipped with a USB3.0 interface. The data transfer speed is 10 times faster than USB2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.

Optics

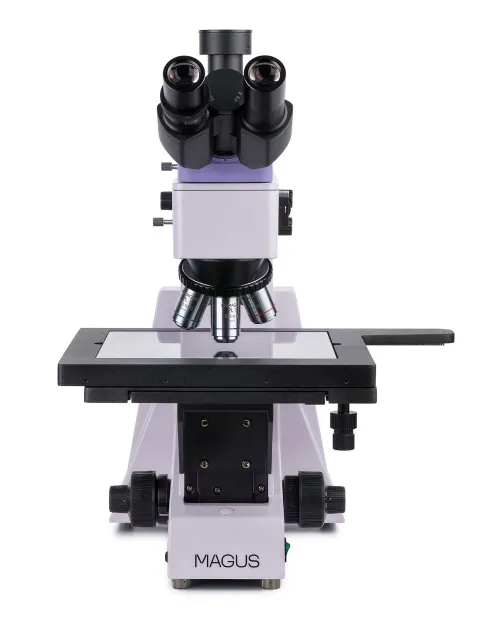

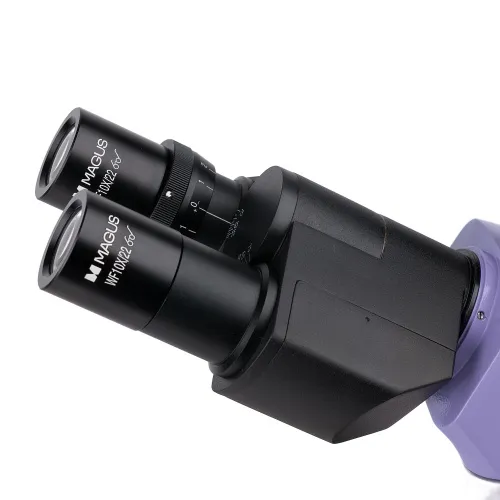

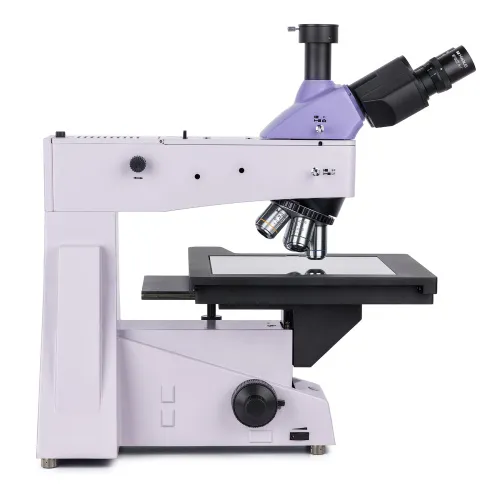

The trinocular head has a trinocular tube for mounting a digital camera. The light/camera selection knob directs the light beam onto the camera for bright well-detailed photos and video that can be displayed on the external screen. The camera is not included in the basic configuration. On the left eyepiece, there is a diopter ring for adjusting the image.

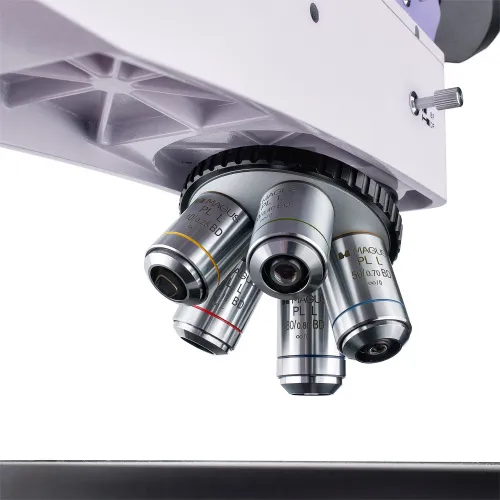

Plan achromatic objectives with the BD symbol are designed specifically for brightfield and darkfield microscopy techniques. The objectives have a long working distance. Five of them are included, one in each slot of the revolving nosepiece. Any installed objective can be quickly replaced with an optional one, if required. Infinity-corrected optics with magnification from 50x to 800x. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path.

Illumination

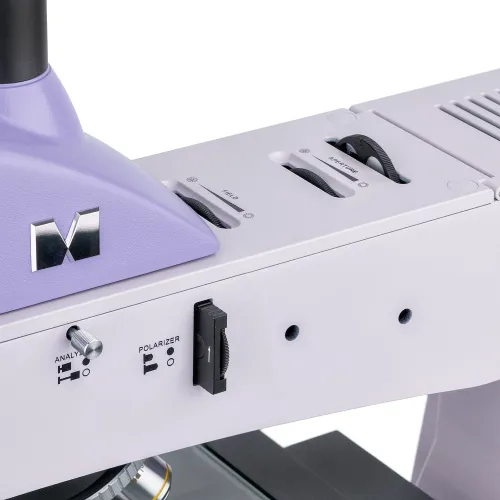

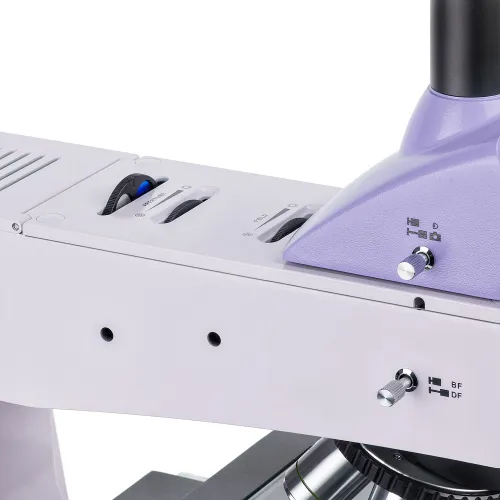

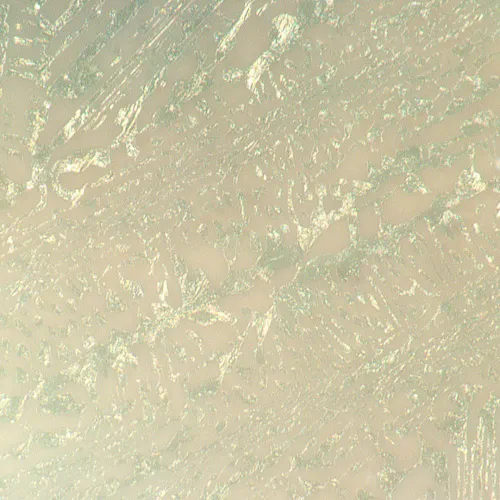

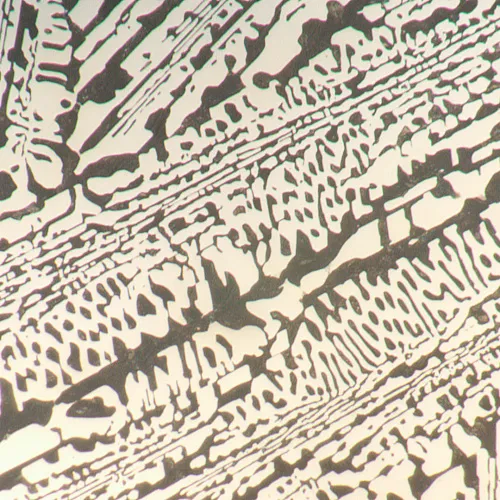

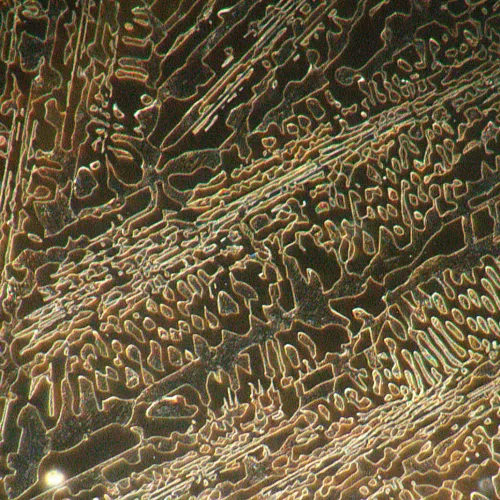

The reflected light illumination system is designed for all observations to be as well-detailed as possible regardless of the used objective and microscopy techniques. The light source is a 50W halogen bulb that creates bright, even, and warm lighting. The Köhler illumination method can be used to adjust the illumination, there are filters for color rendering, and a polarization device (built-in analyzer and removable polarizer). The light source, aperture, and field diaphragms can be centered. The illumination system also includes a darkfield device.

Stage and focusing mechanism

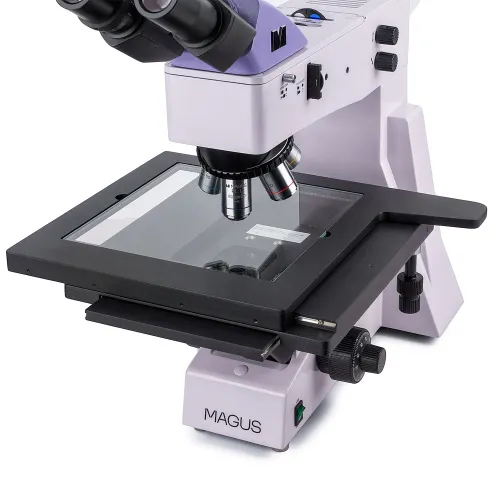

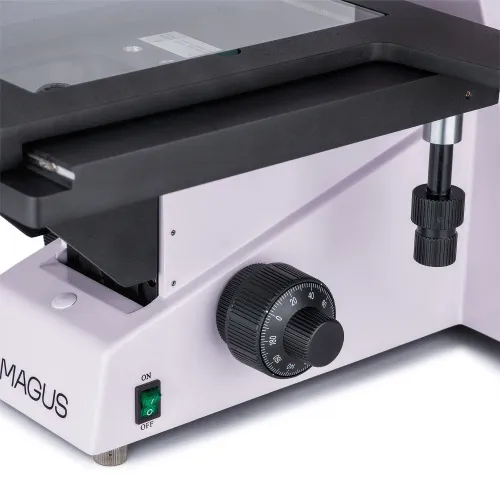

A special feature of the microscope is a large stage of 280x270mm, with a movement range of 204mm along the X and Y axes. Focusing is adjusted by rotating the coarse and fine focusing knobs. They run smoothly and confidently, and due to the fine focusing scale value, operation at high magnifications is precise. The coarse focusing has a lock knob and tension adjustment. The focusing knobs are located at the base of the microscope, and so you can take a relaxed and comfortable position. You can place your hands on the table instead of holding them in the air.

Accessories

To get the maximum out of the MAGUS Metal 650 BD microscope, get additional accessories: eyepieces, objectives with long working distance for brightfield and darkfield, calibration slides, digital cameras.

Key features of the microscope:

  • Precise focusing: fine focusing scale value 0.7µm; coarse focusing has a lock knob and tension adjustment
  • Large stage for easy observation of long and wide objects, large range of movement of the stage along two axes
  • Plan achromatic optics, trinocular head with a 100:0 and 0:100 beam splitter, trinocular tube for camera installation
  • Light source, field and aperture diaphragms can be centered, Köhler illumination adjustment, polarization device, set of color filters, darkfield microscopy techniques
  • Illuminator – 50W halogen bulb with 220V power supply and brightness-adjustment
  • Optional accessories

Key features of the camera:

  • For fluorescence and darkfield microscopy with 4x, 10x, 20x, and 40x objectives
  • 8.3MP resolution: When observing with low magnification objectives, the camera will allow you to see finer details
  • 45fps and 70fps at 3840x2160px and 1920x1080px resolutions for observing moving samples, recording video, and moving the preparation without jerks and delays
  • Peltier element reduces the sensor temperature during prolonged operation and eliminates thermal noise. Therefore, long shutter speeds can be used when taking photos
  • SONY Exmor color CMOS backlit sensor provides a low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
  • USB3.0 interface for fast, smooth data transfer
  • Software with photo, video recording, editing, external display functions, linear and angular measurements

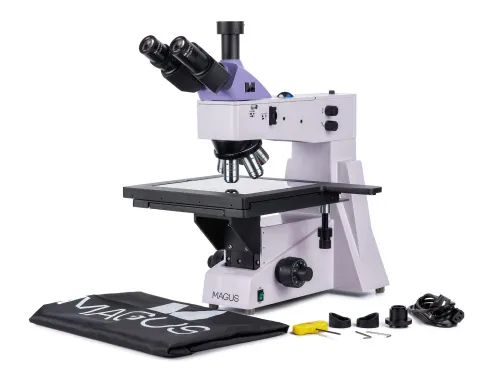

The kit includes:

  • The MAGUS CLM30 digital camera (digital camera, USB cable, 12V, 3A adapter, case, Installation CD with drivers and software, user manual and warranty card)

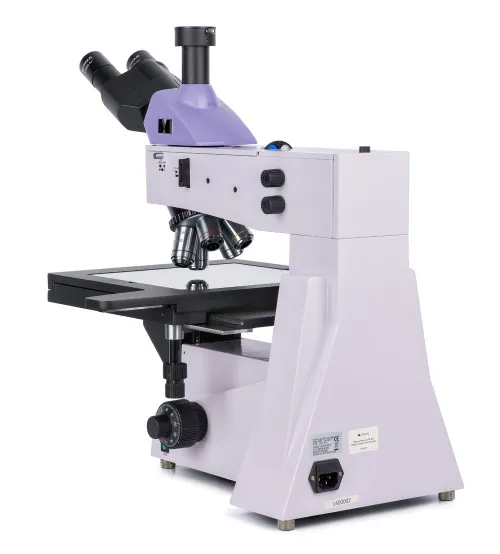

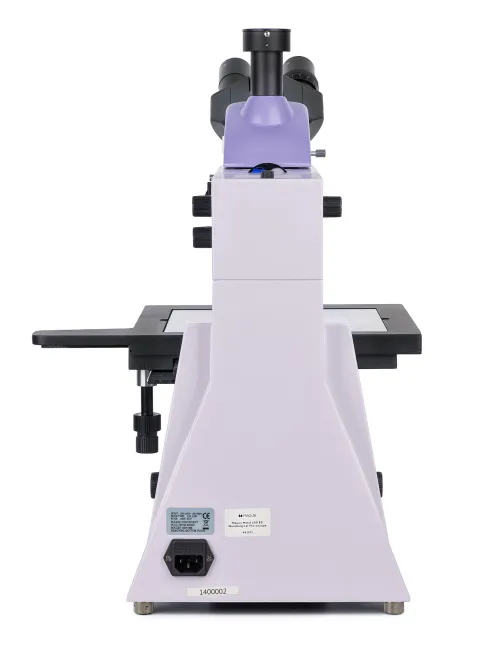

  • Base with a power input, reflected light illuminator, focusing mechanism, stage, and revolving nosepiece
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7mm
  • Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3mm
  • Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2mm
  • Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5mm
  • Infinity plan achromatic objective: PL L80x/0.80 BD WD 0.8mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0mm
  • Infinity plan achromatic objective: PL L60x/0.70 BD WD 1.9mm
  • Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4mm
  • Calibration slide
Specifications
Product ID 83034
Brand MAGUS
Warranty 5 years
EAN 5905555018423
Package size (LxWxH) 58x49x60 cm
Shipping Weight 23.8 kg
Type light/optical, metallurgical
Head trinocular
Nozzle Siedentopf
Head inclination angle 30 °
Magnification, x 50 — 800
Magnification, x (optional) 50–1000/1250/1500/2000/2500
Eyepiece tube diameter, mm 30
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/0.40 BD, PL L50x/0.70 BD, PL L80x/0.80 BD; parfocal distance 45mm (*option: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L100x/0.85 BD (dry))
Revolving nosepiece for 5 objectives
Working distance, mm 9.7 (5x); 9.3 (10x); 7.2 (20x); 3.0 (40x); 2.5 (50x); 1.9 (60x); 0.80 (80x); 0.40 (100x)
Interpupillary distance, mm 48 — 75
Stage, mm 280x270
Stage moving range, mm 204/204
Stage features two-axis mechanical
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Diaphragm built-in aperture and field
Focus coaxial, coarse focusing (30mm, 13.1mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.0007mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/50W
Light filters green, blue, yellow, matt
Operating temperature range, °C 5...+35
Additional built-in analyzer and removable polarizer, darkfield device
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application metallurgical
Illumination location upper
Research method bright field, dark field, polarization
Pouch/case/bag in set dust cover
Camera specifications
Sensor SONY Exmor CMOS
Color/monochrome color
Megapixels 8.3
Maximum resolution, pix 3840x2160
Sensor size 1/1.2'' (11.14x6.26mm)
Pixel size, μm 2.9x2.9
Two-stage thermoelectric module (Peltier element) to set the temperature 42°C below room temperature
Light sensitivity 5970mV with 1/30s
Signal/noise ratio 0.15mV at 1/30s
Exposure time 0.1ms–1h
Video recording
Frame rate, fps at resolution 45@3840x2160, 70@1920x1080
ADC digit capacity (bit) 8/12 (selectable)
Place of installation trinocular tube
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Software MAGUS View
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Mount type C-mount
Body CNC aluminum alloy
Camera power supply DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element
Camera operating temperature range, °С -10...+50
Operating humidity range, % 30 — 80
