With a camera. Magnification: 40–1000x. Trinocular head, achromatic objectives, 3W LED

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability

Product ID 83010
Brand MAGUS
Warranty 5 years
EAN 5905555018065
Package size (LxWxH) 43x27x63 cm
Shipping Weight 11.1 kg
Description

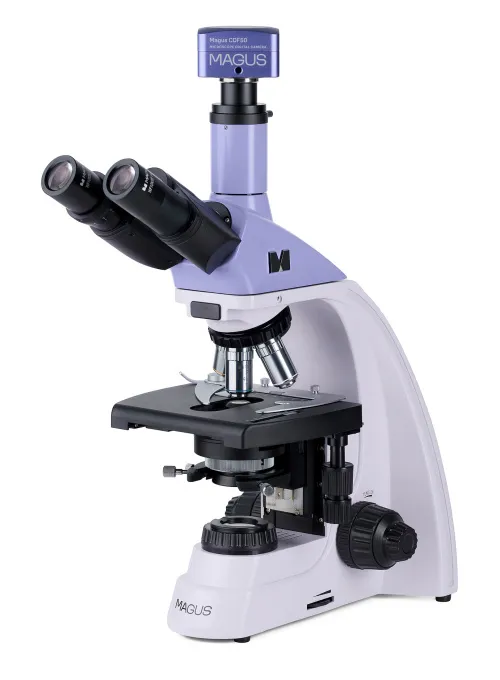

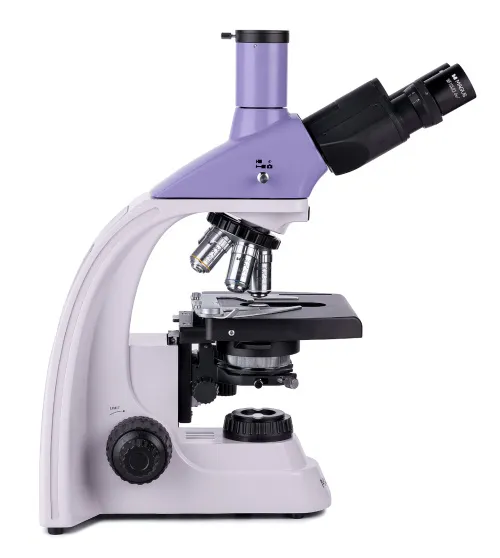

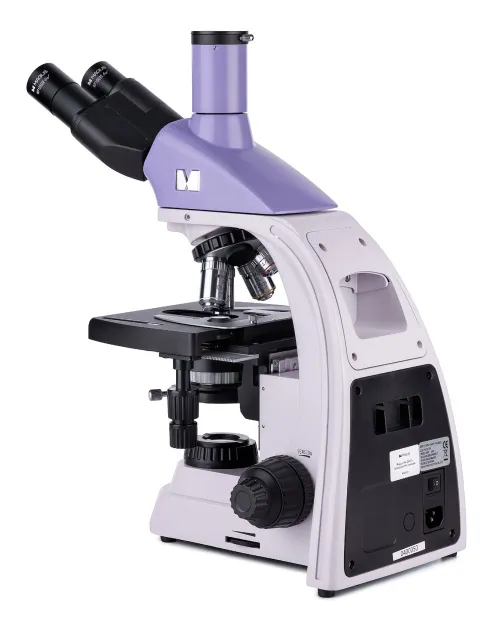

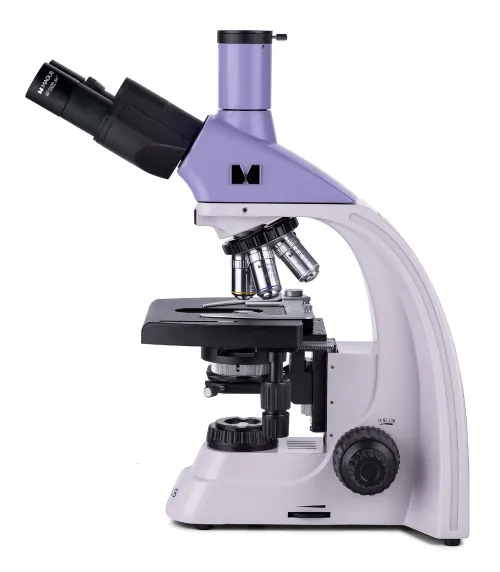

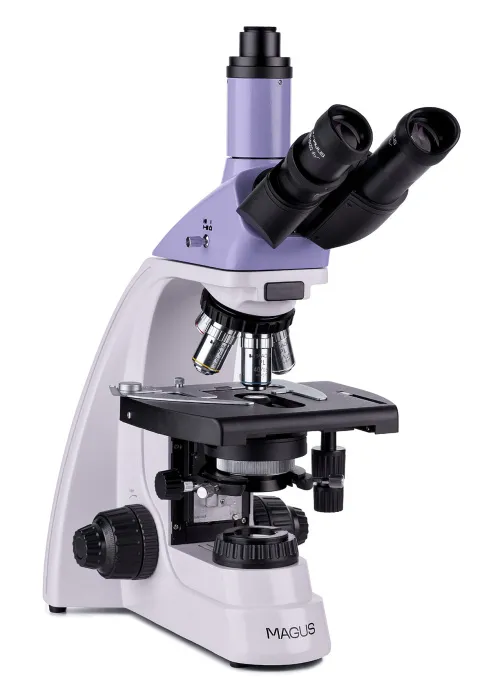

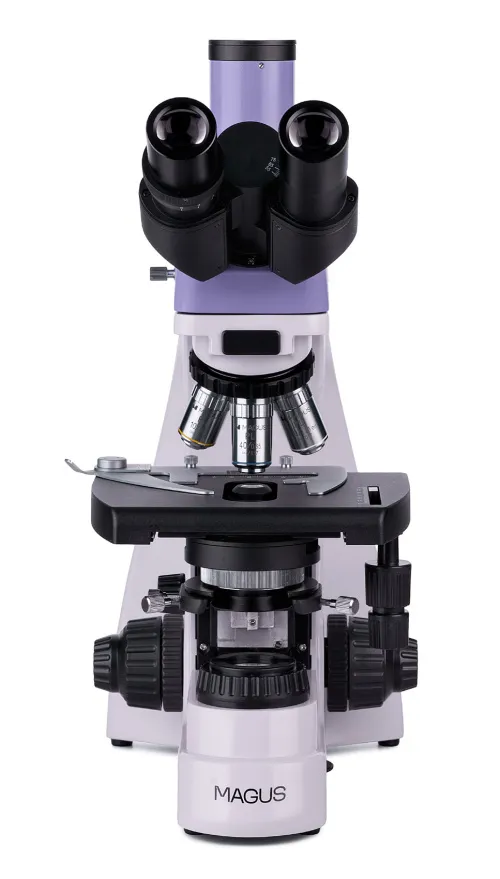

The MAGUS Bio D250TL microscope studies thin sections and smears of biological samples. Observations are made using the brightfield microscopy technique in transmitted light. A 3-watt LED serves as the light source, and the optics feature infinity plan achromatic objectives. The microscope supports additional accessories, including darkfield, polarization, and phase contrast devices. This microscope is the ideal choice for laboratory analysis, research, and teaching.

Digital camera

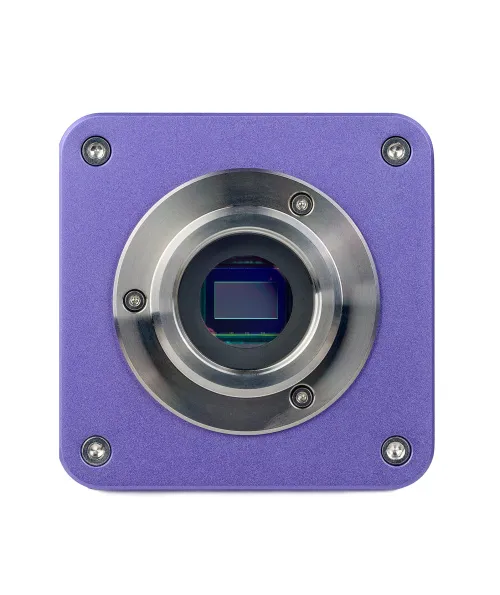

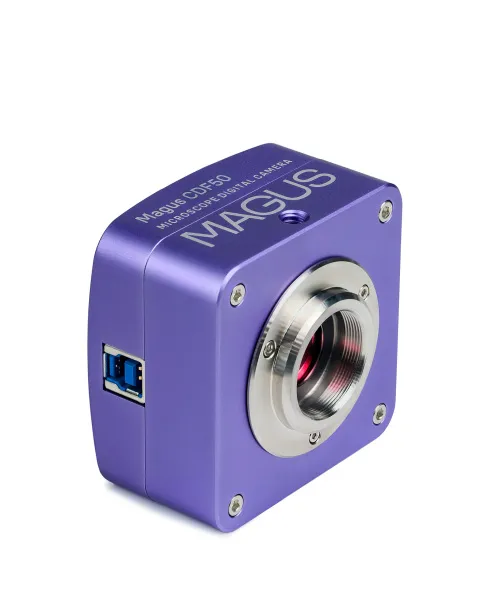

Full color camera with SONY Exmor 2.1MP digital CMOS sensor. The sensor is manufactured using back-illumination technology to reduce light scattering and increase the matrix sensitivity (8935mV at 1/30s). The camera produces bright and clear images even in low light. Designed to work in darkfield and brightfield using objectives with a magnification of 40x, 60x, and 100x.

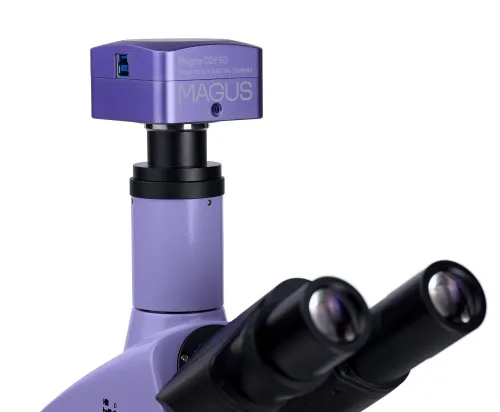

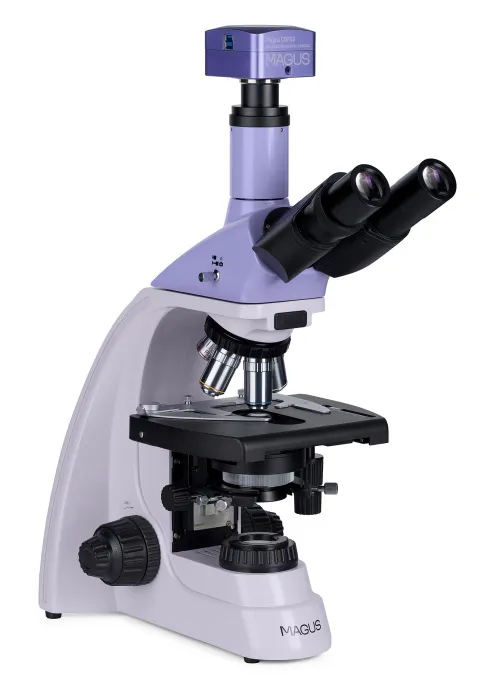

The camera can be mounted on a microscope in two ways: into the trinocular tube via a C-mount adapter or in place of the eyepiece in the tube using an adapter and adapter rings. It is recommended to use an adapter with a magnification from 0.6x to 0.9x with the camera, which will give the widest possible field of view without distortion. After installation, the camera connects to a computer via a USB3.0 port with a data transfer speed of 5Gbps.

Optics

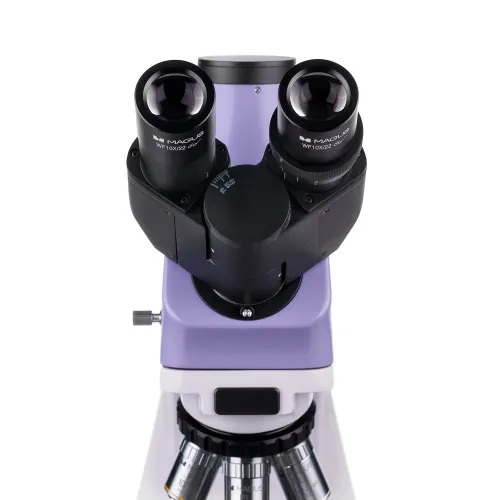

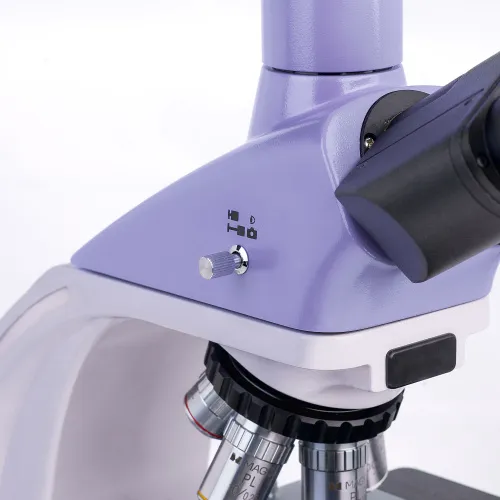

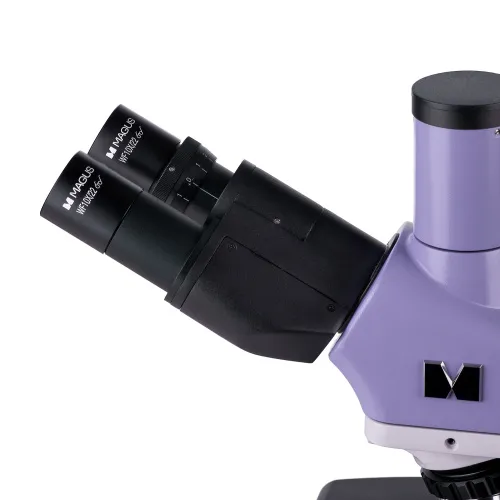

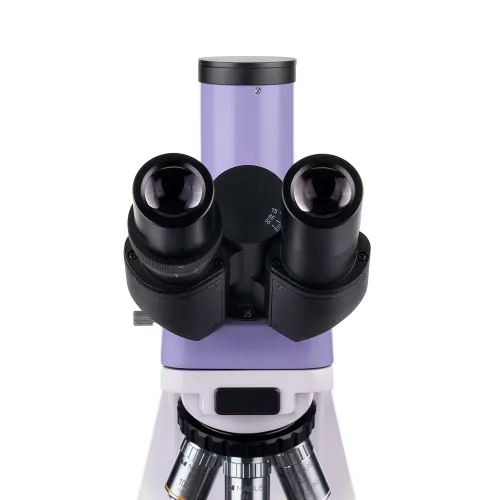

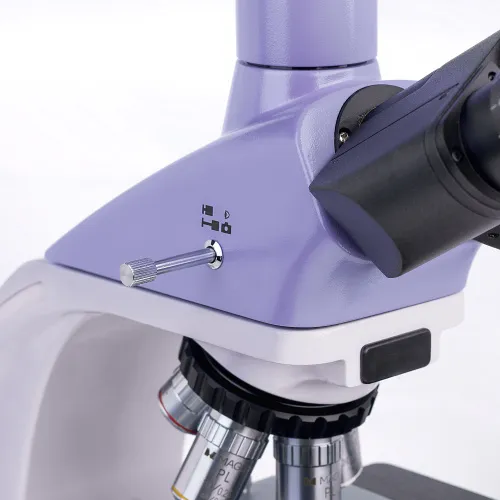

The trinocular head includes two eyepiece tubes for observations and a vertical tube for mounting digital camera (not included). The tubes are 30° inclined for comfortable long working hours and can be rotated 360° to fit the height of the observer. There is a diopter adjustment ring that is located on the left tube.

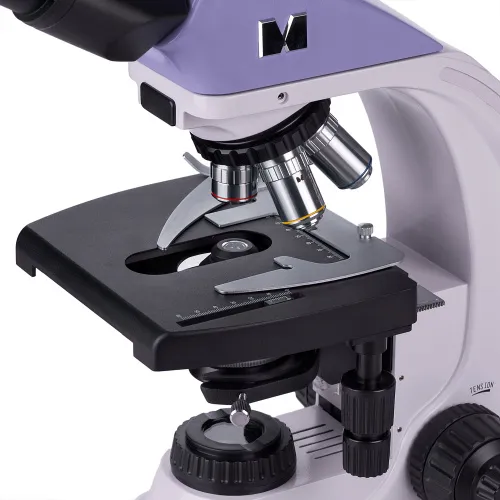

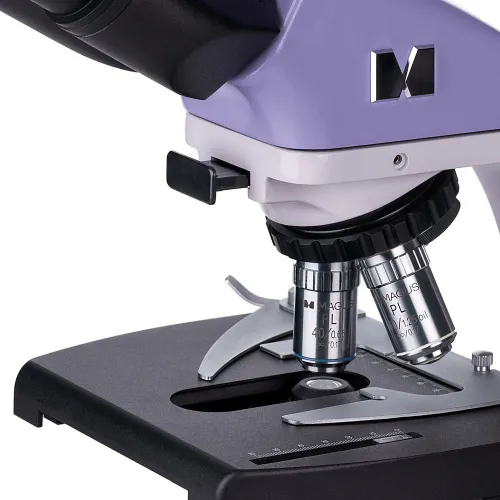

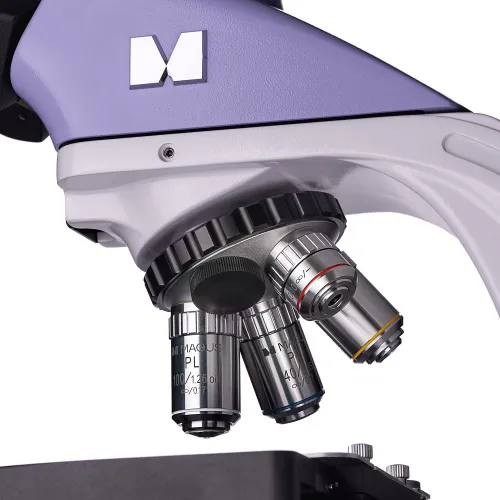

Objectives are mounted in a 5-slot revolving nosepiece – four objectives are included, one slot for an additional objective is left free. Any optional objective can be installed in the free slot, allowing for additional magnification within the magnification range. The user can see the objective inserted into the optical path during the observation as the revolving nosepiece is oriented toward the interior. It keeps the space above the stage free.

The magnification range is from 40x to 1000x (only applies to the basic configuration). If you add additional objectives, the upper magnification limit will be increased.

Illumination

LEDs mounted at the bottom of the microscope provide bright and even illumination of the object. The color temperature remains the same when changing brightness. The power of the illumination is 3W. It has an operating life of 50,000 hours. The lighting system is powered by an AC power supply.

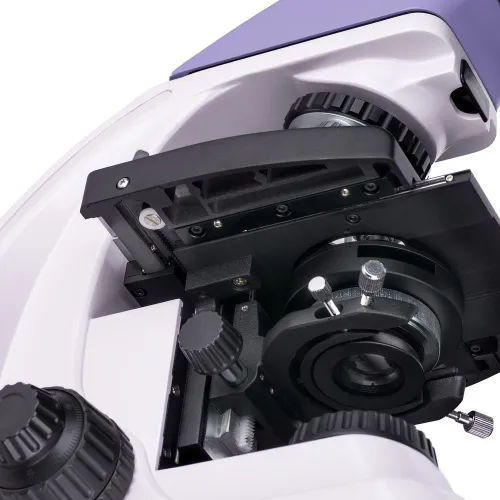

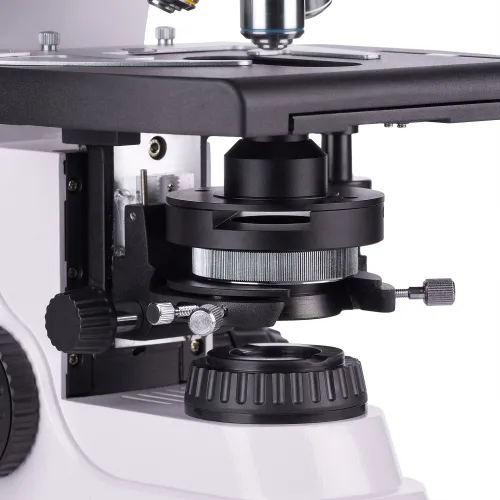

By adjusting the position of the Abbe condenser and opening or closing the aperture and field diaphragms, it is possible to set up the Köhler illumination. You can use sliders for darkfield and phase contrast techniques (a special slot is provided in the condenser). With the slider, switching between the research techniques is very fast.

Stage and focusing mechanism

The stage has no positioning rack. Therefore, it will not disturb you during observations, and the microscope itself will take up less space on the desktop. The mechanical attachment that moves the sample is removable (useful for manual scanning).

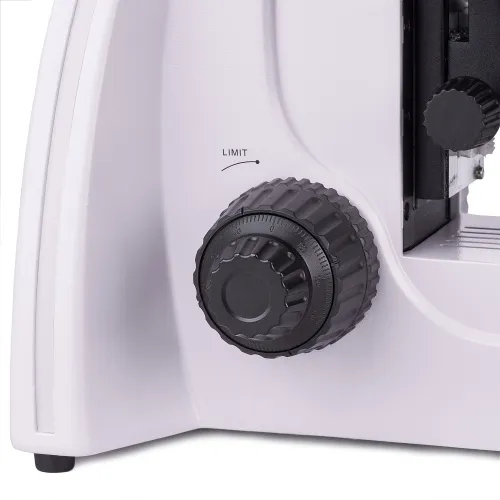

Coarse and fine focusing are used for focus adjustment. The knobs are located on both sides. As they are located closer to the base, you do not have to hold your hands in the air while working. You can relax them on the table. The coarse focusing has a lock knob and tension adjustment. The focus adjustment is smooth and effortless.

Accessories

The capabilities of the MAGUS Bio D250TL microscope can be enhanced with the line of accessories, including eyepieces, objectives, calibration slides, digital cameras, darkfield, polarization, and phase contrast devices.

Key features of the microscope:

  • Trinocular head, revolving nosepiece for 5 objectives, infinity plan achromatic optics
  • The eyepiece tubes rotate 360° for easy adjustment to fit the height of the observer
  • There is a diopter adjustment ring on the left tube, coarse and fine focusing
  • The coarse focusing has a lock knob and tension adjustment
  • The Abbe condenser is centered and height-adjustable, and the field and aperture diaphragms allow for the Köhler illumination setup
  • Transmitted light source – 3W LED with adjustable brightness, powered by 220V power supply
  • Option to install additional accessories

Key features of the camera:

  • 2.1'' backlit CMOS sensor, high matrix sensitivity
  • Suitable for darkfield or brightfield studies with 40x, 60x, and 100x objectives
  • Installed into the trinocular tube or in the eyepiece tube of a microscope
  • Full HD resolution 1920x1080px with a frame rate of 96fps, perfect for studying moving objects
  • Connection to PC via USB3.0 port, data transfer speed 5Gbps
  • Software and drivers included

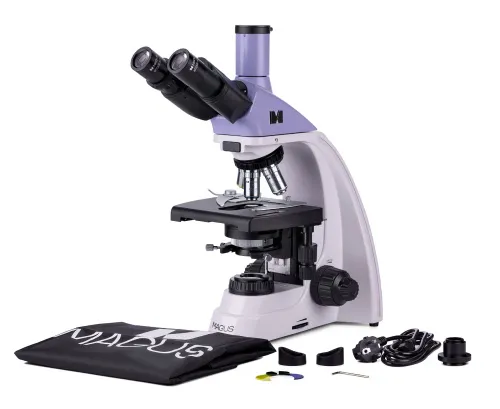

The kit includes:

  • MAGUS CDF50 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with a power input, transmitted light source, focusing mechanism, stage, condenser mount, and revolving nosepiece
  • Abbe condenser
  • Trinocular head
  • Infinity plan achromatic objective: 4x/0.10
  • Infinity plan achromatic objective: 10x/0.25
  • Infinity plan achromatic objective: 40x/0.65 (spring-loaded)
  • Infinity plan achromatic objective: 100x/1.25 oil (spring-loaded)
  • Eyepiece 10x/22mm with a long eye relief (2 pcs.)
  • Eyecup (2 pcs.)
  • Filter (4 pcs.)
  • C-mount camera adapter
  • Bottle of the immersion oil
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: 20x/0.40
  • Infinity plan achromatic objective: 60x/0.80 (spring-loaded)
  • Phase-contrast device
  • Phase slider
  • Darkfield condenser NA 0.9
  • Oil darkfield condenser NA 1.36–1.25
  • Darkfield slider
  • Polarization devices
  • Calibration slide
  • LCD Monitor
Specifications
Product ID 83010
Brand MAGUS
Warranty 5 years
EAN 5905555018065
Package size (LxWxH) 43x27x63 cm
Shipping Weight 11.1 kg
Microscope specifications
Type biological, light/optical, digital
Head trinocular
Nozzle Gemel head (Siedentopf, 360° rotation)
Head inclination angle 30 °
Magnification, x 40 — 1000
Magnification, x (optional) 40–1200/1250/1500/1600/2000/2500
Eyepiece tube diameter, mm 30
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance: 45mm (*optional: 20x/0.40; 60хs/0.80)
Revolving nosepiece for 5 objectives
Working distance, mm 21 (4x); 5 (10x); 0.66 (40xs); 0.36 (100xs); 8.8 (20x); 0.465 (60xs)
Interpupillary distance, mm 48 — 75
Stage, mm 180x150
Stage moving range, mm 75/50
Stage features two-axis mechanical stage, without a positioning rack
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Condenser Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable aperture diaphragm, a slot for a darkfield slider and phase contrast slider, dovetail mount
Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm
Focus coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm)
Illumination LED
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 3W LED
Light filters yes
Operating temperature range, °C 5...+35
Ability to connect additional equipment phase contrast device (condenser and objectives), darkfield condenser (dry or oil), polarization devices (polarizer and analyzer)
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
Weight, kg 8
Dimensions, mm 200x436x400
Camera specifications
Sensor SONY Exmor CMOS
Color/monochrome color
Megapixels 2.1
Maximum resolution, pix 1920x1080
Sensor size 1/1.2'' (11.14x6.26mm)
Pixel size, μm 5.8x5.8
Light sensitivity 8935mV with 1/30s
Signal/noise ratio 0.6mV with 1/30s
Exposure time 0.014ms–15s
Video recording
Frame rate, fps at resolution 96@1920x1080
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Software MAGUS View
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Mount type C-mount
Body CNC aluminum alloy
Camera power supply DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element
Camera operating temperature range, °С -10...+50
Operating humidity range, % 30 — 80
