With a camera. Magnification: 40–1000x. Trinocular head, infinity plan achromatic objectives, 30W halogen bulb

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability

Product ID 83008
Brand MAGUS
Warranty 5 years
EAN 5905555018027
Package size (LxWxH) 43x27x63 cm
Shipping Weight 11.1 kg
Description

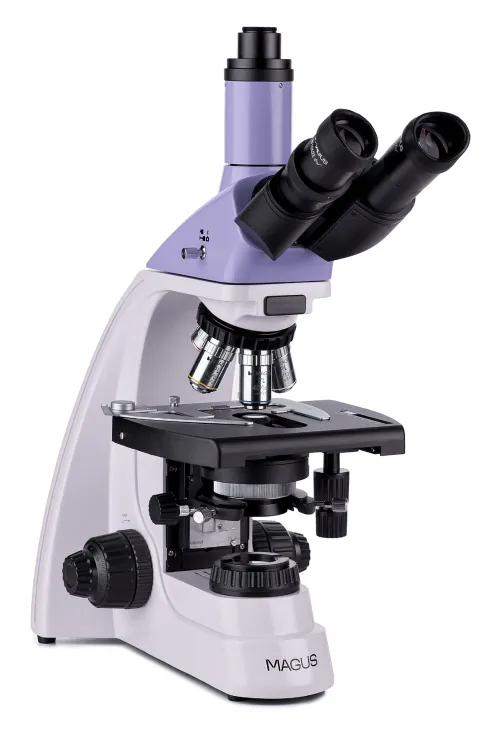

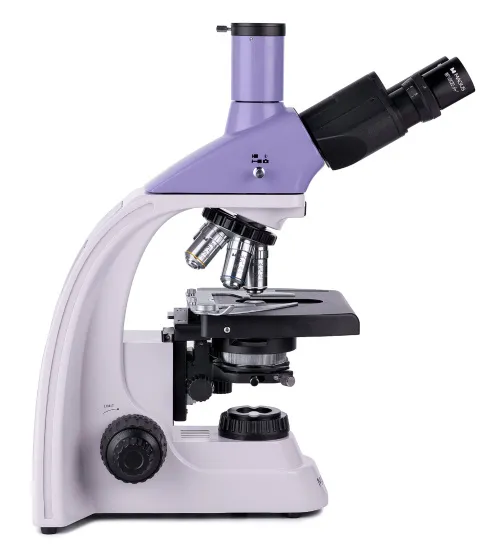

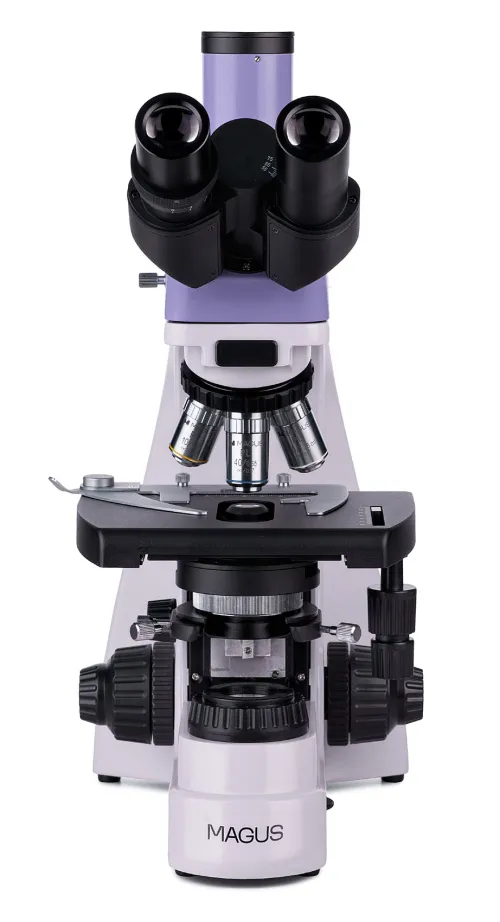

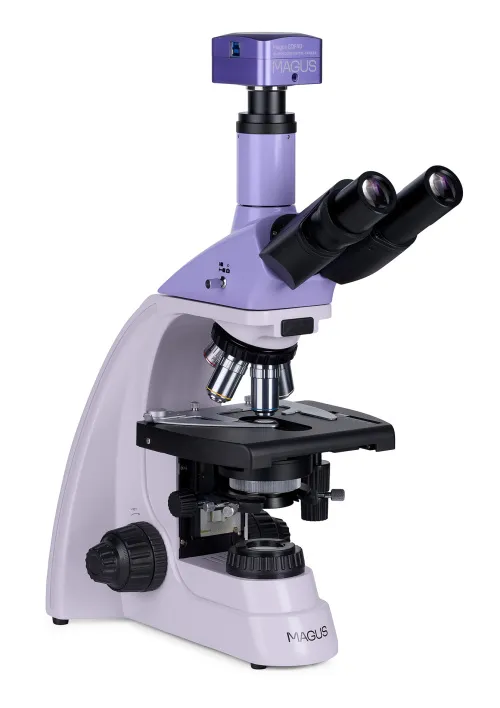

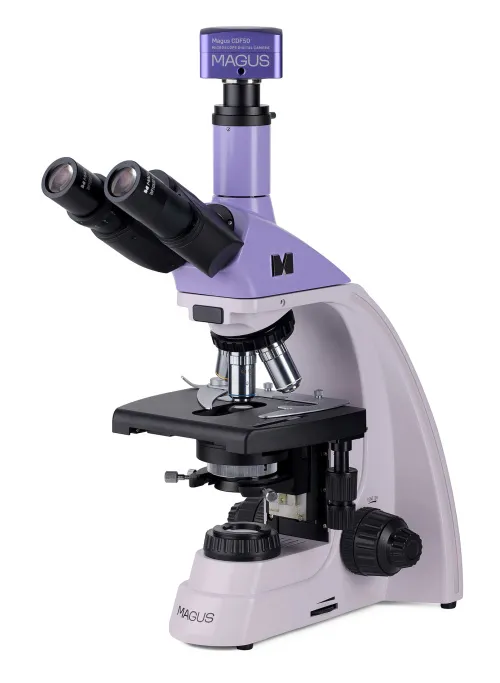

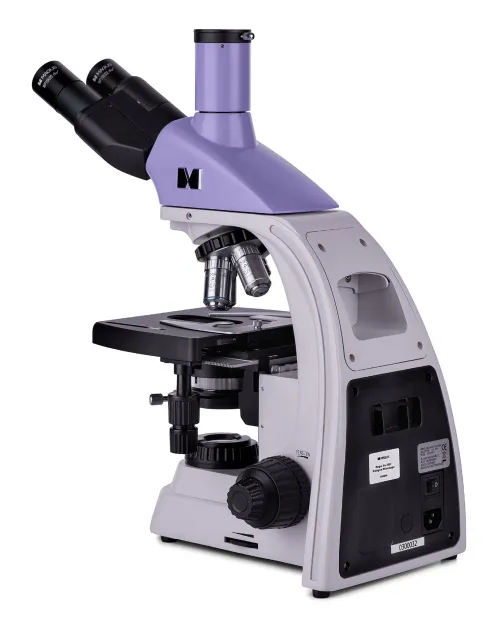

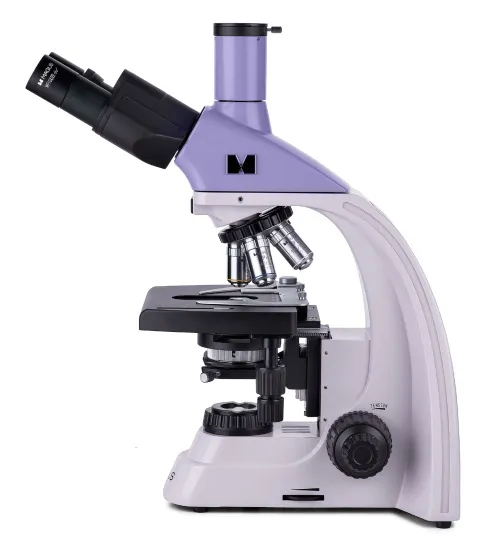

The MAGUS Bio 250T biological microscope is a professional instrument for observing biological specimens in transmitted light. The primary observation technique is a brightfield technique (ready-to-use). Darkfield, polarization, and phase contrast techniques are also available, but they require additional microscope accessories. The microscope is excellent for laboratory and research observations in medicine, pharmaceuticals, forensics, agriculture, and other fields.

Digital camera

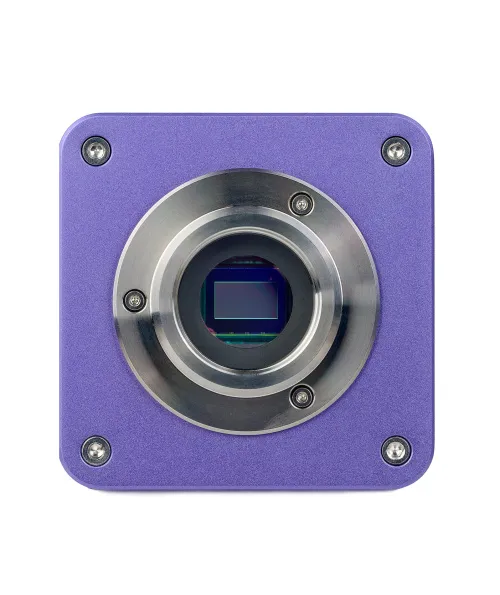

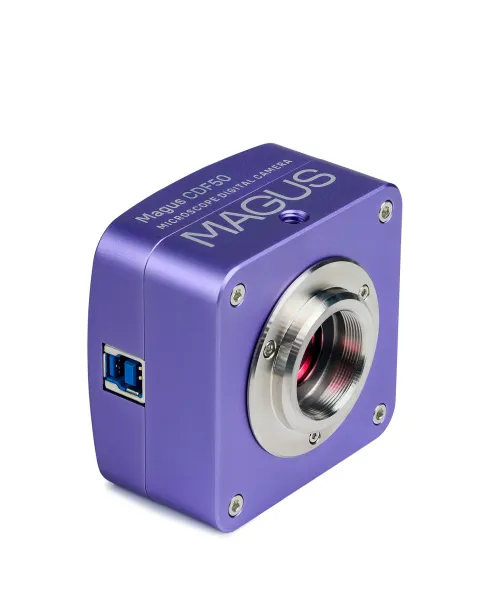

Full color camera with SONY Exmor 2.1MP digital CMOS sensor. The sensor is manufactured using back-illumination technology to reduce light scattering and increase the matrix sensitivity (8935mV at 1/30s). The camera produces bright and clear images even in low light. Designed to work in darkfield and brightfield using objectives with a magnification of 40x, 60x, and 100x.

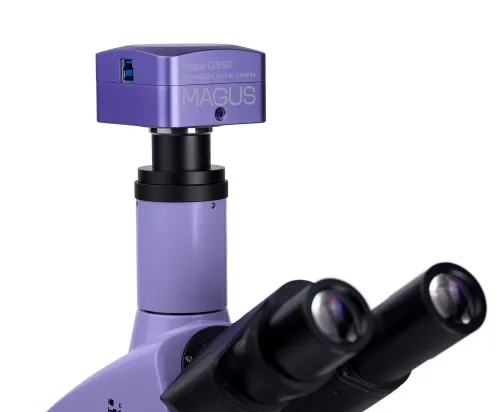

The camera can be mounted on a microscope in two ways: into the trinocular tube via a C-mount adapter or in place of the eyepiece in the tube using an adapter and adapter rings. It is recommended to use an adapter with a magnification from 0.6x to 0.9x with the camera, which will give the widest possible field of view without distortion. After installation, the camera connects to a computer via a USB3.0 port with a data transfer speed of 5Gbps.

Optics

Plan achromatic objectives provide a clear, contrasty, and well-detailed image with minimal distortion. The magnification with included objectives and eyepieces ranges from 40 to 1000x, and the upper limit can be increased with additional eyepieces. The optics are infinity corrected, which means that additional accessories can be installed in the optical path.

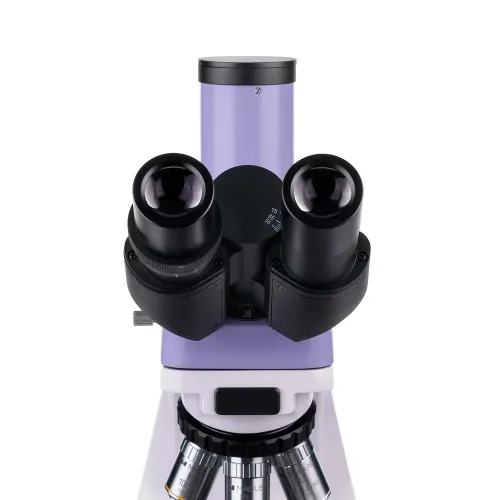

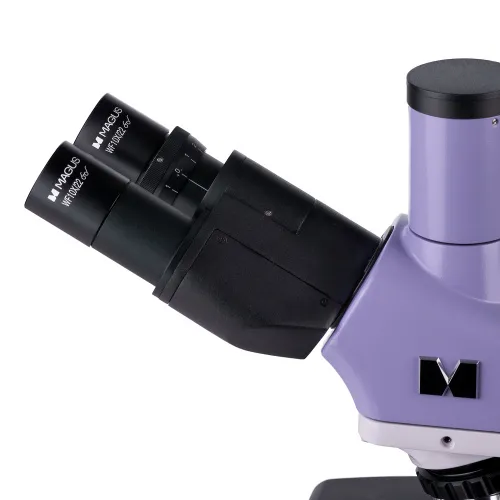

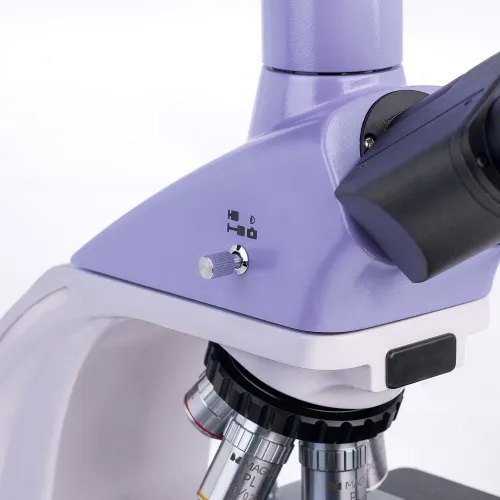

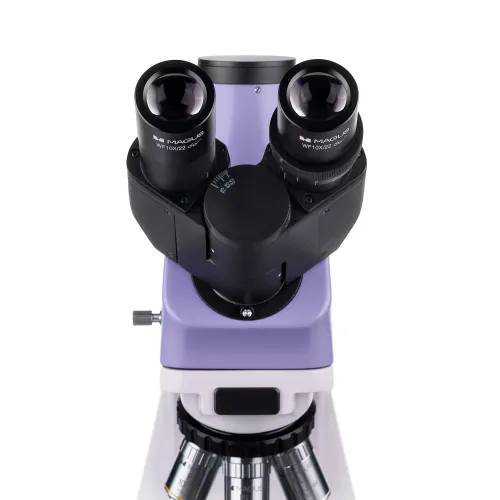

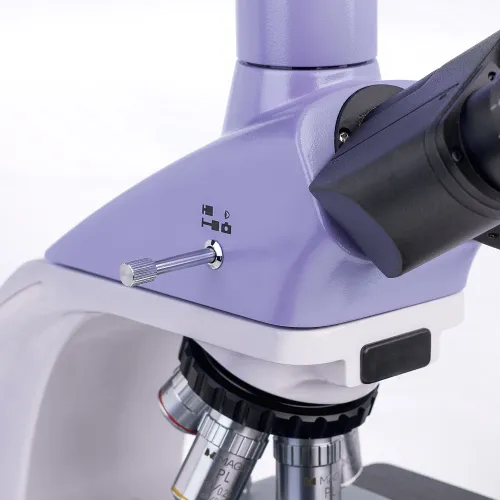

The trinocular head has a separate vertical tube for mounting a digital camera (not included). It is positioned vertically. The trinocular head is equipped with 360° rotating tubes, and it is possible to adjust the diopter on the left tube. The design of the trinocular head allows you to easily adjust the eye relief to fit the height of the observer.

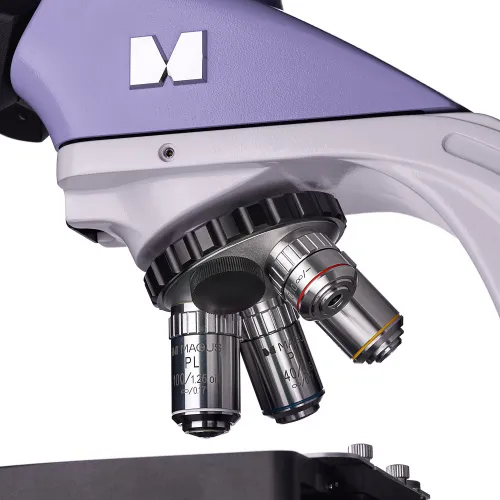

The revolving nosepiece with objectives is oriented toward the interior, and 5 objectives can be inserted into the revolver simultaneously – 4 objectives come with a kit, one slot is free. An additional objective will provide extra magnification within the magnification range.

Illumination

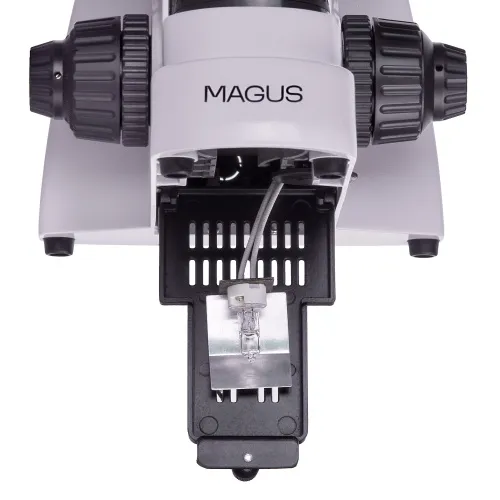

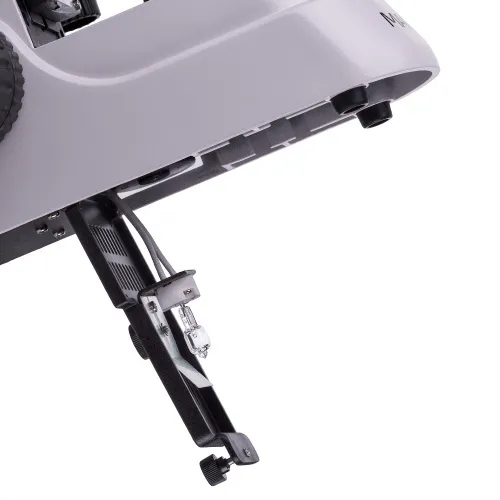

A 30W halogen bulb provides bright illumination allowing for good visibility of sample structures with any observation technique and any objective being used. The lighting is warm, which is more comfortable for the eyes during long hours of work. There is a brightness adjustment option. The lighting is powered by an AC power supply.

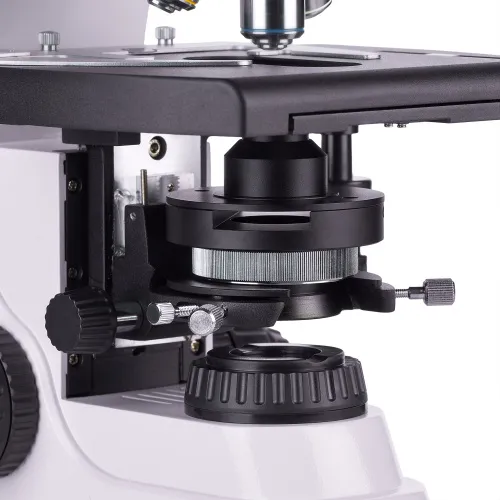

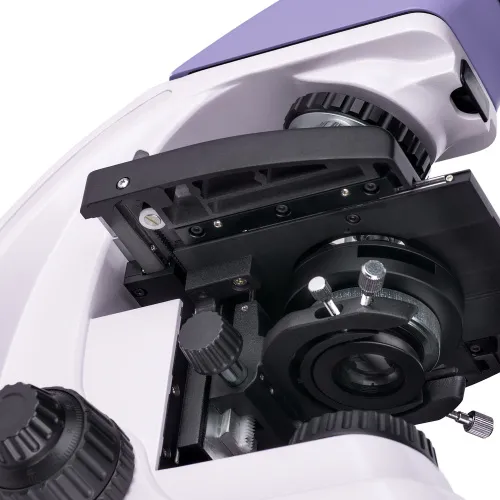

It is possible to set up the Köhler illumination thanks to a centered and height-adjustable Abbe condenser, aperture diaphragm, and field diaphragm. There is a slot in the condenser where a darkfield or phase contrast slider can be installed. The slider allows you to quickly switch between research techniques and that which improves performance.

Stage and focusing mechanism

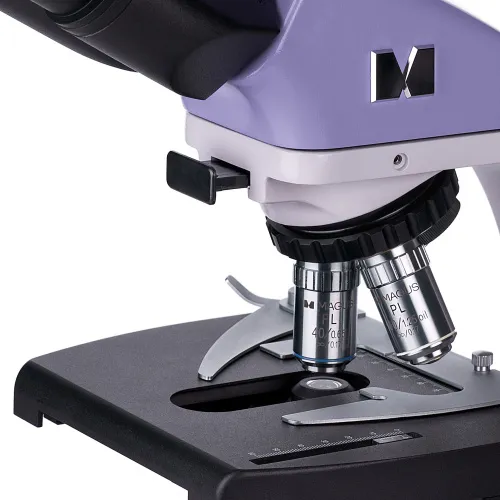

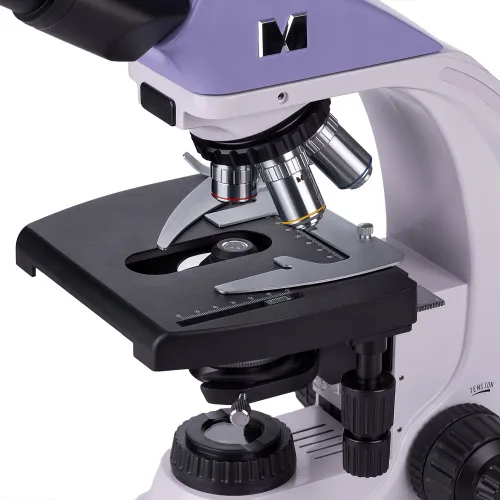

The stage does not have a positioning rack, which improves the ergonomics. The mechanical attachment moves the object smoothly and can be removed for manual scanning.

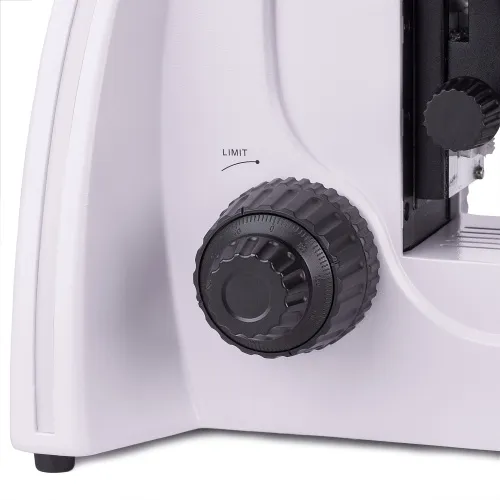

The focusing knobs are located on both sides of the microscope body and closer to the base of the microscope, which allows you to put your hands on the table instead of holding them in the air when working for long periods of time. The knobs are coaxial, i.e. they are located on the same axis. The coarse focusing mechanism has a lock knob and tension adjustment. The focusing mechanism is smooth, and so you do not have to exert any effort when adjusting it.

Accessories

The line of optional accessories includes eyepieces, objectives, polarization devices, darkfield condensers, phase contrast devices, calibration slides, and digital cameras. Designed specifically for the MAGUS Bio 250T microscope, the devices match the microscope optimally and maximize its capabilities.

Key features of the microscope:

  • Trinocular head with a vertical tube for mounting a digital camera
  • 360° rotating eyepiece tubes allow you to adjust it to fit the height of the user
  • Diopter adjustment on the left tube, coarse focusing with a lock knob and coarse tension adjustment knob, fine focusing
  • Observations in transmitted light, light source – 30W adjustable brightness halogen lamp
  • The Abbe condenser with aperture diaphragm and field diaphragm allows you to set up the Köhler illumination
  • Option to install phase contrast and darkfield sliders (there is a special slot in the condenser for their installation)
  • A wide range of optional accessories

Key features of the camera:

  • 2.1'' backlit CMOS sensor, high matrix sensitivity
  • Suitable for darkfield or brightfield studies with 40x, 60x, and 100x objectives
  • Installed into the trinocular tube or in the eyepiece tube of a microscope
  • Full HD resolution 1920x1080px with a frame rate of 96fps, perfect for studying moving objects
  • Connection to PC via USB3.0 port, data transfer speed 5Gbps
  • Software and drivers included

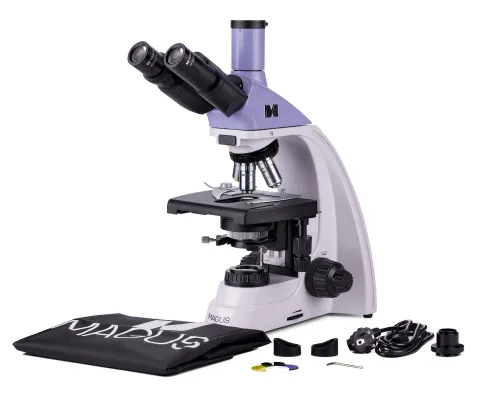

The kit includes:

  • MAGUS CDF50 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with a power input, transmitted light source, focusing mechanism, stage, condenser mount, and revolving nosepiece
  • Abbe condenser
  • Trinocular head
  • Infinity plan achromatic objective: 4x/0.10
  • Infinity plan achromatic objective: 10x/0.25
  • Infinity plan achromatic objective: 40x/0.65 (spring-loaded)
  • Infinity plan achromatic objective: 100x/1.25 oil (spring-loaded)
  • Eyepiece 10x/22mm with a long eye relief (2 pcs.)
  • Eyecup (2 pcs.)
  • Filter (4 pcs.)
  • C-mount camera adapter
  • Bottle of the immersion oil
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: 20x/0.40
  • Infinity plan achromatic objective: 60x/0.80 (spring-loaded)
  • Phase-contrast device
  • Phase slider
  • Darkfield condenser NA 0.9
  • Oil darkfield condenser NA 1.36–1.25
  • Darkfield slider
  • Polarization devices
  • Calibration slide
  • LCD Monitor
Specifications
Product ID 83008
Brand MAGUS
Warranty 5 years
EAN 5905555018027
Package size (LxWxH) 43x27x63 cm
Shipping Weight 11.1 kg
Microscope specifications
Type biological, light/optical, digital
Head trinocular
Nozzle Gemel head (Siedentopf, 360° rotation)
Head inclination angle 30 °
Magnification, x 40 — 1000
Magnification, x (optional) 40–1200/1250/1500/1600/2000/2500
Eyepiece tube diameter, mm 30
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance: 45mm (*optional: 20x/0.40; 60хs/0.80)
Revolving nosepiece for 5 objectives
Working distance, mm 21 (4x); 5 (10x); 0.66 (40xs); 0.36 (100xs); 8.8 (20x); 0.465 (60xs)
Interpupillary distance, mm 48 — 75
Stage, mm 180x150
Stage moving range, mm 75/50
Stage features two-axis mechanical stage, without a positioning rack
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Condenser Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable aperture diaphragm, a slot for a darkfield slider and phase contrast slider, dovetail mount
Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm
Focus coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/30W halogen bulb, G4
Light filters yes
Operating temperature range, °C 5...+35
Ability to connect additional equipment phase contrast device (condenser and objectives), darkfield condenser (dry or oil), polarization devices (polarizer and analyzer)
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
Weight, kg 8
Dimensions, mm 200x436x400
Camera specifications
Sensor SONY Exmor CMOS
Sensor size 1/1.2'' (11.14x6.26mm)
Color/monochrome color
Megapixels 2.1
Maximum resolution 1920x1080
Pixel size, μm 5.8x5.8
Light sensitivity 8935mV with 1/30s
Signal/noise ratio 0.6mV with 1/30s
Exposure time 0.014ms–15s
Video recording yes
Frame rate, fps at resolution 96@1920x1080
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Shutter type ERS (electronic rolling shutter)
Spectral range, nm 380–650 (built-in IR filter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Body CNC aluminum alloy
Software MAGUS View
Camera power supply DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element
Camera operating temperature range, °С -10...+50
Operating humidity range, % 30 — 80
