Digital microscope of advanced quality and configuration

40 — 640
How much the size of a sample increases when you observe it through a microscope
Availability

Product ID 66798
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 2400000012573
Package size (LxWxH) 26x15x40 cm
Shipping Weight 3.5 kg
Description

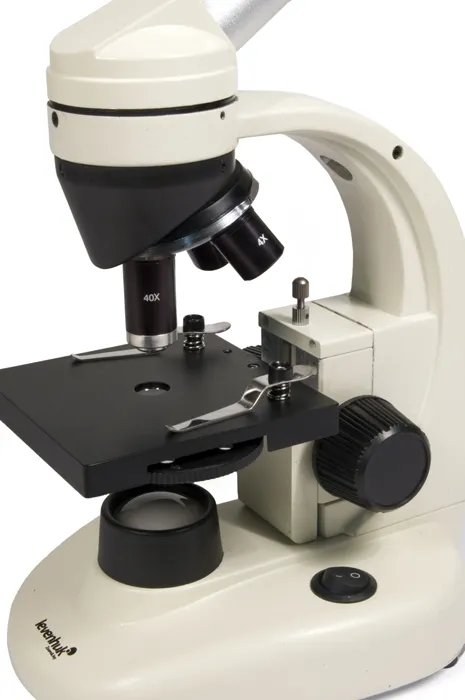

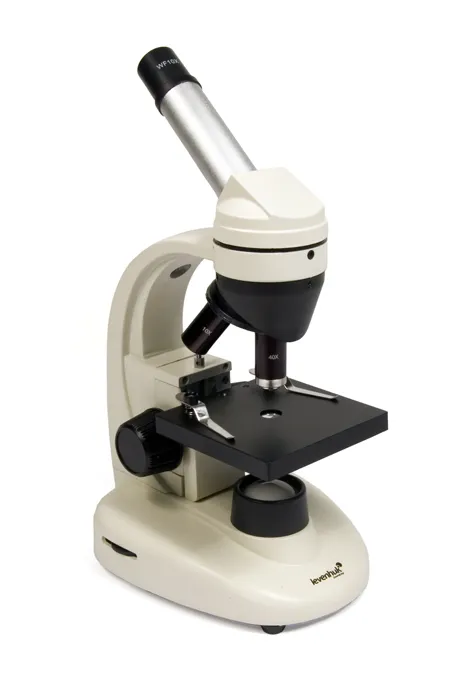

Levenhuk D50L NG Digital Microscope allows you to take on high-quality research as well as take photos/videos of your observations. This model can be connected to a PC. Levenhuk D50L NG uses a USB interface, and software that is included in the kit.

This microscope is designed to provide the best possible color rendition when capturing photo and video images and enables viewing images in the true colors.

Levenhuk D50L NG Digital Microscope was developed for use in schools, colleges and universities. This model features glass optics, unlike the less expensive analogs. The main advantage is two sets of illumination (upper and lower) which allow observing both slices and non-transparent objects (from the tiniest solid particles to coins, etc.).

Apart from observing and image capturing on the PC screen, it is also possible to make observations in the visual mode without a camera, since two eyepieces (WF10x and WF16x) are included in the package.

Levenhuk D50L NG Digital Microscope is widely used as the modern equipment of choice in various educational institutions.

The main advantage of the Levenhuk D50L NG is the highest quality of the optical elements and metallic construction. These materials provide high-quality images and make the microscope long lasting (for at least 30 years).

A USB cable is used as the camera power supply and for connection with a PC. Compatible OS: XP/2003/Vista/7/8/10.

Magnification

Magnification depends on the objectives (located below) and eyepieces (located above) being used.
The set includes two eyepieces and three objectives as well as Barlow lens which allows to smoothly change the magnification ratio.

The minimum magnification is: Eyepiece 10x Objective 4x = 40x
Maximum magnification is: Eyepiece 16x
Objective 40x = 640x, and with Barlow lens magnification smoothly reaches 640*2.0 = 1280x!

Illumination

This microscope is designed with important features – lower illumination with adjustable brightness and removable upper illumination. Built-in illumination is LED, which ensures the minimal power consumption yet gives ample light.

Illumination systems are located above and below the stage, and allow observing both transparent and opaque objects: from the tiny solid particles to coins, paper, fabrics, etc. (It would be fascinating to observe a mobile phone screen under the D50L NG – actually, each pixel consists of three segments, red, green and blue.)

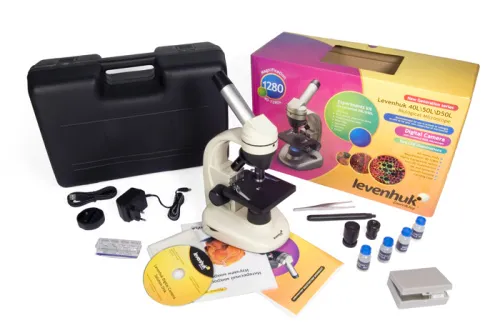

The kit includes:

  • Microscope
  • Objectives: 4x, 10x and 40x

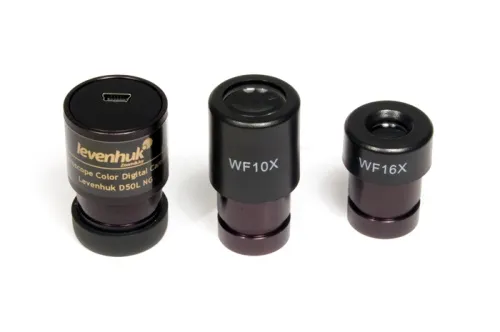

  • Digital camera Levenhuk D50L (2 Mpx)
  • Two eyepieces: WF10x, WF16x
  • Barlow lens: 2x
  • SETUP CD Levenhuk ToupView (auto setup guide, drivers, software for image visualization, fixation and processing)
  • USB cable
  • Stage with clips
  • Diaphragm disk
  • Built-in lower LED illumination
  • Retractable upper halogen illumination
  • AC adapter
  • 3 AA and 2 AAA batteries
  • "Attractive Microscope. Scrutinizing the Microcosm" User Guide
  • Forceps

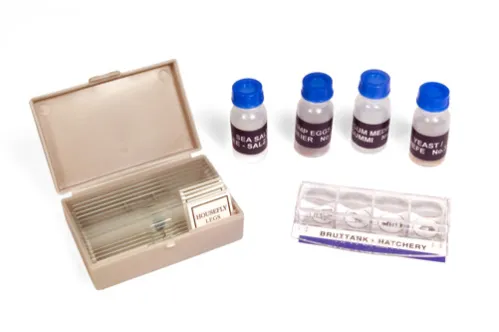

  • Hatchery for brine shrimp
  • Microtome (tool for making fine slices for observation; allows obtaining specimen slices of sub-millimeter thickness)
  • Flask with yeast
  • Flask with pitch for making specimens
  • Flask with sea salt
  • Flask with brine shrimp (a sea organism used as a food source for fish)
  • 5 ready-to-use specimens
  • 5 blank slides
  • Dust cover

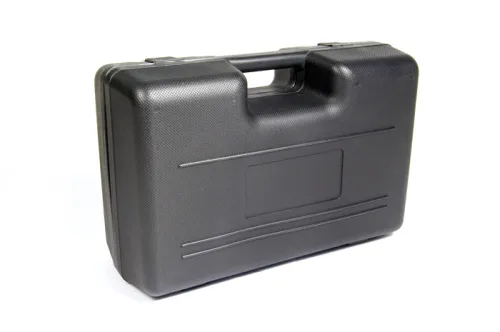

  • Plastic case
  • User manual and lifetime warranty

The latest version of Levenhuk ToupView software for Windows (release date: 11/20/2013) supports eight languages: English, French, German, Polish, Russian, Simplified Chinese,Traditional Chinese, Turkish.

Observing non-transparent objects
Levenhuk D50L NG Digital Microscope, unlike other teaching microscopes, is equipped with two illuminations. Illumination systems are located above and below the stage, and allow observing both transparent and opaque objects.

Power supply
The microscope features an AC adapter, for stationary observations without batteries.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk D50L NG Digital Microscope is also compatible with Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

Microscopes Comparison Table

Levenhuk D2L NG Digital Microscope Levenhuk D50L NG Digital Microscope Levenhuk D70L NG Digital Microscope
Head monocular monocular monocular
Video recording yes yes yes
Maximum resolution 640x480 1600x1200 1600x1200
Megapixels 0.3 mpx 2 mpx 2 mpx
Head rotatable rotatable not rotatable
Barlow lens no 2x no
Objectives 4х, 10х, 40х 4х, 10х, 40х 4х, 10х, 40х
Eyepieces WF16х WF10x, WF16x WF10x
MAX magnification, x 640 1280 1600
Stage, mm 90x90, with stage clips 90x90, with stage clips 90x95, coordinate moving stage with clips
Stage moving range, mm from 0 to 10 from 0 to 15 from 0 to 10
Brightness adjustment yes yes yes
Dust cover no yes yes
Case no yes yes
Upper illumination fixed retractable fixed
Lower illumination fixed fixed fixed
Body silumin metal metal
Eyepiece tube metal metal plastic (LCD display)
Illumination power supply AC adapter, batteries AC adapter, batteries AC adapter, batteries (not included)
Camera power supply USB cable USB cable USB cable
Levenhuk K50 Experiment Kit no yes yes
"Attractive Microscope. Scrutinizing the Microcosm" User Guide no yes yes
Forceps no yes yes
Hatchery for brine shrimp no yes yes
Microtome no yes yes
Flask with yeast no yes yes
Flask with pitch no yes yes
Flask with sea salt no yes yes
Flask with brine shrimp no yes yes
Ready specimens no yes yes
Blank slides (5 pieces) no yes yes
Specifications
Product ID 66798
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 2400000012573
Package size (LxWxH) 26x15x40 cm
Shipping Weight 3.5 kg
Type digital
Optics material optical glass
Magnification, x 40 — 640
Eyepieces WF10x, WF16x
Objectives 4x, 10x, 40x
Revolving nosepiece for 3 objectives
Stage, mm 90x90
Stage moving range, mm 0–15
Power supply 220V AC adapter, 50Hz
Maximum resolution 1600x1200 (2MP)
Megapixels 2
Video recording yes
Image format *.bmp, *.jpeg, *.jpg, *.png, *.tif, *.tiff, *.gif, *.psd, *.ico, *.emf
White balance manual, automatic
Exposure control manual, automatic
Usage location eyepiece tube (replaces an eyepiece)
Method of exposure ERS (Electronic Rolling Shutter)
Software, drivers USB 2.0 driver, Levenhuk camera program (for Mac and Linux use Levenhuk Image Editor)
Programmable options brightness, shutter time, image size
Output USB 2.0, 480 Mbps
System requirements OS Windows 2000/XP/2003/Vista/7/8/10; USB 2.0
Camera power supply via USB Cable 2.0
Camera operating temperature range, °С -30...+70
