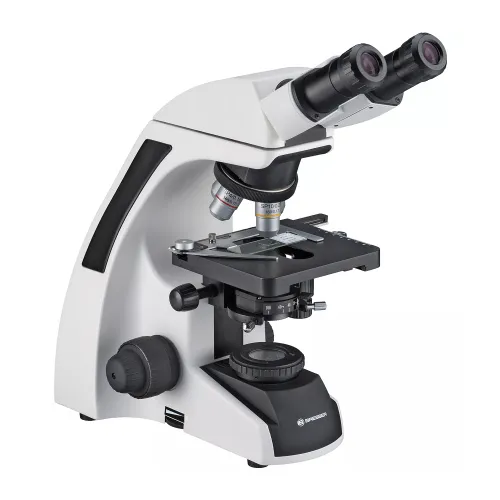

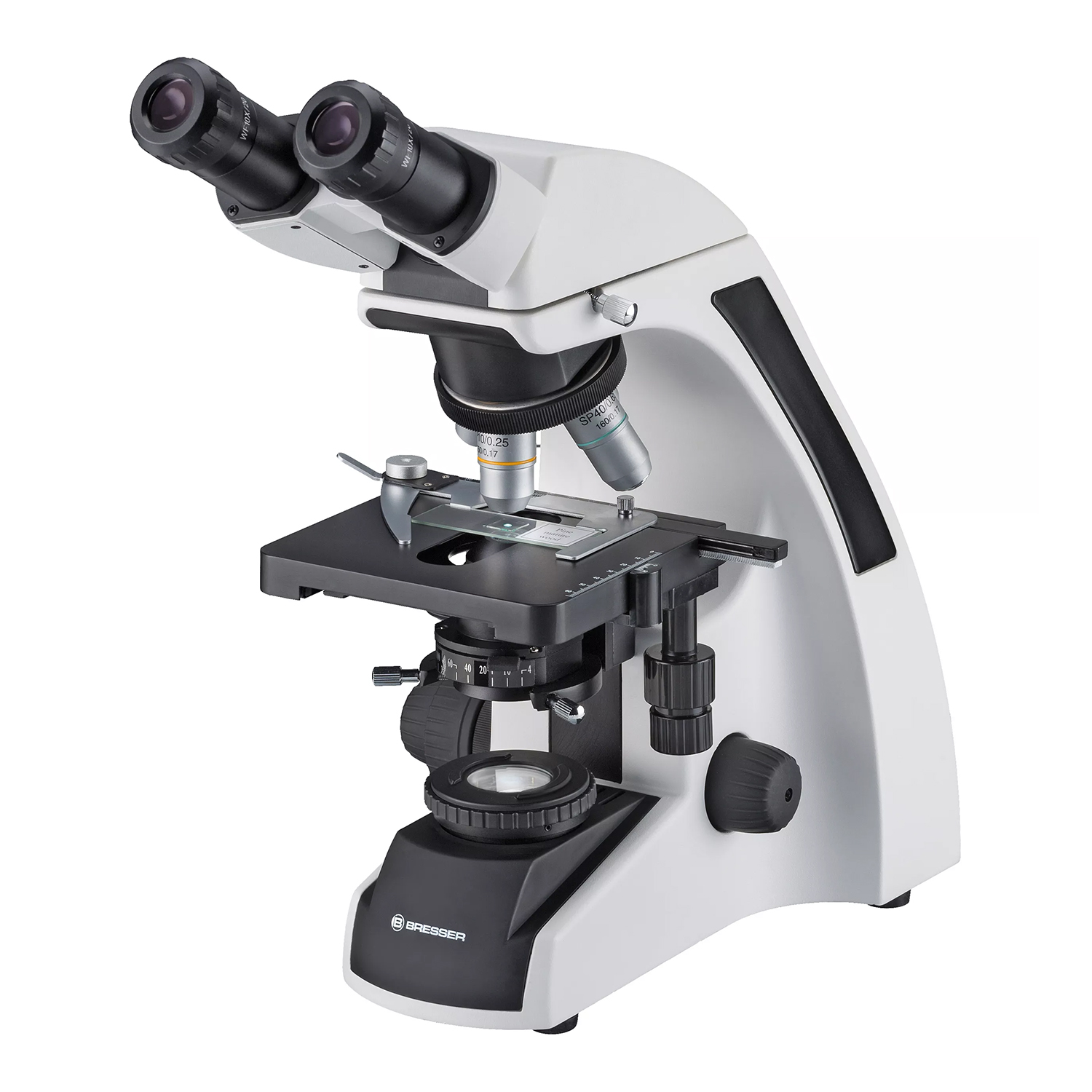

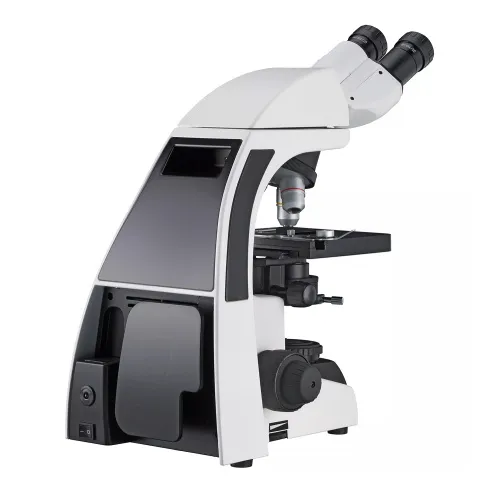

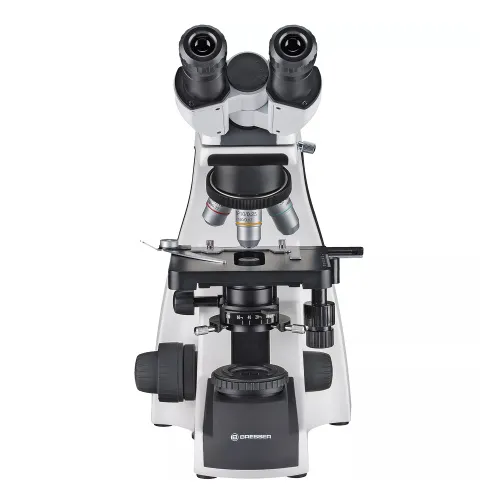

Bresser Science TFM-201 Bino Microscope

Bresser Science TFM-201 Bino Microscope

picture Bresser Science TFM-201 Bino Microscope, 1
picture Bresser Science TFM-201 Bino Microscope, 2
picture Bresser Science TFM-201 Bino Microscope, 3
picture Bresser Science TFM-201 Bino Microscope, 4
see all
picture Bresser Science TFM-201 Bino Microscope, 5
picture Bresser Science TFM-201 Bino Microscope, 6
picture Bresser Science TFM-201 Bino Microscope, 7
The price is valid only for the online store and may differ from the prices in retail stores.

Binocular head. Magnification: 40–1000x

Binocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
School/educational, laboratory/medical
Application and use of the microscope
Availability
Product ID 74323
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922038797
Package size (LxWxH) 53x33x40 cm
Shipping Weight 8.62 kg
description
specifications
downloads
accessories
Description

The new Bresser Science TFM-201 is a binocular microsscope, which is equipped with semiplan objectives. The WF 10x eyepieces offer a large visual field of 20mm. The interpupillary distance can be adjusted from ca. 55mm to 75mm. Dioptre adjustments are possible with both eyepieces.

The Köhler illumination is regulable with the built-in luminous-field diaphragm and the vertically and horizontally adjustable Abbe condenser (numerical aperture 1.25, with iris diaphragm). An imprint of the different possible magnifications on the condenser makes the adjustment of the iris diaphragm very fast and precise.

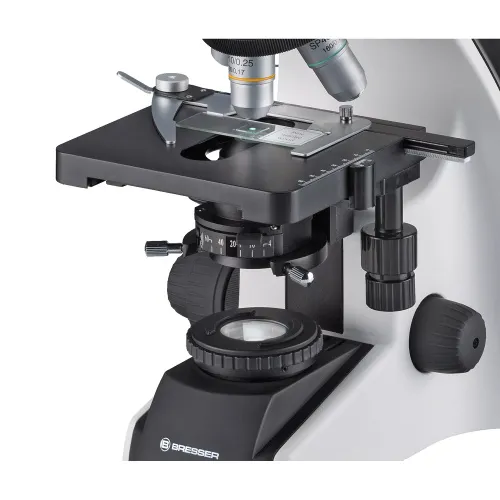

Coaxial pinions drive the stage and focus which enables ergonomic operation of the microscope.

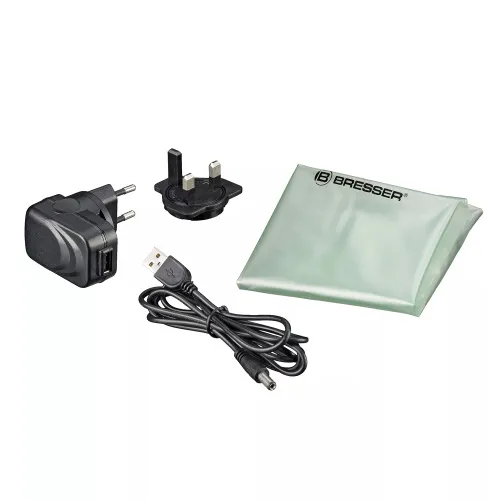

The kit includes:

  • Microscope with integrated LED illumination
  • Semiplan objectives (4x, 10x, 40x, 100x oil)
  • 2x eyepieces (WF 10x)
  • Immersion oil
  • Dust cover
  • Mains adapter
  • Manual
Specifications
Product ID 74323
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922038797
Package size (LxWxH) 53x33x40 cm
Shipping Weight 8.62 kg
Type biological, light/optical
Microscope head type binocular
Magnification, x 40 — 1000
Eyepiece tube diameter, mm 30
Eyepieces WF10x (2 pcs.)
Objectives 4x, 10x, 40x, 100x
Revolving nosepiece for 4 objectives
Interpupillary distance, mm 55 — 75
Stage features with a mechanical stage
Eyepiece diopter adjustment, diopters individual for each eyepiece
Condenser Abbe N.A. 1.25, centered
Diaphragm iris, field
Focus coarse and fine
Illumination LED
Brightness adjustment ✓
Light source type 3W
Additional Köhler illumination
User level beginners, experienced users
Assembly and installation difficulty level easy
Application school/educational, laboratory/medical
Illumination location lower
Research method bright field
References
and downloads
User manual: Bresser Science TFM/Infinity microscopes (pdf) DE, EN
(PDF, 5.86 Mb)
Quick start guide: Bresser Science TFM/Infinity microscopes (pdf) DE, EN
(PDF, 693.85 Kb)
