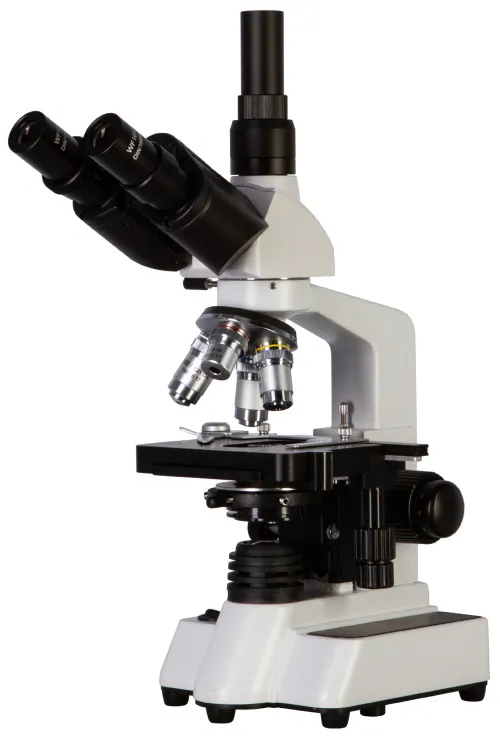

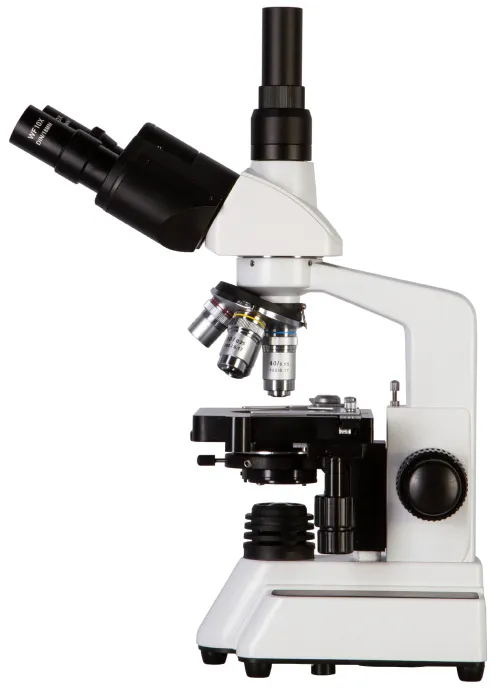

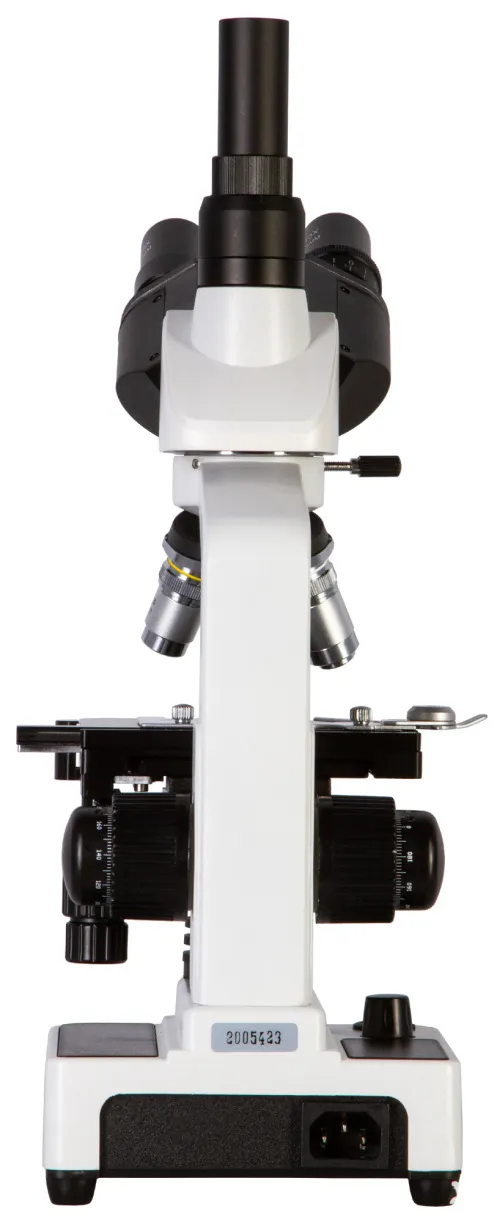

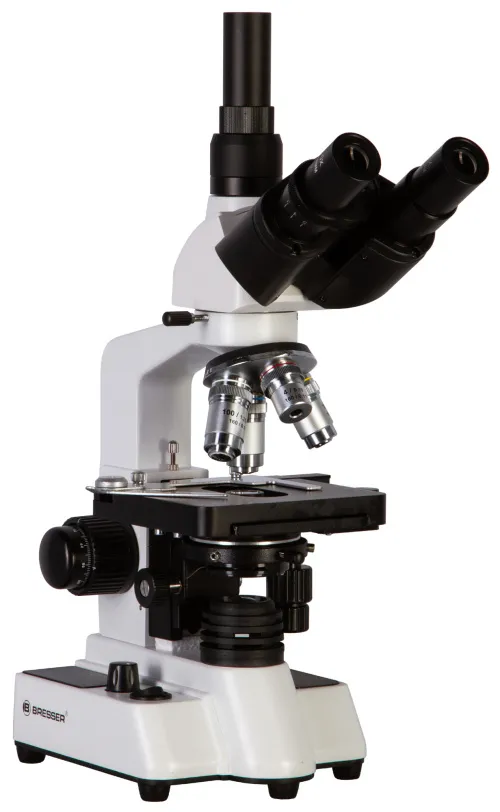

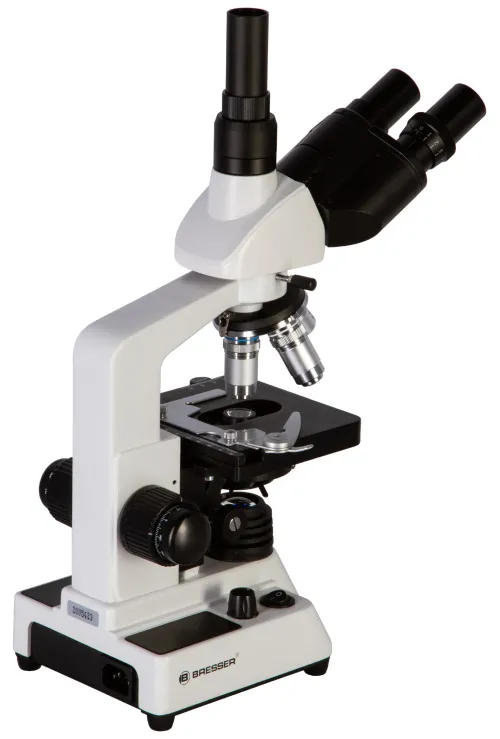

Bresser Researcher Trino 40–1000x Microscope
Trinocular head. Magnification: 40–1000x
Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability
Product ID | 62567 |
Brand | Bresser GmbH, Germany |
Warranty | 2 years |
EAN | 4007922150642 |
Package size (LxWxH) | 30x22x46 cm |
Shipping Weight | 4.8 kg |
Description
The Researcher Trino offers observing fun for an unbeatable price. Based on a solid metal body and equipped with DIN eyepieces and objectives, this transmission-type microscope fulfils even professional demands with its optical and mechanical quality. Many details, for example the cross table for optimal object positioning or the focuser with coarse and fine drive for dead-sharp images. Instead of a binocular head, the Trino Researcher has a trinocular head. With this equipment, the observer can make binocular obseravtions and – at the same time! – take photographs or use a PC eyepiece.
Features:
- Magnifications: 1000x, 400x, 100x, 40x
- Application range: Biology, Education, Teaching, Imaging Solutions, Botany
- Transmitted light microscope for high demands
- Dimmable LED illumination
- Additional lens barrel for a connection with a camera
- Abbe-condenser with iris diaphragm
- Adjustable eye relief

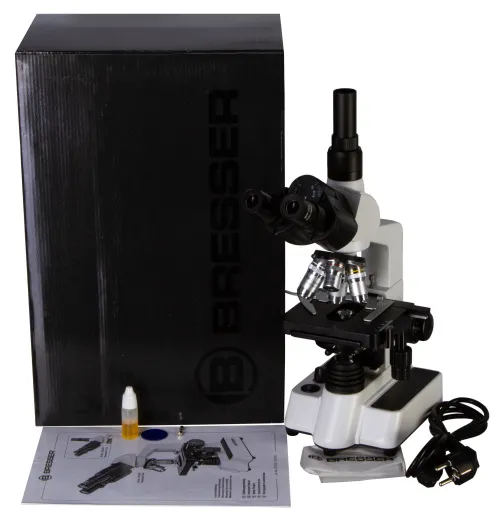

The kit includes:
- Biological trinocular microscope
- 4 DIN-objectives
- 2 eyepieces

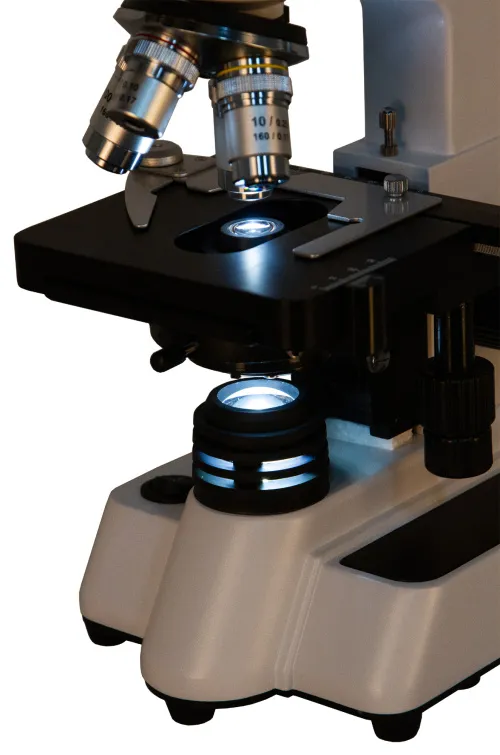

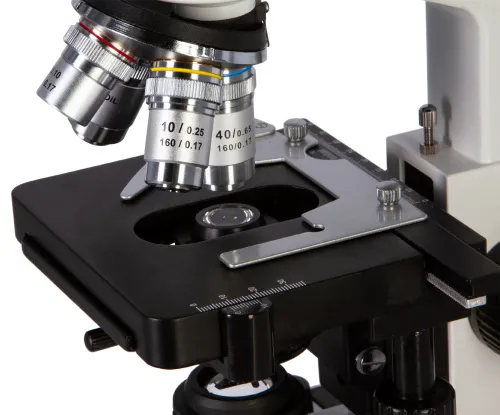

- Mechanical stage
- Condensor
- Manual
Specifications
Product ID | 62567 |
Brand | Bresser GmbH, Germany |
Warranty | 2 years |
EAN | 4007922150642 |
Package size (LxWxH) | 30x22x46 cm |
Shipping Weight | 4.8 kg |
Type | biological, light/optical |

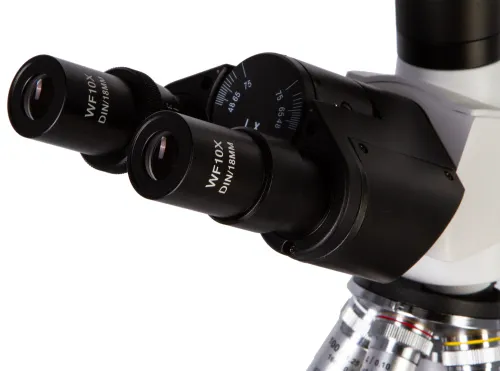

Head | trinocular |
Nozzle | 360 ° rotatable |
Head inclination angle | 30 ° |
Magnification, x | 40 — 1000 |
Eyepiece tube diameter, mm | 23.2 |
Eyepieces | 10x |
Objectives | 4x, 10x, 40x, 100x (oil immersion) |
Revolving nosepiece | for 4 objectives |
Interpupillary distance, mm | 53 — 75 |
Stage features | mechanical |
Eyepiece diopter adjustment, diopters | ±5 |
Condenser | Abbe |
Diaphragm | iris |

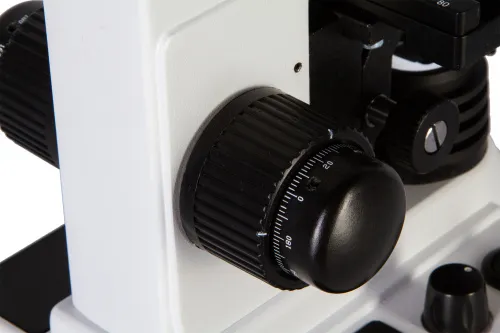

Focus | coaxial; coarse and fine |
Body | metal |
Illumination | LED |

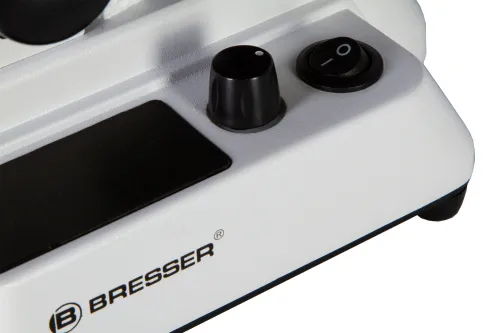

Brightness adjustment | ✓ |
Power supply | 220–240V |
Adapter | AC adapter |
User level | experienced users, professionals |
Optical scheme | achromat |
Application | laboratory/medical |
Illumination location | lower |
Research method | bright field |
