Binocular biological microscope

Binocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability
Future arrivals
25 November 2024
1
25 November 2024
2
25 November 2024
2

Product ID 62566
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922150635
Package size (LxWxH) 46x30x22 cm
Shipping Weight 4.686 kg
Description

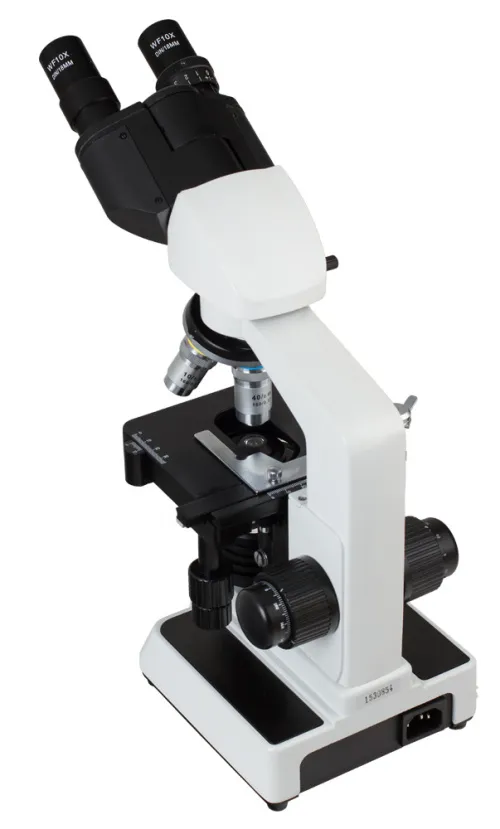

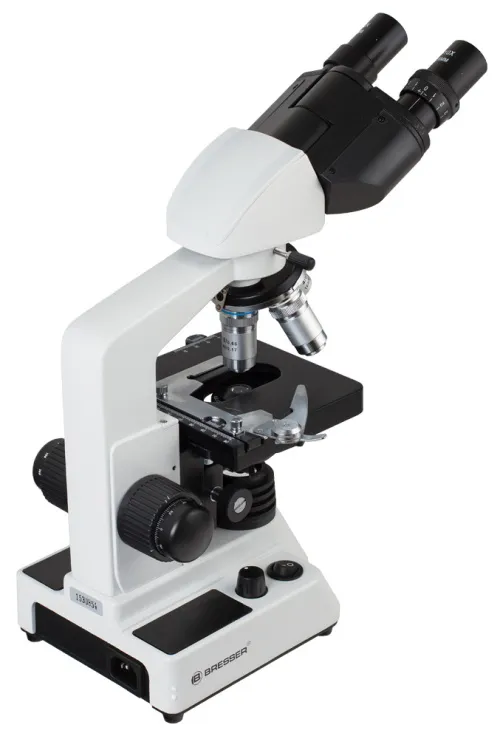

The Bresser Researcher Bino is a professional binocular microscope with transmitted illumination, brilliant optics, and a durable metal body. It is perfect for use in biology and medicine, as well as for educational purposes. The comfortable binocular head can be individually adjusted according to the observer's needs. The turret is fitted with four objective lenses that offer magnifications from 40x to 1000x. Thanks to the included 100x lens, the oil immersion technique can be used. A stage with Vernier scales and coarse and fine adjustment knobs allows fixing two samples at once and ensures the most accurate positioning of the object under the objective.

Powerful LED and Abbe condenser with iris diaphragm guarantee perfect illumination of the observed object. This instrument is powered by AC mains. The microscope can be additionally equipped with a wide range of accessories included in the kit. Carrying case is also included.

Features:

  • Microscope for educational and professional purposes

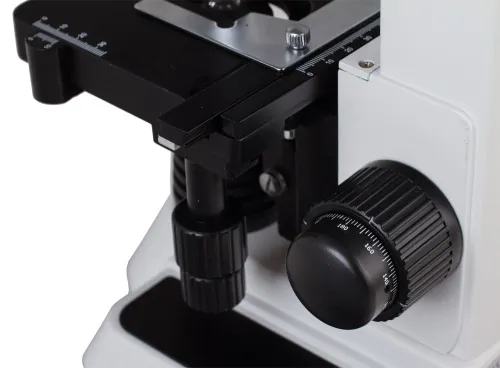

  • Coaxial focus with fine adjustmenton
  • The practical shape and position of the handle ensures more comfortable use
  • Brightness adjustment
  • Diopter adjustment

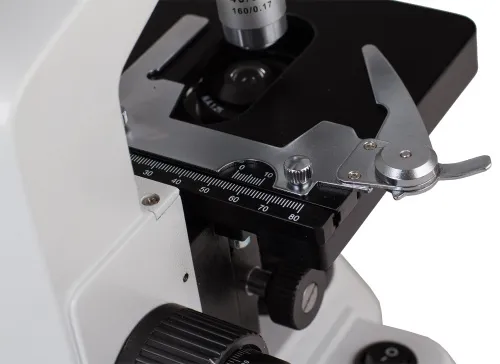

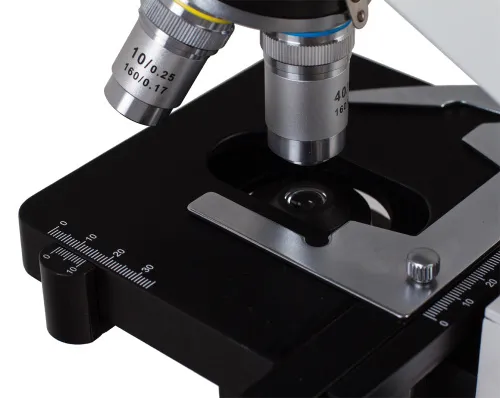

  • Stage with Vernier scales
  • Revolving nosepiece with 4 objectives

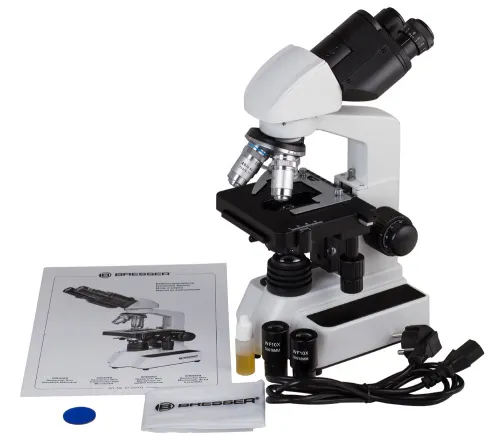

The set includes:

  • Bresser Researcher Bino Microscope
  • 2 eyepieces
  • 4 lenses
  • Blue filter
  • Immersion oil
  • AC adapter
  • Pouch
  • User manual
Specifications
Product ID 62566
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922150635
Package size (LxWxH) 46x30x22 cm
Shipping Weight 4.686 kg
Type biological, light/optical
Head binocular
Head inclination angle 30 °
Magnification, x 40 — 1000
Eyepiece tube diameter, mm 23.2

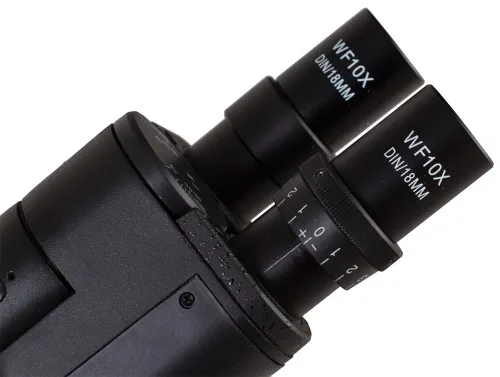

Eyepieces 10x

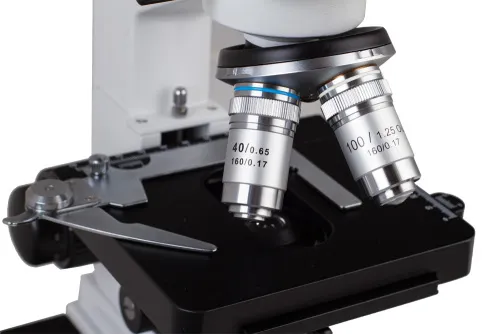

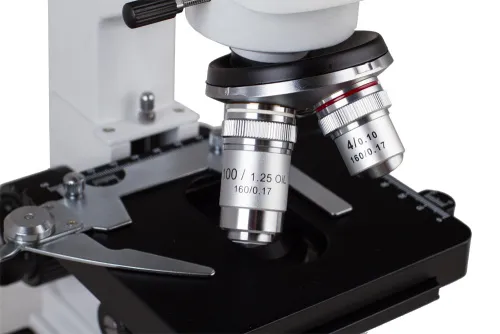

Objectives 4x/0.1; 10x/0.25; 40x/0.65; 100x/1.25 (immersion)
Revolving nosepiece for 4 objectives

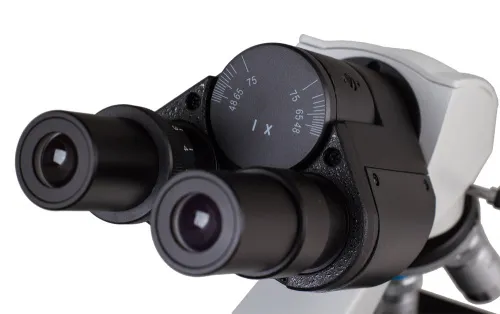

Interpupillary distance, mm 53 — 75
Eyepiece diopter adjustment, diopters ±5
Condenser Abbe
Diaphragm iris
Focus coarse and fine
Body metal
Illumination LED
Brightness adjustment
Power supply 220–240V
Adapter AC adapter
Optical scheme achromat
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
