Bresser Erudit MO 20–1536x ST Microscope

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 20–1536x

Monocular

The microscope head is a core element of the microscope that you look through to see a magnified sample

20 — 1536

How much the size of a sample increases when you observe it through a microscope

School/educational

Application and use of the microscope

Availability

Product ID	70331
Brand	Bresser GmbH, Germany
Warranty	2 years
EAN	0611901511764
Package size (LxWxH)	40x29x18 cm
Shipping Weight	4.02 kg

Description

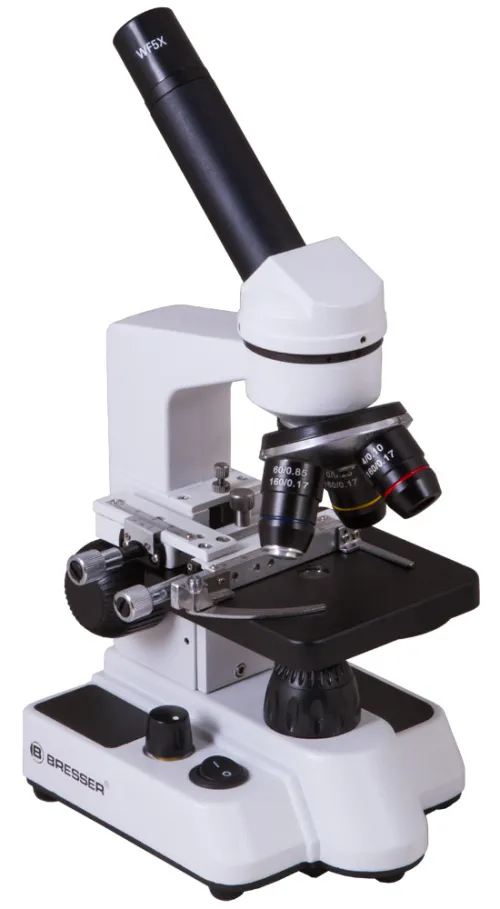

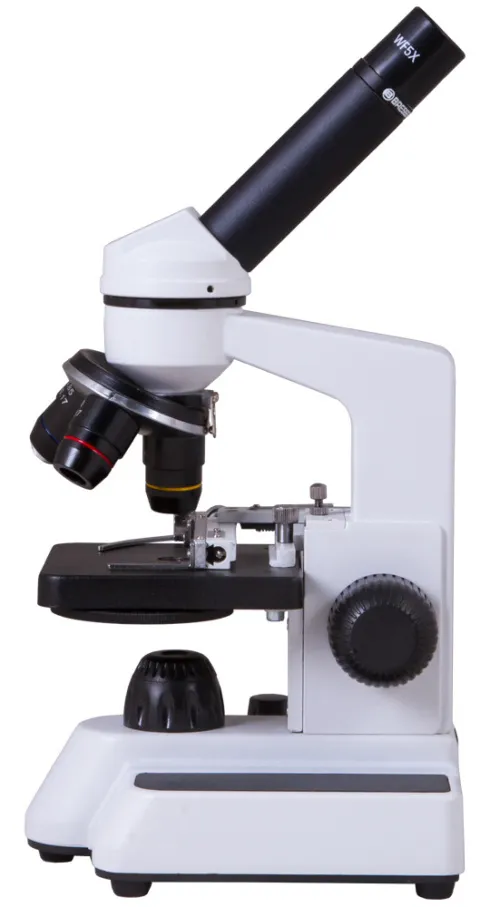

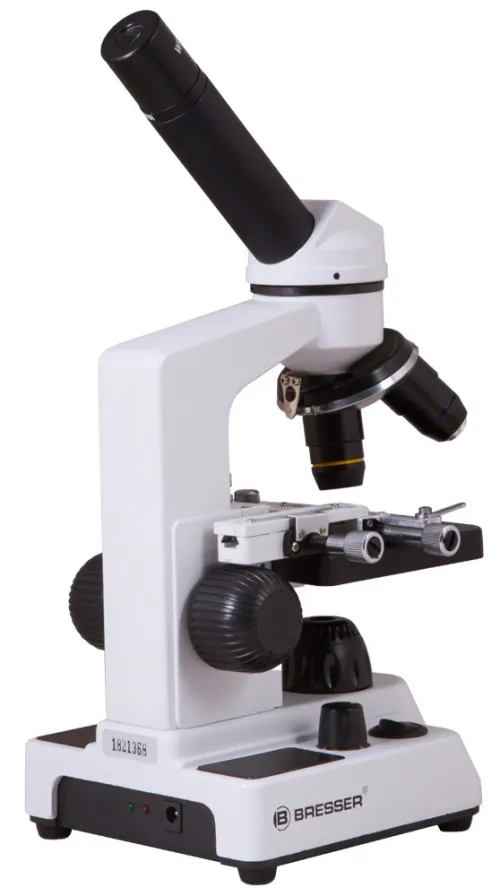

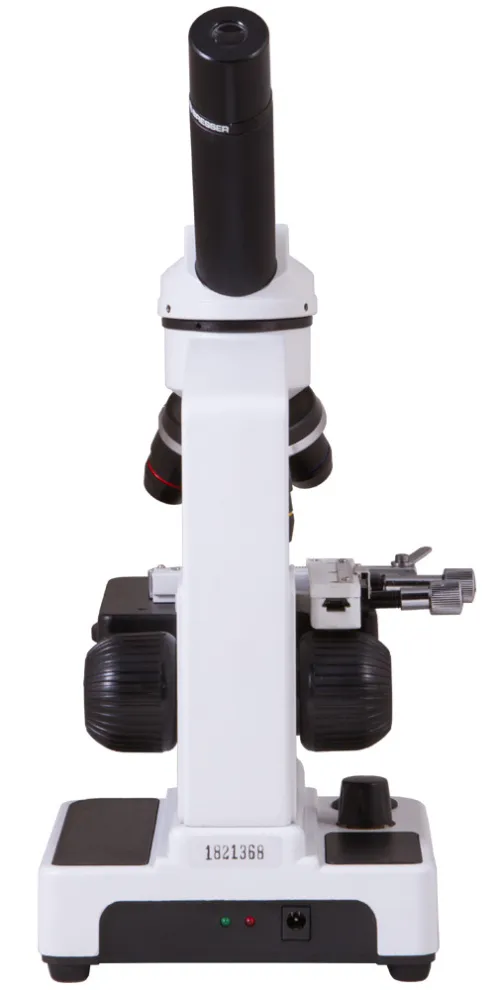

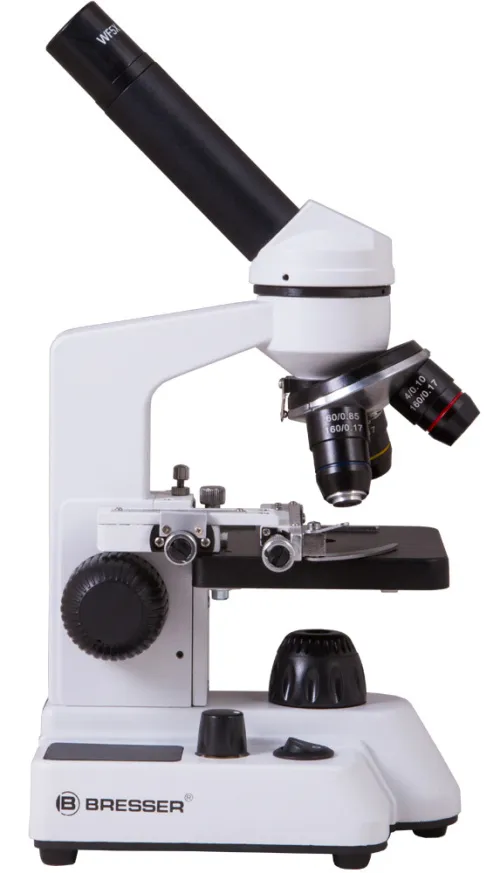

Bresser Erudit MO 20–1536x ST Microscope is an excellent microscope designed for observing samples in transmitted light, and can be used for school activities and hobbies. The microscope provides a wide range of magnification (20–1536x), has a durable metal body, and comes with a rich set of accessories that contains everything you need for your first observations. The included PC eyepiece allows you to connect this microscope to your computer to take snapshots and video of observed samples.

With the included software, you can easily edit recorded images and videos and save them for future use.

Features:

Coarse focus

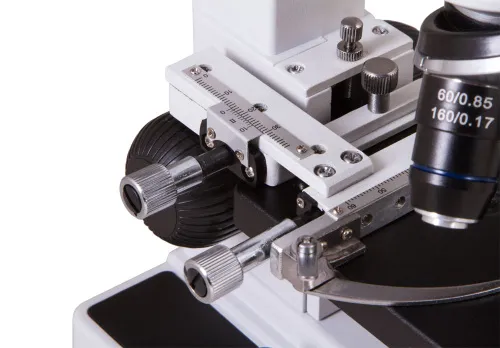

x-y stage with Vernier scale 60x30mm
Power supply: AC adapter and battery
360° rotatable, 45° inclined monocular head

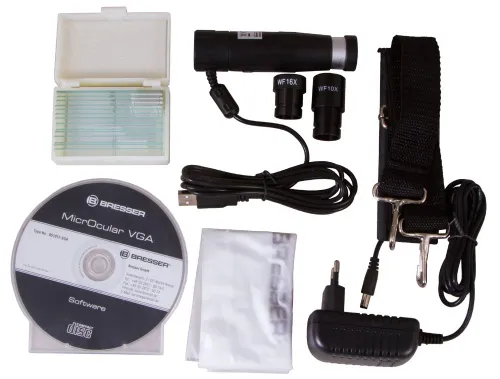

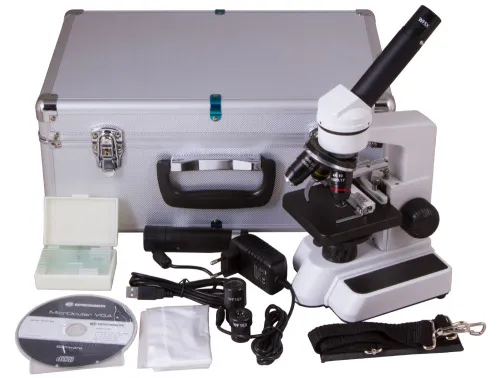

The kit includes:

Bresser Erudit MO 20–1536x ST Microscope
1.6x Barlow lens
PC eyepiece with 640x480 resolution
Software CD

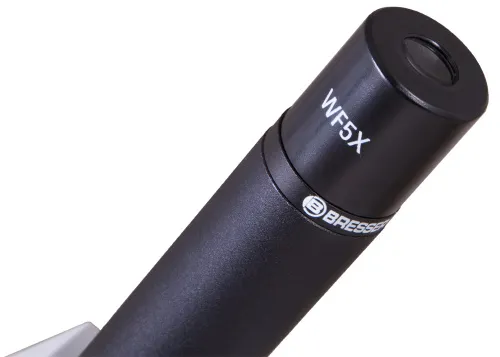

3 eyepieces with wide field of view (5x, 10x, 16x)
3 objective lenses (4x, 10x, 60x)
x-y stage with Vernier scale
5 prepared slides
5 blank slides
10 cover slips
Dust cover

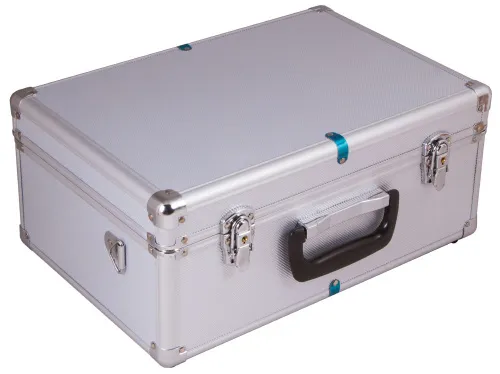

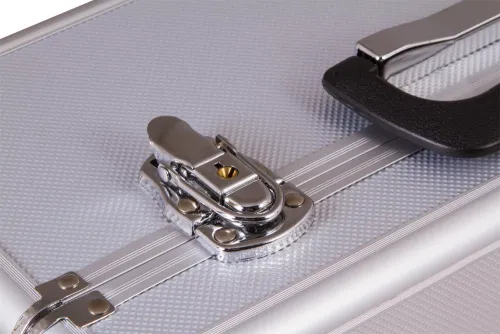

Aluminum case

Specifications

Product ID	70331
Brand	Bresser GmbH, Germany
Warranty	2 years
EAN	0611901511764
Package size (LxWxH)	40x29x18 cm
Shipping Weight	4.02 kg
Type	biological, light/optical, digital
Head	monocular
Nozzle	360 ° rotatable
Head inclination angle	45 °
Magnification, x	20 — 1536
Eyepieces	WF, 5x, 10x, 16x

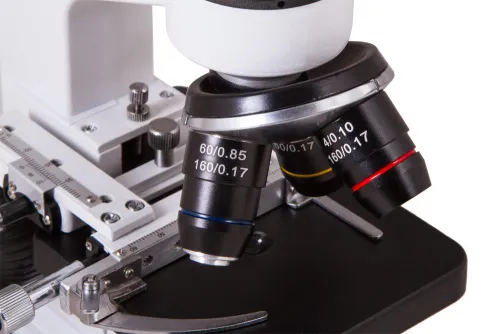

Objectives	4x, 10x, 60x
Revolving nosepiece	for 3 objectives
Stage features	mechanical, two-coordinate, with a Vernier scale and mechanical stage
Diaphragm	diaphragm disc
Focus	coarse
Body	metal

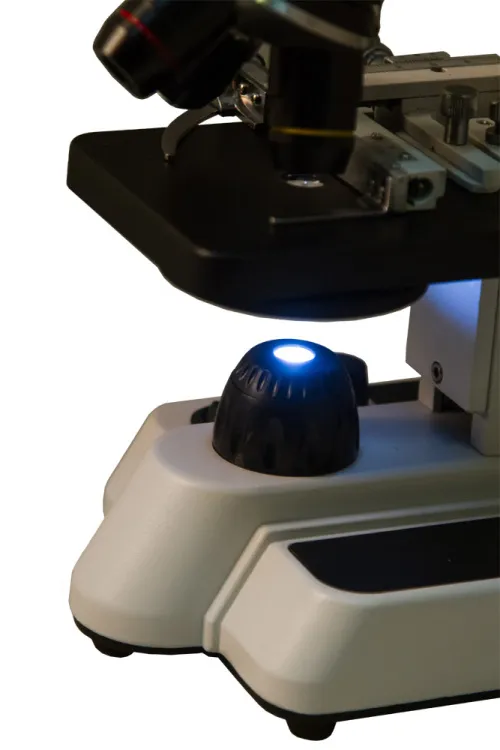

Illumination	LED

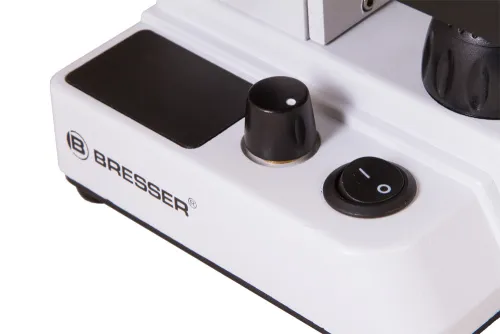

Brightness adjustment	✓

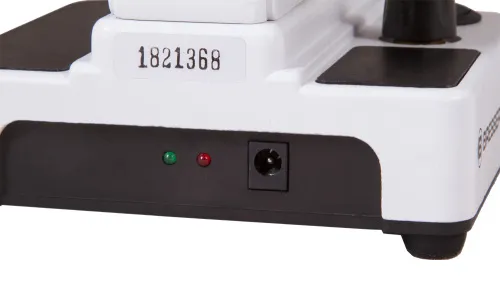

Power supply	AC adapter, batteries
Application	school/educational
Illumination location	lower
Research method	bright field
Experiment kit included	✓
Digital camera included	✓
Barlow lens	1.6x
Maximum resolution	640x480
Camera model	MicrOkular II
System requirements	OS Windows XP SP3/Vista/7 SP2; 1.8GHz Intel P4 and above, at least 1GB RAM, DirectX, .net Framework 3.5, USB 2.0, CD/DVD/BD-ROM
