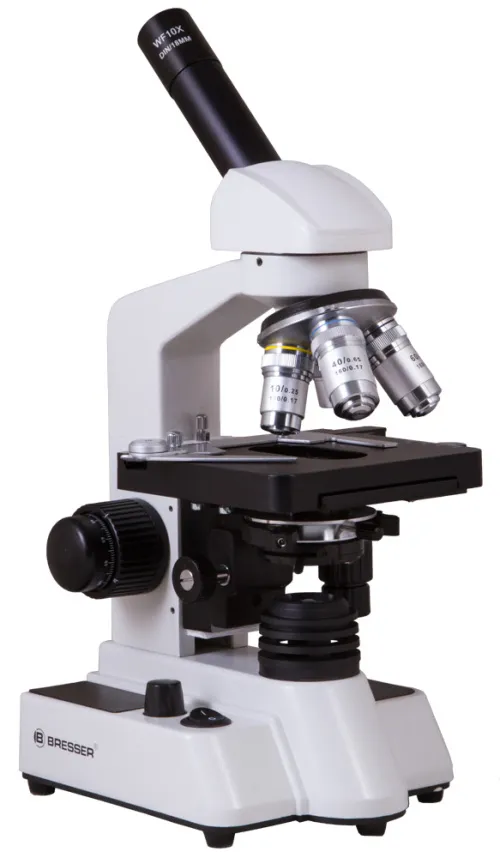

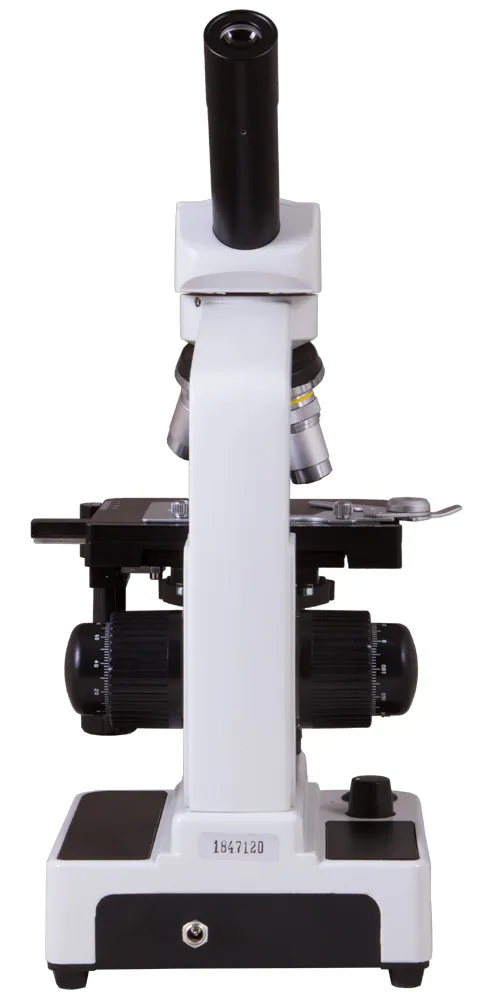

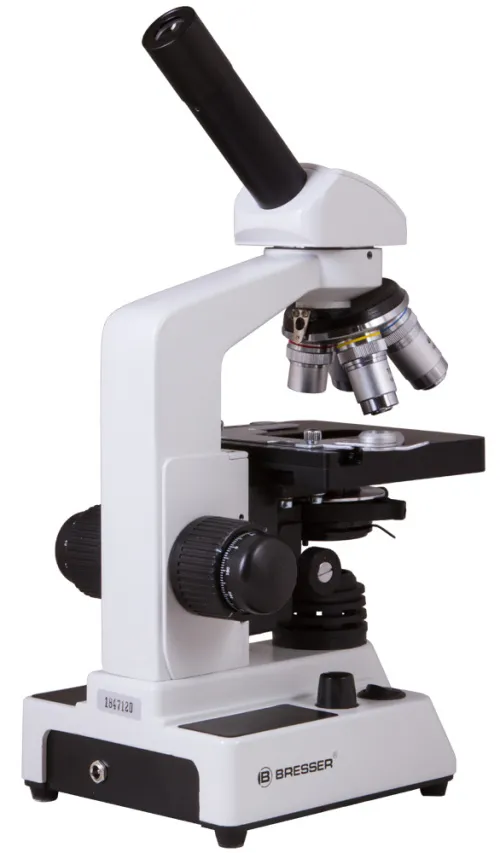

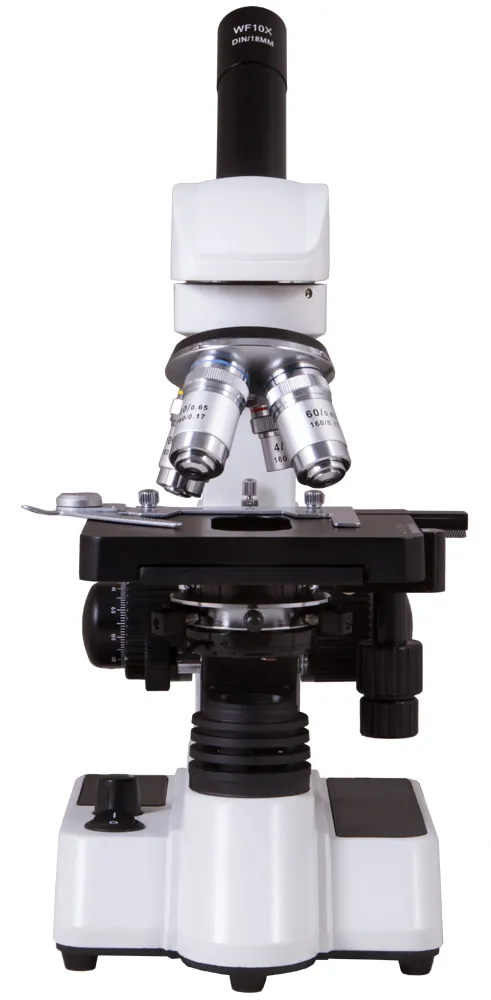

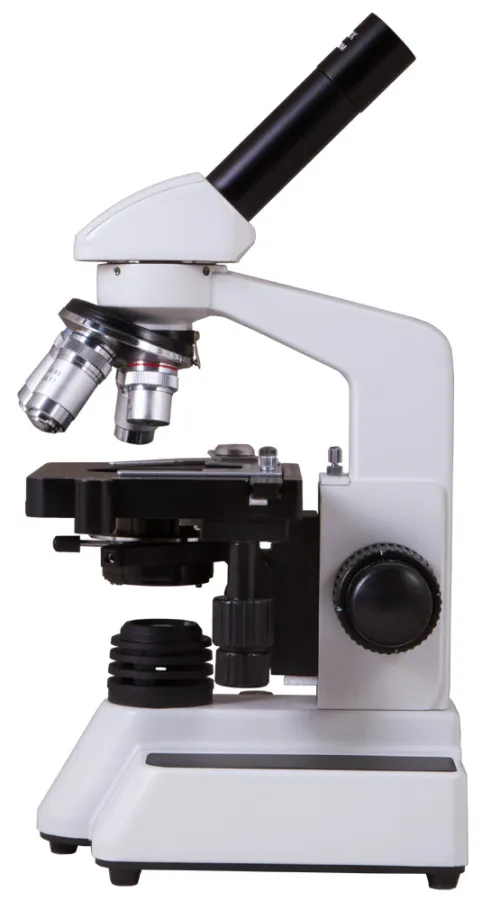

Bresser Erudit DLX 40–600x Microscope

Bresser Erudit DLX 40–600x Microscope

photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
see all
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
photograph Bresser Erudit DLX 40–600x Microscope
The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 40–600x

Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 600
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
Availability
Product ID 70332
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922200019
Package size (LxWxH) 46x30x22 cm
Shipping Weight 3.8 kg
description
specifications
downloads
accessories
Description

Bresser Erudit DLX 40–600x is an ideal tool for school research and hobby. This instrument is suitable for outside use thanks to the rechargeable battery. An integrated LED light and a height-adjustable condenser (with diaphragm and filter holder) provide optimal lighting. Achromatic DIN-lenses allow you to obtain high-quality views of the observed samples. 40x and 60x lenses are spring-loaded to protect samples and lenses from damage. The microscope has a 360° rotating monocular head, precise focusing, and an x-y stage with Vernier scale.

Features:

  • Biological microscope
  • 360° rotatable, 45° inclined monocular head

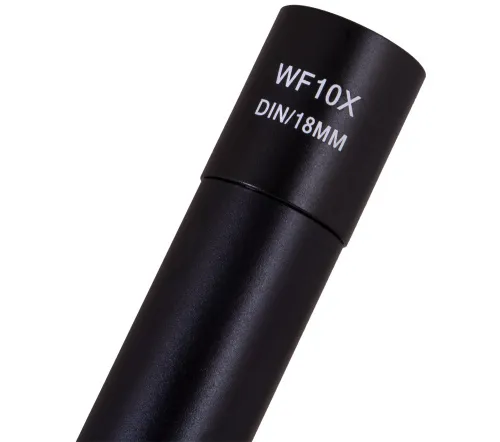

  • Eyepiece: 10x with pointer

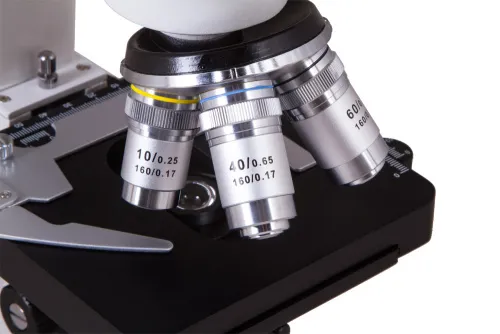

  • Objectives: 4x, 10x, 40x, 60x

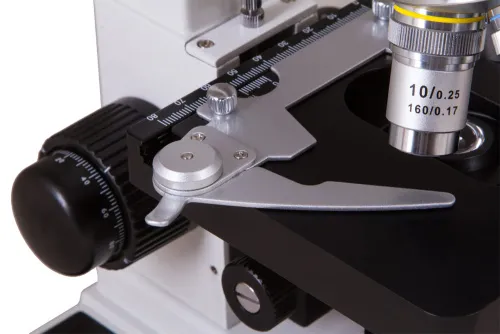

  • x-y stage with Vernier scale
  • LED illumination

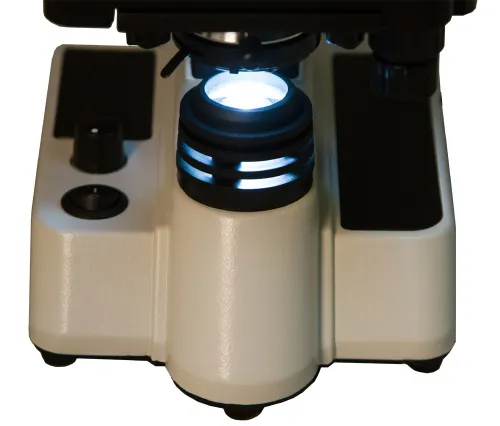

  • Condenser, height-adjustable

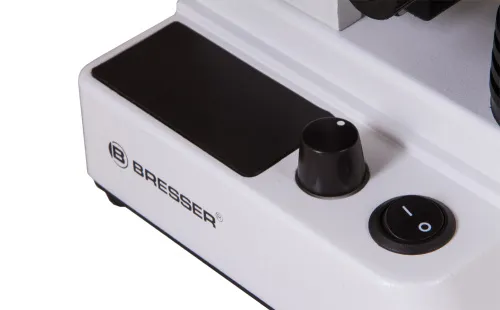

  • Integrated dimmer

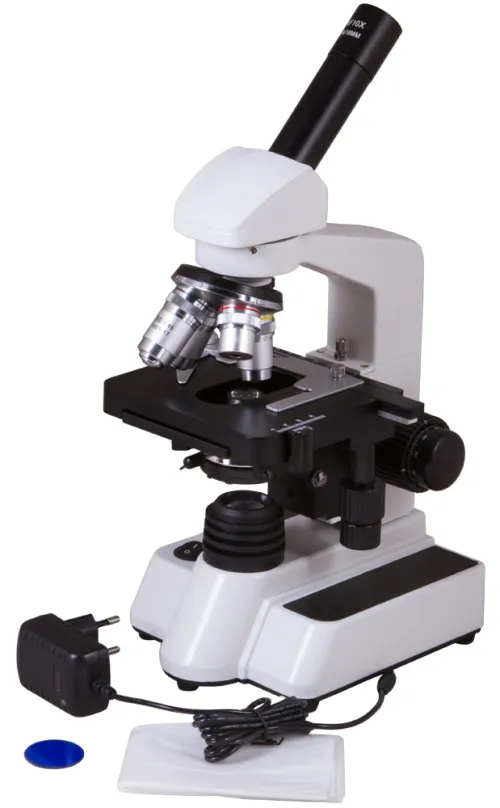

The kit includes:

  • Bresser Erudit DLX 40–600x Microscope
  • 10x Eyepiece
  • 4 objectives (4x, 10x, 40x and 60x)
  • Condenser (with diaphragm and filter holder)
  • Blue filter
  • Dust cover
  • Power adapter
Specifications
Product ID 70332
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922200019
Package size (LxWxH) 46x30x22 cm
Shipping Weight 3.8 kg
Type biological, light/optical
Head monocular
Nozzle 360 ° rotatable
Magnification, x 40 — 600
Eyepieces 10x
Objectives 4x, 10x, 40x, 60x (achromat DIN standard)
Revolving nosepiece for 4 objectives
Stage features mechanical, two-coordinate, with a Vernier scale and mechanical stage
Condenser Abbe with a diaphragm and optical filter
Diaphragm field
Focus coarse and fine
Body aluminum
Illumination LED
Brightness adjustment ✓
Power supply batteries or network adapter
Light filters blue
Application school/educational
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
References
and downloads
User manual: Bresser Erudit DLX microscopes (pdf)
(PDF, 2.44 Mb)
High-resolution images (zip)
(ZIP, 108.59 Mb)
