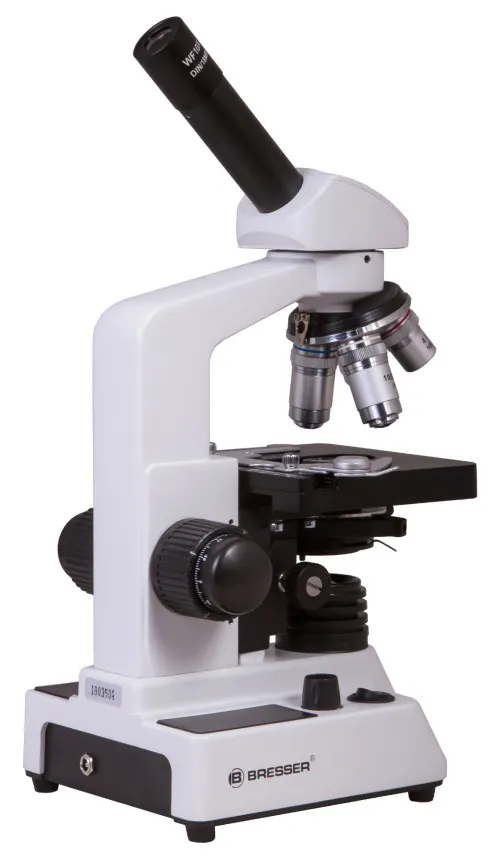

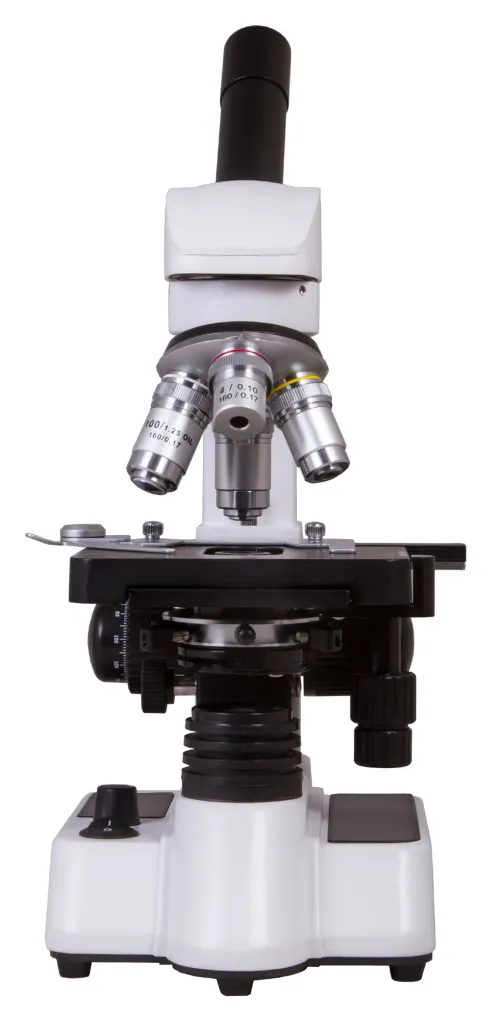

Bresser Erudit DLX 40–1000x Microscope

Bresser Erudit DLX 40–1000x Microscope

image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
see all
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
image Bresser Erudit DLX 40–1000x Microscope
The price is valid only for the online store and may differ from the prices in retail stores.

For brightfield observations. Magnification: 40–1000x. Monocular

Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
Availability
Future arrivals
25 November 2024
1
Product ID 72350
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922150178
Package size (LxWxH) 46x30x22 cm
Shipping Weight 3.73 kg
description
specifications
downloads
accessories
Description

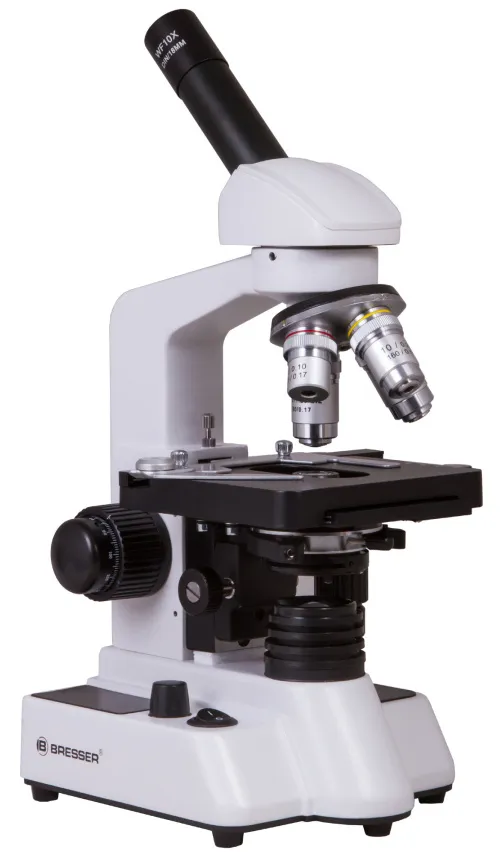

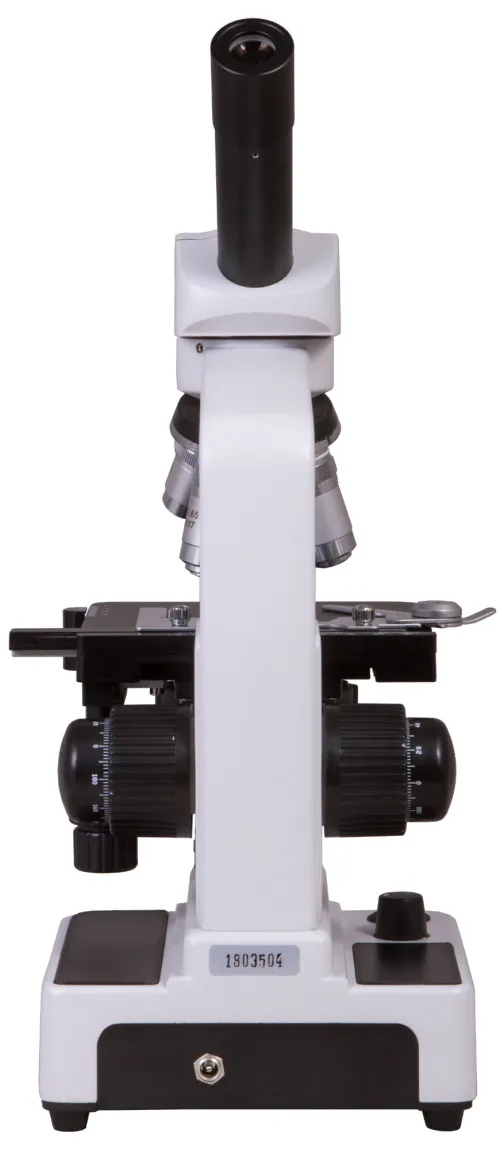

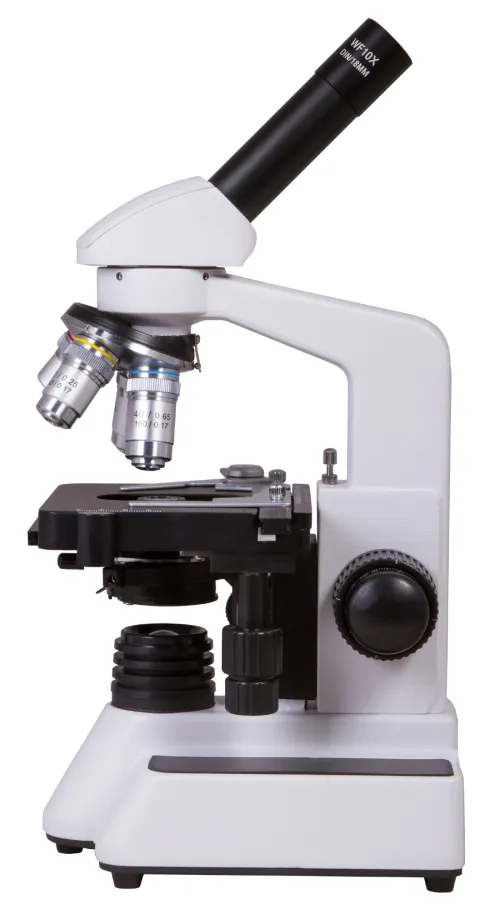

The Bresser Erudit DLX is a high-quality microscope for school, studies and hobby use. An integrated rechargeable battery makes the Erudit DLX for mobile use. The LED illuminator and the height adjustable condenser (with diaphragm and filter holder) offer an optimal illumination. The achromatic DIN objectives allow a very good image. The 40x and 100x objectives are resilient to save the preparation for damage. The microscope has a 360° rotatable monocular view, coarse and fine focusing drive, and a coaxial mechanical desk with nonius.

Features:

  • Type: biological microscope
  • View: monocular
  • Comfortable view, 360° turnable head
  • Application range: biology, botany, education, teaching
  • Illumination: LED, adjustable condenser
  • Level: beginner, intermediate
  • Extras: rechargeable battery operation
  • Coaxial mechanical stage

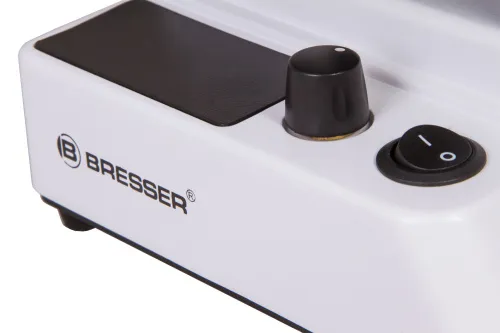

  • Integrated dimmer

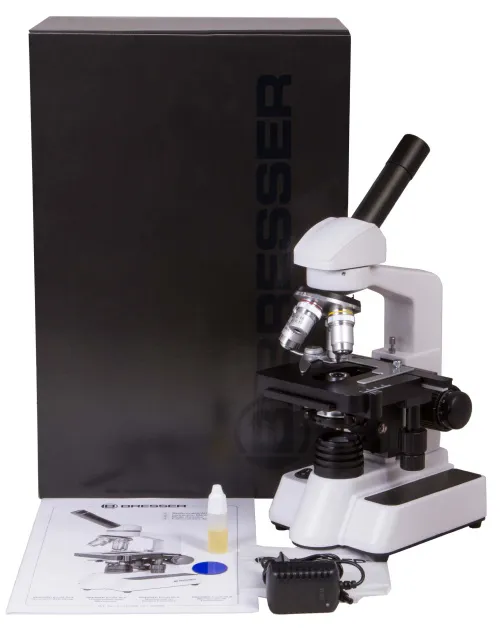

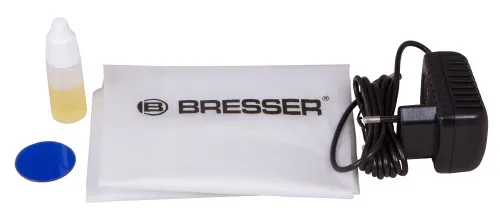

The kit includes:

  • Microscope body
  • Eyepiece 10x
  • 4 objecitves: 4x, 10x, 40x, 100x (oil)
  • Abbe condenser with field diaphragm and filter holder
  • Blue filter
  • Immersion oil
  • Dust cover
  • Power supply
  • User manual
Specifications
Product ID 72350
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922150178
Package size (LxWxH) 46x30x22 cm
Shipping Weight 3.73 kg
Type biological, light/optical
Head monocular
Nozzle 360 ° rotatable
Magnification, x 40 — 1000
Eyepiece tube diameter, mm 23

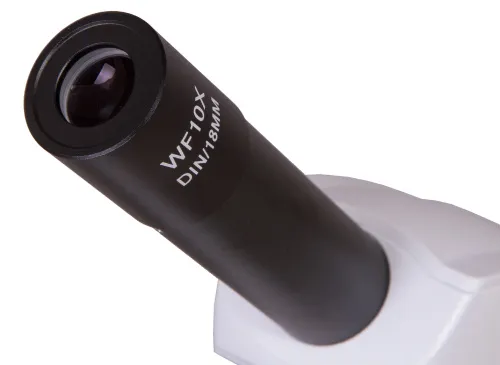

Eyepieces 10x with a pointer
Objectives achromat DIN standard: 4x, 10x, 40x, 100x (oil)
Revolving nosepiece for 4 objectives

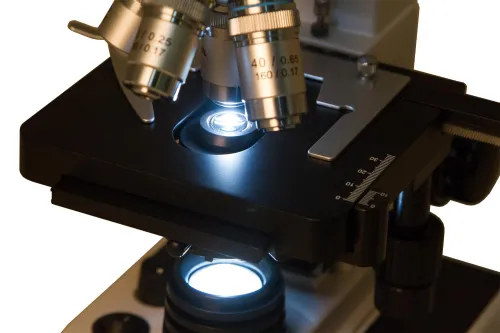

Stage features mechanical, two-coordinate, with a Vernier scale and mechanical stage
Condenser Abbe N.A. 1.25, height adjustment, filter holder
Diaphragm field

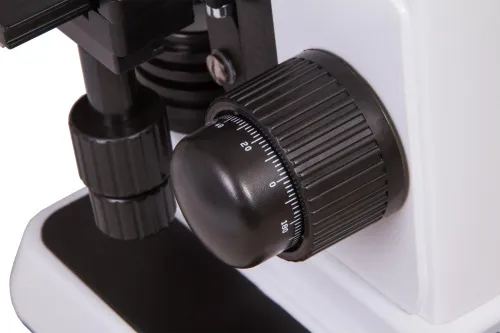

Focus coaxial; coarse and fine
Body aluminum, plastic
Illumination LED
Brightness adjustment ✓

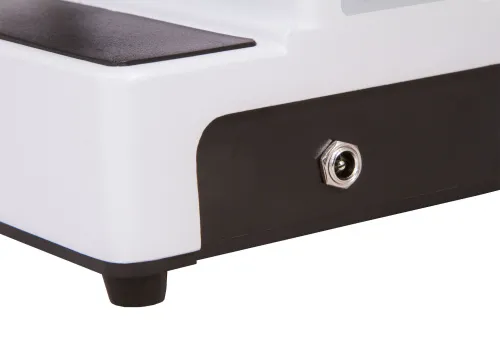

Power supply built-in battery, 230V AC adapter (included)
Light filters blue
User level beginners
Application school/educational
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
References
and downloads
User manual: Bresser Erudit DLX microscopes (pdf)
(PDF, 2.44 Mb)
High-resolution images (zip)
(ZIP, 192.74 Mb)
