For brightfield observations. Magnification: 40–400x. Binocular

Binocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 400
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
Availability
Future arrivals
25 November 2024
2
25 November 2024
2
25 November 2024
2

Product ID 73761
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922030777
Package size (LxWxH) 49x36x22 cm
Shipping Weight 6.53 kg
Description

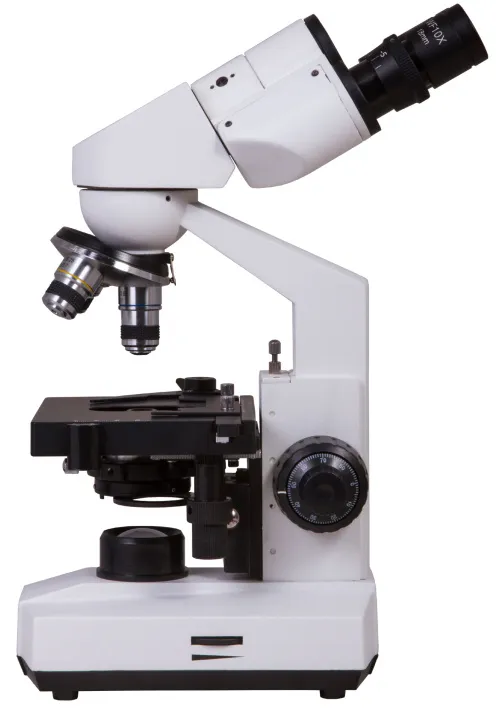

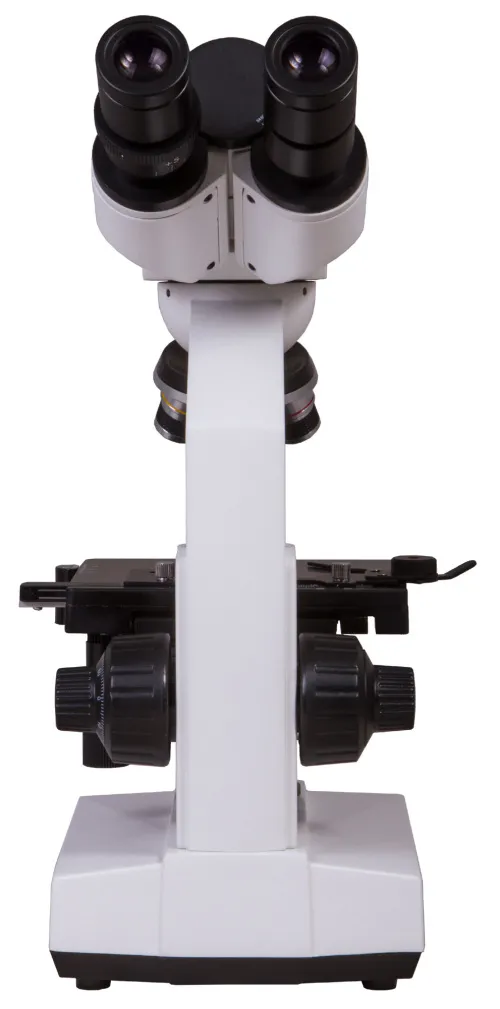

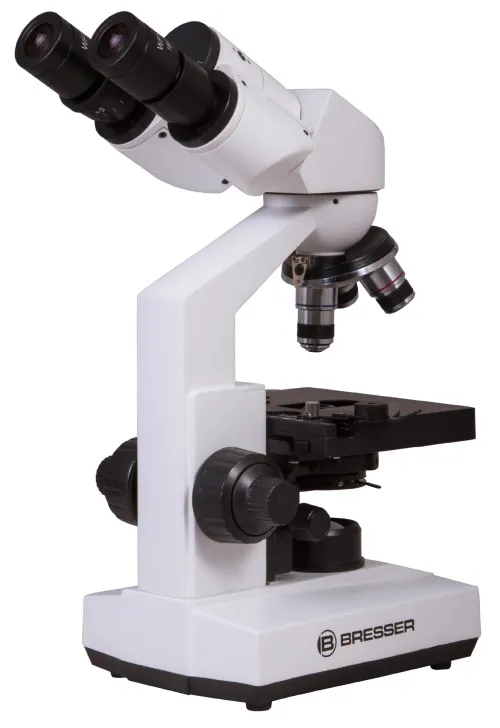

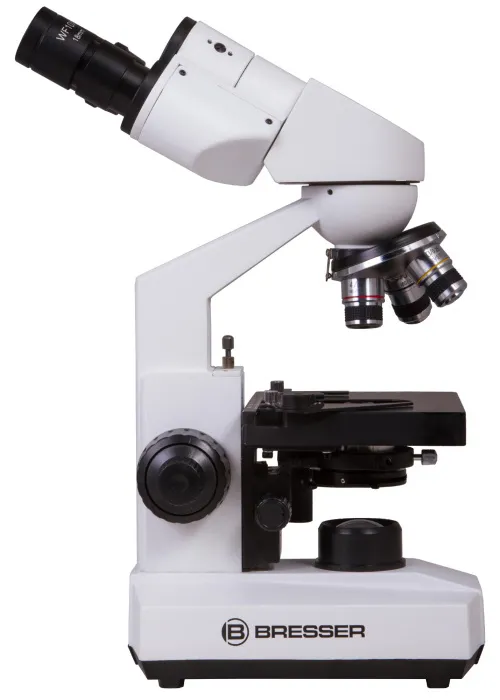

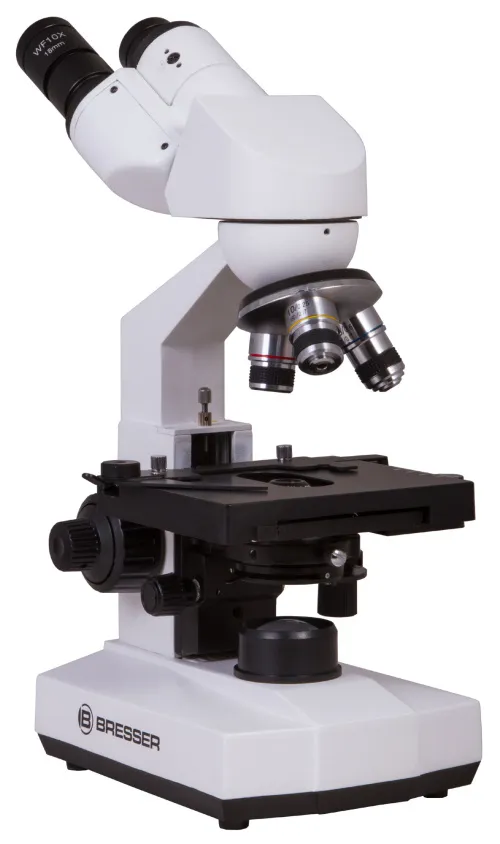

The Bresser Erudit Basic 40–400x is a versatile biological microscope with binocular head. Observing with both eyes makes viewing more comfortable and ergonomic and improves detail recognition. With its high quality optics it is the perfect choice for use in school or hobby. With battery powered LED lighting it can be used anywhere, e.g. for fieldwork or excursions.

The microscope can be used on a great variety of subjects, for example thin sections, pond life, or blood smears. It is also a useful tool to look at parasites of pets and livestock (e.g. coccidia, helminths, skin and fur parasites).

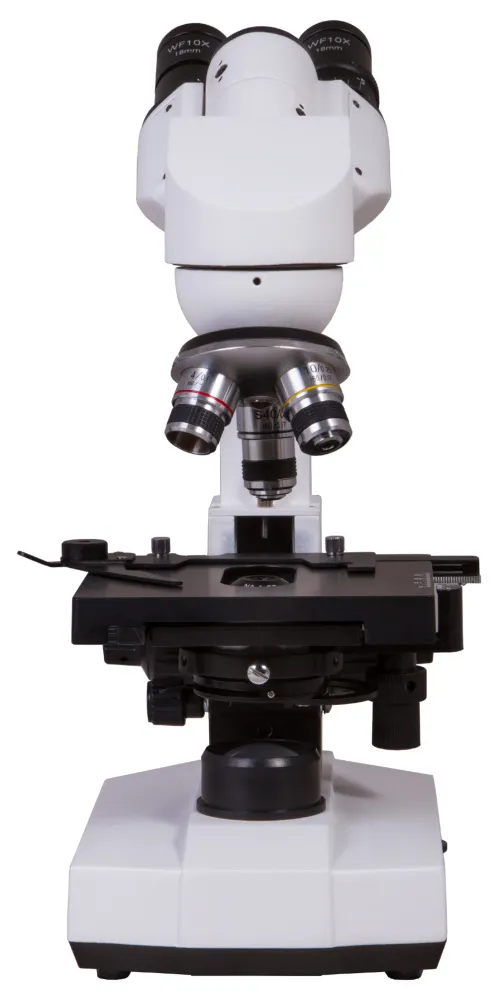

Three magnifications (40x, 100x, 400x) deliver good resolution to see small details. There is no need to work with immersion oil. The achromatic DIN objectives deliver sharp images with nice detail. The 40x objective is spring loaded to minimize the risk of damage to specimen or objective.

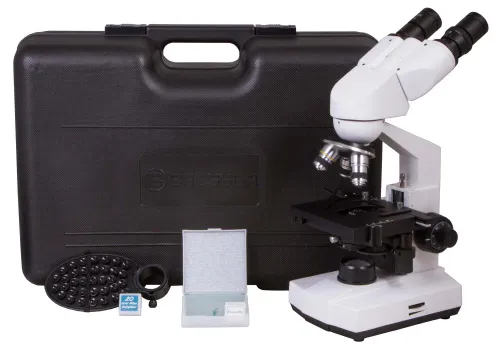

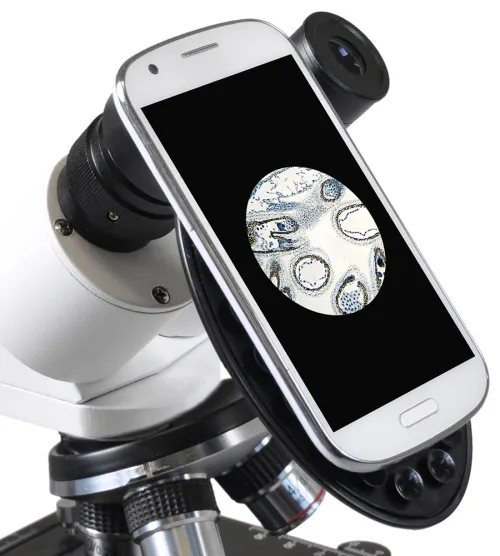

The Bresser Erudit Basic 40–400x comes with a sturdy case for transport and storage, as well as with a smartphone holder for easy and convenient documentation of microscopic images and video.

Features:

  • Type: biological microscope, transmitted light, binocular head
  • Application: biology
  • Battery powered long life LED light for mobile use

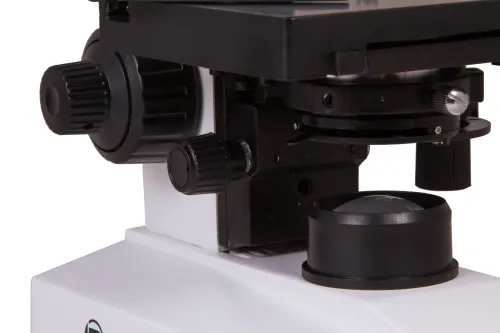

  • Coarse and fine focus, coaxial
  • Coaxial mechanical desk
  • Adjustable Abbe condenser with diaphragm and filter holder
  • Comfortable eyepiece tube, 360° rotatable

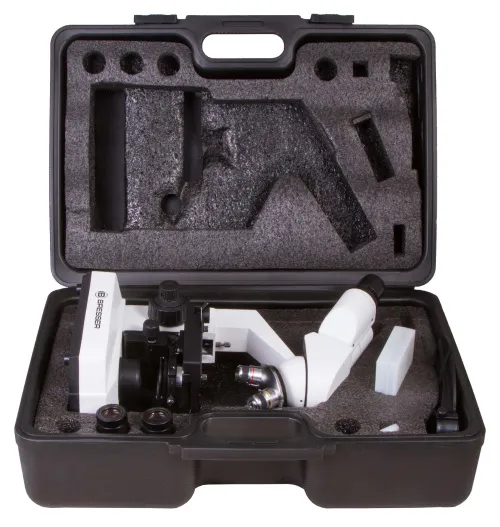

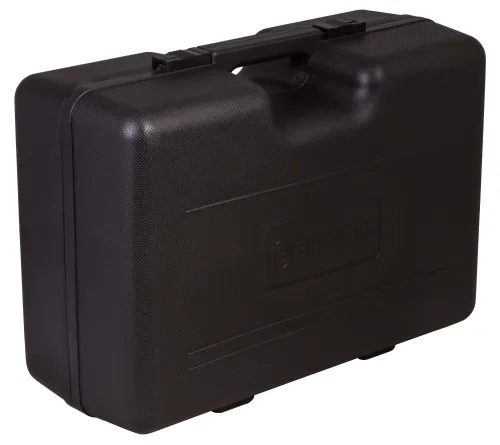

  • Sturdy carry case

The kit includes:

  • Microscope body with LED light

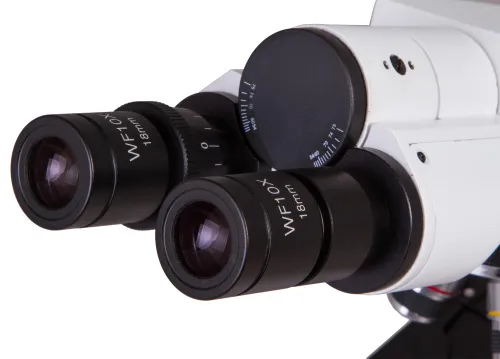

  • 2 WF10x eyepieces
  • Achromatic DIN objectives (4x, 10x, 40x)
  • Abbe condenser N.A. 1.25, adjustable, with diaphragm and filter holder

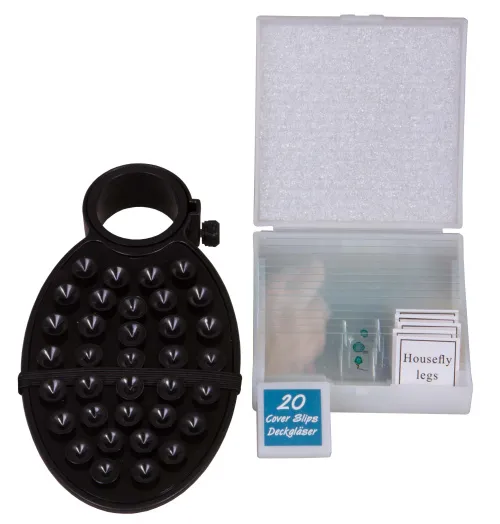

  • Smartphone holder
  • Carry case
  • Box with preparations, empty slides and cover glasses
  • User manual
Specifications
Product ID 73761
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922030777
Package size (LxWxH) 49x36x22 cm
Shipping Weight 6.53 kg
Type biological, light/optical
Head binocular
Nozzle 360 ° rotatable
Magnification, x 40 — 400
Eyepiece tube diameter, mm 23.2
Eyepieces WF10x/18mm (2 pcs.)

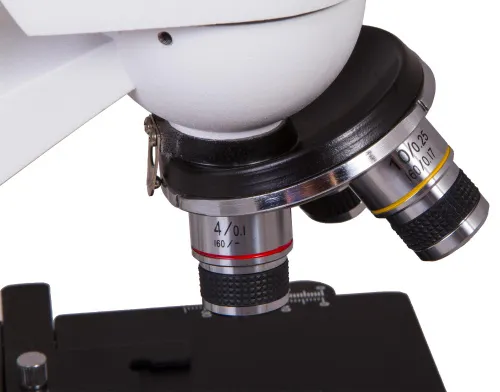

Objectives 4x, 10x, 40x (achromat DIN standard)
Revolving nosepiece for 3 objectives

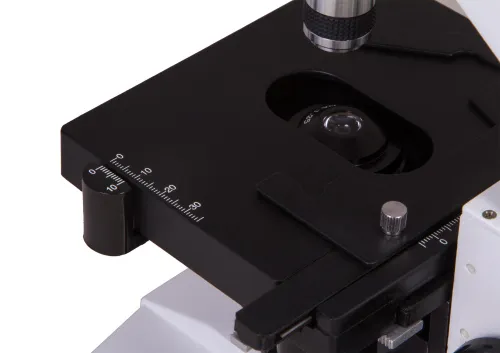

Stage features with a mechanical stage, two-axis, with a measuring scale, mechanical
Condenser Abbe condenser N.A. 1.25 with a diaphragm and filter holder

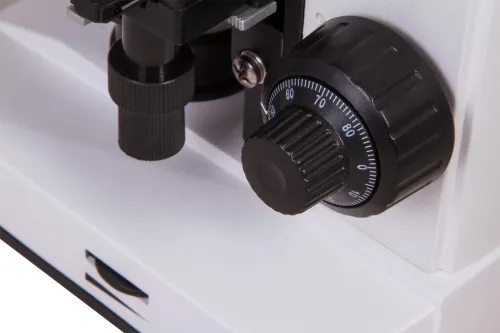

Focus coaxial; coarse and fine
Body aluminum, plastic
Illumination LED
Brightness adjustment
Power supply 3 batteries type AA/LR6 (not included)
User level beginners
Application school/educational
Illumination location lower
Research method bright field
Experiment kit included
Pouch/case/bag in set case
