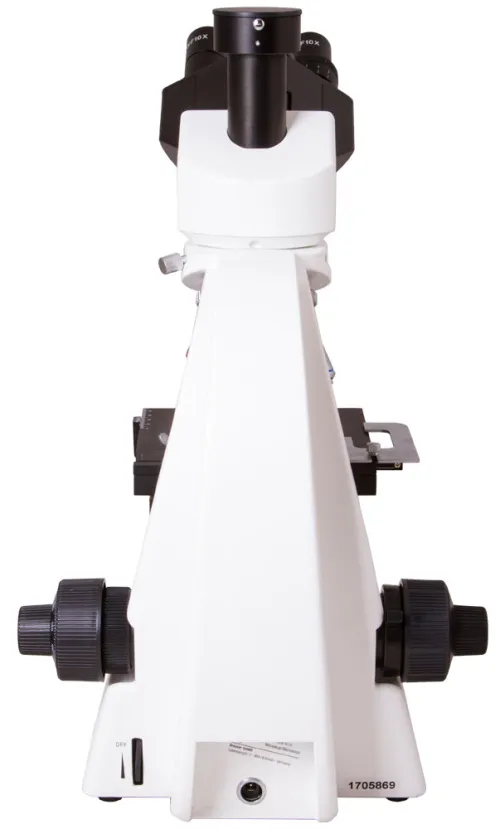

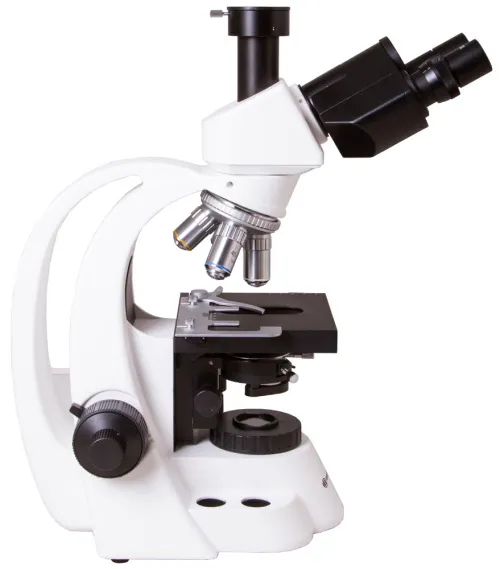

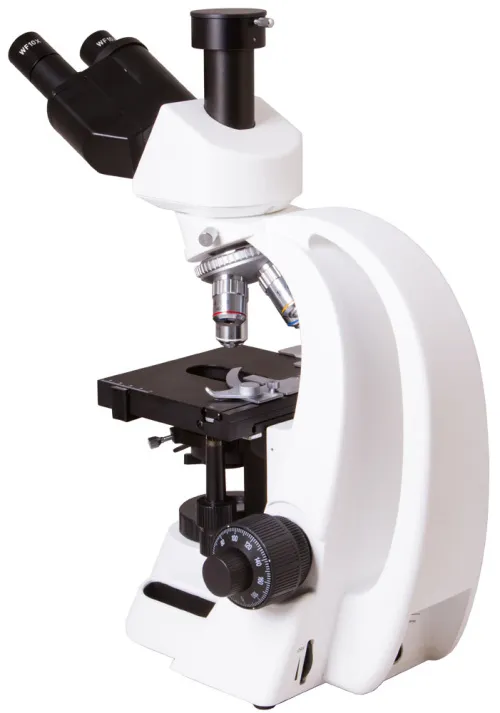

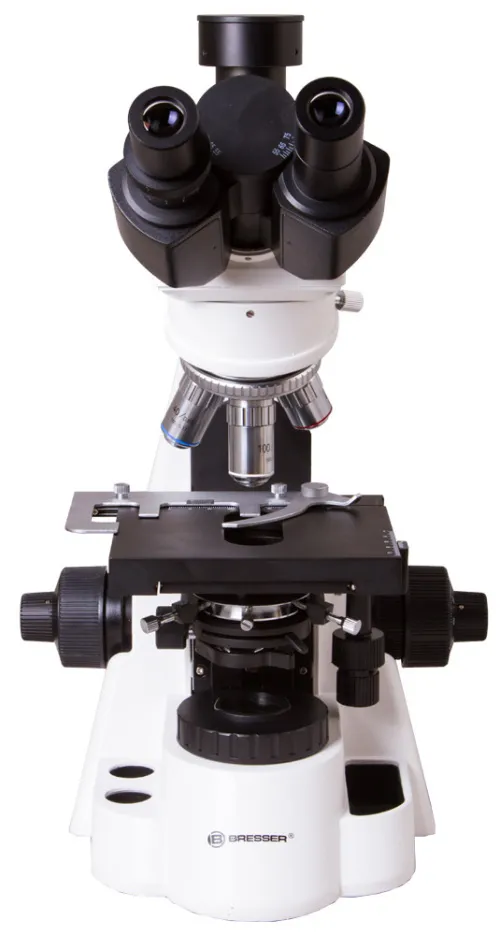

Bresser BioScience Trino Microscope

Bresser BioScience Trino Microscope

photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
see all
photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
photograph Bresser BioScience Trino Microscope
The price is valid only for the online store and may differ from the prices in retail stores.

Biological trinocular microscope

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability
Product ID 62563
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922153902
Package size (LxWxH) 54x34x33 cm
Shipping Weight 10.26 kg
description
specifications
downloads
accessories
Description

The Bresser BioScience is the perfect instrument for laboratory use. The size and ergonomic design is perfect for prolonged use. The Köhler illumination system provides a brilliant image quality. The trinocular tube will connect a MicroCam or other C-Mount microscope camera directly with the optional C-Mount adapter.

The standard bright field illumination (30W halogen) ensures a pleasant and differentiated colour rendering and is also bright enough for contrasting method like phase contrast and dark field (optional).

Features:

  • Köhler iluminator
  • Separate AC-adapter, for high safety

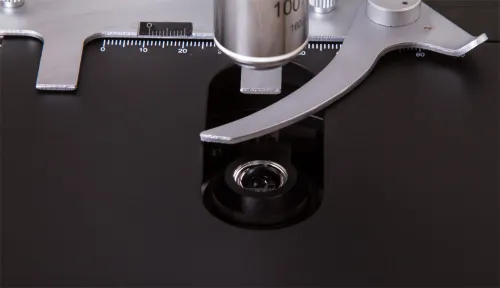

  • Coaxial mechanical desk with nonius scale

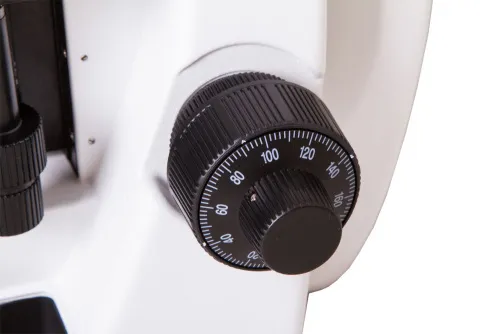

  • Coarse and fine focusing

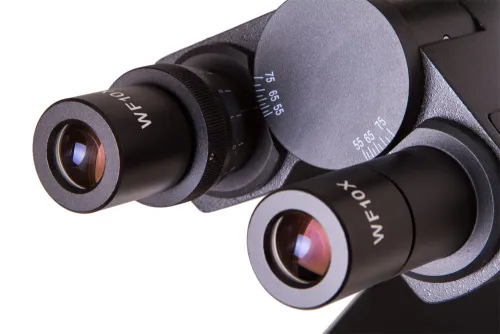

  • 2 eyepieces: WF10x (23mm diameter)

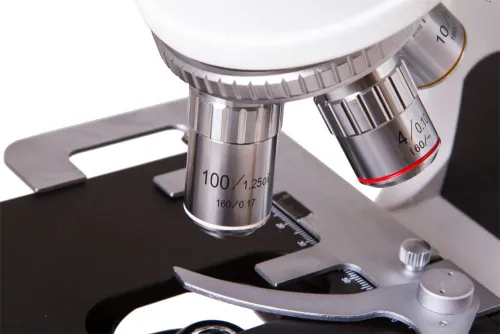

  • 4 objectives with DIN 4x/10x/40x/100x (oil) magnification
  • Type of objective: achromatic
  • Abbe N.A. 1.25 condenser

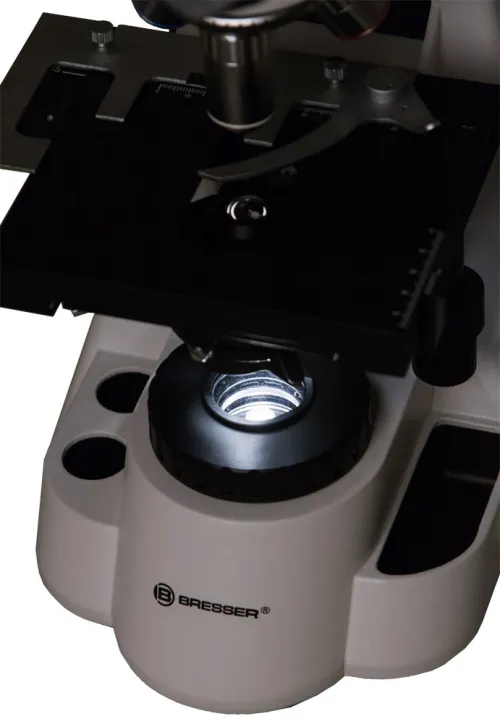

  • Illumination: 12V/30W halogen with dimmer

The kit includes:

  • Microscope
  • Dust cover
  • 2 eyepieces
  • 4 DIN objectives
  • Immersion oil
  • 230V power supply (12V/3A)
  • User manual
Specifications
Product ID 62563
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922153902
Package size (LxWxH) 54x34x33 cm
Shipping Weight 10.26 kg
Type biological, light/optical
Head trinocular
Head inclination angle 30 °
Magnification, x 40 — 1000
Eyepieces WF10x/23mm (2 pcs.)
Objectives achromat DIN standard: 4x, 10x, 40x, 100x (oil)
Revolving nosepiece for 4 objectives
Condenser Abbe N.A. 1.25
Focus coarse and fine
Illumination halogen
Brightness adjustment ✓
Power supply 220–240V
Light source type 12V/30W
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
References
and downloads
User manual: Bresser BioScience microscopes (pdf) DE, EN, FR
(PDF, 810.94 Kb)
High-resolution images (zip)
(ZIP, 118.14 Mb)
