Bresser Biorit TP 40–400x Microscope

Bresser Biorit TP 40–400x Microscope

picture Bresser Biorit TP 40–400x Microscope, 1

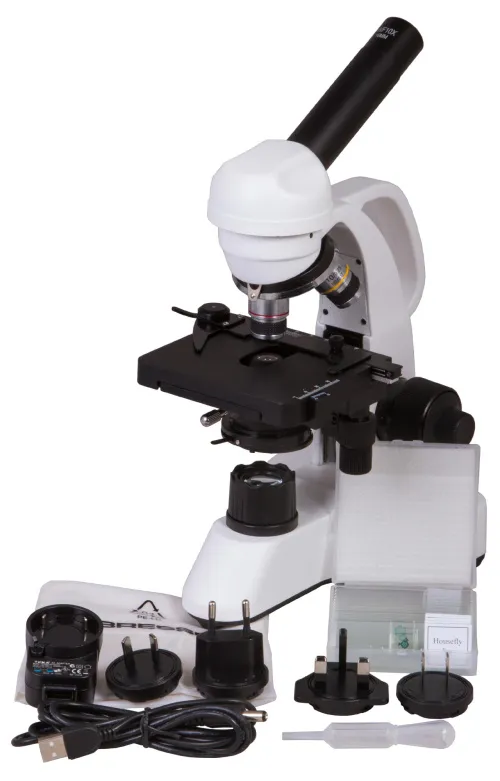

picture Bresser Biorit TP 40–400x Microscope, 2

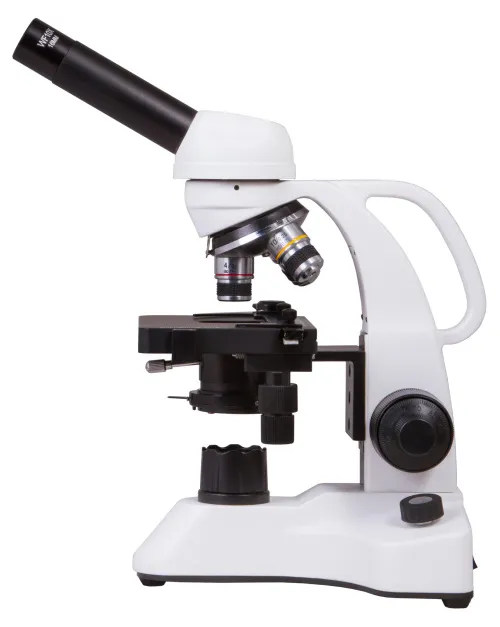

picture Bresser Biorit TP 40–400x Microscope, 3

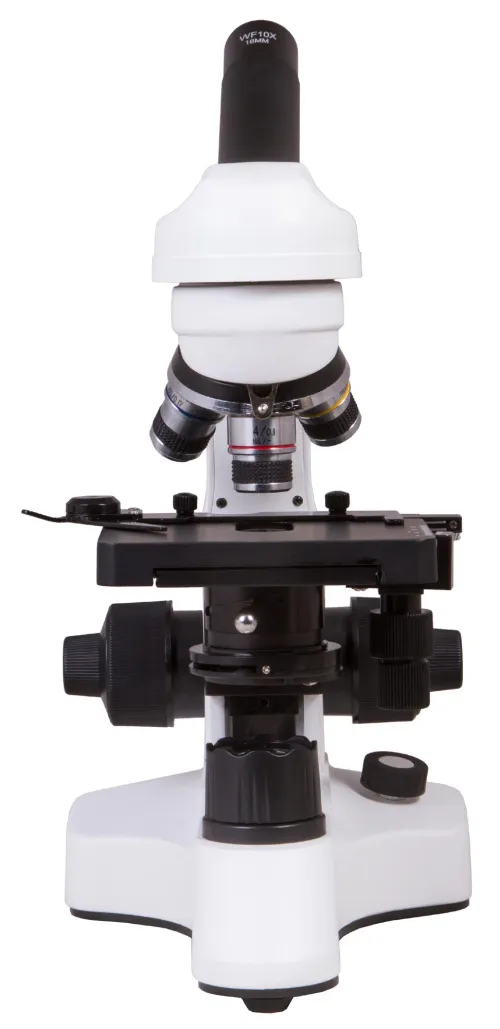

picture Bresser Biorit TP 40–400x Microscope, 4
see all

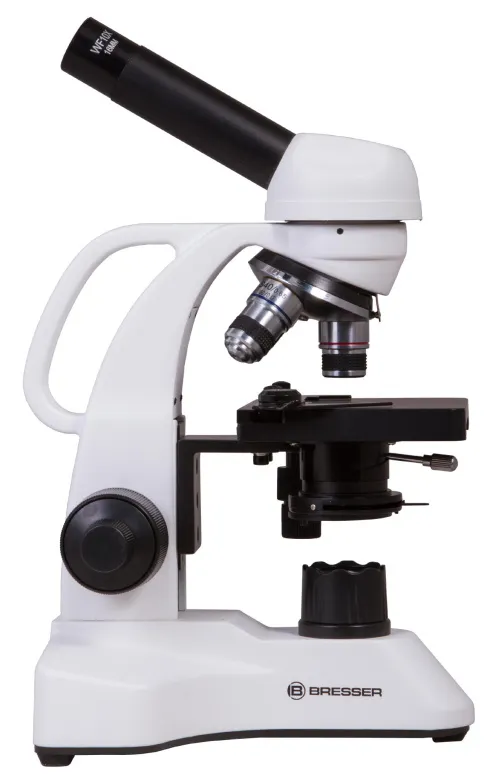

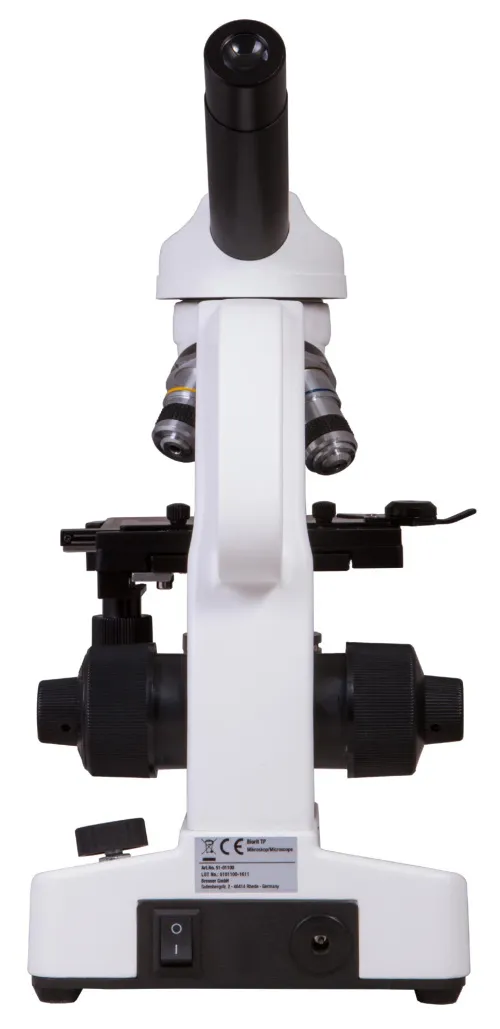

picture Bresser Biorit TP 40–400x Microscope, 5

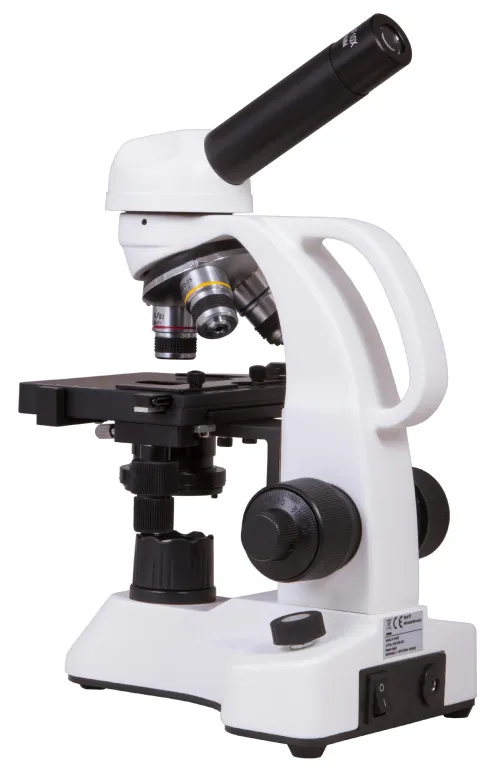

picture Bresser Biorit TP 40–400x Microscope, 6
picture Bresser Biorit TP 40–400x Microscope, 7

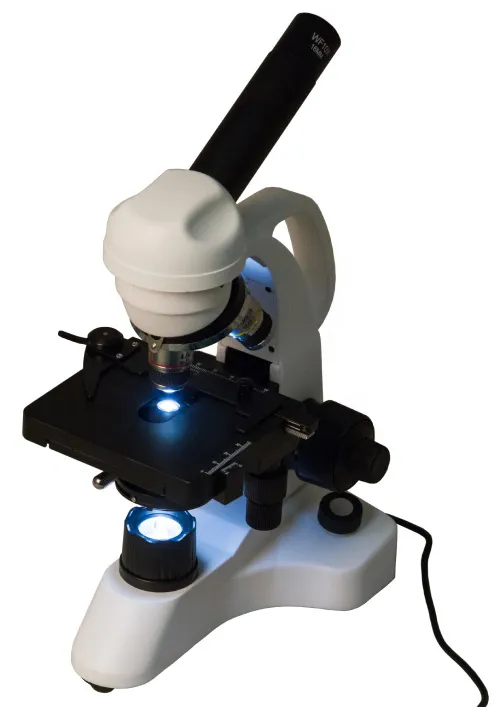

picture Bresser Biorit TP 40–400x Microscope, 8

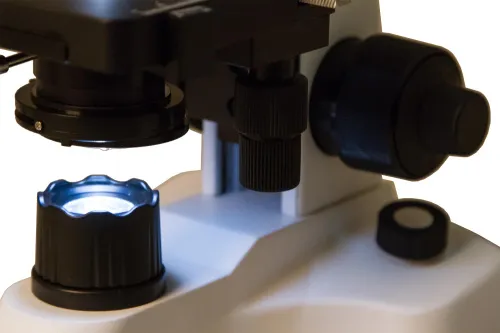

picture Bresser Biorit TP 40–400x Microscope, 9

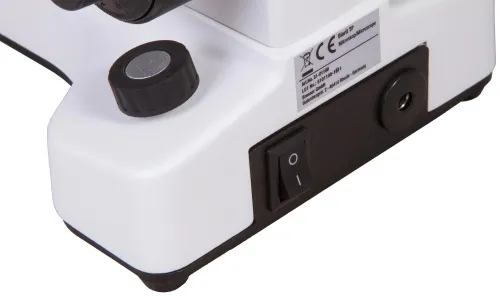

picture Bresser Biorit TP 40–400x Microscope, 10

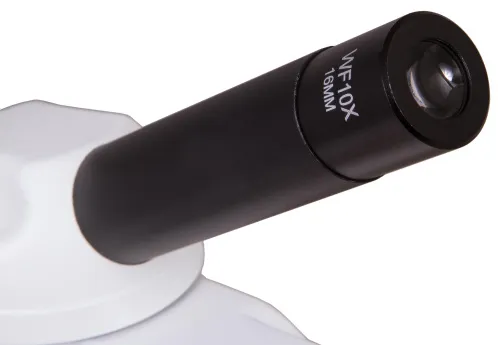

picture Bresser Biorit TP 40–400x Microscope, 11

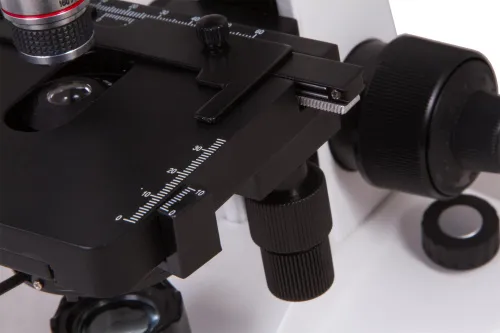

picture Bresser Biorit TP 40–400x Microscope, 12

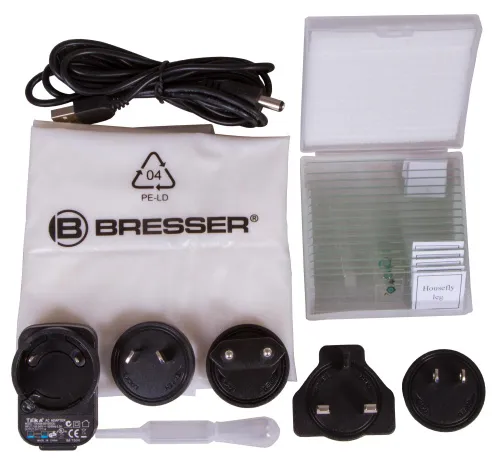

picture Bresser Biorit TP 40–400x Microscope, 13
The price is valid only for the online store and may differ from the prices in retail stores.

For brightfield observations. Magnification: 40–400x. Monocular

Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 400
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
Availability
Product ID 73760
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922038780
Package size (LxWxH) 38x31x19 cm
Shipping Weight 3.04 kg
description
specifications
downloads
accessories
Description

The Bresser Biorit TP is a compact but high-quality microscope for schools and universities with many possible applications. Also suitable for mobile use because of the integrated rechargeable battery! The dimmable LED illumination of the Biorit TP and a vertically adjustable condenser (with iris diaphragm and filter holder) enable perfect lighting. Achromatic DIN-objectives provide superb images without distortion. The 40x-objective is spring secured to prevent damage to your object plate. The microscope features a 360° rotating monocular insight, a coarse- and fine focus as well as a coaxial cross table with vernier scale.

Features:

  • Type: biological microscope
  • Viewing: monocular
  • Areas of application: biology, botany, education
  • Illumination: LED, vertically adjustable condensor
  • Target group: beginner, intermediate
  • Extra: built-in rechargeable battery
  • Coaxial cross table
  • Intergrated dimmer

The kit includes:

  • Microscope
  • 10x magnification eyepiece
  • 3x objectives (4x, 10x, 40x)
  • Abbe condenser with iris diaphragm and filter holder
  • USB power cable
  • User manual
Specifications
Product ID 73760
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922038780
Package size (LxWxH) 38x31x19 cm
Shipping Weight 3.04 kg
Type biological, light/optical
Microscope head type monocular
Head 360 ° rotatable
Magnification, x 40 — 400
Eyepieces 10x
Objectives 4x, 10x, 40x (achromat DIN standard)
Revolving nosepiece for 3 objectives
Stage features mechanical, two-axis, with a measuring scale, with a mechanical stage
Condenser Abbe condenser N.A. 1.25 with an iris diaphragm and filter holder, with adjustable height
Diaphragm iris
Focus coaxial; coarse and fine
Body aluminum
Illumination LED
Brightness adjustment ✓
Power supply AC network, built-in battery
User level beginners
Application school/educational
Illumination location lower
Research method bright field
References
and downloads
High-resolution images (zip)
(ZIP, 119.39 Mb)
User manual: Bresser Biorit TP 40–400x microscope (pdf) DE, EN
(PDF, 1.04 Mb)
Quick start guide: Bresser Biorit TP 40–400x microscope (pdf) DE, EN
(PDF, 1.53 Mb)
