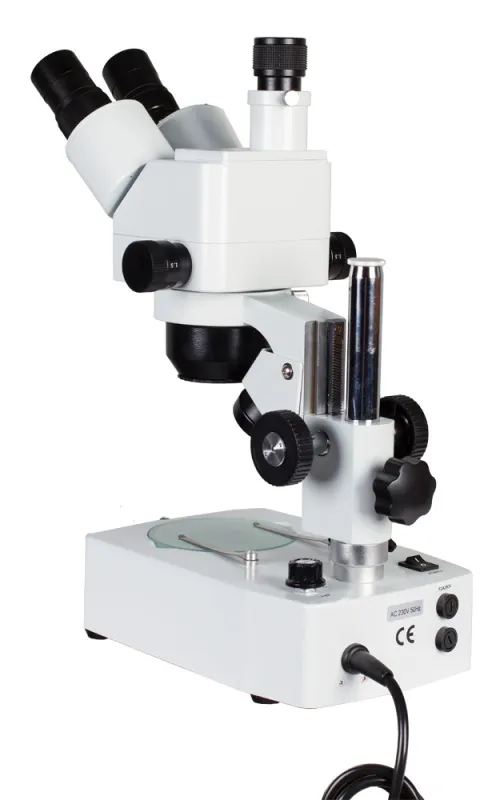

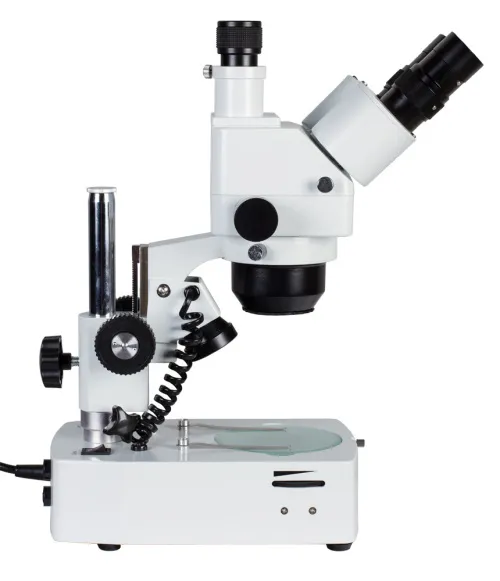

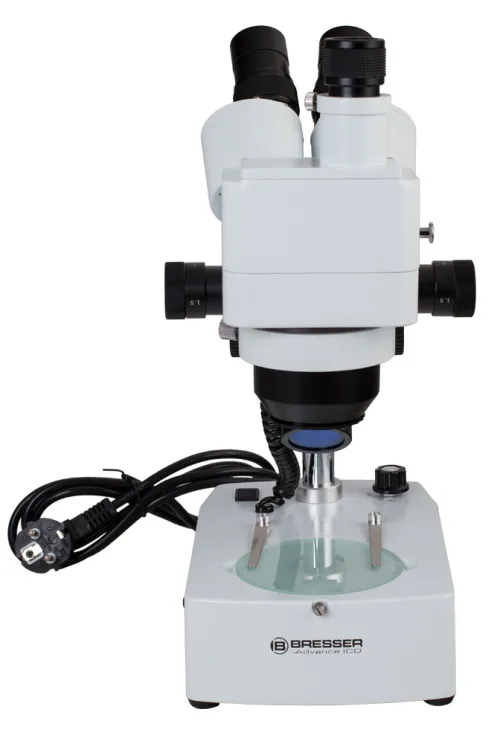

Bresser Advance ICD 10–160x Microscope

Bresser Advance ICD 10–160x Microscope

photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
see all
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
photograph Bresser Advance ICD 10–160x Microscope
The price is valid only for the online store and may differ from the prices in retail stores.

Stereo microscope. Trinocular head. Magnification: 10–160x

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
10 — 160
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability
Product ID 33142
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922148014
Package size (LxWxH) 35x23x44 cm
Shipping Weight 5.92 kg
description
specifications
downloads
accessories
Description

If you need a quality stereo microscope for professional use at an affordable price, the Bresser Advance ICD 10–160x Microscope is what you are looking for. This model combines the highest optical quality, reliable mechanics, and high convenience of use. It offers a wide range of application: from education and archeology to gemology and watch repair.

The microscope combines a stereo zoom objective (1–4x) and two pairs of high-grade wide field eyepieces (10x and 20x). The model’s multi-coated glass enables bright and contrast views with no distortions and great color rendition. To enhance image contrast, a blue filter is included. The design of the height-adjustable head allows you to attach a camera and then simultaneously observe a sample with two eyepieces and make photos and videos. For more convenient observations, interpupillary distance and diopter correction mechanisms are provided. Two bright halogen bulbs can be turned on separately or both at once. The illumination is powered by mains electricity.

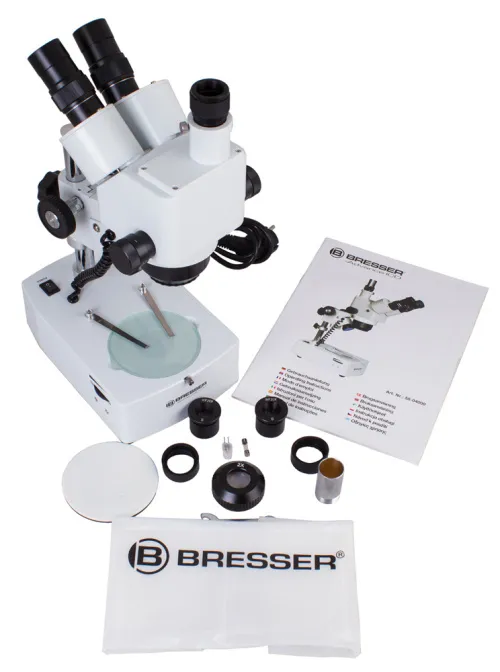

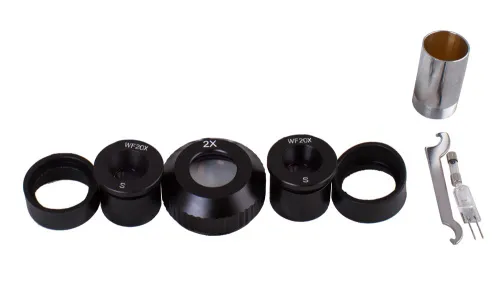

The kit includes:

  • Bresser Advance ICD 10–160x Microscope

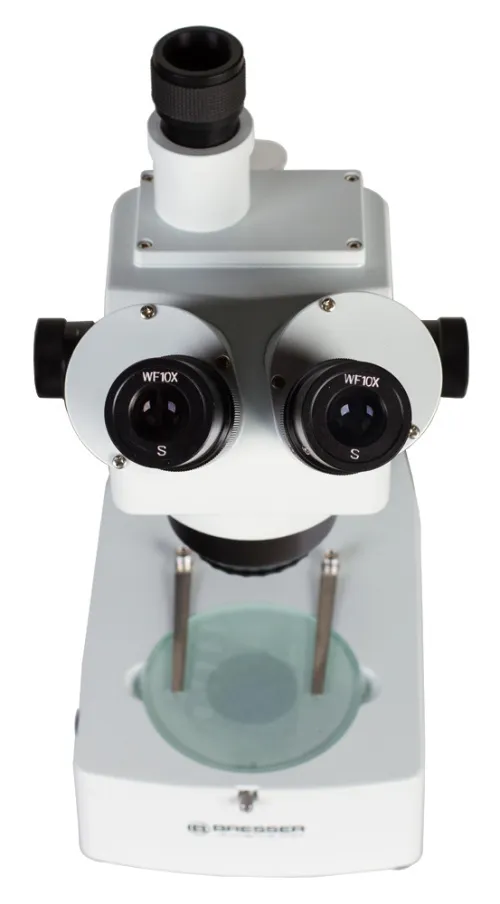

  • Eyepieces: WF10x, WF20x
  • Blue filter
  • Rubber eyecups
  • Protective cap
Specifications
Product ID 33142
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922148014
Package size (LxWxH) 35x23x44 cm
Shipping Weight 5.92 kg
Type light/optical, stereo/instrumental
Head trinocular
Nozzle 360 ° rotatable
Head inclination angle 45 °
Magnification, x 10 — 160
Eyepiece tube diameter, mm 30.5mm (binocular head); 23.2mm (third vertical tube)
Eyepieces WF10x, WF20x
Objectives 2x
Working distance, mm 28 — 80
Interpupillary distance, mm 55 — 75
Stage features with clips, fixed
Eyepiece diopter adjustment, diopters ±5
Focus coarse
Illumination halogen

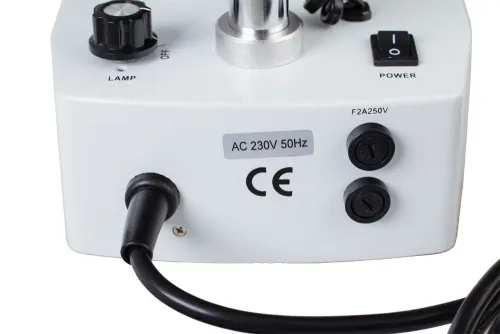

Power supply 220–240V
Light filters blue
Additional 1–4x stereo magnification
Application for applied research
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
References
and downloads
High-resolution images (rar)
(X-RAR, 100.4 Mb)
User manual: Bresser Advance ICD 10–160x microscope (pdf)
(PDF, 1.71 Mb)
