Measuring distances, area, and volume. Pythagorean theorem feature

Laser
Type of tape measure
0.05–80m
Measuring range (length)
M, ft, in
Units of measurement (length)
Availability

Product ID 81423
Brand Ermenrich
Warranty 5 years
EAN 5905555015897
Package size (LxWxH) 4x16x11 cm
Shipping Weight 0.195 kg
Description

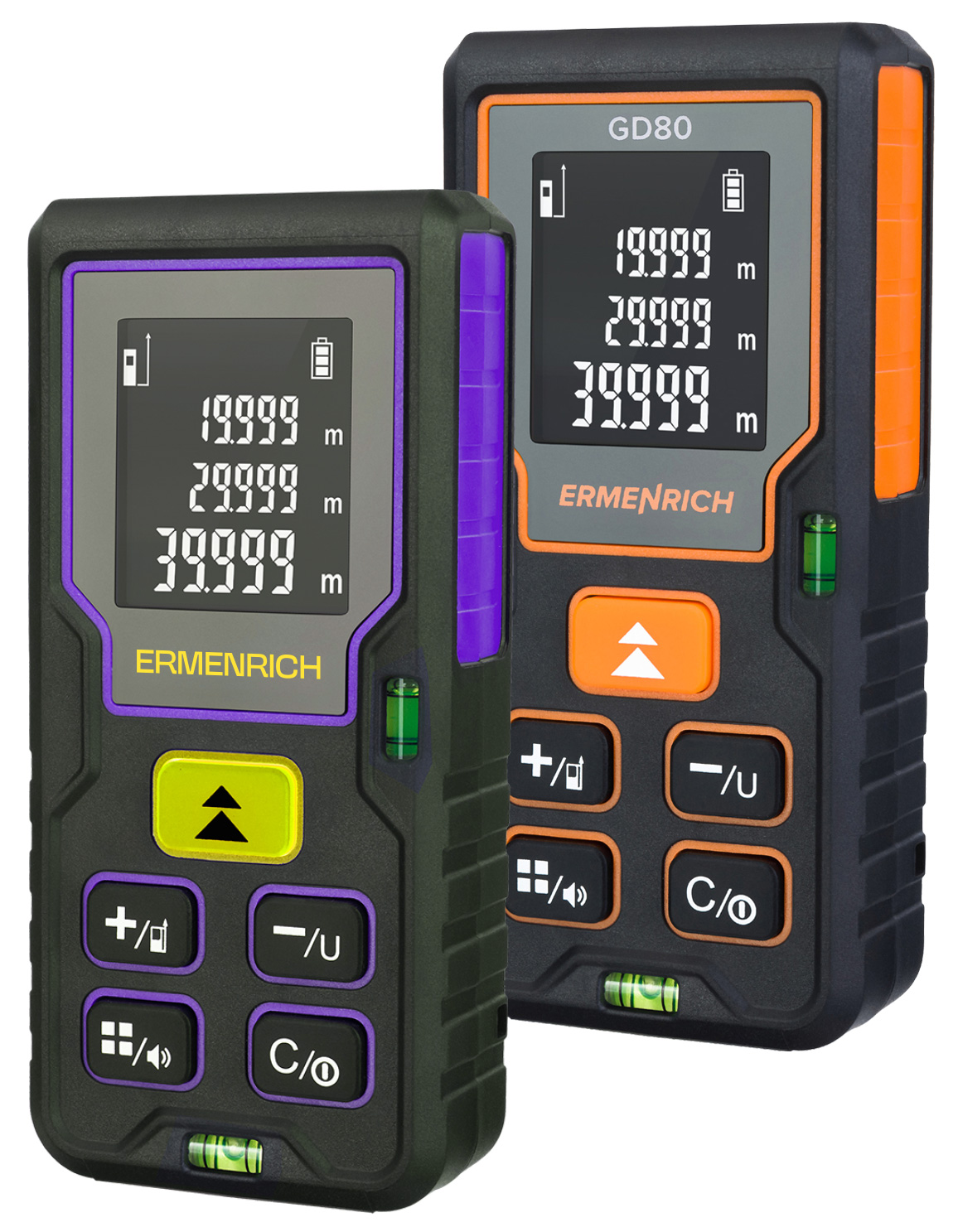

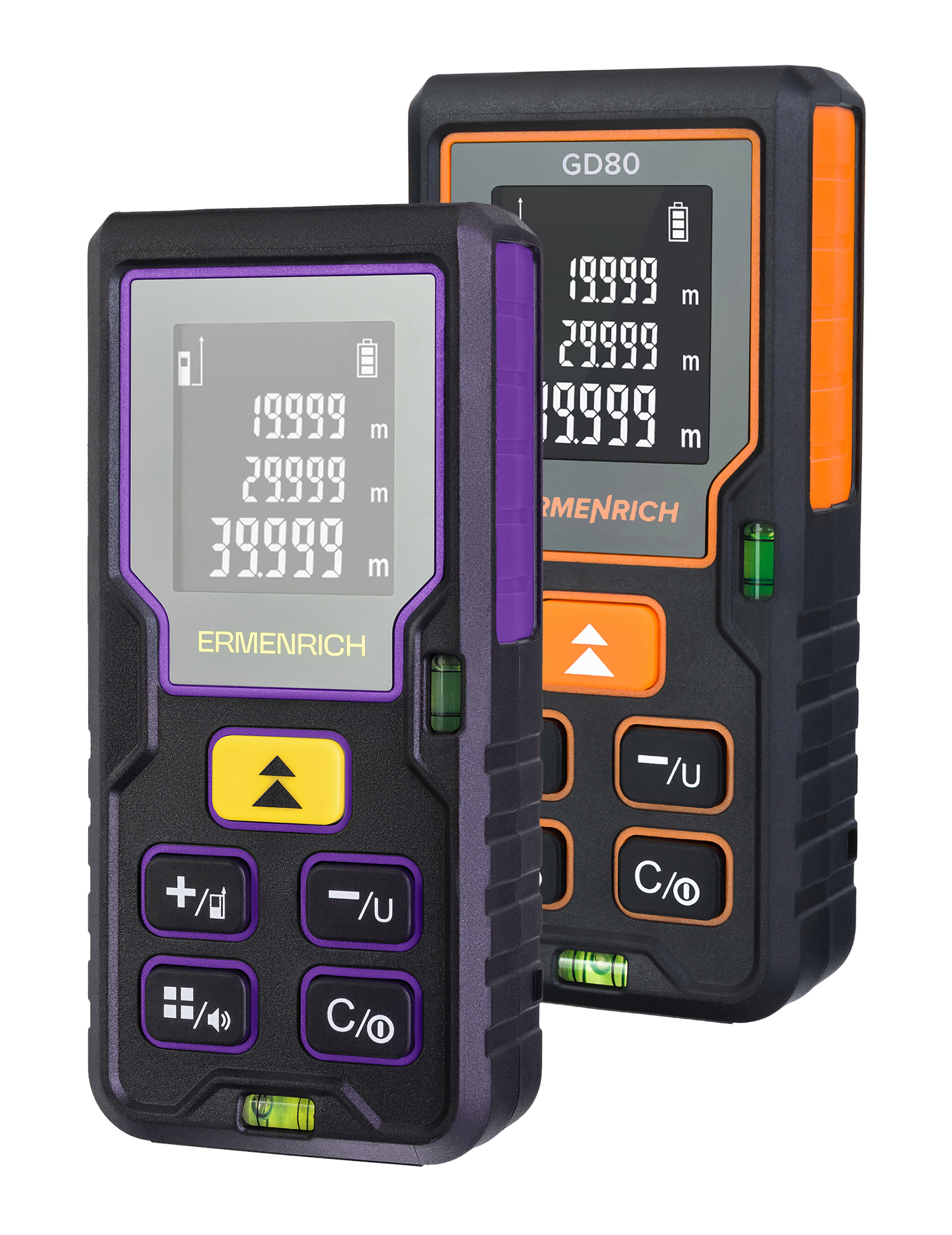

The Ermenrich Reel GD80 is a laser meter designed to measure a wide range of linear dimensions and distances, areas, and volumes. The laser meter is a reliable and functional tool for construction and renovation work, measuring long workpieces and products in manufacturing processes as well as for land surveying. The operating range of the device is 0.05 to 80 meters (0.16–260ft). The software enables single and serial measurements (continuous scan mode). When working in challenging work environments, the Pythagorean theorem feature will calculate the distance between two points by taking intermediate measurements.

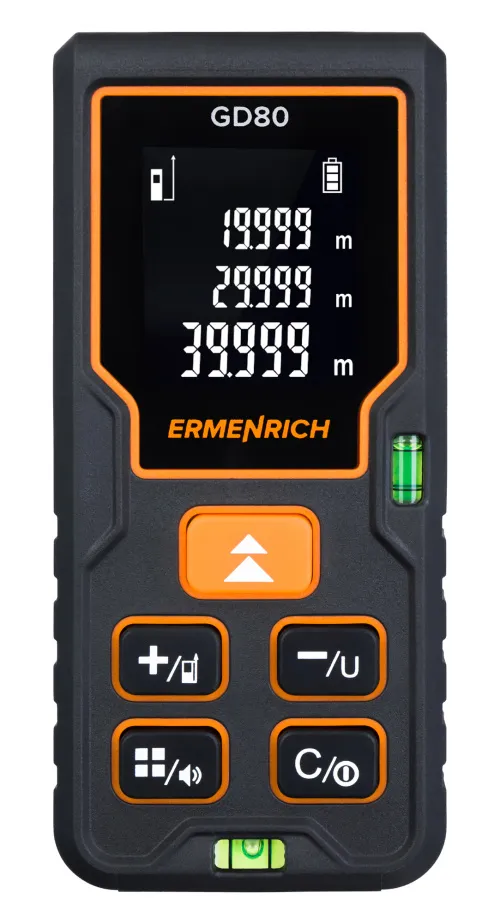

The Ermenrich Reel GD80 is an ergonomic and compact device with the control buttons right at your fingertips. The device is powered by 2 AAA batteries. One set of batteries lasts for over 5,000 measurements. The auto-off function of the laser and device itself also helps to save battery power. The laser meter can store up to 20 groups of data for recording the results of your work. Its silent mode, which enables you to take measurements in silence, will be appreciated by countless professionals.

Key features:

  • Measurement of the length, area, and volume of a room
  • Single distance measurement mode and continuous (scan) measurement mode
  • The Pythagorean theorem feature: calculating distances using indirect data
  • 2 AAA batteries for over 5,000 measurements
  • Lightweight and compact design, 3-line LCD data display
Specifications
Product ID 81423
Brand Ermenrich
Warranty 5 years
EAN 5905555015897
Package size (LxWxH) 4x16x11 cm
Shipping Weight 0.195 kg
Type laser
Single distance measurement mode
Scanning mode
Measuring range 0.05–80m
Units of measurement (length) m, ft, in
Measurement accuracy ±2
Area measurement
Units of measurement (area) m², sq.ft.
Volume measurement
Units of measurement (volume) m3, cu.ft.
Pythagorean theorem feature
Addition and subtraction
Reference point
Silent mode

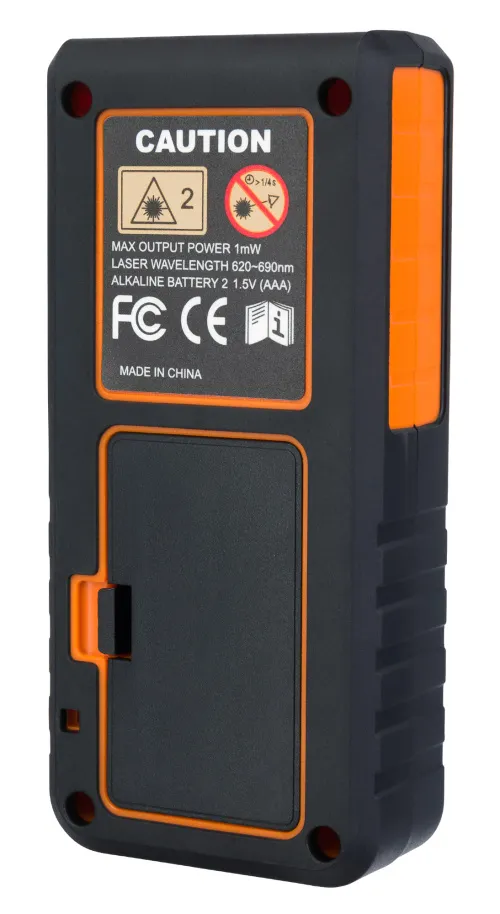

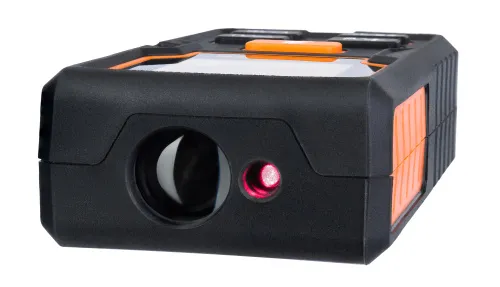

Laser designator <1mW, 620–690nm, class 1
Laser beam/device auto-off 30/180 seconds
Number of lines displayed on the screen 3
History record 20 groups

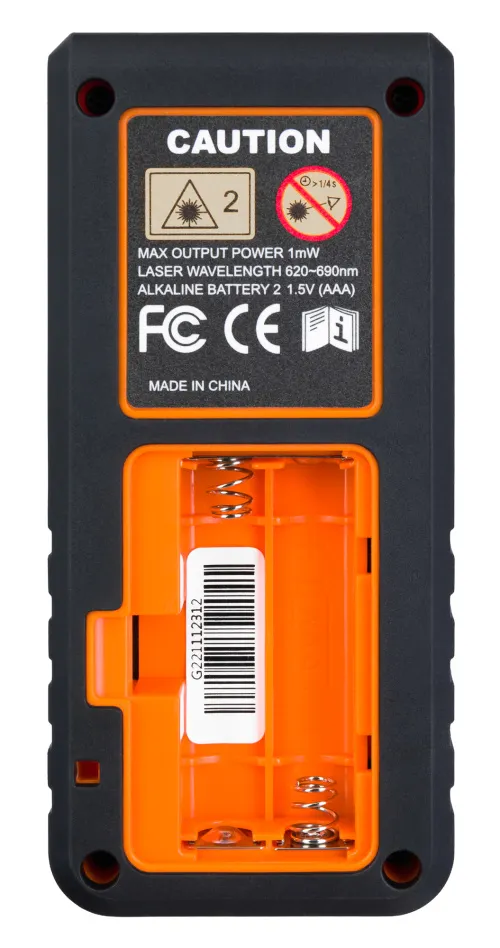

Power supply 2 AAA batteries (not included)
Operating life of one set of batteries >5000 measurements
Low battery status indicator
Operating temperature range,°C 0...+40 (+32…+104°F)
