Detection of low voltage single-core and two-core parallel cables buried in the ground or hidden in walls

Single-core, two-core parallel cables
Tracing cable types
0.6 (2)
Maximum cable detection depth
24
The maximum voltage in the tested circuit is the maximum voltage of the cables that the device can detect
Availability

Product ID 82548
Brand Ermenrich
Warranty 5 years
EAN 5905555016924
Package size (LxWxH) 24x15x5 cm
Shipping Weight 0.455 kg
Description

The Ermenrich Ping SM80 Underground Wire Detector is designed to detect low voltage or zero voltage single-core and two-core parallel cables that are low or zero voltage as well as buried deep in the ground or hidden in walls. It can be used for land surveying and site investigations before starting construction works, e.g., before drilling walls, foundation excavations, etc. The Ermenrich Ping SM80 also can locate circuit breakers and hidden sockets.

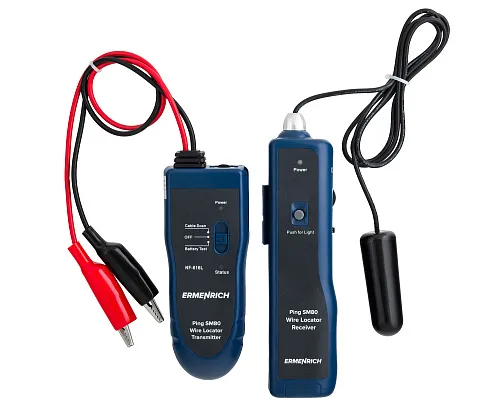

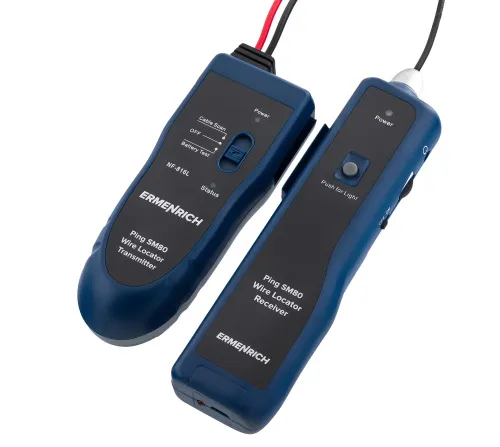

The device includes a transmitter and receiver. The depth of detection is 0.6 meters (2ft), and the length of the investigated cable can be up to 800 meters (2625ft). When a cable is detected, the Ermenrich Ping SM80 notifies you with an audible signal. If you are working in a noisy environment where the signal is hard to hear, you can connect earbuds (included) to the receiver.

The device is easy to use and easy to maintain, you only need to recharge the receiver and transmitter batteries occasionally.

Key features:

  • For zero or low voltage cables only
  • Detection of single-core cables and two-core cables with parallel connection
  • Maximum cable depth – 0.6 meters (2ft), maximum length – 800 meters (2625ft)
  • Cable depth measurement, determining the location of circuit breakers, finding safe spots to drill and installing sockets
  • Powered by a rechargeable battery, option to connect earbuds

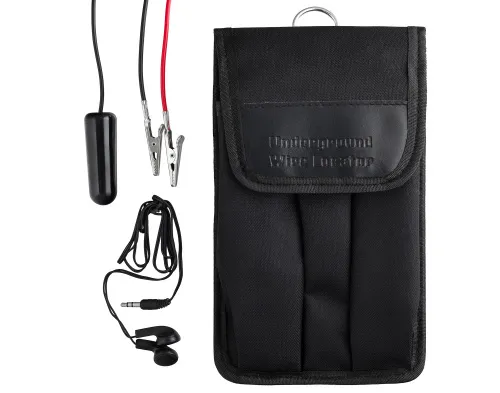

The kit includes:

  • Transmitter
  • Receiver
  • Earbuds
  • Micro USB cable

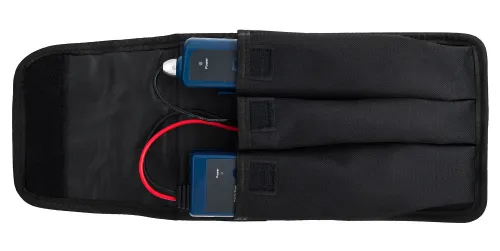

  • Bag
  • User manual and warranty card
Specifications
Product ID 82548
Brand Ermenrich
Warranty 5 years
EAN 5905555016924
Package size (LxWxH) 24x15x5 cm
Shipping Weight 0.455 kg
Transmitter
Tracing cable types single-core, two-core parallel cables
Maximum detection depth, m (ft) 0.6 (2)
Maximum possible voltage of the circuit under test, V 24
Signal frequency, kHz 200
Maximum signal transmission distance, m (ft) 800
Peak output signal voltage, V 15
Voltage control
Signal transmission format dual tone

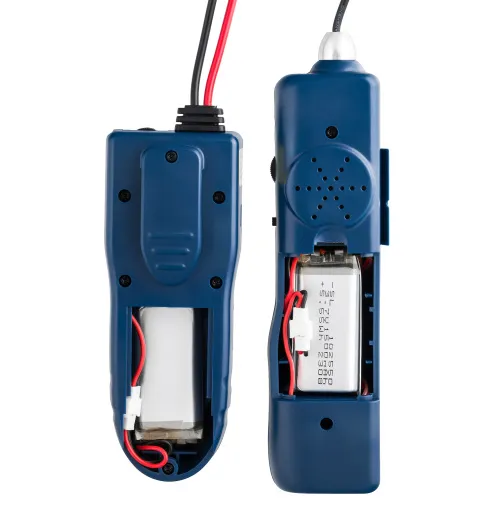

Power supply charging via a 5V, 1A DC adapter (not included) and micro USB cable (included), 1500mAh, 3.7V lithium polymer battery
Low battery status indicator
Battery life, h 4
Operating temperature range, °C -10...+60
Additional must not be used with high-voltage networks and for the detection of multicore cables
Receiver / Remote unit
Ports earbuds
Signal frequency, kHz 200
Power supply astroplanetarium: Li-ion battery 18650, 1500mA⋅h, micro-USB 5V, 1A (an additional power adapter or a smartphone charger is required), charging via a 5V, 1A DC adapter (not included) and micro USB cable (included)
Low battery status indicator
Battery life, h 7
Operating temperature range, °C -10...+60
