Ermenrich Ping SM70 Stud Detector

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Blue

Violet

For detecting metals, live wiring, metal, and wooden studs in walls

Maximum detection depth of metal/wooden studs

Automatic

Calibration ensures accurate and reliable wire detection

390mAh lithium battery, 3.7V, charging via a 5V, 1A DC adapter (not included) and micro USB cable (included)

The type of power supply determines the battery life of the device

Availability

Product ID	82543
Brand	Ermenrich
Warranty	5 years
EAN	5905555021546
Package size (LxWxH)	16x11x5 cm
Shipping Weight	0.27 kg

Description

Ermenrich Ping SM70 Stud Detector is a device for detecting metal objects (pipes, rebar, self-tapping screws), live wiring, wooden structures hidden in walls, floors, and ceilings. It is required to ensure the safety of construction, repair, finishing, and installation works. For example, when drilling, you won’t accidentally hit live wires or damage the drill bit against a metal part. The Ermenrich Ping SM70 Stud Detector is a useful tool not only for professional purposes but also for home use.

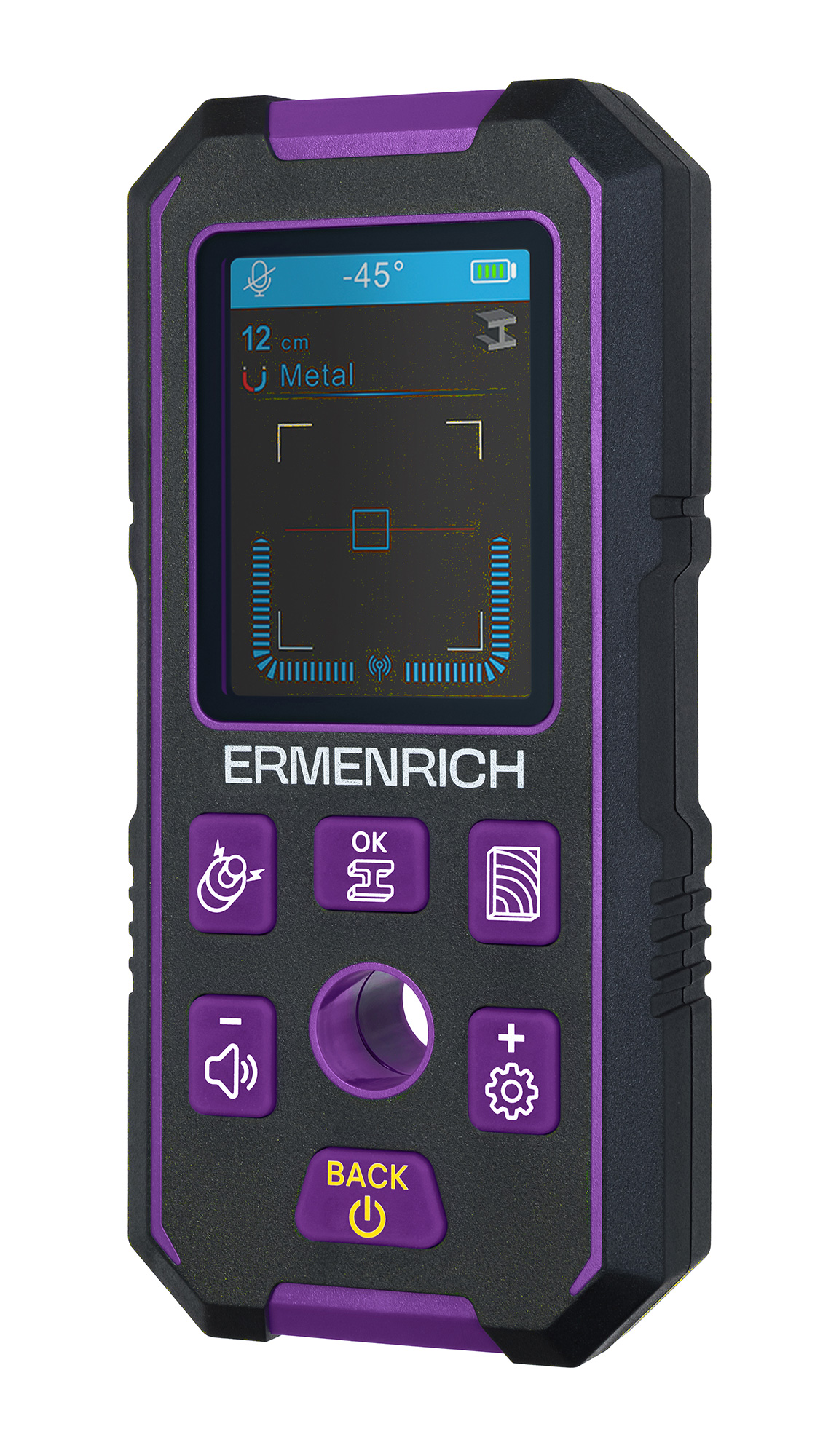

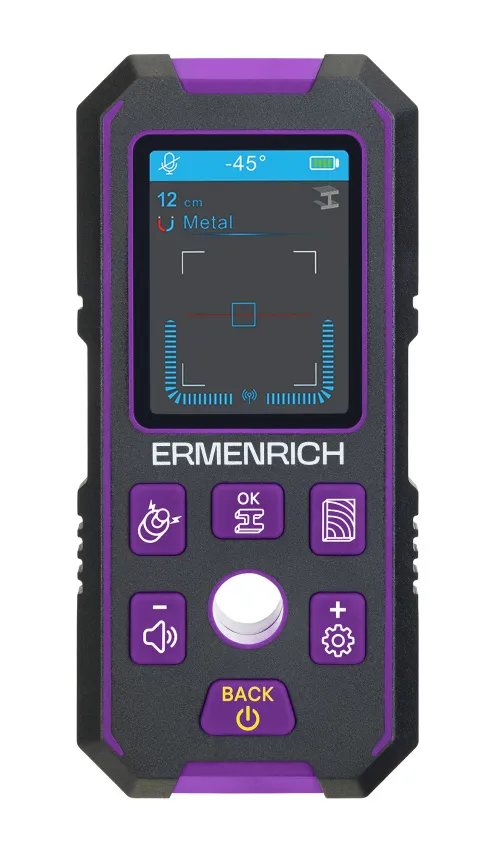

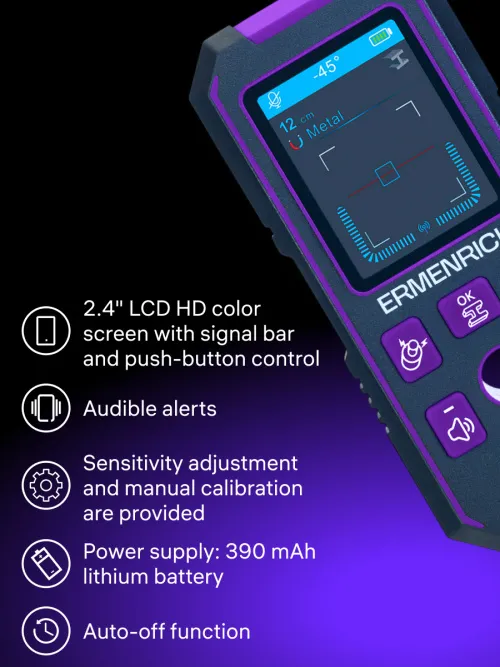

It is a compact device with push-button control and built-in LCD display. The screen displays the operating mode icons as well as a signal bar that indicates how close a stud or wire is to the detector. The device beeps when it detects a stud or wire. You can turn off the audible notifications, if necessary. The sensitivity adjustment and calibration functions are provided to fine-tune the device.

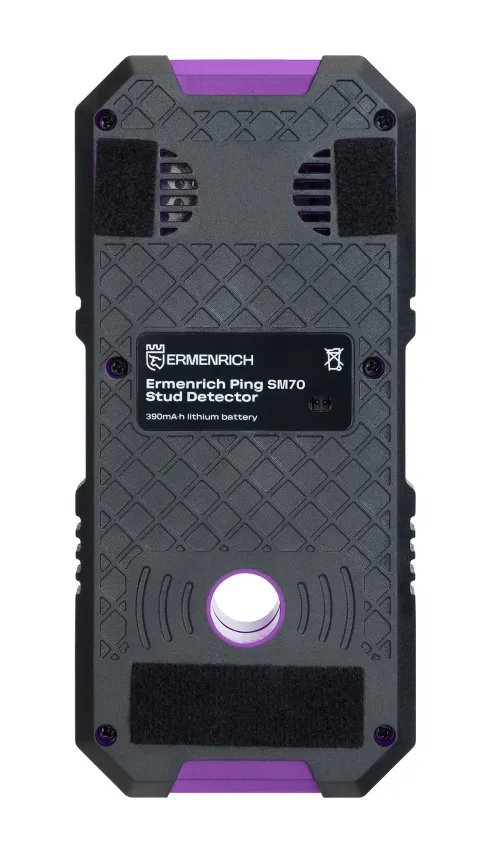

The stud detector is powered by a rechargeable battery.

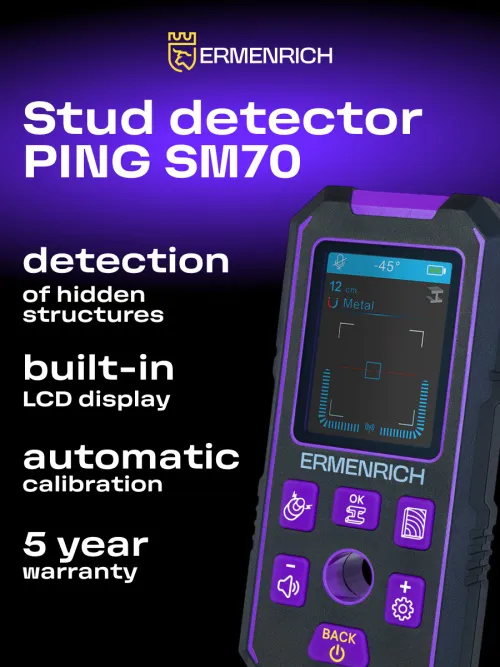

Key features:

Detection of ferrous and non-ferrous metals, metal and wooden studs, live wiring
2.4" color screen, push-button control
Sensitivity adjustment, calibration, audible alerts, signal bar on the screen
High-strength ABS plastic body, powered by a rechargeable battery

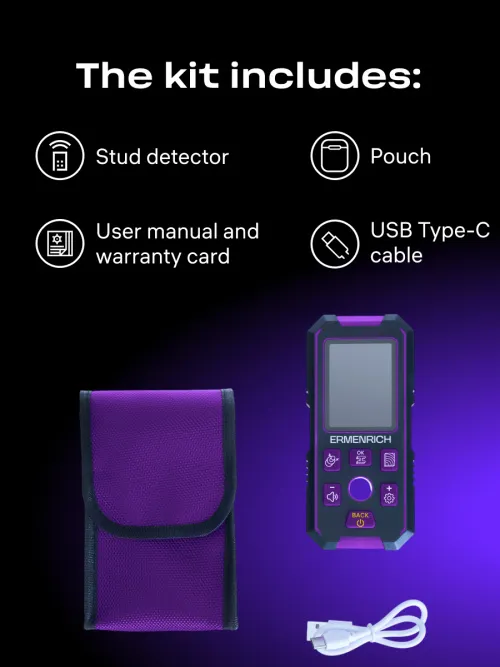

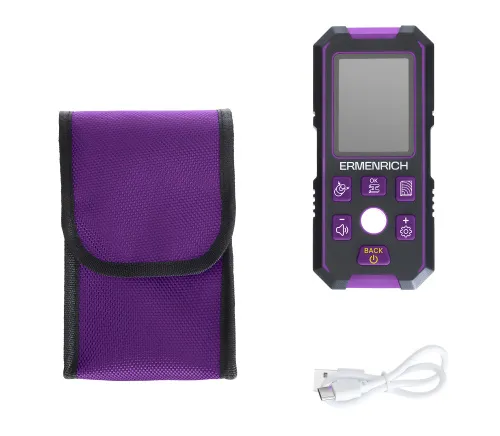

The kit includes:

Stud detector

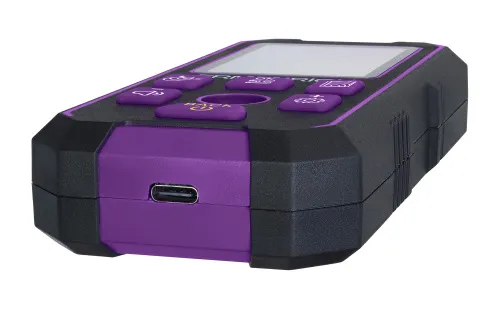

Type-C USB cable

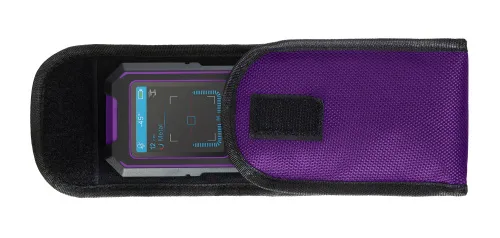

Pouch
User manual and warranty card

Specifications

Product ID	82543
Brand	Ermenrich
Warranty	5 years
EAN	5905555021546
Package size (LxWxH)	16x11x5 cm
Shipping Weight	0.27 kg
Metal/wooden studs detection mode	✓

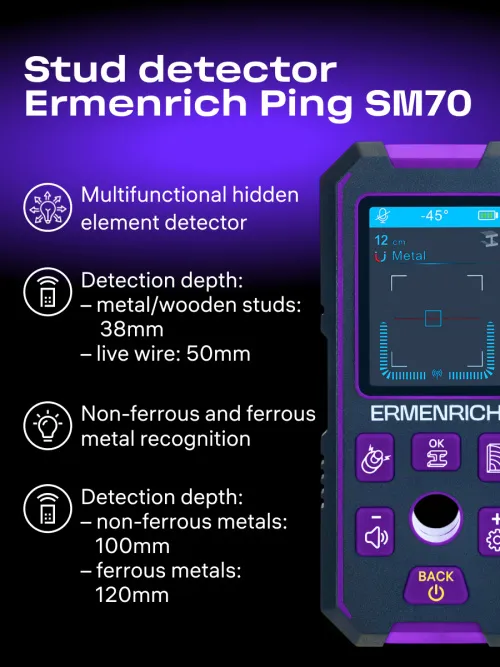

Maximum detection depth of metal/wooden studs, mm	38
Live wire detection mode	✓
Maximum depth of detection, mm	50
Metal detection mode	+
Maximum depth of detection (metal), mm	100 (non-ferrous metals), 120 (ferrous metals)
LCD screen	HD color, 2.4" diagonal, 240x320P resolution
Calibration	automatic
Audible alerts	✓
Power supply	390mAh lithium battery, 3.7V, charging via a 5V, 1A DC adapter (not included) and micro USB cable (included)
Low battery status indicator	✓
Auto power off	✓
Body	polycarbonate, high-strength ABS plastic
Operating temperature range,°C	0… +50 (+32… +122)
