With a voltmeter function. Locating cables, live wiring, and pipes in the ground or in walls

Single pole mode: 0–1 (0–3.3), dual pole mode: 0–0.5 (0–1.6) , single loop line: 0–2.5 (0–8.2), circuit voltage detection: 0–0.4 (0–1.3)
Maximum cable detection depth
400
The maximum voltage in the tested circuit is the maximum voltage of the cables that the device can detect
Availability

Product ID 82551
Brand Ermenrich
Warranty 5 years
EAN 5905555016955
Package size (LxWxH) 26x18x6 cm
Shipping Weight 0.995 kg
Description

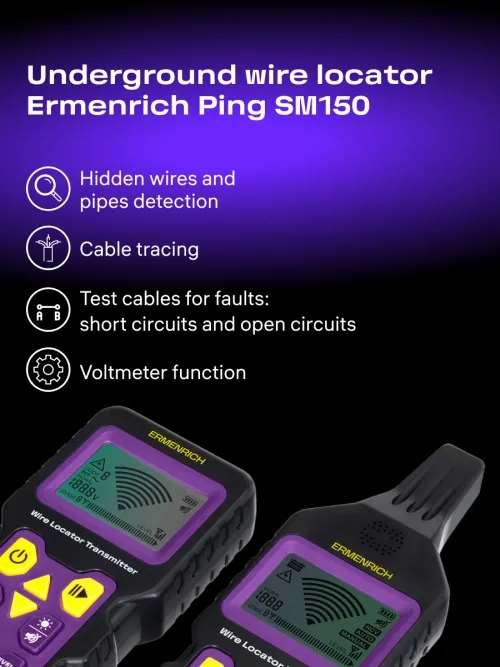

The Ermenrich Ping SM150 Underground Wire Locator includes a transmitter, receiver, and additional accessories. It is used for the inspection and maintenance of cable and electrical networks, water and gas pipelines buried in the ground or located in the walls or footings of buildings. The device can find fuses, hidden wires, and outlets as well as switchboards that have been accidentally covered by plaster during renovations.

The detector can locate not only de-energized cables, but also live cables (maximum voltage is 400V). The inspection of cable lines allows you not only to identify cable wiring patterns, but also to test cables for faults: short circuits and open circuits. The device also has a voltmeter function and can detect DC and AC voltages.

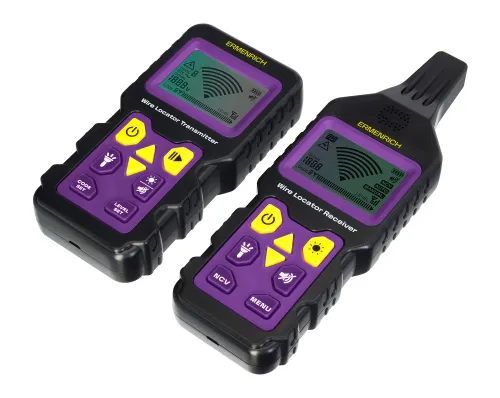

Both the transmitter and receiver have built-in backlit displays and easy push-button operation. Both gadgets are powered by rechargeable batteries. The auto-off function saves battery power and extends the operation time of the devices.

Key features:

  • Locating cables and pipes buried in the ground or hidden in walls
  • For de-energized or energized cables
  • Locates gas and water pipes, fuses, and switchboards
  • Test cable for faults: short circuits and open circuits
  • The receiver and transmitter are powered by rechargeable batteries

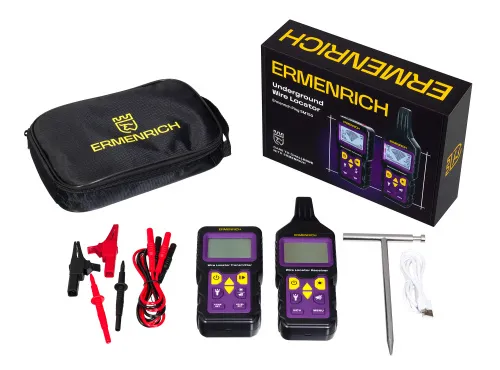

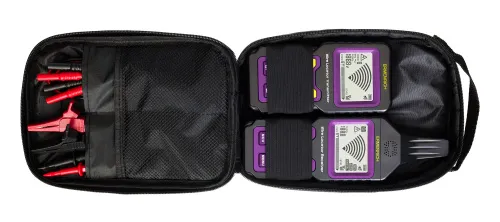

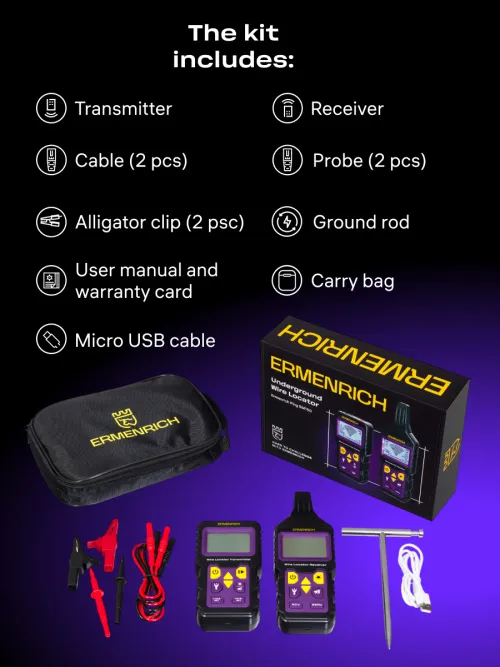

The kit includes:

  • Transmitter
  • Receiver
  • Alligator clips – 2 pcs.
  • Cable – 2 pcs.
  • Probe – 2 pcs.
  • Ground rod
  • Carry bag
  • Micro USB cable
  • User manual and warranty card
Specifications
Product ID 82551
Brand Ermenrich
Warranty 5 years
EAN 5905555016955
Package size (LxWxH) 26x18x6 cm
Shipping Weight 0.995 kg

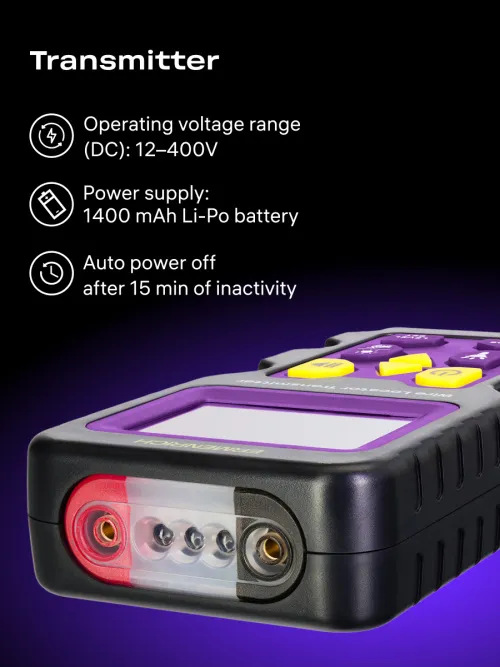

Transmitter

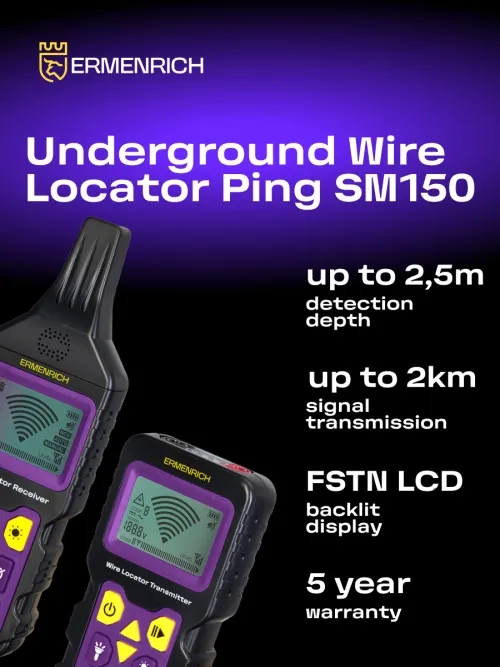

Maximum detection depth, m (ft) single pole mode: 0–1 (0–3.3), dual pole mode: 0–0.5 (0–1.6) , single loop line: 0–2.5 (0–8.2), circuit voltage detection: 0–0.4 (0–1.3)
Maximum possible voltage of the circuit under test, V 400
Maximum signal transmission distance, m (ft) 2000
Operating voltage range (DC), V 12 — 400
Operating voltage range (AC), V (12–400) ±2,5%
Overvoltage category III (300V)
Pollution degree 2
Power consumption, mA 80 — 300
Display FSTN LCD
Display backlight

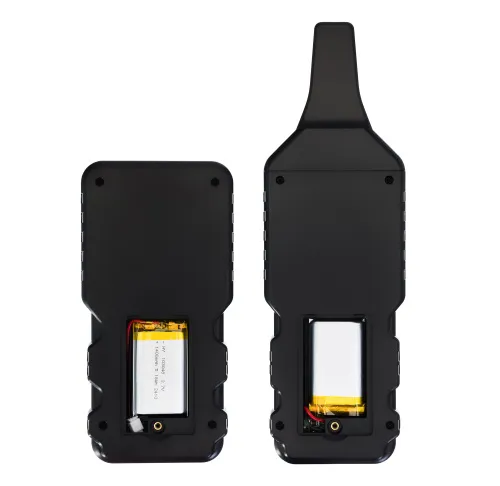

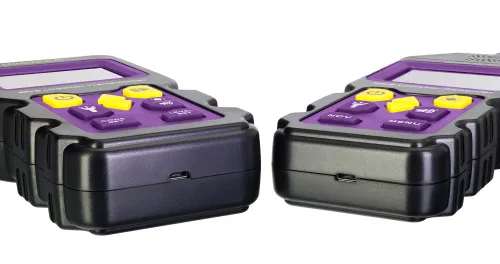

Power supply charging via a micro USB cable (included), 1400 mAh, 3.7V lithium polymer battery
Auto power off 15 min
Operating temperature range, °C 0...+40

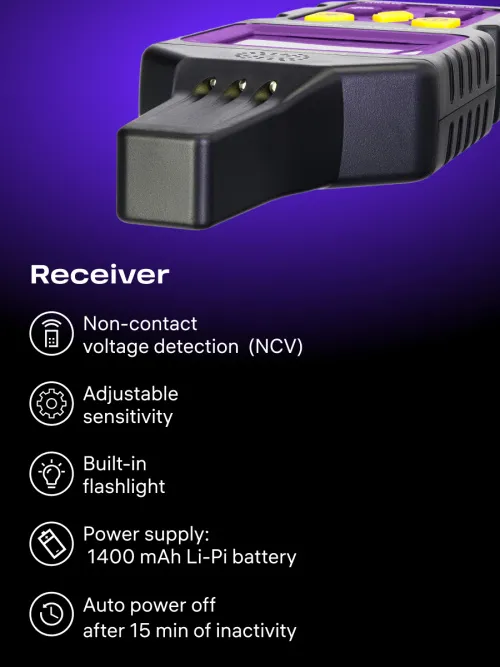

Receiver / Remote unit
Power consumption, mA 100 — 300
Adjustable sensitivity
Non-contact voltage detection (NCV)
Flash light
Display FSTN LCD
Display backlight
Power supply charging via a micro USB cable (included), 1400 mAh, 3.7V lithium polymer battery
Auto power off 15 min
Operating temperature range, °C 0...+40
