With a waterproof remote probe on a 20-meter cable (65ft)

PVC/ plastic/ steel/ copper/ cement/ iron pipes
Type of compatible pipes that the device can work with
20
Length of the probe cable immersed in the pipe
IP67, dustproof, protection against short water immersion (probe only)
Level of protection against moisture, water, and dust
Availability

Product ID 82542
Brand Ermenrich
Warranty 5 years
EAN 5905555016863
Package size (LxWxH) 40x36x7 cm
Shipping Weight 2.23 kg
Description

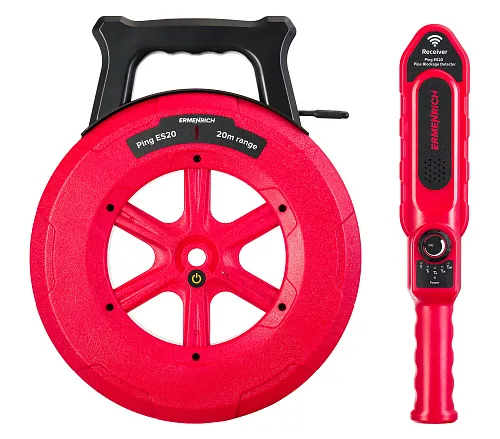

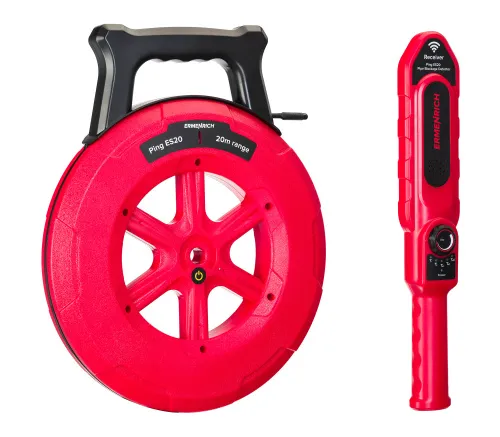

The Ermenrich Ping ES20 Wall Pipe Blockage Detector is designed to locate blockages in metal and non-metal pipes made of steel, copper, iron, PVC, plastic, or cement. It is a great tool for checking the condition of water pipes and sewer pipes for both professional and domestic use.

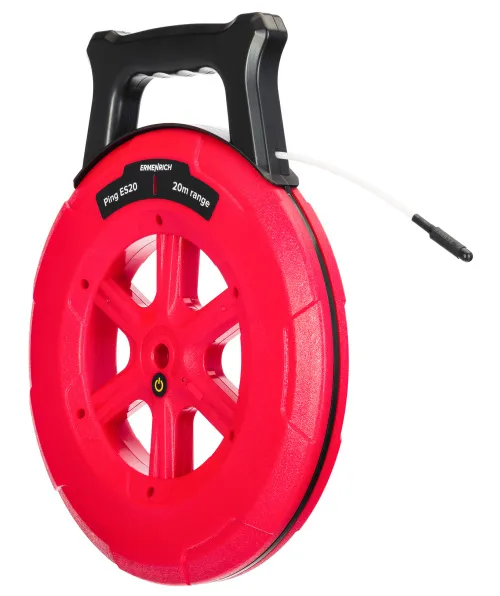

The device includes a transmitter (remote probe) and a receiver. The probe on a 20-meter-long cable (65ft) is placed in the pipe and moved inside until it stops due to the blockage in the pipe. Then, you sweep the receiver along the pipe – the device starts beeping and flashing near the blockage. The closer the receiver gets to the probe, the stronger the signal and the louder the audible alert will become.

The probe is IP67 rated, which makes it suitable for short-term water immersion when inspecting pipes. It comes with an accessory kit that can be used to repair the probe if it has been damaged inside the pipe. The maximum working distance of the receiver is 150mm for metal pipes and 400mm for non-metal pipes. There is an option to adjust the sensitivity. Both the receiver and transmitter are powered by rechargeable batteries. The probe works up to 10 hours on a single charge, and the receiver works up to 4 hours.

Key features:

  • Inspecting pipes made of different materials: metal and non-metal pipes
  • A remote waterproof probe designed for the inspection of pipes up to 20 meters long (65ft)
  • The maximum distance for the receiver to read the signal from the probe: 150mm (for metal pipes) and 400mm (for non-metal pipes)

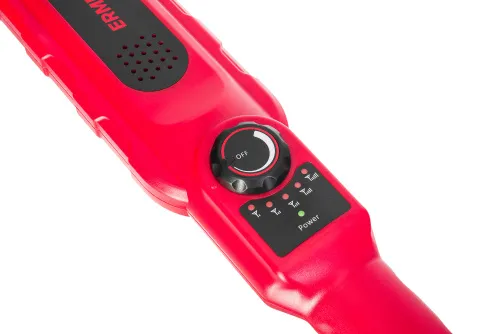

  • Audible and light alerts when a blockage is detected, receiver sensitivity adjustments
  • Powered by a rechargeable battery

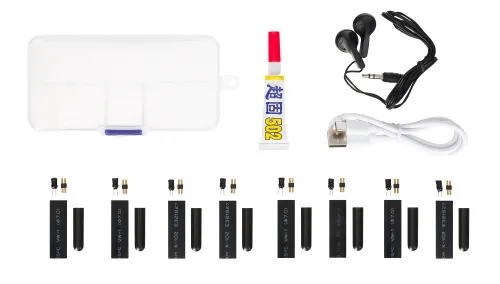

The kit includes:

  • Transmitter
  • Receiver
  • Earbuds
  • Type-C USB cable
  • Sensor repair accessories
  • 502 glue
  • User manual and warranty card
Specifications
Product ID 82542
Brand Ermenrich
Warranty 5 years
EAN 5905555016863
Package size (LxWxH) 40x36x7 cm
Shipping Weight 2.23 kg
Types of pipes PVC/ plastic/ steel/ copper/ cement/ iron pipes
Working distance, mm non-metal pipe: 0–400mm/metal pipe: 0–150mm
Cable length, m 20
Adjustable sensitivity
Audible alerts
Light alert
Waterproof IP67, dustproof, protection against short water immersion (probe only)
Operating temperature range,°C –10… +40 (14… 104)
Operating frequency, MHz 0.0003

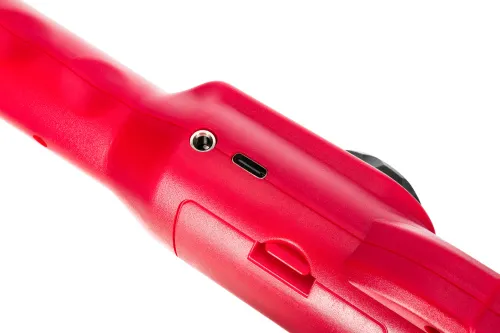

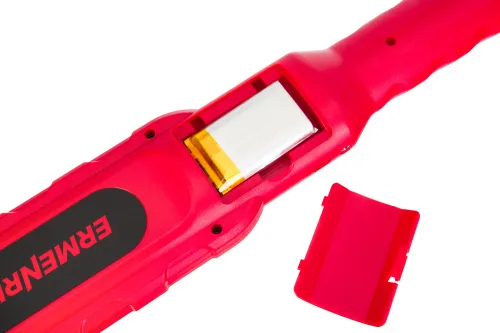

Power supply Transmitter: built-in lithium battery type 18650 2600mAh, 3.7V, Receiver: built-in lithium battery 1400mAh, 3.7V; charging via 5V, 1A DC adapter (not included) and USB Type-C cable (included)
Battery life, h 4 — 10
