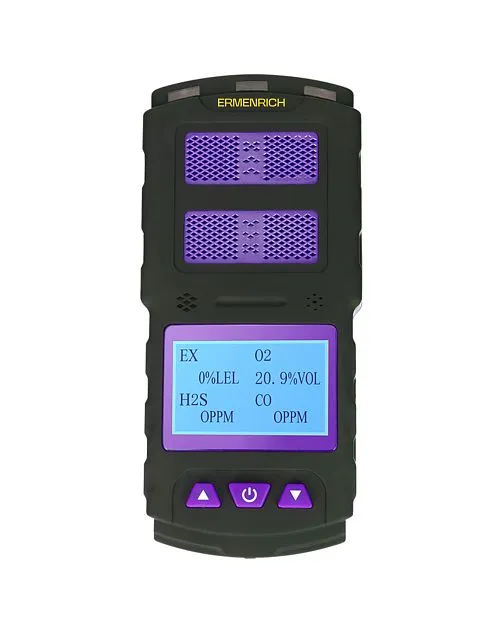

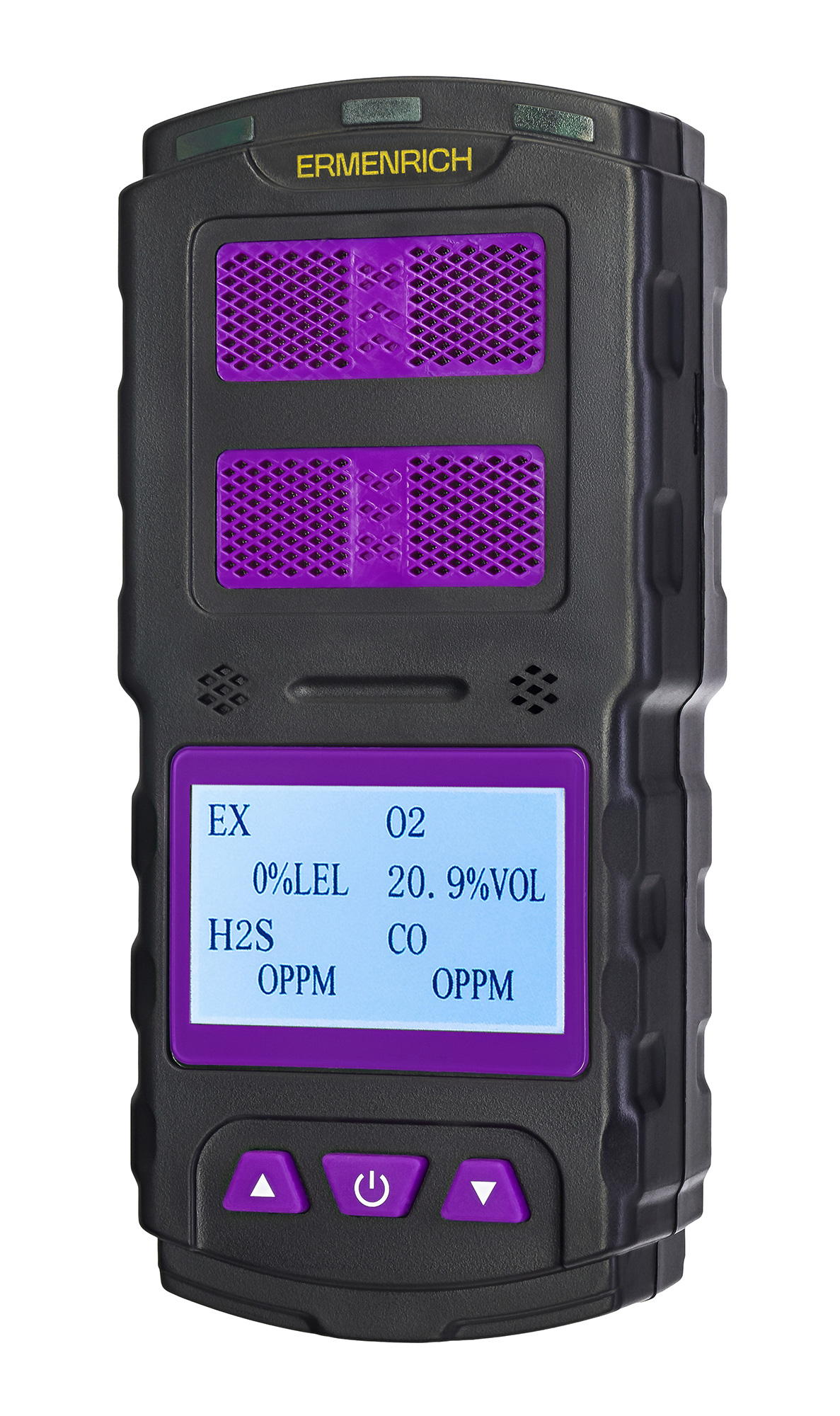

Ermenrich NG60 Gas Detector
Portable gas detector for detecting flammable gas leaks
Hydrogen, carbon monoxide, methane, ethane, propane, butane, ethylene, propylene, butene, acetylene, propyne, butyne, hydrogen sulfide, phosphine, etc.
Detectable combustible gases

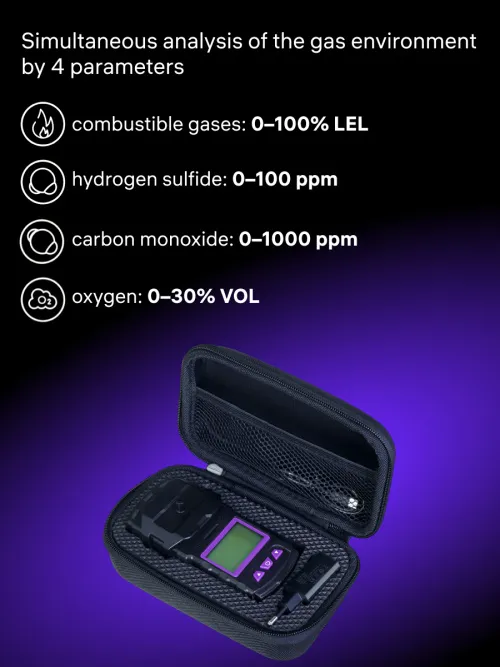

Flammable gases: 0–100% LEL; hydrogen sulfide: 0–100 ppm; carbon monoxide: 0–1000ppm; oxygen: 0–30% VOL
Measuring range: value limits of the concentration of the measured gases in the working area

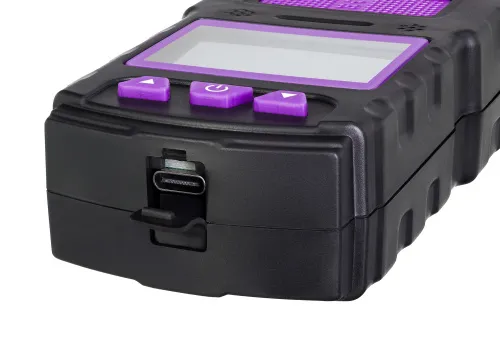

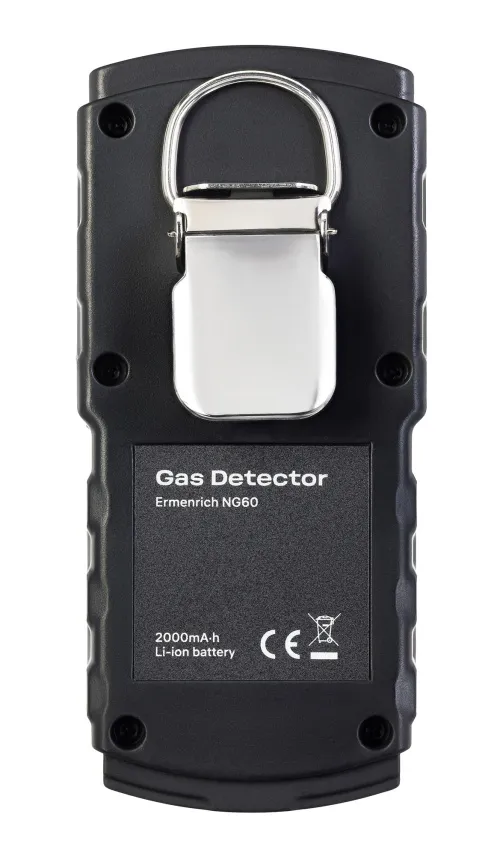

3.7V 2000mAh lithium-ion rechargeable battery (charging via USB cable with a 24V/1A AC adapter)
The power supply significantly affects the usability of the device
Availability
Future arrivals
9 November 2024
20+
Product ID | 83069 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555018638 |
Package size (LxWxH) | 21x15x8 cm |
Shipping Weight | 0.67 kg |
Description
The Ermenrich NG60 gas detector is essential to determine the concentration of flammable gases, hydrogen sulfide, and oxygen in the air and ensure safety at work or at home. Depending on the gas type, the device measures its concentration in % LEL (Lower Explosive Limit), ppm, or VOL. Alarm setpoints can be adjusted manually.

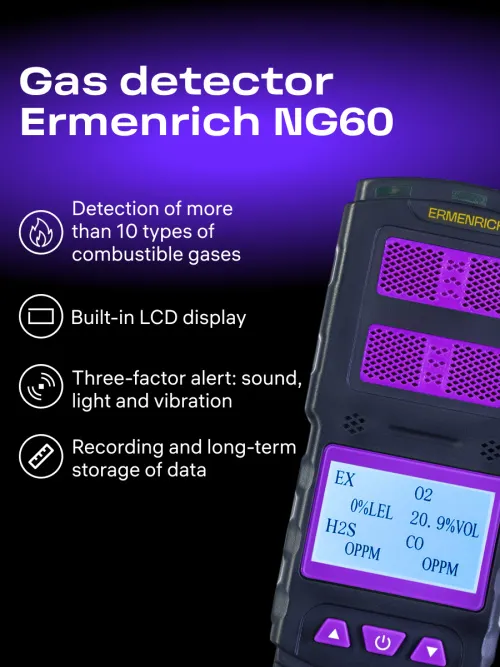

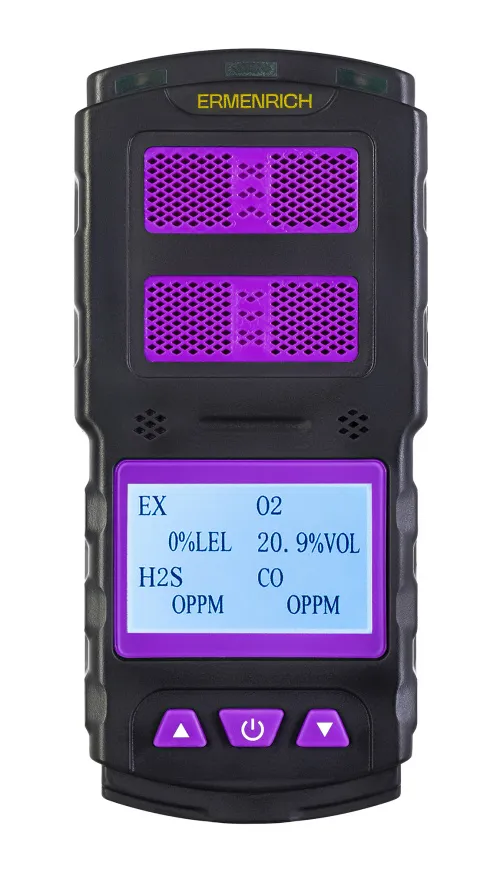

Readings are displayed on the LCD screen. When the alarm setpoint is exceeded, the detector alerts you with sound, light, or vibration. Power is supplied by a 2000mAh lithium-ion rechargeable battery, which provides 16–18 hours of operation. The low battery indicator will tell you when the device needs to be charged.
Key features:
- Measuring the concentration of flammable gases, hydrogen sulfide, oxygen, carbon monoxide
- Adjustable alarm setpoints
- Three types of alerts (sound, light, vibration)
- Up to 18 hours of lithium-ion battery life
- LCD display, low battery indicator

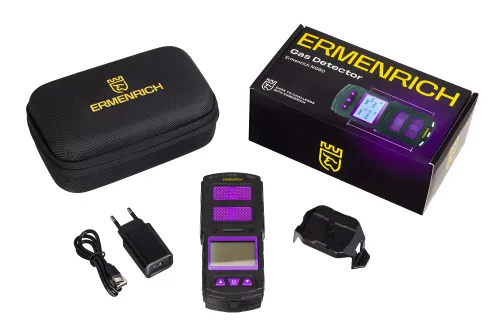

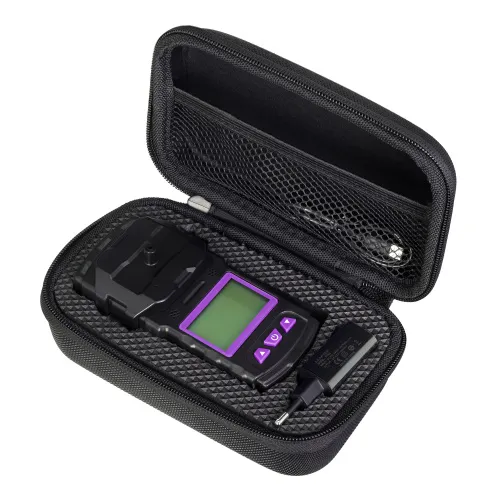

The kit includes:
- Gas detector
- USB cable
- AC adapter
- Aluminum case
- User manual and warranty card
Specifications
Product ID | 83069 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555018638 |
Package size (LxWxH) | 21x15x8 cm |
Shipping Weight | 0.67 kg |
Combustible gases to be detected | hydrogen, carbon monoxide, methane, ethane, propane, butane, ethylene, propylene, butene, acetylene, propyne, butyne, hydrogen sulfide, phosphine, etc. |
Measuring range | flammable gases: 0–100% LEL; hydrogen sulfide: 0–100 ppm; carbon monoxide: 0–1000ppm; oxygen: 0–30% VOL |
Units of measurement | flammable gases: % LEL; hydrogen sulfide: ppm; carbon monoxide: ppm; oxygen: VOL |
Response time | <45 s |
Alarm setpoint | flammable gases: 20% LEL (lower), 50% LEL (upper); hydrogen sulfide: 10ppm (lower), 20ppm (upper); carbon monoxide: 50ppm (lower), 200ppm (upper); oxygen: 19.5% VOL (lower), 23.5% VOL (upper) |
Manual alarm setpoints | ✓ |
Low battery status indicator | ✓ |
Display | LCD |
Power supply | 3.7V 2000mAh lithium-ion rechargeable battery (charging via USB cable with a 24V/1A AC adapter) |
Battery life, h | 16 — 18 |
Battery charging time, h | 6 — 8 |
Explosion-proof | ex Ib IIB T3 Gb |
Waterproof | IP65; full dust protection; protection from jets of water |
Operating temperature range, °C | -20...+50 |
Operating humidity range, % | 0 — 95 |
