Hybrid optical power meter

850/ 1300/ 1310/ 1490/ 1550/ 1625
Wavelengths supported by the device
FC, SC, ST
Types of optical connectors: the interfaces of the device must match the adapters
-50 — 26
The range of the optical signal that the multimeter is capable of measuring with high accuracy
Availability

Product ID 82559
Brand Ermenrich
Warranty 5 years
EAN 5905555017037
Package size (LxWxH) 19x15x6 cm
Shipping Weight 0.36 kg
Description

Optical multimeter, or optical power meter, Ermenrich NetGeeks NU40 – an essential tool for professionals who install and maintain fiber-optic communication lines (FOCL). The device allows you to measure the absolute power and find losses between two points in the line. It has a light source function for checking fiber optic cables. The multimeter is equipped with two connectors and it supports a hybrid operating mode: When testing a cable, it can simultaneously act as an optical power meter and a light source for assessing signal loss.

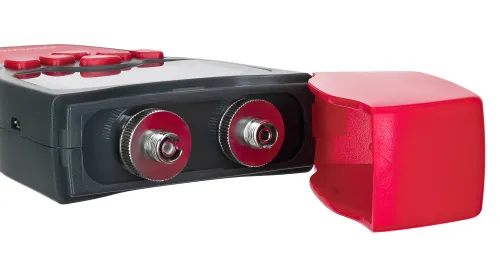

The device is equipped with FC, SC, ST connectors and can work with single-mode and multi-mode cables. You can adjust and select the operating mode with the buttons. The measurements are displayed on the built-in screen, which has a backlight for low-light conditions. The multimeter is powered by standard batteries (not included).

Key features:

  • Supports single-mode and multi-mode cables, FC, SC, ST connectors
  • Measuring absolute and relative optical power, six wavelengths
  • Light source function for checking fiber optic cables
  • Hybrid cable operating mode: The device is a light source and an optical power meter
  • Powered by standard batteries, auto-off function to save battery power

The kit includes:

  • Transmitter

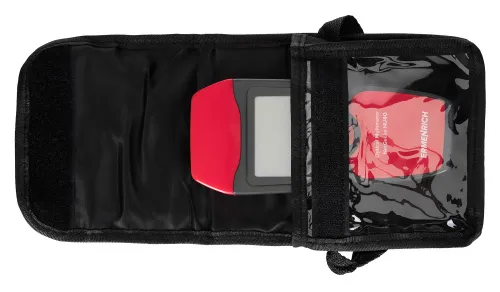

  • Pouch

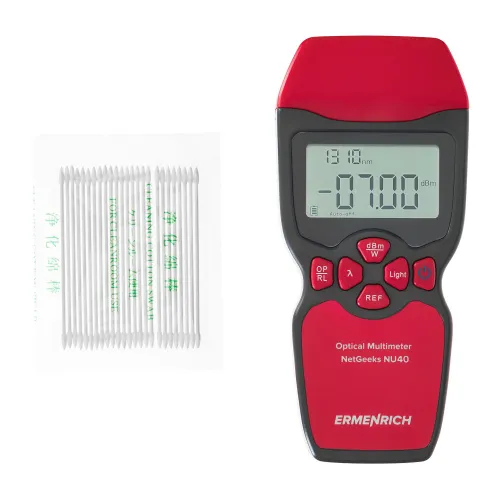

  • Cotton swabs
  • User manual and warranty card
Specifications
Product ID 82559
Brand Ermenrich
Warranty 5 years
EAN 5905555017037
Package size (LxWxH) 19x15x6 cm
Shipping Weight 0.36 kg
Type optical multimeter
Optical power meter wavelength, nm 850/ 1300/ 1310/ 1490/ 1550/ 1625
Fiber connector type FC, SC, ST
Maintained cable type single-mode (SM), multimode (MM)
Units of measurement dB, dBm, W
Power detection range, dBm -50 — 26
Option to set the reference level
Display FSTN LCD
Display backlight

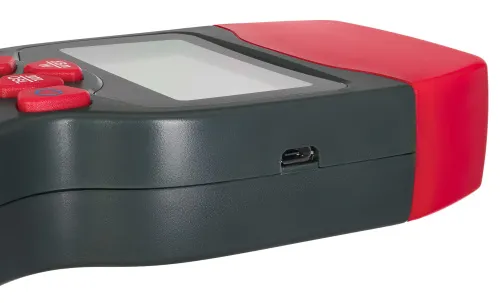

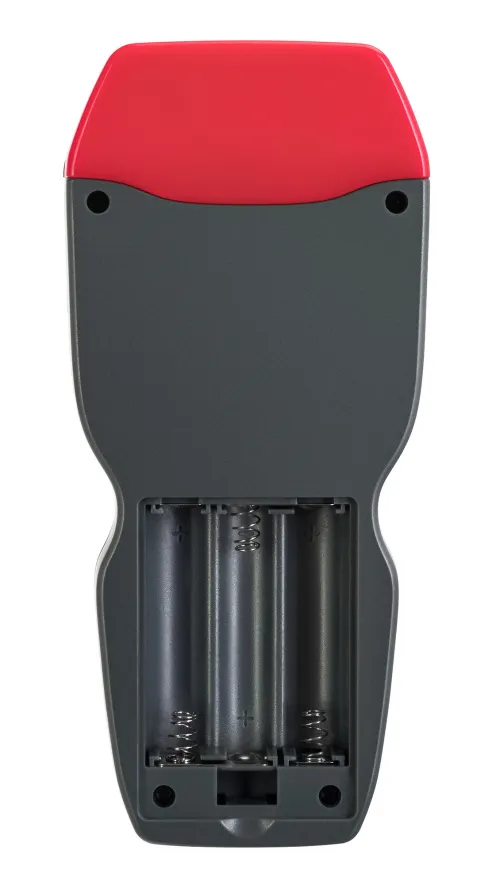

Power supply 3 AAA batteries (not included) or AC power (a microUSB cable and an AC adapter not included)
Low battery status indicator
Auto power off
Operating temperature range, °C -10...+60
Operating humidity range, % 20 — 70
