Optical power meter with a continuity test option

850/ 980/ 1310/ 1490/ 1550/ 1625
Wavelengths supported by the device
FC, SC, ST
Types of optical connectors: the interfaces of the device must match the adapters
-60 — 8
The range of the optical signal that the multimeter is capable of measuring with high accuracy
Availability

Product ID 82558
Brand Ermenrich
Warranty 5 years
EAN 5905555017020
Package size (LxWxH) 12x8x4 cm
Shipping Weight 0.165 kg
Description

The Ermenrich NetGeeks NU20 optical multimeter is designed for testing fiber optic cables. You can measure the absolute optical power in any fiber optic system source, measure the optical power lost in a cable, and perform a continuity test to check if there are any breaks in the fiber optic cables. The optical multimeter is a must-have device for network cabling installers, system administrators, and fiber optic engineers to solve a wide range of professional tasks. The device can be used at home as well.

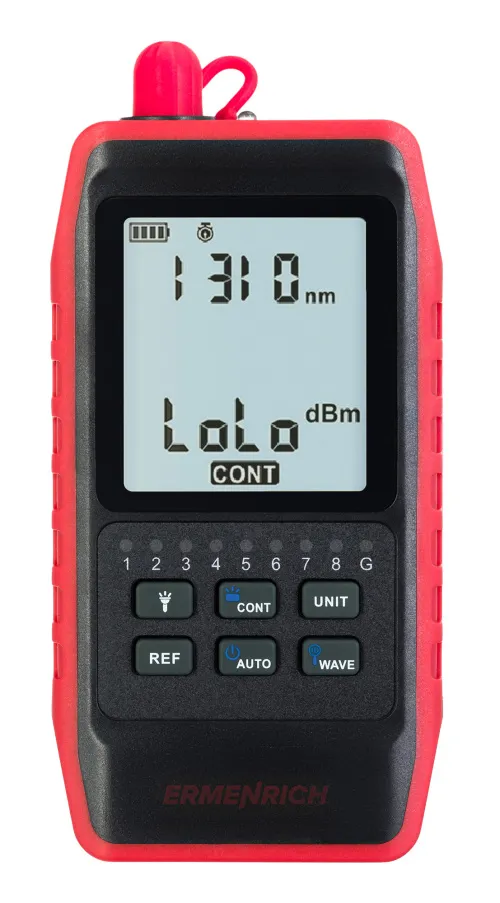

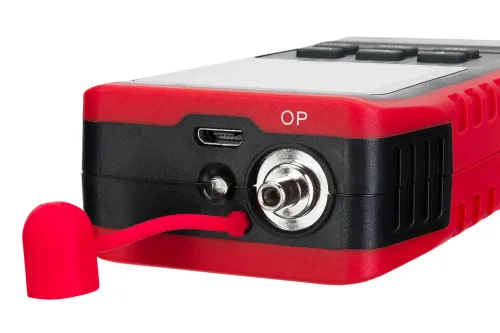

There are six wavelengths available. It supports single-mode and multi-mode cables and uses FC/SC/ST optical fiber connectors and an RJ45 network connector. The device has a built-in backlit screen, with LED indicators and control buttons underneath. The device is powered by a rechargeable battery, which is recharged through a micro USB cable. To save battery power, the multimeter is equipped with an auto power-off function that activates after 30 minutes of inactivity.

Key features:

  • Optical power or loss measurement
  • Continuity test – searching for breaks in the network cable
  • Supports six wavelengths, FC/SC/ST interfaces
  • Option to set the reference level
  • Powered by a rechargeable battery, charged via a micro USB cable

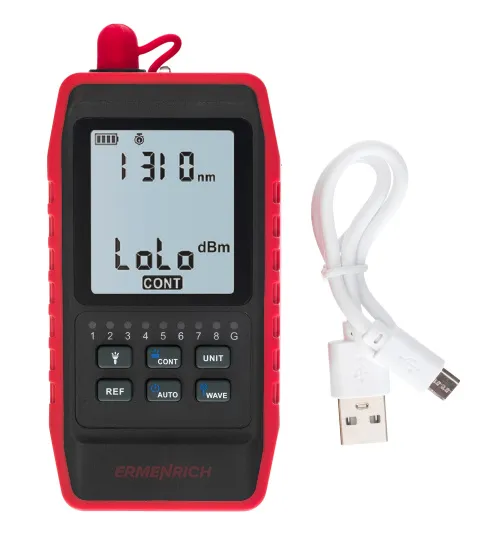

The kit includes:

  • Transmitter
  • Remote module
  • Micro USB cable
  • User manual and warranty card
Specifications
Product ID 82558
Brand Ermenrich
Warranty 5 years
EAN 5905555017020
Package size (LxWxH) 12x8x4 cm
Shipping Weight 0.165 kg
Type optical multimeter
Optical power meter wavelength, nm 850/ 980/ 1310/ 1490/ 1550/ 1625
Fiber connector type FC, SC, ST
Connector type RJ45
Maintained cable type single-mode (SM), multimode (MM)
Units of measurement dB, dBm, W
Power detection range, dBm -60 — 8
Option to set the reference level
Continuity test
Display FSTN LCD
Display backlight

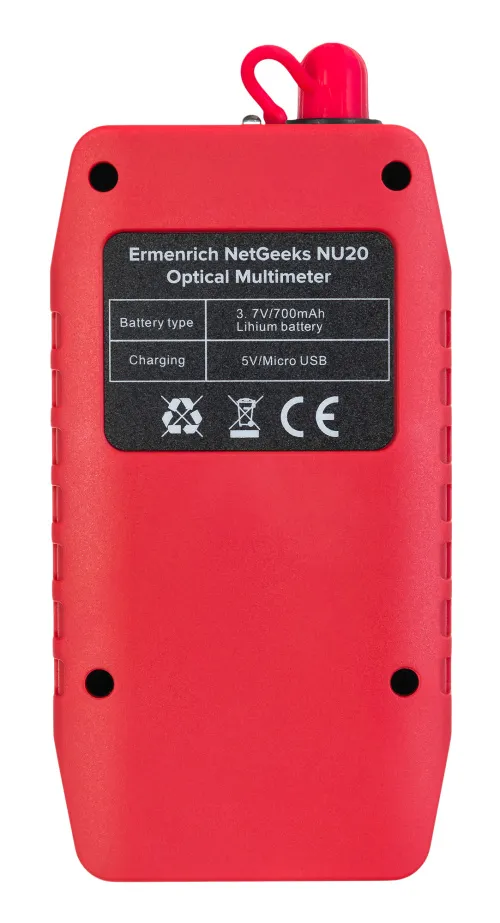

Power supply 3.7V, 700mAh
Auto power off yes, after 30 minutes of inactivity
Auto power off
Operating temperature range, °C -10...+60
Operating humidity range, % 20 — 70
