Optical power meter

850/ 1300/ 1310/ 1490/ 1550/ 1625
Wavelengths supported by the device
FC, SC, ST
Types of optical connectors: the interfaces of the device must match the adapters
-50 — 26
The range of the optical signal that the multimeter is capable of measuring with high accuracy
Availability

Product ID 82556
Brand Ermenrich
Warranty 5 years
EAN 5905555017006
Package size (LxWxH) 19x15x6 cm
Shipping Weight 0.335 kg
Description

The Ermenrich NetGeeks NU10 optical multimeter is a compact device for testing fiber-optic communication lines. You can measure the absolute optical power or relative loss of optical power between two points in the fiber optic cable. The device is useful to those who install and maintain cable networks or inspect and certify telecommunications equipment.

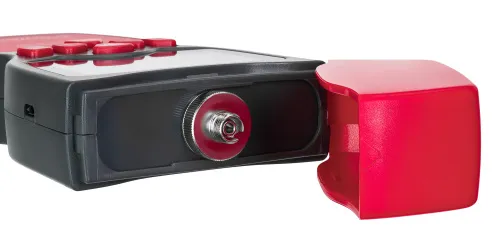

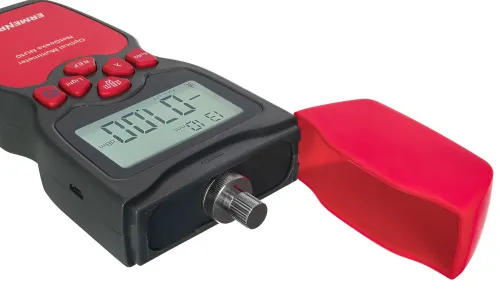

The multimeter supports six wavelengths: You can select the desired one with a push of a button. The FC/SC/ST interfaces are used for connection. There is an option to set the reference level for the current wavelength, which makes it easier to determine the power loss. The measurements are displayed on the built-in backlit screen. The device runs on batteries. The auto-off function helps save the power.

Key features:

  • Absolute and relative optical power measurements
  • FC/SC/ST connectors, supports 6 wavelengths
  • Option to set the reference level
  • Powered by batteries; auto-off function
  • Portable design and simple operation

The kit includes:

  • Transmitter

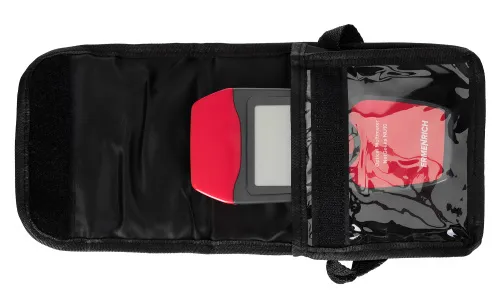

  • Pouch

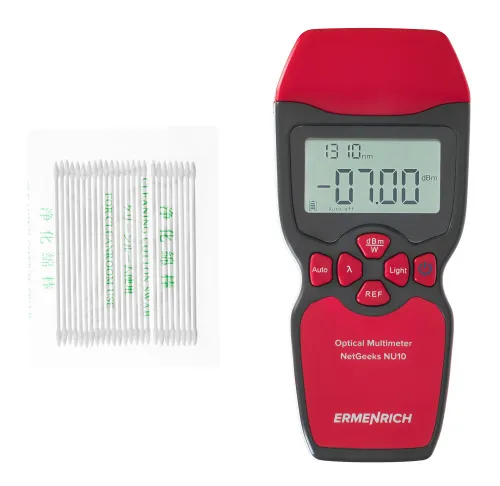

  • Cotton swabs
  • User manual and warranty card
Specifications
Product ID 82556
Brand Ermenrich
Warranty 5 years
EAN 5905555017006
Package size (LxWxH) 19x15x6 cm
Shipping Weight 0.335 kg
Type optical multimeter
Optical power meter wavelength, nm 850/ 1300/ 1310/ 1490/ 1550/ 1625
Fiber connector type FC, SC, ST
Maintained cable type single-mode (SM), multimode (MM)
Units of measurement dB, dBm, W
Power detection range, dBm -50 — 26
Option to set the reference level
Display FSTN LCD
Display backlight

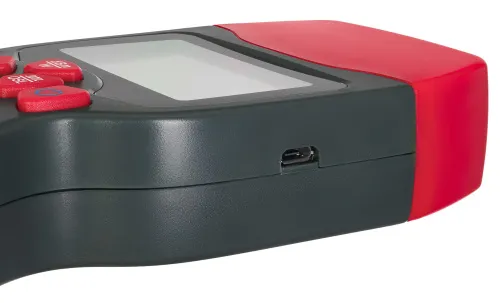

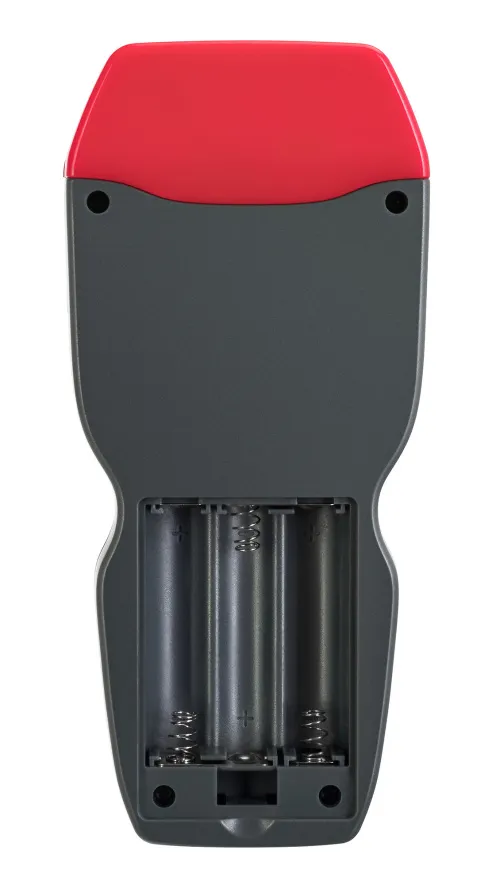

Power supply 3 AAA batteries (not included) or AC power (a microUSB cable and an AC adapter not included)
Low battery status indicator
Auto power off
Operating temperature range, °C -10...+60
Operating humidity range, % 20 — 60
