Purchase Ermenrich NetGeeks NP25 PoE Tester

image Ermenrich NetGeeks NP25 PoE Tester

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Functions: cable testing, PoE test with the identification of a PSE type, midspan/endspan identification

Telephone, STP/UTP (CAT5, CAT6) network cable

Testing cable types

600

Maximum length of the tested cable

AAA alkaline batteries – 3 pcs. (not included)

The power source is an important element that is necessary for the quality operation of the device

Availability

Product ID	82541
Brand	Ermenrich
Warranty	5 years
EAN	5905555016856
Package size (LxWxH)	19x11x4 cm
Shipping Weight	0.295 kg

Description

Ermenrich NetGeeks NP25 is a PoE cable tester for PoE-powered networks. It is used for setting up IP telephony, deploying IP surveillance systems, connecting wireless access points, etc. The Ermenrich NetGeeks NP25 supports all types of PoE devices. It can check the serviceability of cables, identify the PSE type, identify the midspan/endspan, and measure power and voltage.

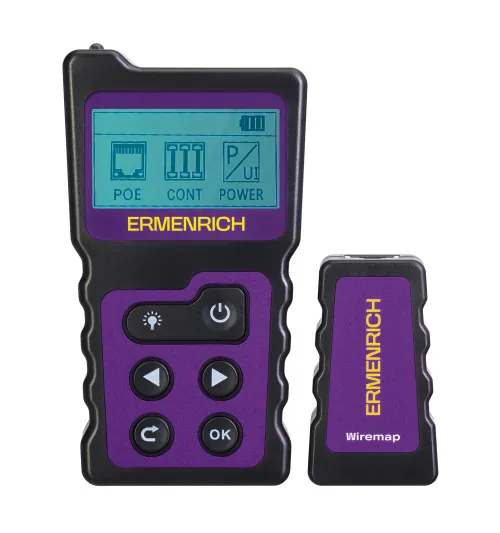

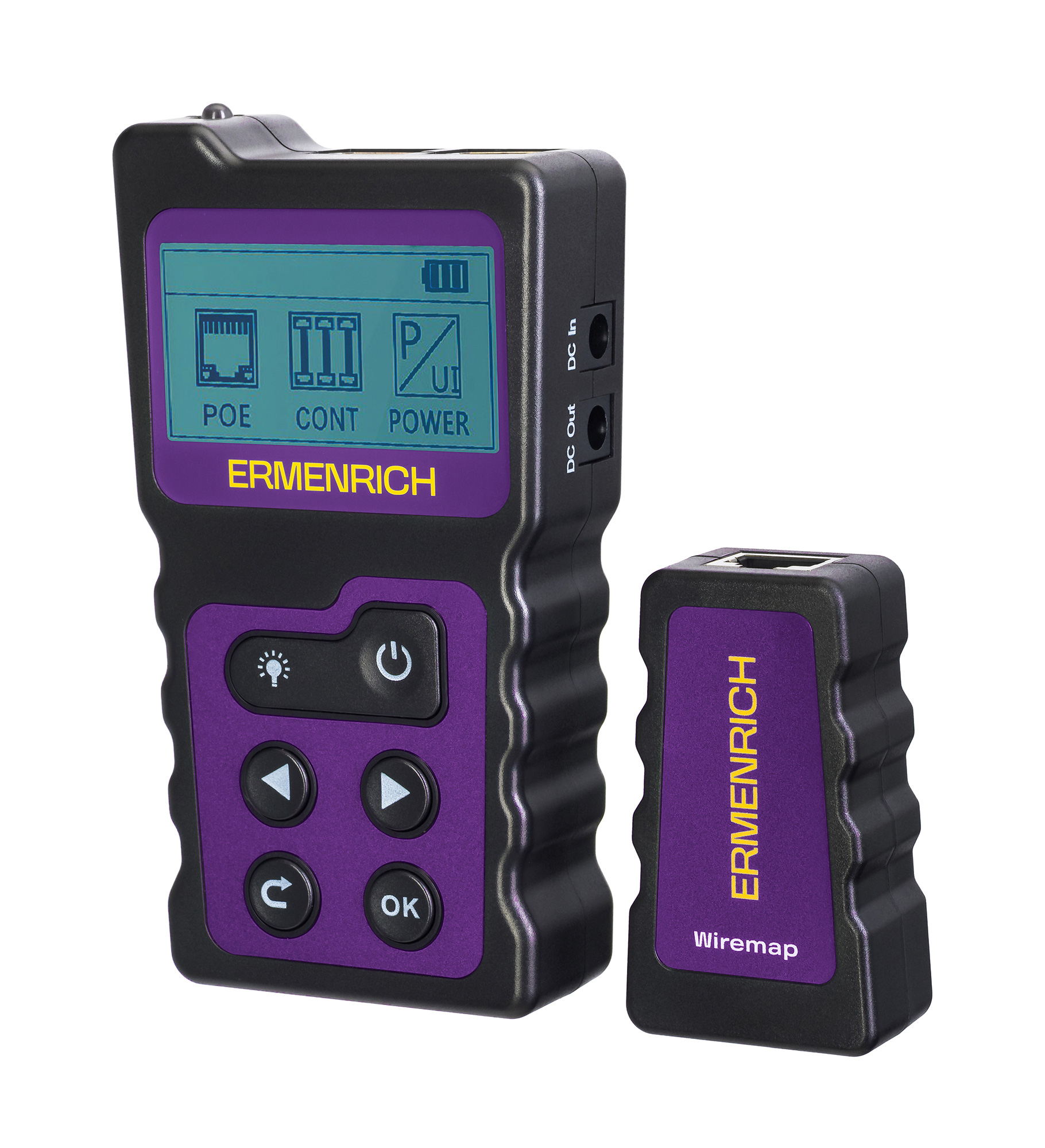

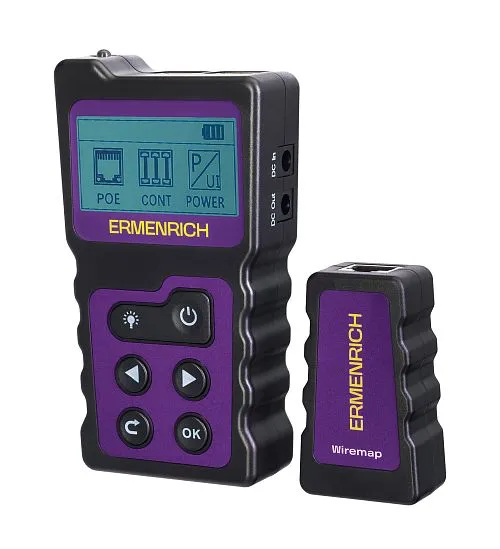

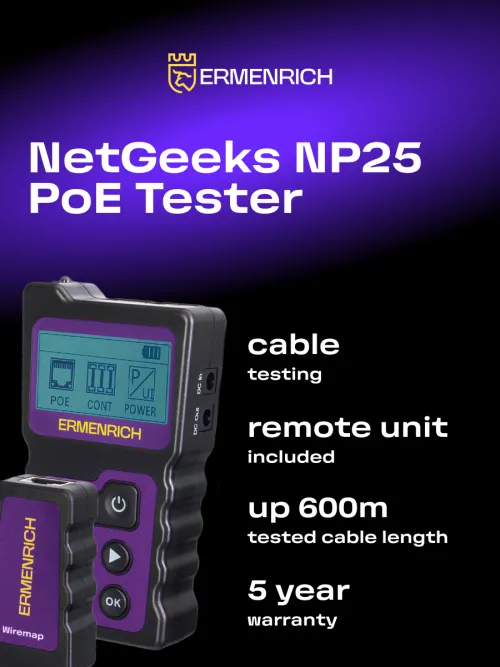

The device includes a transmitter and a remote unit. The transmitter requires three standard batteries (not included). Compact and lightweight, the Ermenrich NetGeeks NP25 is easily operated with just a few buttons. The results are displayed on the built-in backlit LCD display. Suitable for testing STP/UTP cables (CAT5, CAT6), telephone cables. The length of a tested cable should not be longer than 600 meters (1970ft).

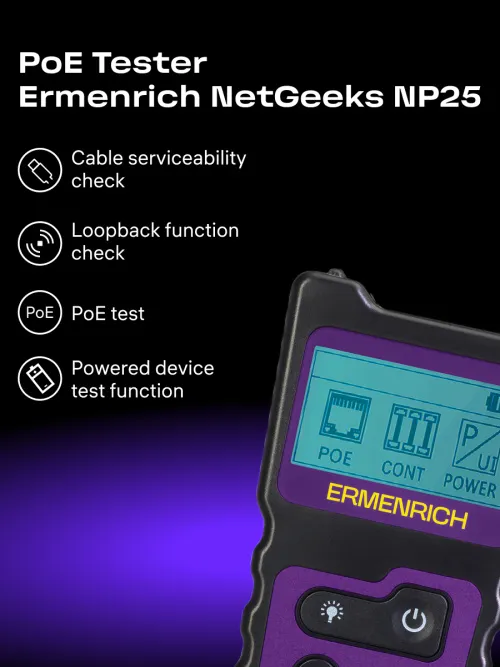

Key features:

Identification of the PSE type (standard or non-standard), midspan/endspan identification
Power and DC voltage testing, powered device test function
Testing cables for open circuits, short circuits, crossed pairs
Testing cable types: STP/UTP (CAT5, CAT6), telephone cables
Power supply (transmitter only): 3pcs AAA alkaline batteries

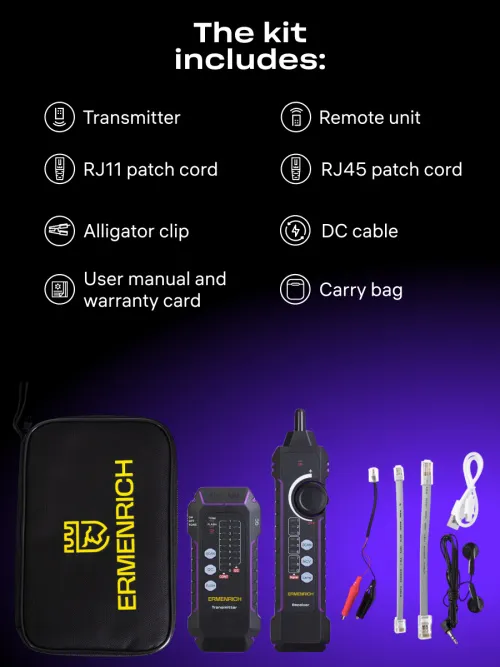

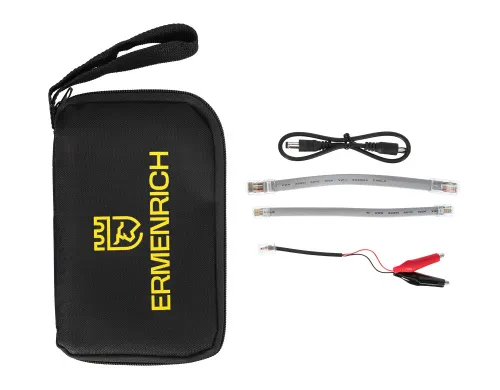

The kit includes:

Transmitter
Remote unit
RJ11 patch cord
RJ45 patch cord
Alligator clip
DC cable

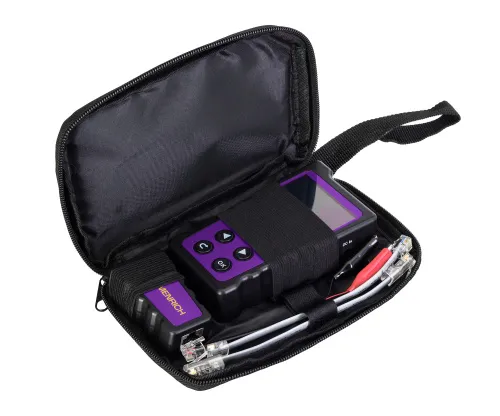

Carry bag
User manual and warranty card

Specifications

Product ID	82541
Brand	Ermenrich
Warranty	5 years
EAN	5905555016856
Package size (LxWxH)	19x11x4 cm
Shipping Weight	0.295 kg

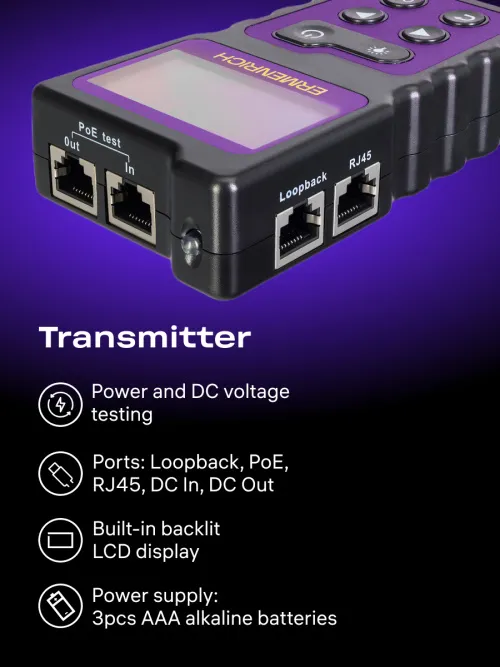

Transmitter

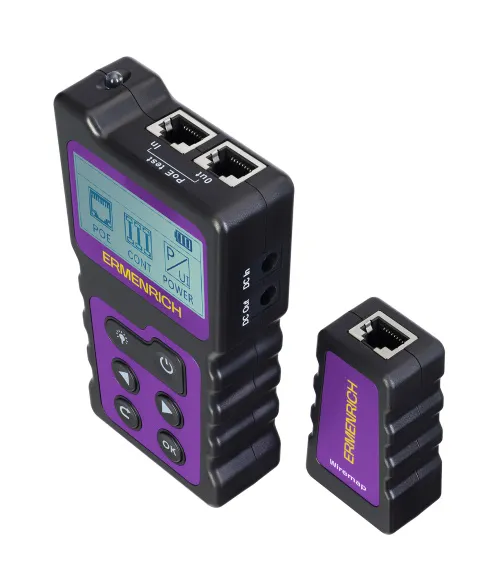

Ports	RJ45, PoE, Loopback, DC (input), DC (output)
Testing cable types	telephone, STP/UTP (CAT5, CAT6) network cable
Maximum length of the tested cable, m	600
Cable testing	+, (open circuits, short circuits, crossed pairs)
Loop-back test function	+, compatible with 10/100Mbps switches
PoE test	✓
Powered device (PD) test	✓
Voltage polarity detection	✓
PoE test
Power source equipment (PSE) type test	standard (IEEE 802.3at/af)/non-standard
Operating voltage range (DC), V	5 — 60
Powered device (PD) test
Operating voltage range (DC), V	5 — 60
Current measuring range, A	0 — 3
Key features
Protection	input voltage: 48V, current: 5mA
Display	LCD
Display resolution, px	128х64
Display backlight	✓
Power supply	AAA alkaline batteries – 3 pcs. (not included)
Auto power off	15 min, 60 min, 30 min
Operating temperature range,°C	−10… +60 (14… 140)
Operating humidity range, %	20…70

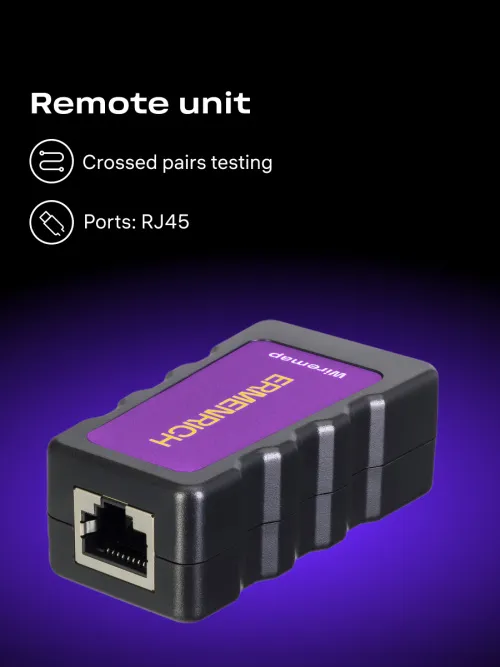

Receiver / Remote unit
Ports	RJ45
