Functions: cable testing, PoE test with the identification of a PSE type, midspan/endspan identification

Telephone, STP/UTP (CAT5, CAT6) network cable
Testing cable types
600
Maximum length of the tested cable
AAA alkaline batteries – 3 pcs. (not included)
The power source is an important element that is necessary for the quality operation of the device
Availability

Product ID 82541
Brand Ermenrich
Warranty 5 years
EAN 5905555016856
Package size (LxWxH) 19x11x4 cm
Shipping Weight 0.295 kg
Description

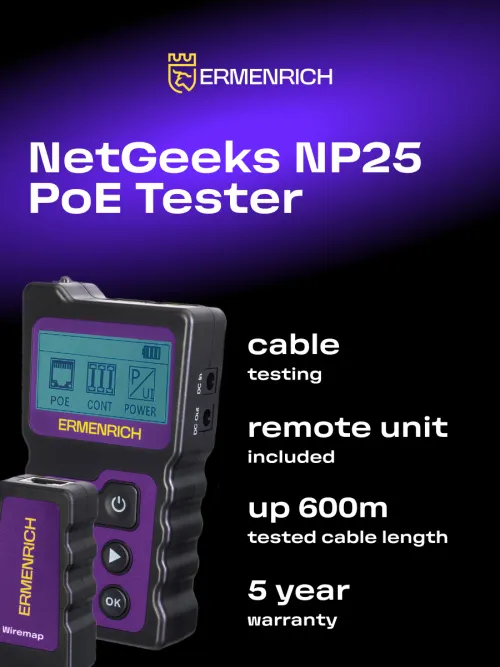

Ermenrich NetGeeks NP25 is a PoE cable tester for PoE-powered networks. It is used for setting up IP telephony, deploying IP surveillance systems, connecting wireless access points, etc. The Ermenrich NetGeeks NP25 supports all types of PoE devices. It can check the serviceability of cables, identify the PSE type, identify the midspan/endspan, and measure power and voltage.

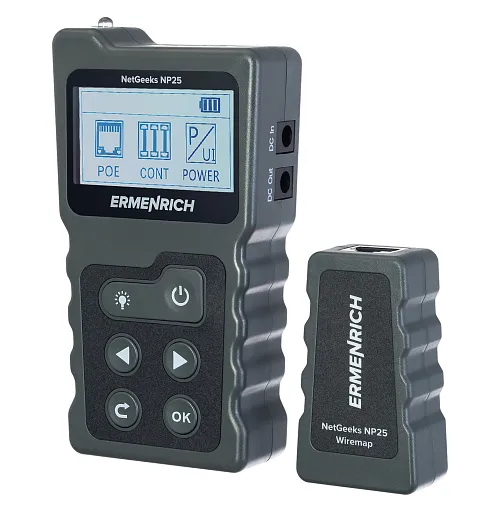

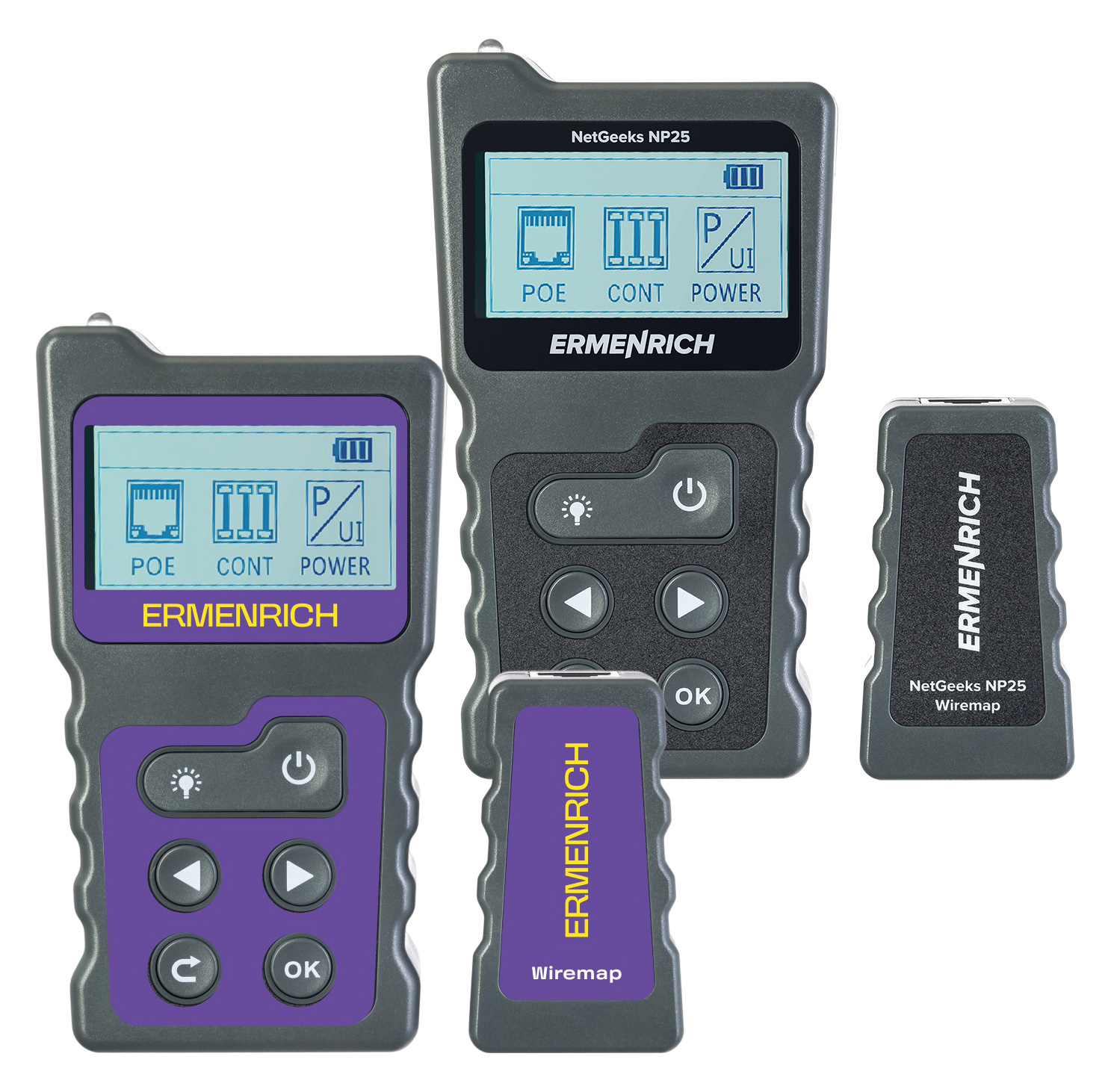

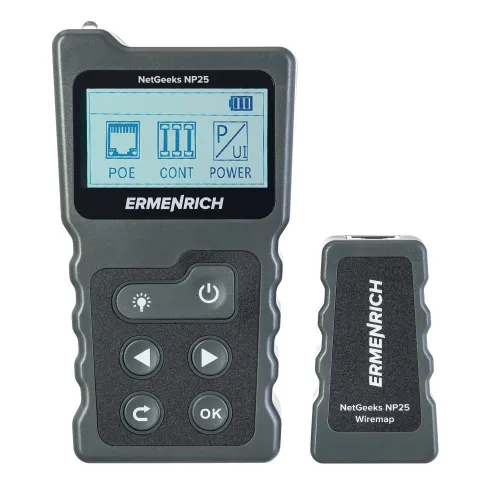

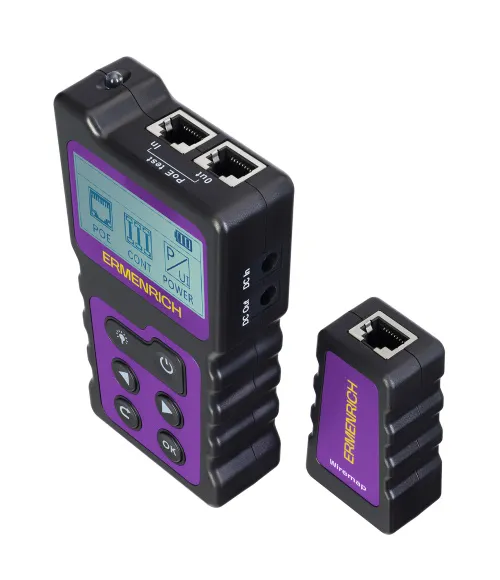

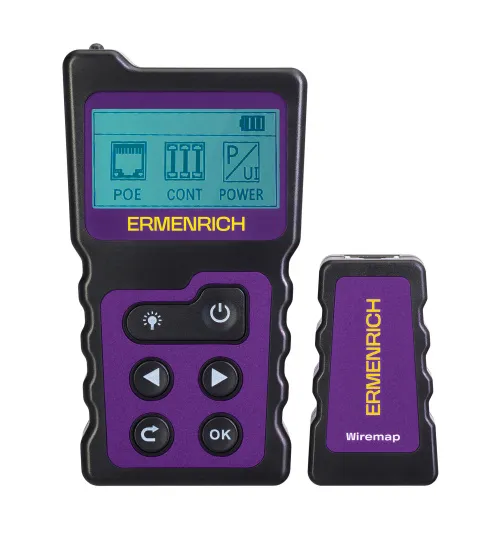

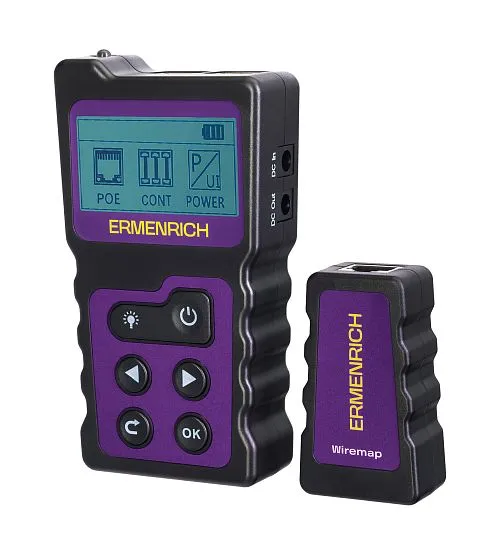

The device includes a transmitter and a remote unit. The transmitter requires three standard batteries (not included). Compact and lightweight, the Ermenrich NetGeeks NP25 is easily operated with just a few buttons. The results are displayed on the built-in backlit LCD display. Suitable for testing STP/UTP cables (CAT5, CAT6), telephone cables. The length of a tested cable should not be longer than 600 meters (1970ft).

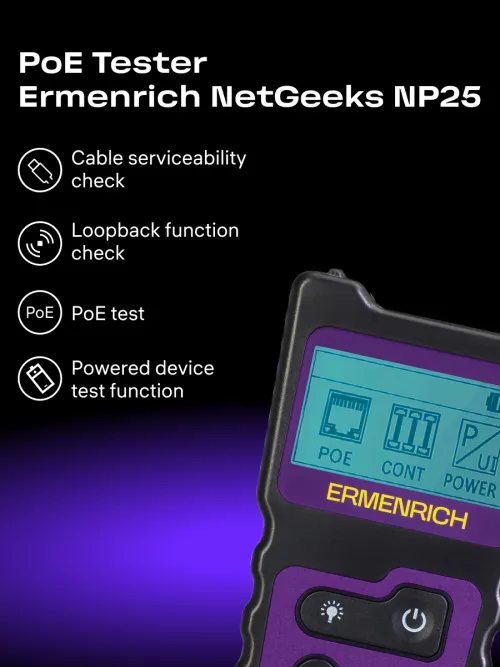

Key features:

  • Identification of the PSE type (standard or non-standard), midspan/endspan identification
  • Power and DC voltage testing, powered device test function
  • Testing cables for open circuits, short circuits, crossed pairs
  • Testing cable types: STP/UTP (CAT5, CAT6), telephone cables

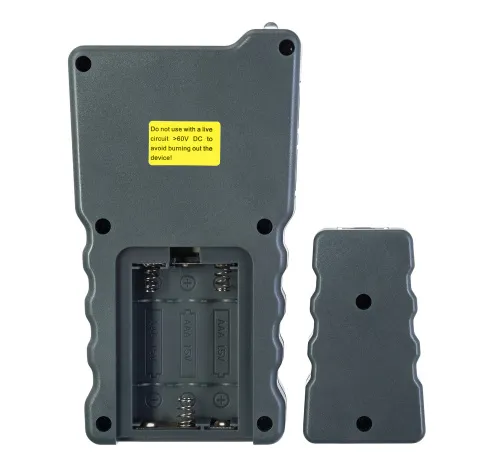

  • Power supply (transmitter only): 3pcs AAA alkaline batteries

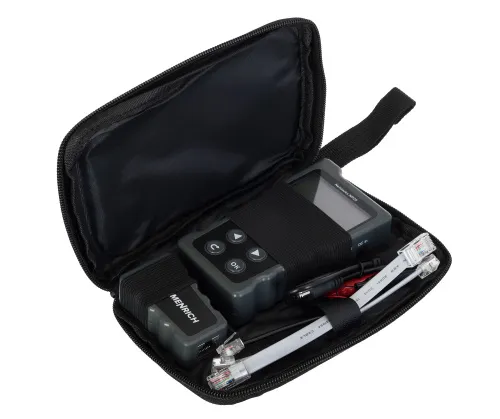

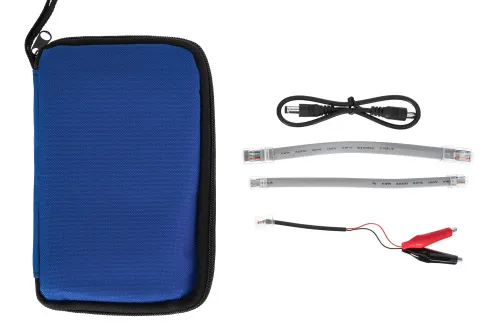

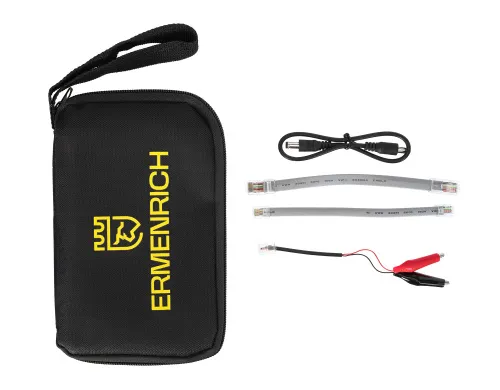

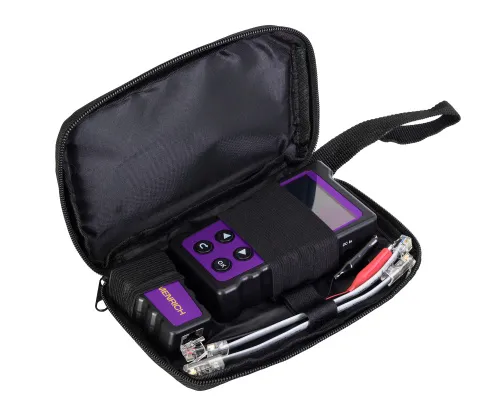

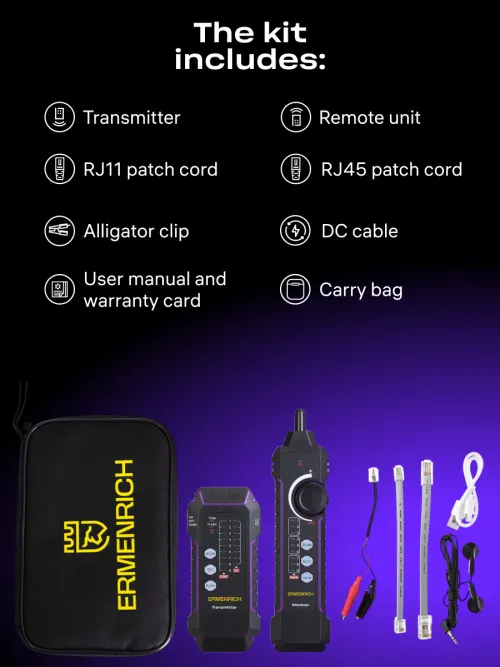

The kit includes:

  • Transmitter
  • Remote unit
  • RJ11 patch cord
  • RJ45 patch cord
  • Alligator clip
  • DC cable
  • Carry bag
  • User manual and warranty card
Specifications
Product ID 82541
Brand Ermenrich
Warranty 5 years
EAN 5905555016856
Package size (LxWxH) 19x11x4 cm
Shipping Weight 0.295 kg

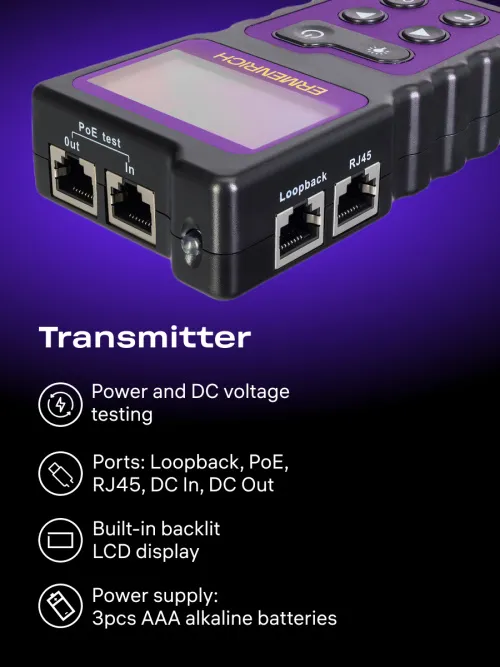

Transmitter

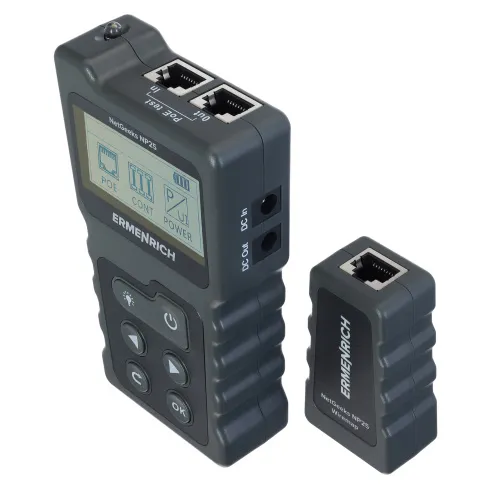

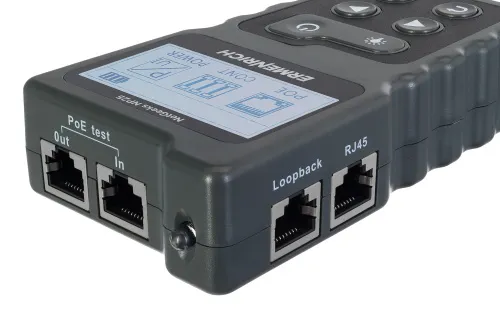

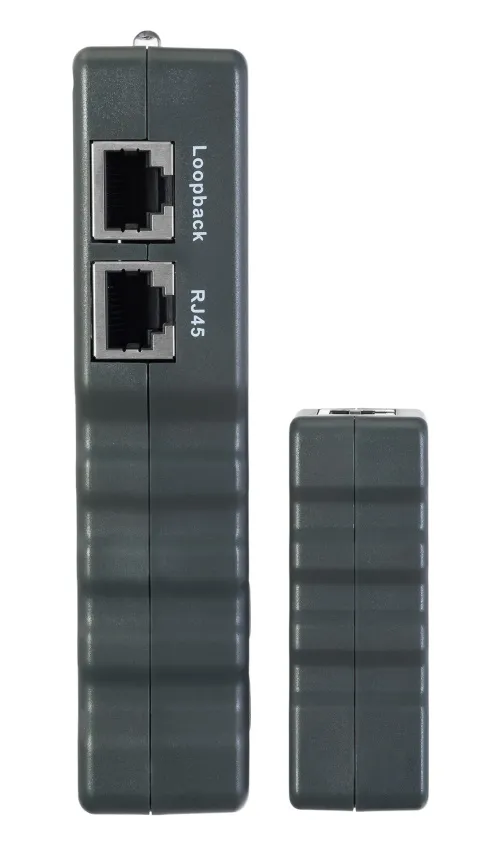

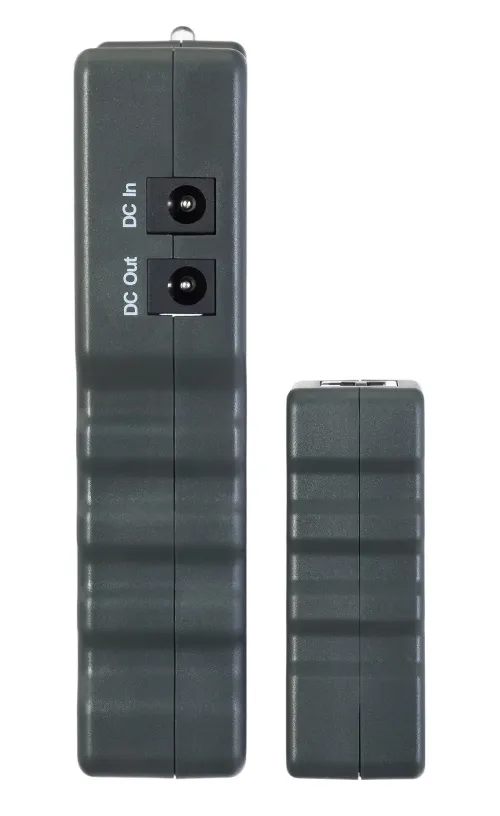

Ports RJ45, PoE, Loopback, DC (input), DC (output)
Testing cable types telephone, STP/UTP (CAT5, CAT6) network cable
Maximum length of the tested cable, m 600
Cable testing +, (open circuits, short circuits, crossed pairs)
Loop-back test function +, compatible with 10/100Mbps switches
PoE test
Powered device (PD) test
Voltage polarity detection
PoE test
Power source equipment (PSE) type test standard (IEEE 802.3at/af)/non-standard
Operating voltage range (DC), V 5 — 60
Powered device (PD) test
Operating voltage range (DC), V 5 — 60
Current measuring range, A 0 — 3
Key features
Protection input voltage: 48V, current: 5mA
Display LCD
Display resolution, px 128х64
Display backlight
Power supply AAA alkaline batteries – 3 pcs. (not included)
Auto power off 15 min, 60 min, 30 min
Operating temperature range,°C −10… +60 (14… 140)
Operating humidity range, % 20…70

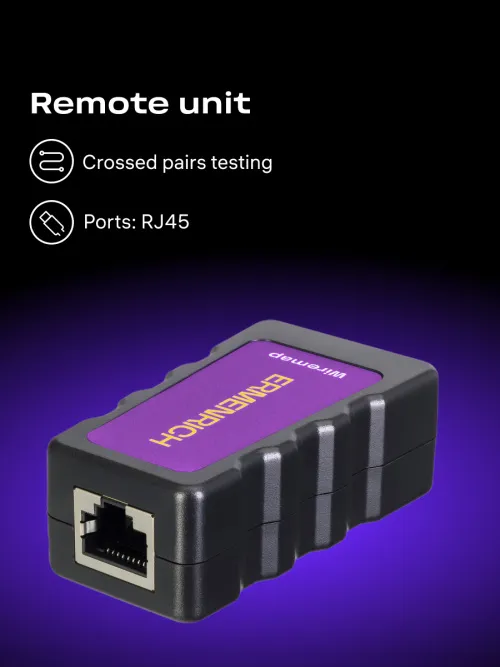

Receiver / Remote unit
Ports RJ45
